Name: Pass-Through / Inspection Conveyor
Brand: Manncorp Inc.
Price: 6995.0 USD
Availability: InStock

Pass-Through & Inspection Conveyors - CT Series from Manncorp

CT Series PCB Conveyor / PCB Inspection Conveyor

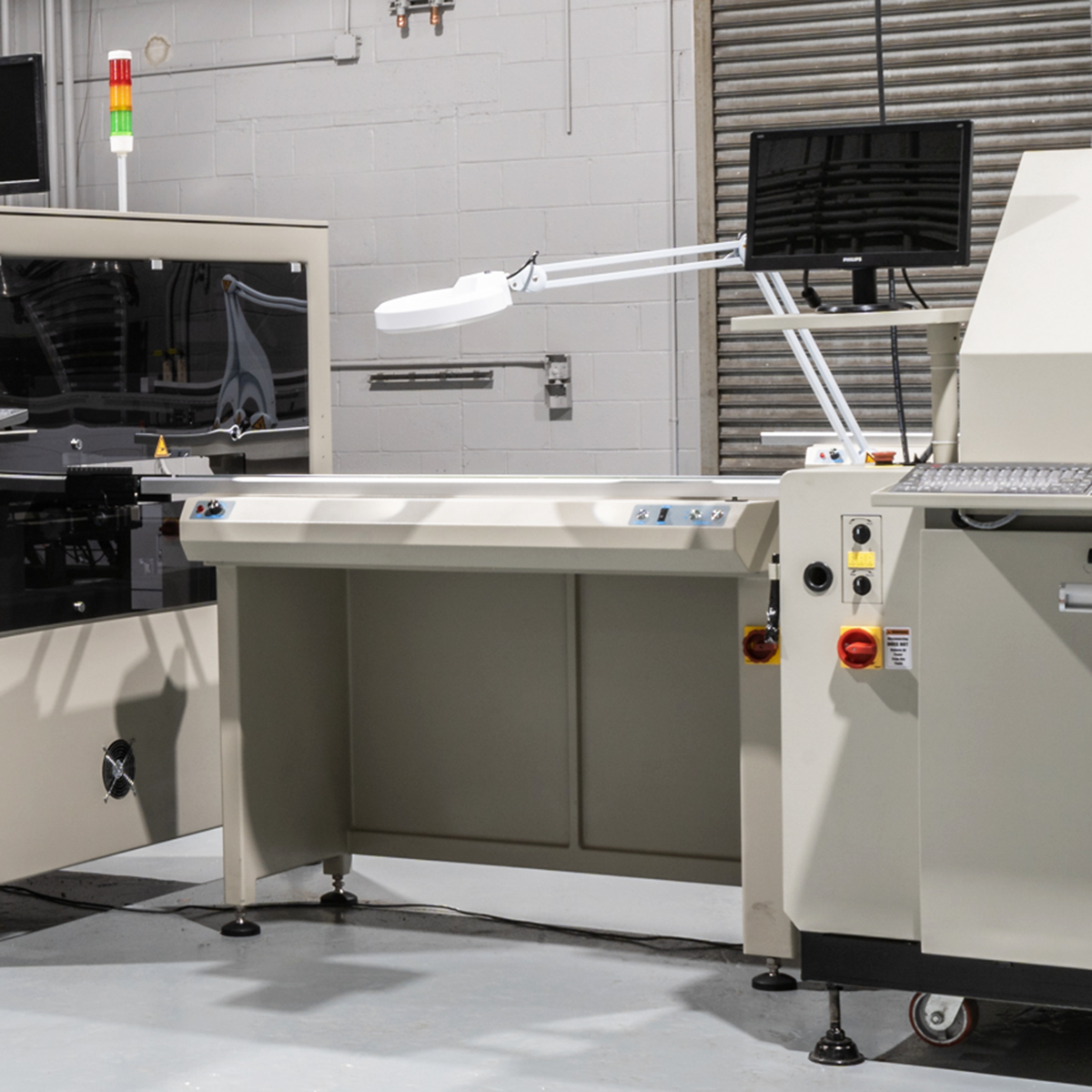

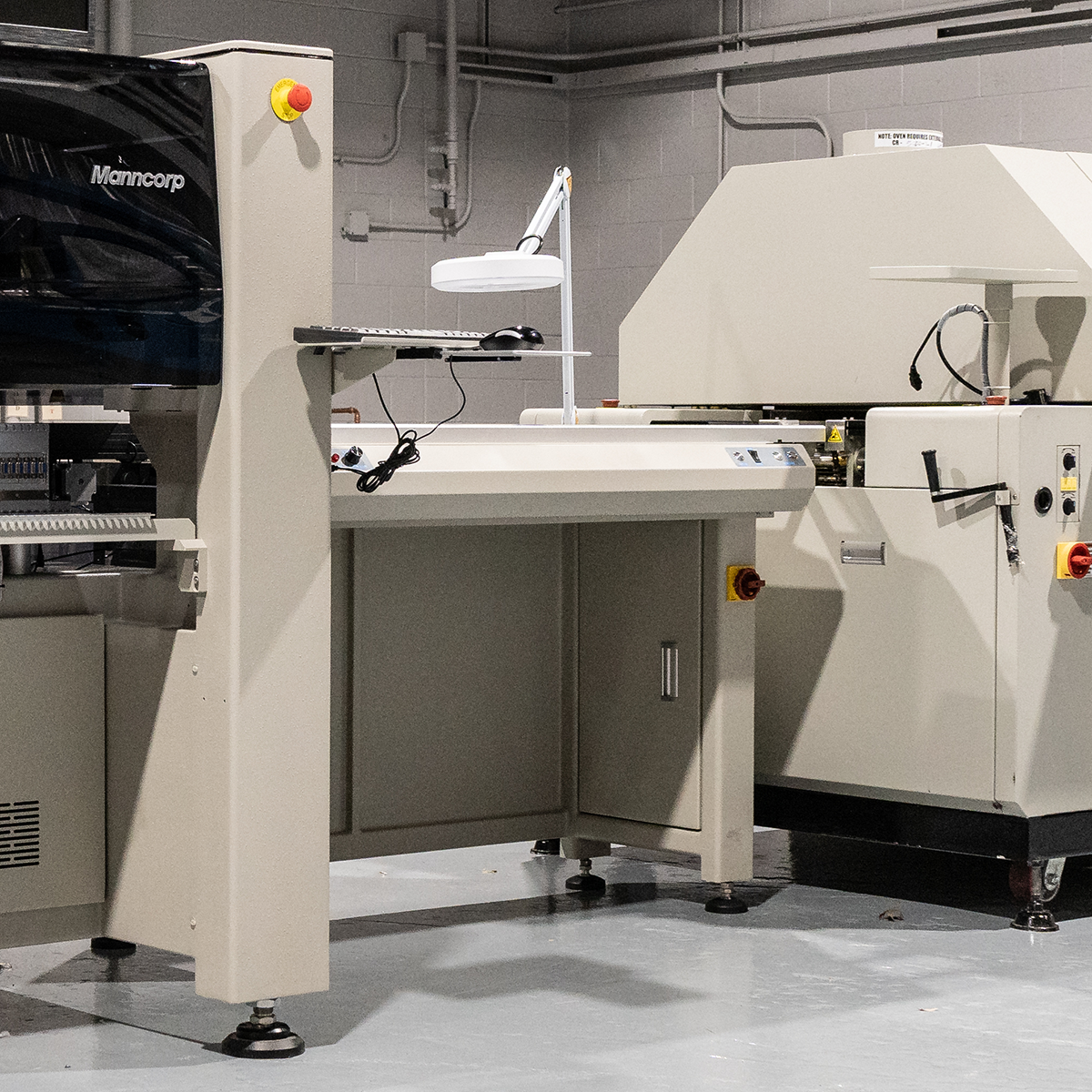

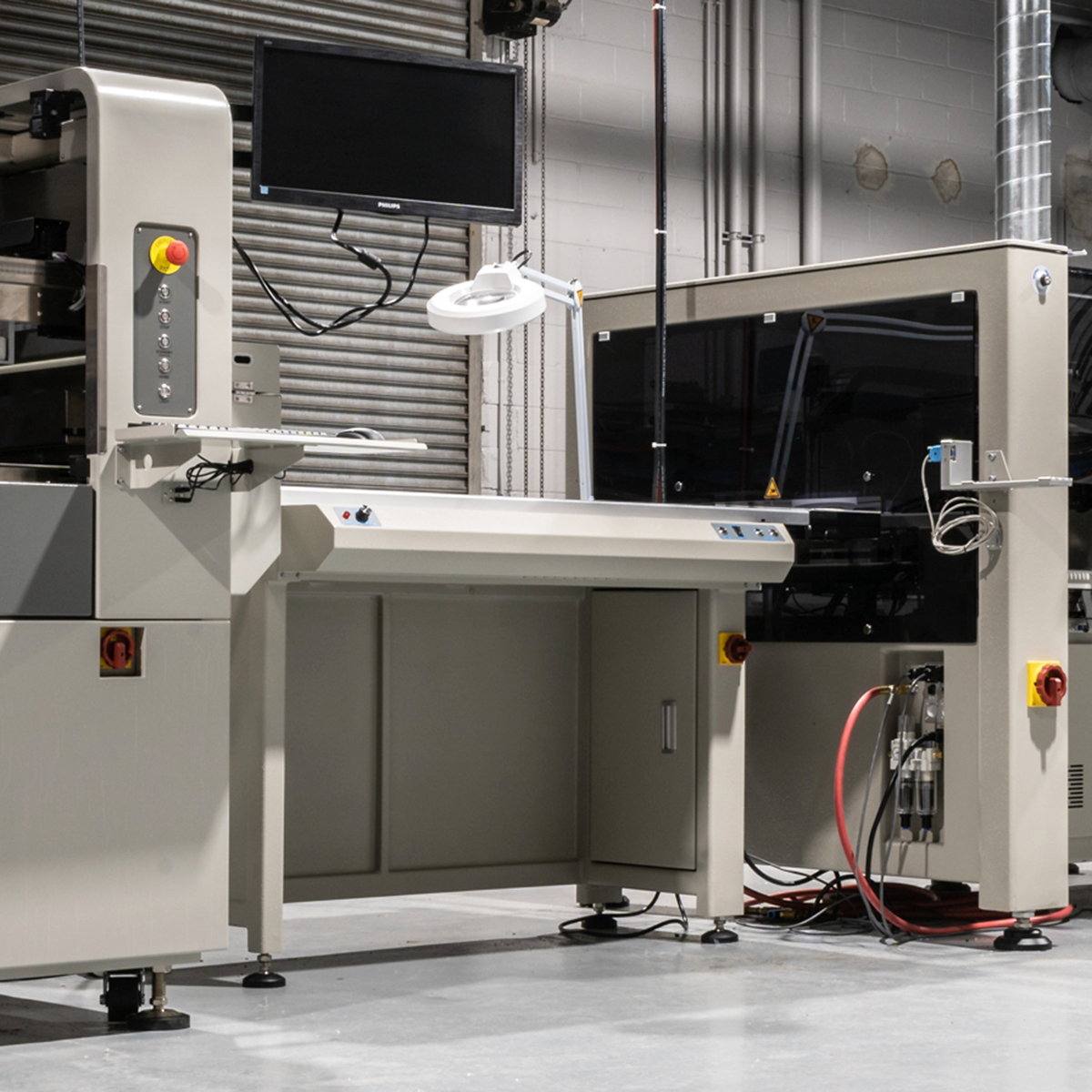

An inline conveyor is a necessary step towards achieving automated assembly. Link your pick-and-place machine, stencil printer, and reflow oven for full automation with our SMEMA-compatible Pass-Through/Inspection conveyor. This conveyor type can be used for PCB transport, QC inspection, and performing partial manual assembly or packaging.

Pass-Through/Inspection conveyors are available in three models, with 900 mm, 1300 mm, and 1500 mm lengths available.

Title

900 mm (35 in.)

1300 mm (51 in.)

1500 mm (59 in.) 3-Stage

Equipment Price

Quantity

[{"id":40316102312075,"title":"900 mm (35 in.)","option1":"900 mm (35 in.)","option2":null,"option3":null,"sku":"CT90","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Pass-Through \/ Inspection Conveyor - 900 mm (35 in.)","public_title":"900 mm (35 in.)","options":["900 mm (35 in.)"],"price":699500,"weight":147418,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40316102344843,"title":"1300 mm (51 in.)","option1":"1300 mm (51 in.)","option2":null,"option3":null,"sku":"CT130","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Pass-Through \/ Inspection Conveyor - 1300 mm (51 in.)","public_title":"1300 mm (51 in.)","options":["1300 mm (51 in.)"],"price":779500,"weight":158757,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40316102377611,"title":"1500 mm (59 in.) 3-Stage","option1":"1500 mm (59 in.) 3-Stage","option2":null,"option3":null,"sku":"CT1500","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Pass-Through \/ Inspection Conveyor - 1500 mm (59 in.) 3-Stage","public_title":"1500 mm (59 in.) 3-Stage","options":["1500 mm (59 in.) 3-Stage"],"price":859500,"weight":170097,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

QUESTIONS? TEXT OR CALL:

Chris Ellis 215-869-8374 | East Coast

Ed Stone 215-808-6266 | West Coast

Transport, Buffer, Inspect, and Assemble

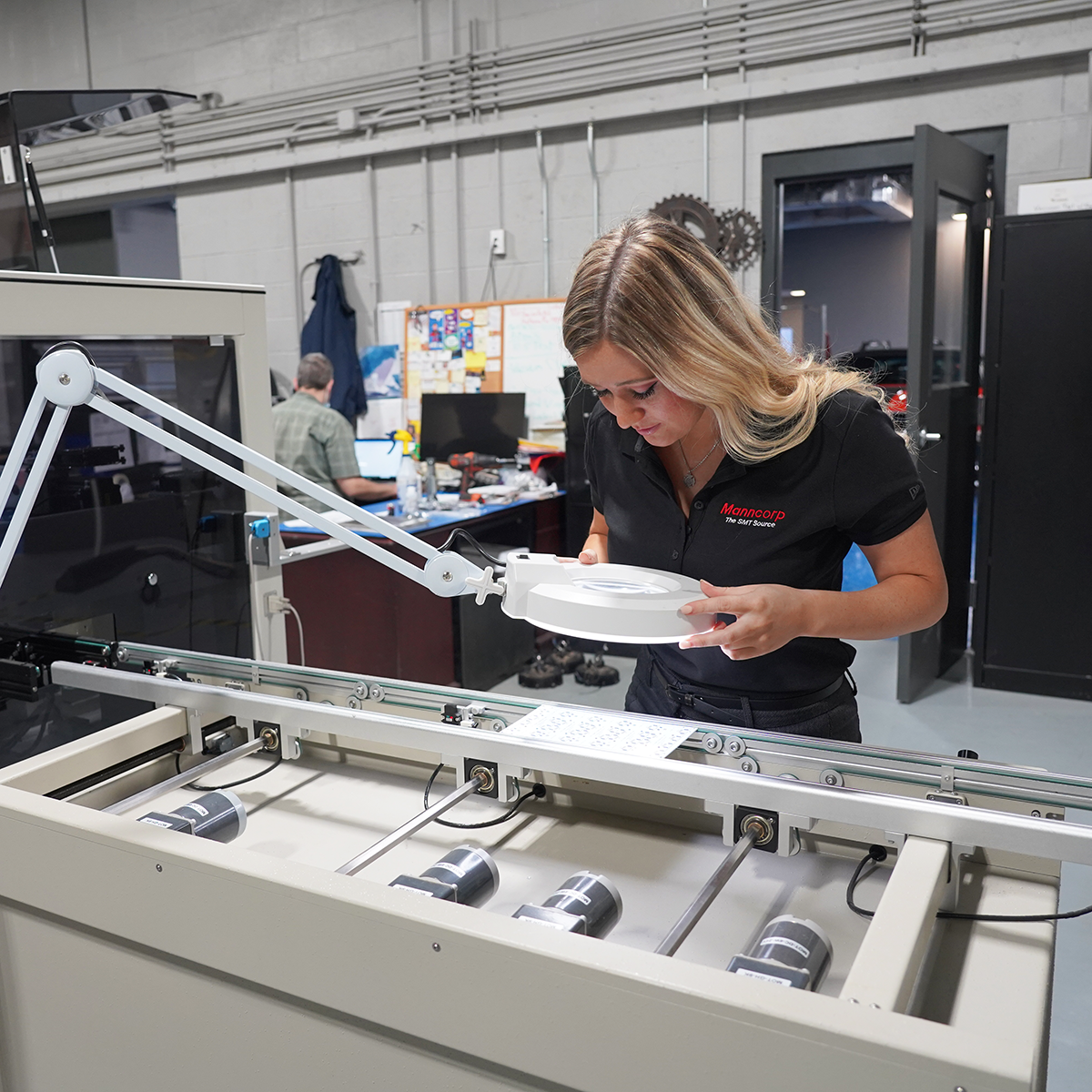

The PCB enters the Pass-Through/Inspection Conveyor from the previous machine and is conveyed to the inspection area. If there is already a board in place for inspection, the conveyor will automatically hold the new PCB at the conveyor's entrance.

Once the PCB has been inspected, or manual assembly tasks have been completed, the operator confirms completion by pushing a button, then the board proceeds or waits for the availability of the next machine.

If inspection or manual assembly work is not required, the PCB passes on to the next machine, or is buffered until a ready signal is received from that machine.

A counter is included with the conveyor to keep a running tally of each board passed.

CT90 CONVEYOR SPECIFICATIONS
PCB Dimensions	Max. Length 820 mm (32.3") Width: 35 mm to 405 mm (1/4" to 16")
Conveyor Speed	10 m/min (32.8 ft./min.)
PCB Transport Direction	Left to right (right to left optional)
Dimensions	900 mm x 645 mm x 950 mm (35" L x 25.4" W x 37.4" H)
Weight	103 kg (227 lbs)
Power	200-230V

CT130 CONVEYOR SPECIFICATIONS
PCB Dimensions	Max. Length 1270 mm (50") Width: 35 mm to 405 mm (1/4" to 16")
Conveyor Speed	10 m/min (32.8 ft./min.)
PCB Transport Direction	Left to right (right to left optional)
Dimensions	1300 mm x 645 mm x 950 mm (51" L x 25.4" W x 37.4" H)
Weight	101 kg (223 lbs)
Power	200-230V

CT150 CONVEYOR SPECIFICATIONS
PCB Dimensions	Max. Length 500 mm (19.7") Width: 35 mm to 405 mm (1/4" to 16")
Conveyor Speed	10 m/min (32.8 ft./min.)
PCB Transport Direction	Left to right (right to left optional)
Dimensions	1500 mm x 645 mm x 950 mm (59" L x 25.4" W x 37.4" H)
Weight	148 kg (326 lbs)
Power	200-230V

Pass-Through / Inspection Conveyor

Pass-Through / Inspection Conveyor

Transport, Buffer, Inspect, and Assemble
