Conveyors & PCB Handling

17 products

Automate your PCB assembly line with board conveyors, PCB loaders and unloaders, inspection conveyors, wave soldering conveyors, and more. Manncorp has all your PCB handling needs covered.

Sort

Inspection and Linking Conveyor

PCBs to 530 x 460 mm
Link Equipment, Inspect, and Buffer
50-1200 mm or Custom Lengths

CT Series PCB Conveyor / PCB Inspection Conveyor

Pass-Through / Inspection Conveyor

PCBs to 1270 x 405 mm
Transport, Buffer, Inspect, and Assemble
900-1500 mm Lengths

PCB Inspection Conveyor for AOI/SPI from Manncorp

AOI/SPI/PCB Inspection Conveyor

PCBs to 450 x 350 mm
Integrate Post Inline AOI or SPI
1000 mm Length

Automatic Telescoping Passageway Conveyor

PCBs to 400 x 350 mm
Automated Pass Through for Personnel
1700 mm Length

Folding Passageway Conveyor

PCBs to 400 x 350 mm
Allows Personnel Pass Through
1320 mm Length

Reflow Oven Exit / Unloading Conveyor

PCBs to 530 x 460 mm
Integrate Post Reflow Oven
1000, 1500 mm or Custom Lengths

Drop Stack / Bare Board Loader

PCBs to 400 x 350 mm
Feeds PCBs into Production Line
500 mm Length

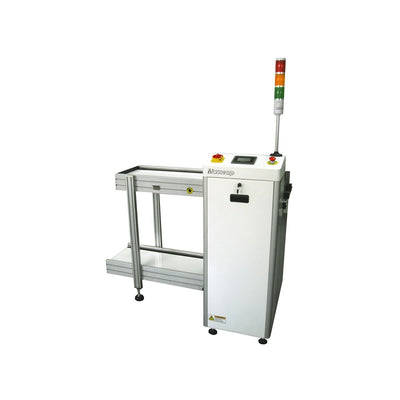

BL Series PCB Magazine Loader from Manncorp

Standard PCB Magazine Loader

PCBs to 535 x 460 mm
Load PCBs Made for One Size Magazine
900-1750 mm Lengths

Adjustable PCB Loader Compatible with Most PCB Magazine Sizes

Adjustable Magazine Loader

PCBs to 530 x 460 mm
Load PCBs from Any Size Magazine
1750 mm Length

Magazine Loader / Drop Stack Loader

PCBs to 535 x 390 mm
Load PCBs from Magazines or Stacks
2068 mm Length

UL Series PCB Magazine Unloader from Manncorp

Standard PCB Magazine Unloader

PCBs to 535 x 460 mm
Unload PCBs from Line to One Size Magazine
1700-2100 mm Length

Adjustable PCB Magazine Unloader

PCBs to 530 x 460 mm
Unload PCBs from Line to Any Size Magazine
2100 mm Length

PCB Assembly Line Combiner / Separator from Manncorp

PCB Line Combiner / Separator

PCBs to 400 x 460 mm
Merge Two Lines or Split Single Line
600 mm Length

Compact Vertical PCB Buffer Conveyor from Manncorp

Vertical LIFO/FIFO Buffer

PCBs to 400 x 350 mm
Holds Up to 24 PCBs
600 mm Length

Turning Conveyor

PCBs to 530 x 460 mm
Turn PCBs 90˚ or 180˚
820 mm Length

Wave Soldering Loader

PCBs to 530 x 350 mm
Integrate Pre-Wave Solder
1000 mm Length

Wave Soldering Unloader Belt from Manncorp

Wave Soldering Belt Unloader

PCB Width to 350 mm
Integrate Post Wave Solder
1250 mm Length

With Manncorp conveyors and PCB handling machines, you can connect or inspect PCBAs, change the directional flow of your assembly line, combine multiple lines into a single line, decrease the chance of bottlenecks, and increase overall efficiency.
