SMT Pick & Place Machines

12 products

Manncorp carries SMD pick and place machines for all types of SMT PCB assembly, from prototyping to high-volume production, with specialized pick and place machines for high mix SMT assembly, circuit board assembly lines with frequent job changeovers, and LED assembly. All pick and place machines are supported by our in-house technical staff.

Automatic Pick & Place

SMT Place 2000 Manual SMT Pick & Place from Manncorp

Manual Pick & Place

LED Pick & Place

12 products

Sort

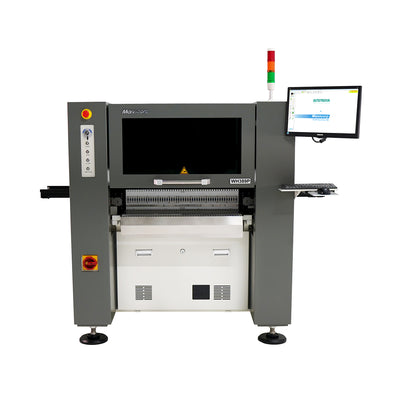

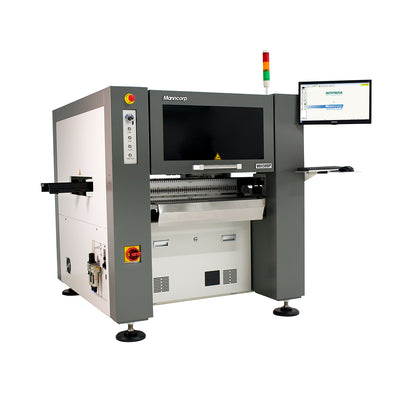

Front View: SMT Pick and Place MC389 for High-Speed, High Mix PCBA

MC389 High Speed High Mix Pick & Place

10,500 CPH, Three Head
650 x 460 mm PCB Capacity
Up to 160 Smart Feeder Ports

MC388 SMT Pick & Place for High Mix High Component Count or LEDs

10,500 CPH, Four Head
1250 x 350 mm PCB Capacity
Up to 256 Smart Feeder Ports

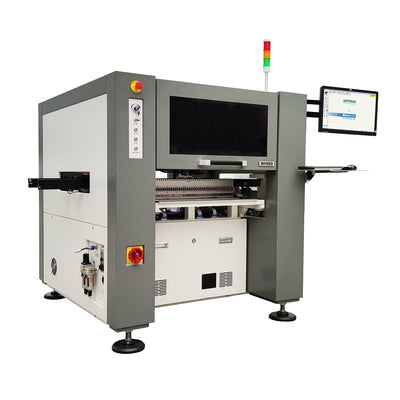

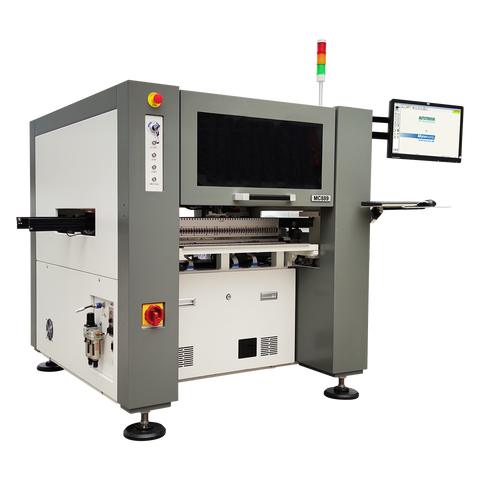

Ultra High Speed SMT Pick and Place MC889 from Manncorp

Front View: Ultra High Speed SMT Pick and Place MC889 from Manncorp

MC889 High Speed SMT Pick & Place

20,000 CPH, Six Head, 22,000 CPH, Eight Head
650 x 460 mm PCB Capacity
Up to 96 Smart Feeder Ports

MC388HS High Speed SMT Pick & Place for High Mix High Component Count or LEDs

18,000/22,000 CPH, 6/8 Head
1250 x 350 mm PCB Capacity
Up to 192 Smart Feeder Ports

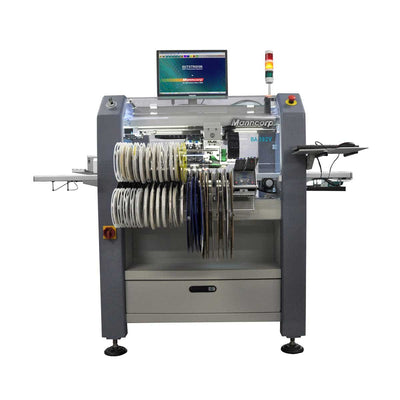

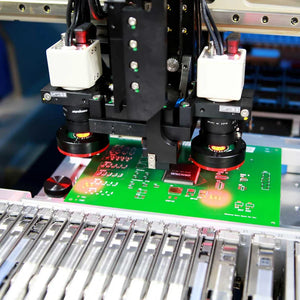

Dual Head MC385V2V SMT Pick & Place from Manncorp

MC385V2V Dual-Head Pick & Place

PCBs to 435 x 350 mm
8,000 CPH
Up to 128 Smart Feeder Ports

MC385V1V SMT Pick & Place

PCBs to 435 x 350 mm
5,000 CPH
Up to 128 Smart Feeder Ports

SMT Pick and Place - MC392 Handles High Component Mix from Manncorp

MC392 High Mix Pick & Place

6,400 CPH, Dual Head
600 x 350 mm PCB Capacity
Up to 160 Smart Feeder Ports

SMT Pick and Place Machine MC400 for Medium Volume PCBA from Manncorp

Front View: SMT Pick and Place Machine MC400 for Medium Volume PCBA

MC400 Automatic Pick & Place

PCBs to 415 x 320 mm
3,000 CPH
Single Head

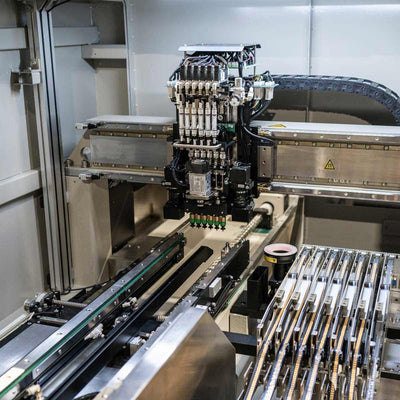

High Speed LED Pick and Place Machine - MCLEDV6 from Manncorp

Assemble LED Boards with MCLEDV6 LED Pick & Place Machine

MCLEDV6 High Speed LED Pick & Place

30,000 CPH, Six Head
Max Board Length 600 mm
Up to 16 Feeder Ports

Assemble LED Boards to 1800 mm - MCLEDV4-1800 Pick & Place from Manncorp

Side View: MCLEDV4-1800 Pick & Place for LED Assembly

MCLEDV4-1800 LED Pick & Place

15,000 CPH, Four Head
1800 x 300 mm PCB Capacity
Indexing PCB Table/Board Holder

Assemble LED Boards with MCLEDV4 Pick & Place Machine from Manncorp

MCLEDV4 LED Pick & Place

15,000 CPH, Four Head
1200 x 300 mm PCB Capacity
Indexing PCB Table/Board Holder

SMT Place 2000 Manual SMT Pick & Place - Front View

SMT Place 2000 Manual Pick & Place

PCBs to 280 x 220
Pressure-Sensitive Vacuum
X, Y, Z, & ° Axis Control

Here's What Manncorp Can Do For You

At Manncorp, we provide more than just equipment. If you are one of our customers, or thinking about taking the leap, here's what we can do for you.

Worry-Free Selection

Send us a BOM & we'll match equipment to your production, taking your risk out of the decision process.

Worry-Free Protection

Subscription and stand-alone service packages provide flexible post-warranty coverage.

Set-Up Assistance

We can set up your new machine - or an entire equipment line.

Expert Support

All of our technicians have been with Manncorp for more than 15 years.

Hands-On Training

Receive custom training based on your company's products and goals.

Diagnostics & Repairs

Equipment issues will be diagnosed quickly and resolved simply.

Getting help is easy: Call, email, or fill out our In-Warranty Service Request form.
Out of Warranty? Contact us to discuss your options.
We can provide services remotely, at your facility, or at one of our headquarters.
