X-Ray Inspection Systems

1 product

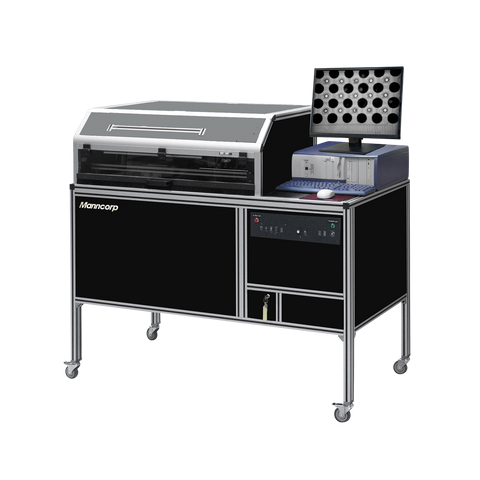

    MX1 X-Ray Inspection System - Precision You Can Trust

    Ensure flawless PCB assemblies with Manncorp's MX1, a high-performance real-time X-Ray inspection system designed for multilayer PCBs, dense metal BGAs, μBGAs, and chip-scale packages. Equipped with an 80kV computer-controlled X-Ray tube and a 10 μm focal spot, the MX1 delivers the power and precision needed to detect bridging, voids, missing balls, and other critical defects with ease.

    Unparalleled Clarity & Versatility

    • Powerful Imaging – Continuous optical zoom magnification from 4X to 100X geometric and up to 225X optical magnification for detailed inspections.
    • Advanced Viewing Options – Features a 45° wedge for angled inspections and Variable Angle Viewing at 15X geometric magnification, allowing you to see hidden defects with precision.
    • Real-Time Defect Detection – Identify faults in solder joints, internal layers, and components for superior quality assurance.

    From high-reliability electronics to intricate PCB assemblies, the MX1 ensures your production meets the highest standards. Upgrade your inspection process today!

    1 product
    MX1 X-Ray Inspection System
    • High-Resolution X-Ray System
    • Detect Bridging, Voids, and Missing Balls
    • Continuous Zoom Magnification

    Here's What Manncorp Can Do For You

    At Manncorp, we provide more than just equipment. If you are one of our customers, or thinking about taking the leap, here's what we can do for you.

    Worry-Free Selection

    Send us a BOM & we'll match equipment to your production, taking your risk out of the decision process.

    Worry-Free Protection

    Subscription and stand-alone service packages provide flexible post-warranty coverage.

    Set-Up Assistance

    We can set up your new machine - or an entire equipment line.

    Expert Support

    All of our technicians have been with Manncorp for more than 15 years.

    Hands-On Training

    Receive custom training based on your company's products and goals.

    Diagnostics & Repairs

    Equipment issues will be diagnosed quickly and resolved simply.

    Getting help is easy: Call, email, or fill out our In-Warranty Service Request form.
    Out of Warranty? Contact us to discuss your options.
    We can provide services remotely, at your facility, or at one of our headquarters.
