Advanced Features Included as Standard

The MC1200 has double-sided board capability & provides outstanding repeatability of ±0.01 mm. Vertical board/stencil separation ensures clean prints with excellent registration. Plus, the print speed control permits complex, fine-pitch circuit boards to be processed at slower speeds than simpler, less densely populated ones.

An optional dual-camera vision system shows X, Y, and theta alignments on an LCD screen. Once set, all adjustments remain locked-in during the entire run. Once the start button is activated, solder paste application and print stroking take place automatically. Squeegee movement and stencil separation speeds are fully programmable using the control panel.

Oversized Print Area——Custom Sizes Available

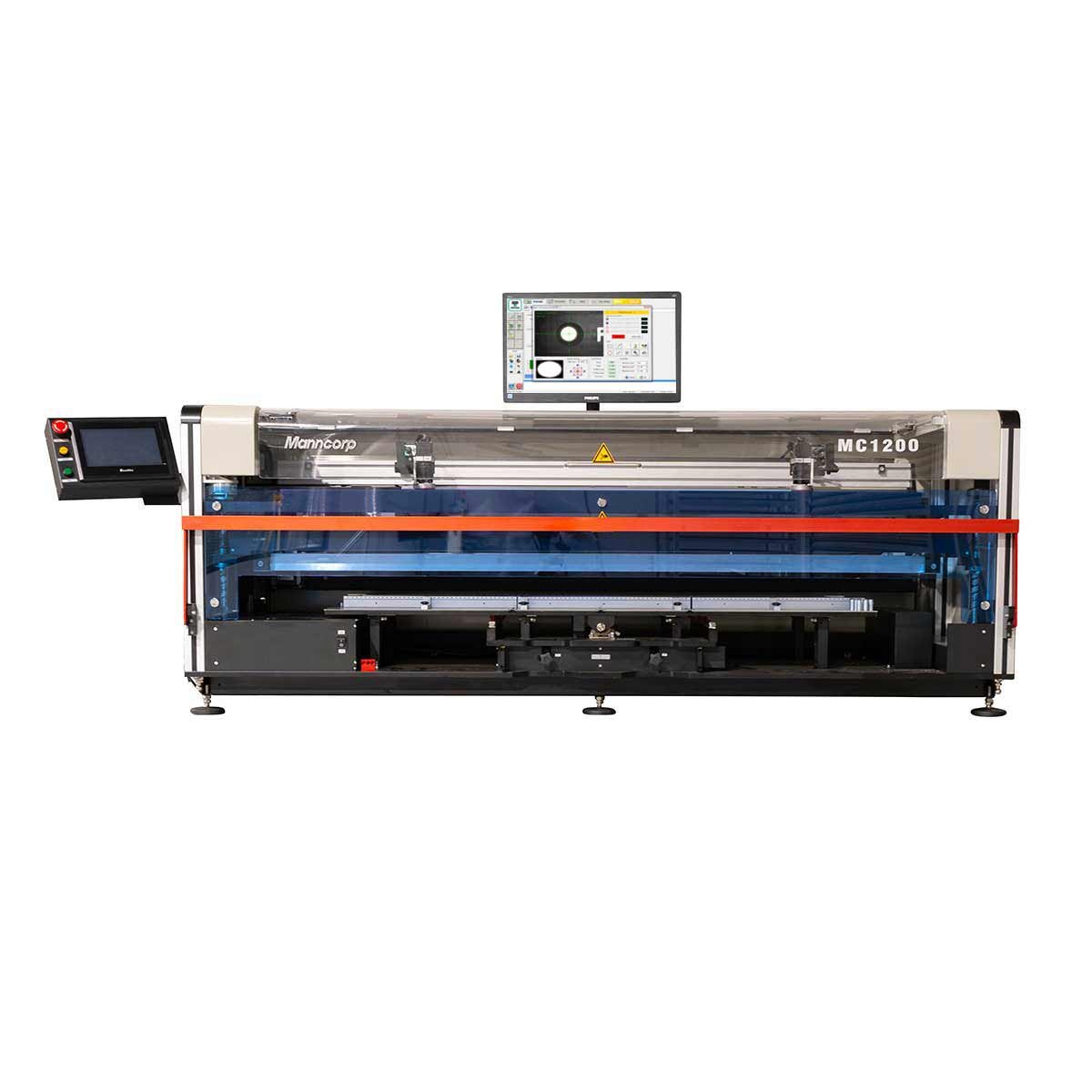

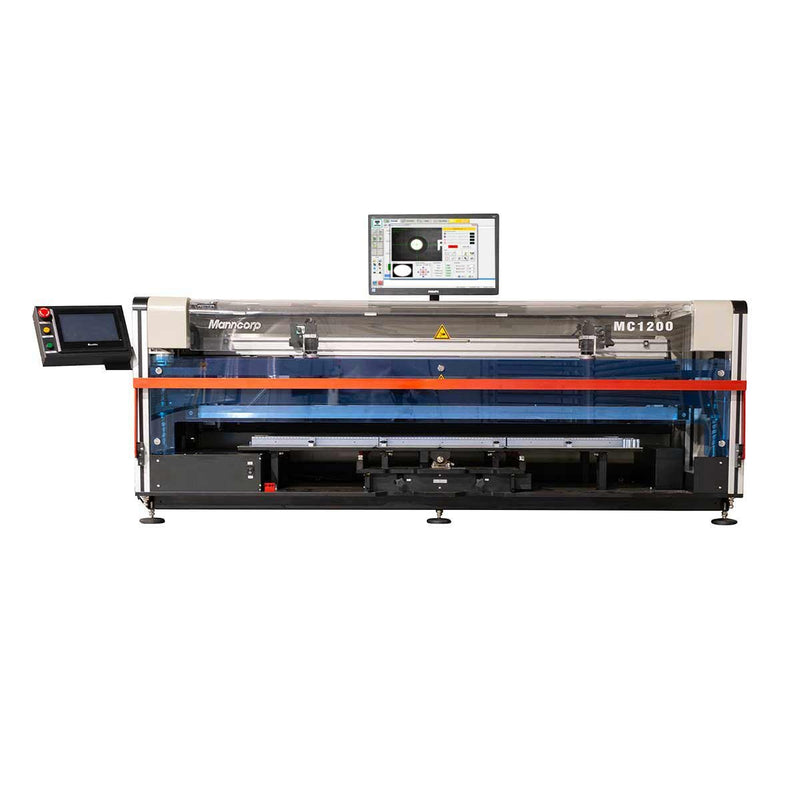

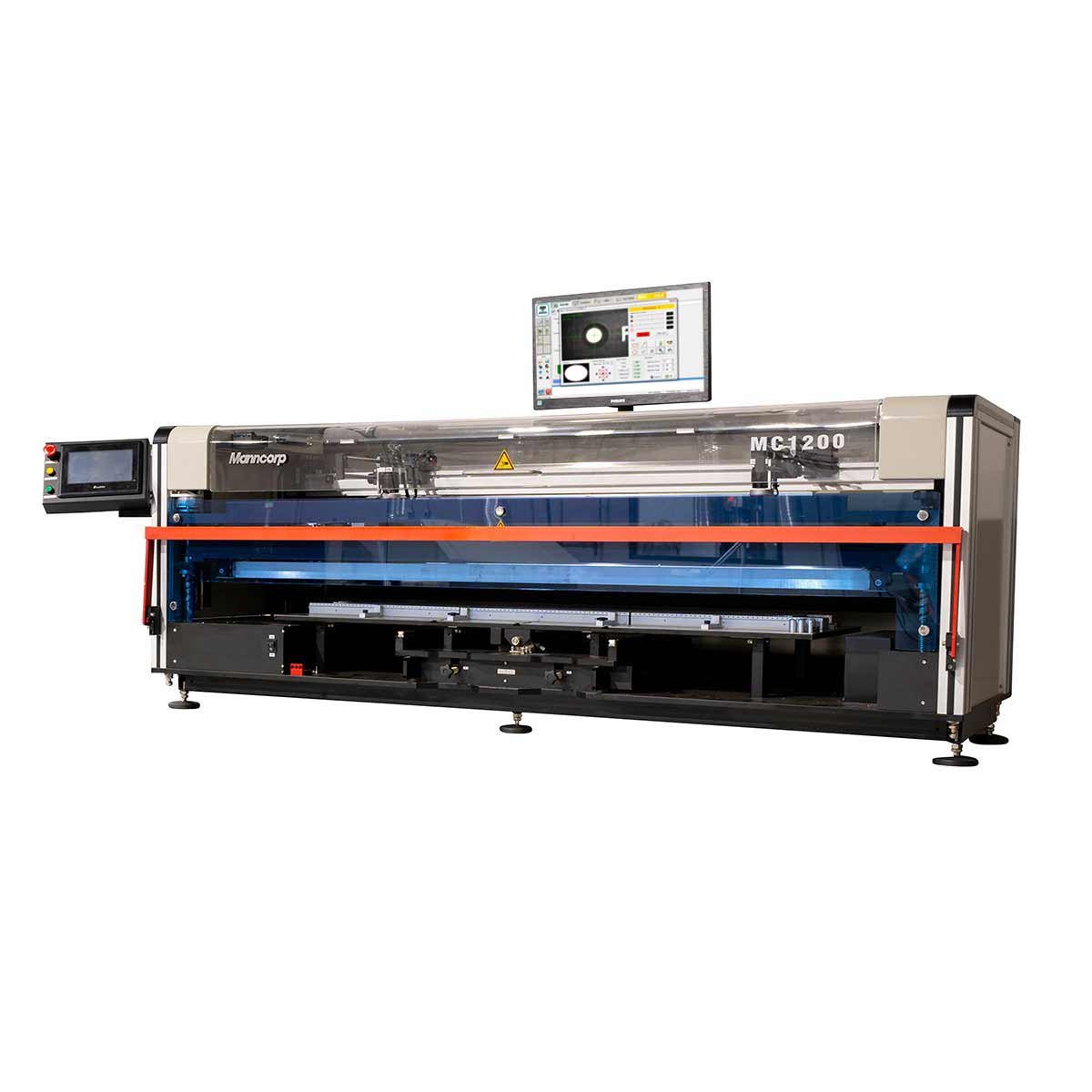

The MC1200 features an oversized print area of 1200 x 400 mm (47.3" x 15.75"). Custom print area sizes are also available.
Contact sales@manncorp.com to discuss options for your requirements.

Printing with the MC1200 in Five Easy Steps

Step 1:

Place the PCB board on the slidable working table.

Step 2:

Press the IN button. The working table will move inside automatically.

Step 3:

Press the DOWN button and the stencil will automatically move downward.

Step 4:

Use the magnifying camera to adjust X, Y and theta alignment easily & precisely.

Step 5:

Press the START button to begin printing. The squeegee will then automatically begin to spread the solder paste.
