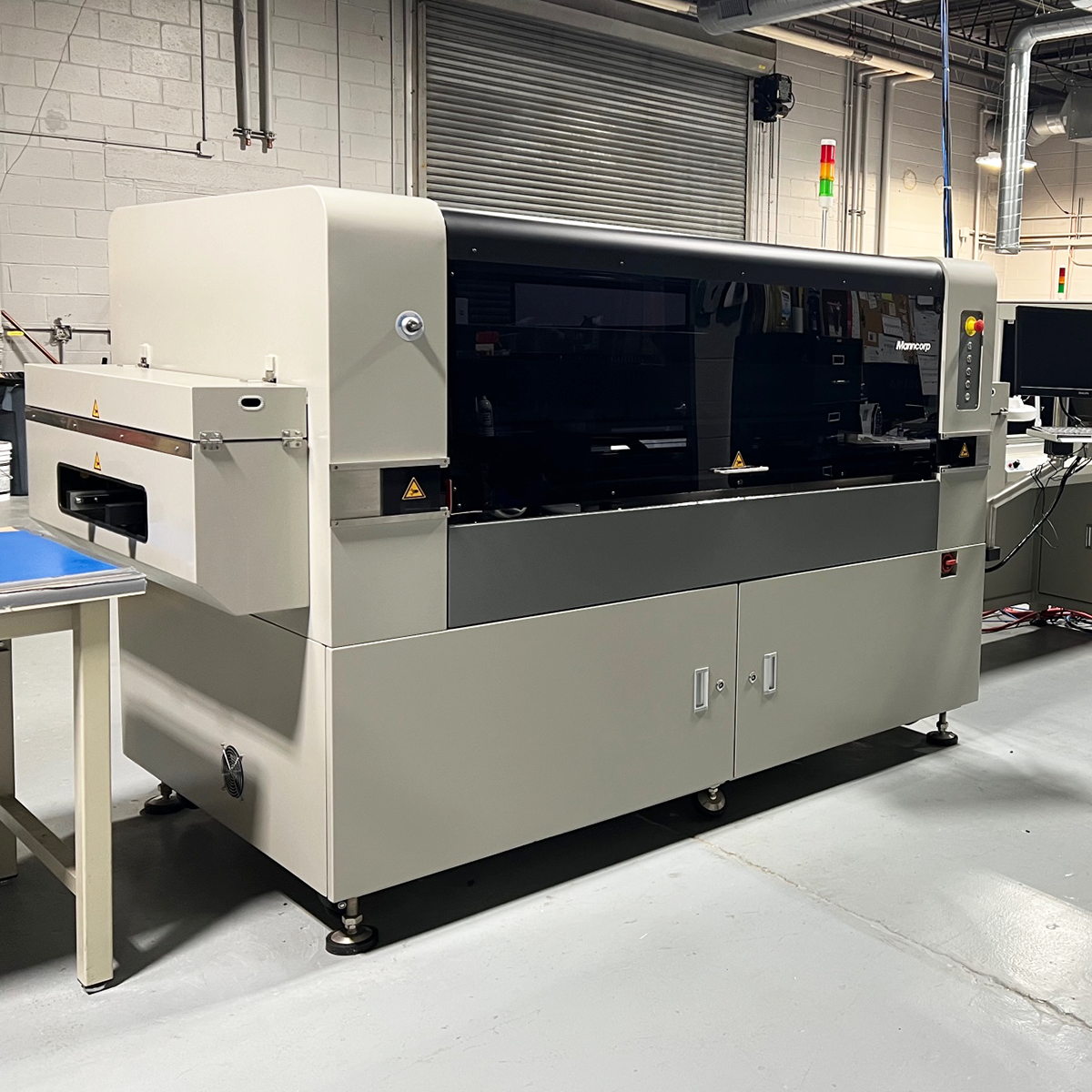

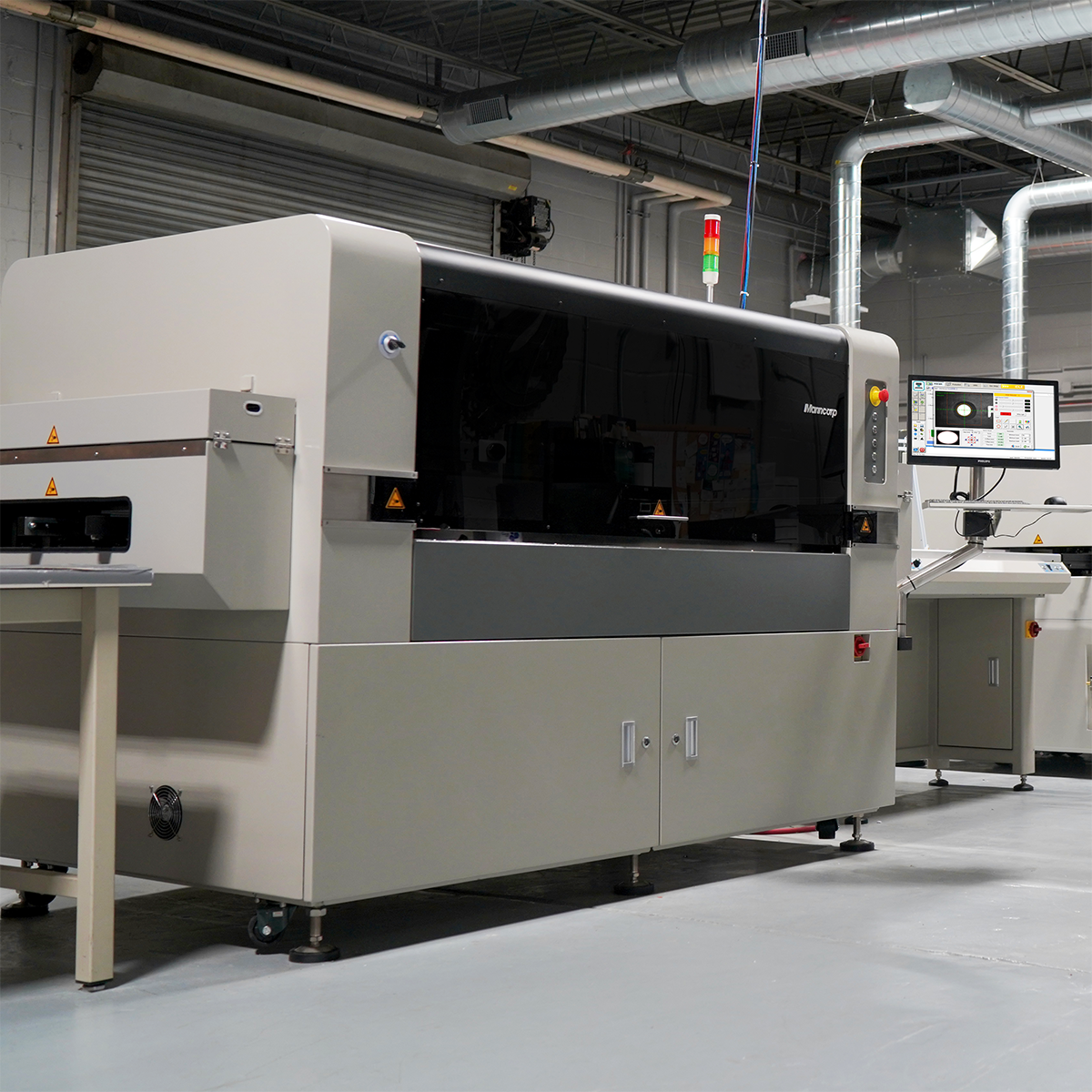

AP1200/AP1500 Series Inline Large Board Stencil Printer
Ideal for LED Strip Production
The AP1200/AP1500 provides fast, high-precision printing for LED panels. This stencil printer's unique clamping device prevents flexible boards from bending. The vacuum table ensures that long PCBs lay flat and it moves to align the PCB to the stencil.
Fully Automatic Assembly
Boards are automatically transported from the loader and aligned to the stencil. Automated production lowers the stencil and prints solder paste onto the pads at a programmable speed and pressure. The stencil then lifts from the board—also at a programmable speed—and the board is transported upline to the next processing step.
Graphical Interface Programming
This printer can be up and running quickly after install, thanks to simple Windows-based programming. All parameters, including print speed (programmable from 20 to 120 mm/s), stroke length, and squeegee pressure, are fully programmable via the GUI. During operation, all details, including process status of the current job, are displayed on the screen. Multiple user permission levels prevent important machine parameters from being accidentally changed.
Dual, Independent Print Heads
Two print heads are controlled by high-precision ball-screw drives with a programmable transport speed. Print pressure is uniformly and accurately controlled to increase throughput. Self-leveling squeegees automatically adjust to the stencil surface to ensure perfect registration on every print.
Advanced Vision Alignment
The AP1200/AP1500's advanced imaging system eliminates the need for specialized fiducial marks—any pad, from 0.5 mm to 3 mm, can be used in place of a fiducial mark. Multi light source selection allows the vision system to work with a range of PCB substrate colors when learning fiducial reference points.
SMEMA-Compatibility
The efficient single-stage PCB transport system is SMEMA-compatible; this machine can be connected for seamless integration with the other production equipment in your assembly line.
Under-Stencil Wiping Options
Automatic wet/dry/vacuum under-stencil cleaning is included with the AP1200/AP1500. The system can be programmed to clean the stencil using any combination of dry wipe, wipe with solvent ("wet wiping"), or wipe combined with a vacuum to draw material out of the apertures. Manncorp recommends using Zestron Vigon SC200 for cleaning solution.
| AP1200/AP1500 Specifications | |
|---|---|
| Printing Speed | 20 to 120 mm/s (servo controlled) |
| Vision Alignment | Automatic (AT-Align system) |
| Stencil Frame Size (External Dimensions) | AP1200: 300 x 300 mm to 560 x 1500 mm (11.8" x 11.8" to 22" x 59") AP1500: 300 x 300 mm to 560 x 1800 mm (11.8" x 11.8" to 22" x 71") |
| Board Size | AP1200: Min: 100 x 50 mm Max: 1200 x 300 mm AP1500: Min: 100 x 50 mm Max: 1500 x 300 mm |
| Board Thickness | 0.4 to 5 mm |
| Board Warpage | Max PCB 1% of diagonal line |
| Blade Type | Metal |
| XY Adjustment | ±10 mm |
| Radial Adjustment | ±2° |
| Printing Accuracy | ±0.04 mm |
| Registration Repeatability | ±0.01 mm |
| PCB Fixation | Screw clamping system and vacuum |
| CCD FOV | 5 x 7 mm |
| Vision Fiducial | Standard fiducial and any pads, 0.5 to 3 mm |
| Air & Power Requirements | 220VAC 50-60 Hz power, 75psi (5 bar) air |

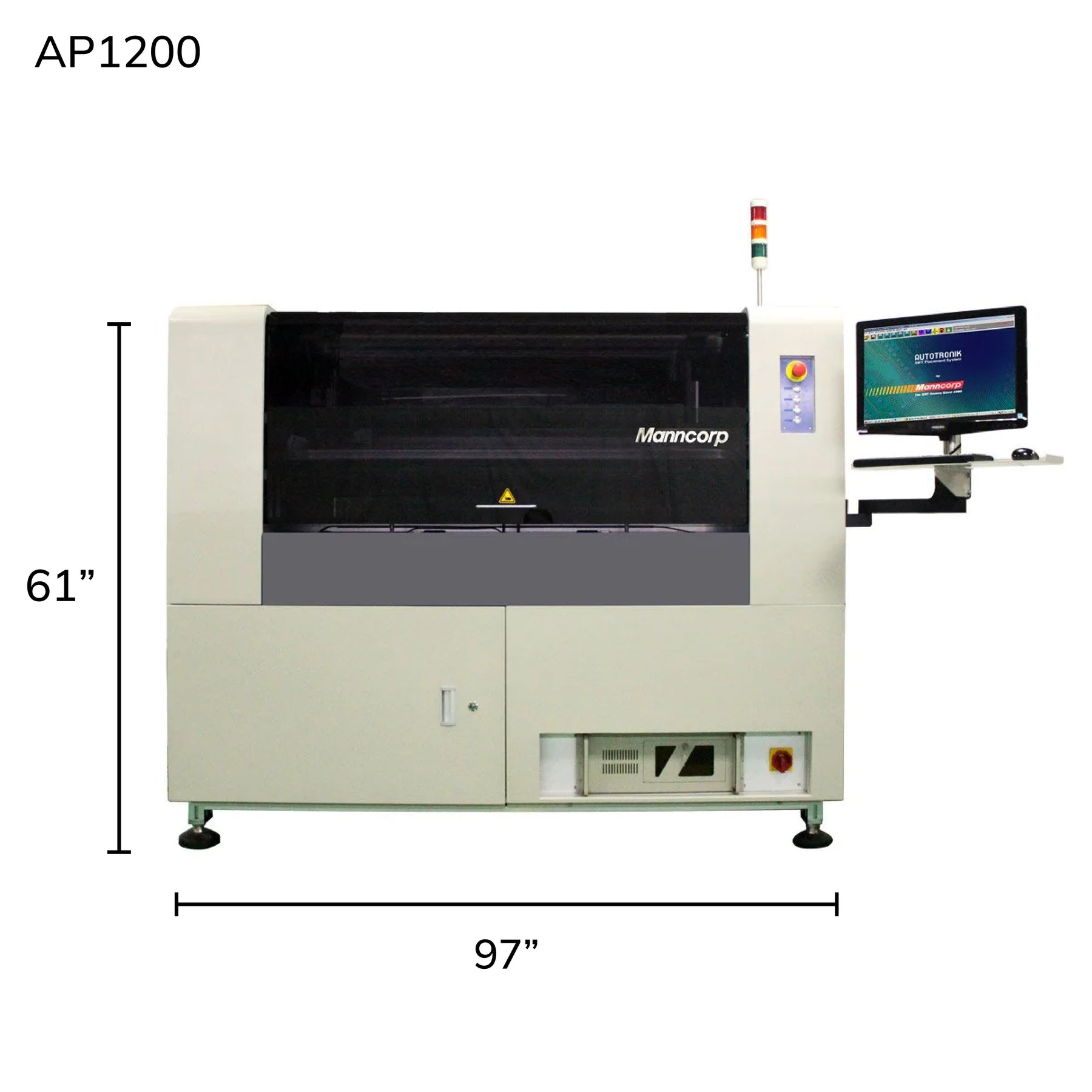

| Dimensions (L x W x H) | AP1200: 91" x 67" x 74" (2300 x 1704 x 1878 mm) AP1500: 103" x 49" x 61" (2600 x 1225 x 1530 mm) |
| Weight | AP1200: 2646 lbs (1200 kg) AP1500: 3300 lbs (1500 kg) |
