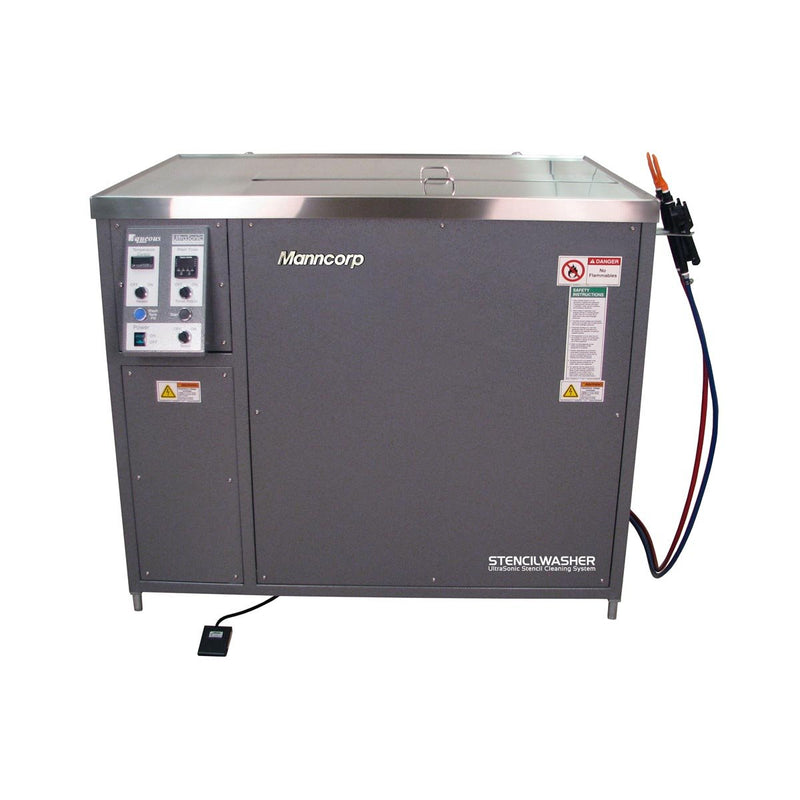

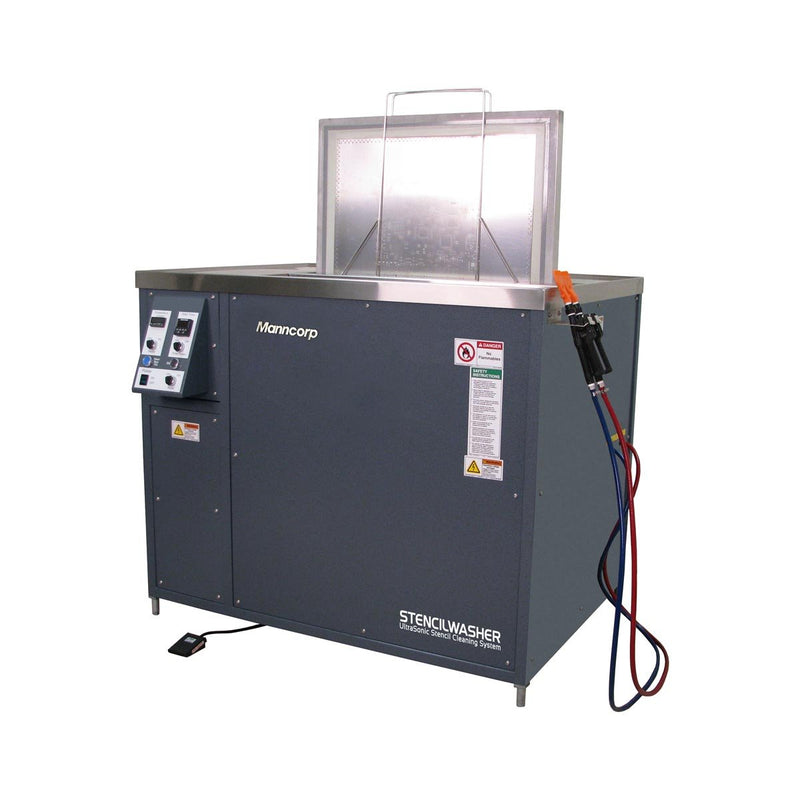

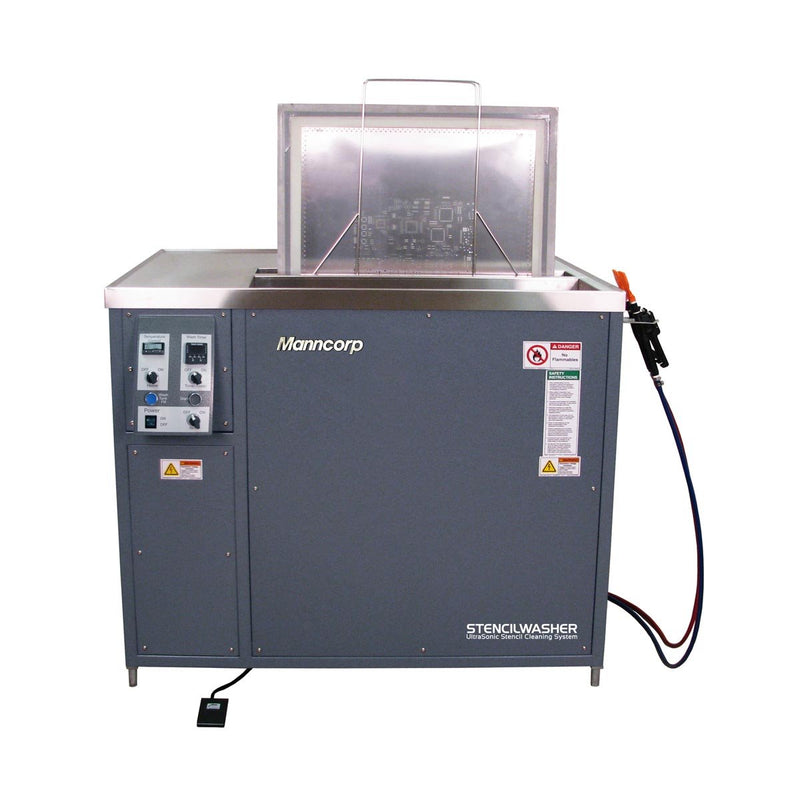

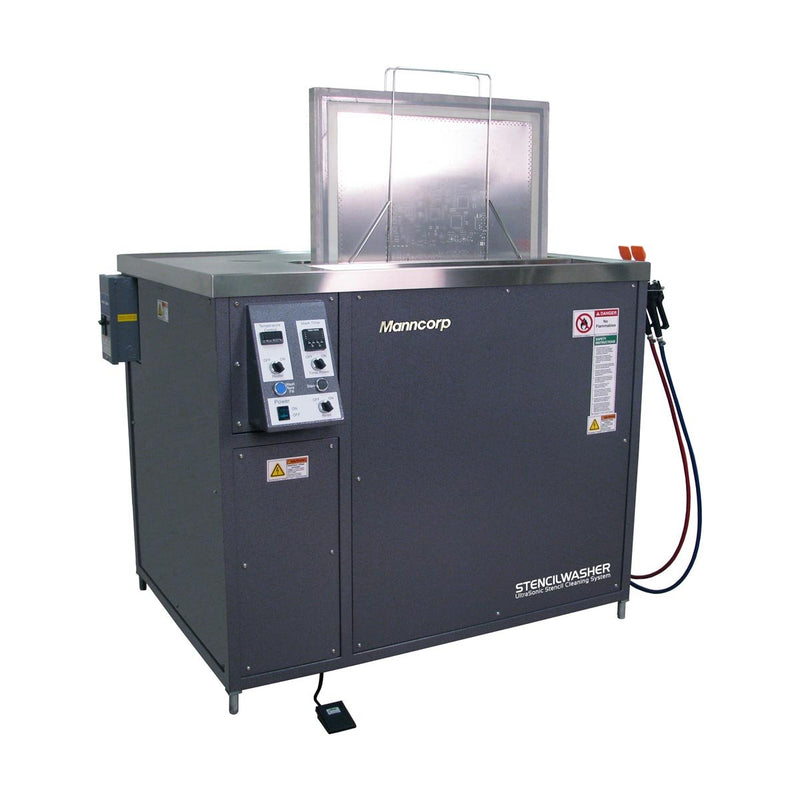

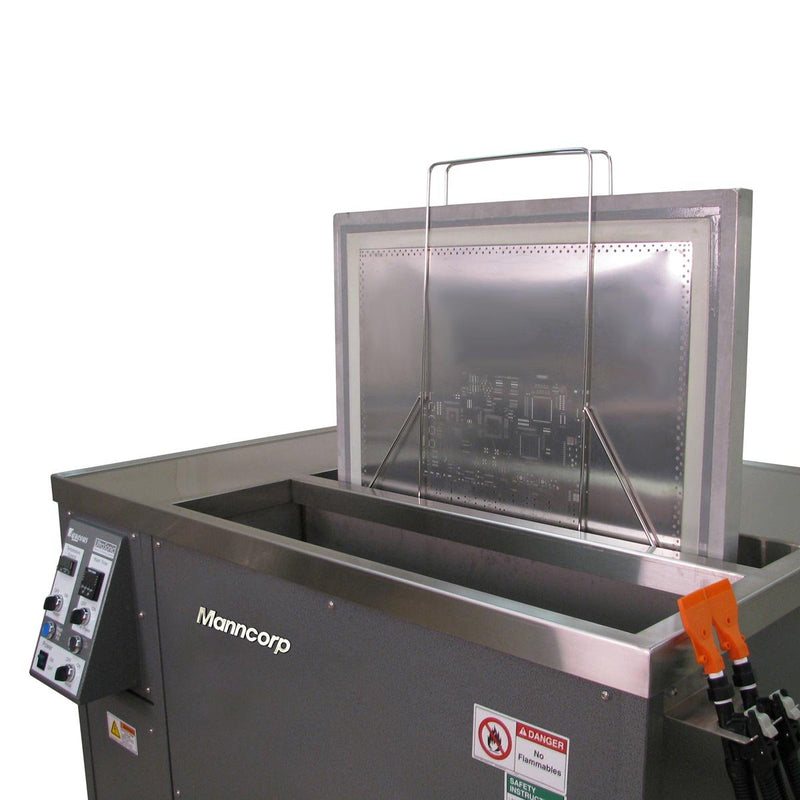

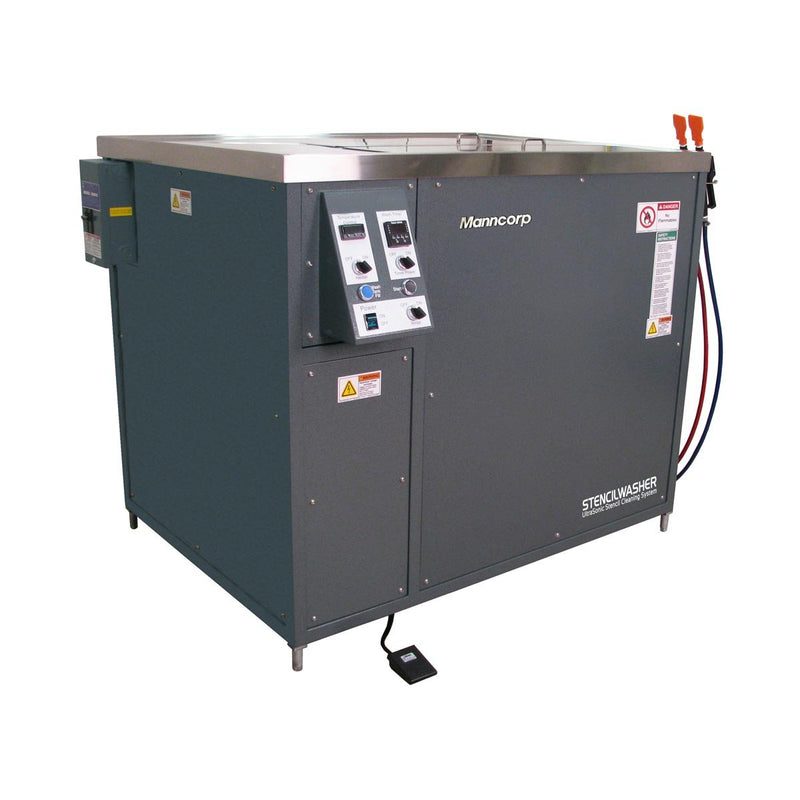

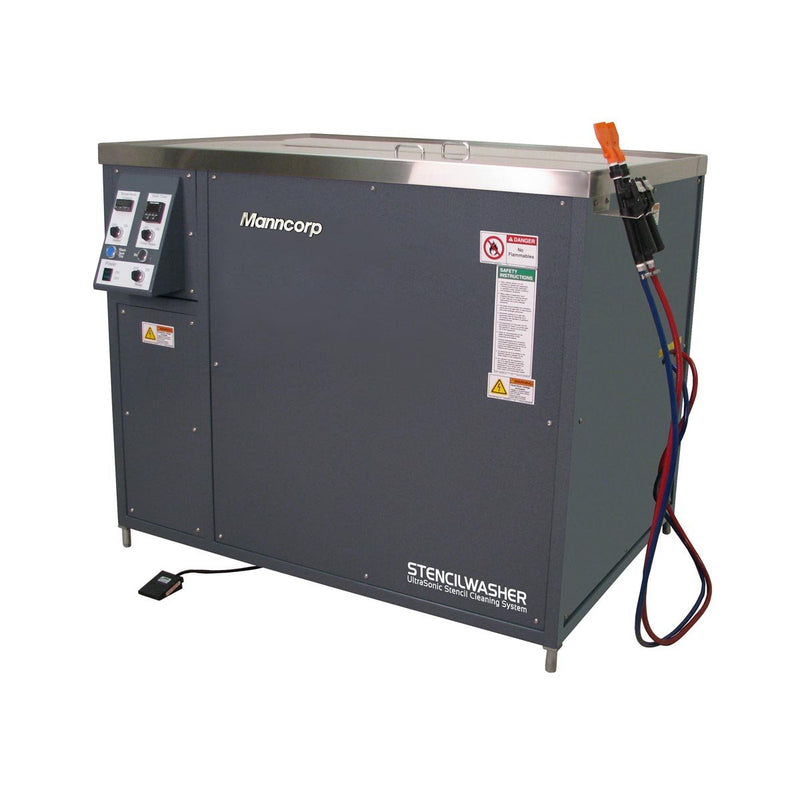

StencilWasher LDO Stencil Cleaner
Minimize Wash Solution Costs
Minimize your wash solution costs with the StencilWasher LDO, which uses a built-in wash-solution filtration and recirculation system to reuse wash solution rather than sending it directly to drain.
Uses Ultrasonic Technology
StencilWasher LDO uses ultrasonic technology to remove both un-reflowed solder past—including dried-on pastes—and uncured adhesives from stencils, screens and misprints, gently and without risk of damage to delicate stencils. StencilWasher LDO is effective even on fine-pitch stencils.
Complete Wash, Rinse and Dry Functions
Complete wash, rinse and dry functions are included, along with a programmable wash cycle timer, wash solution heater, wash solution filtration, powered drain/filtration pumps, rinse and dry wants, stainless steel wash and rinse tanks, drip-proof stainless steel decks and more. StencilWasher LDO's ultrasonics are generated by 1,000-watt side-mounted transducers

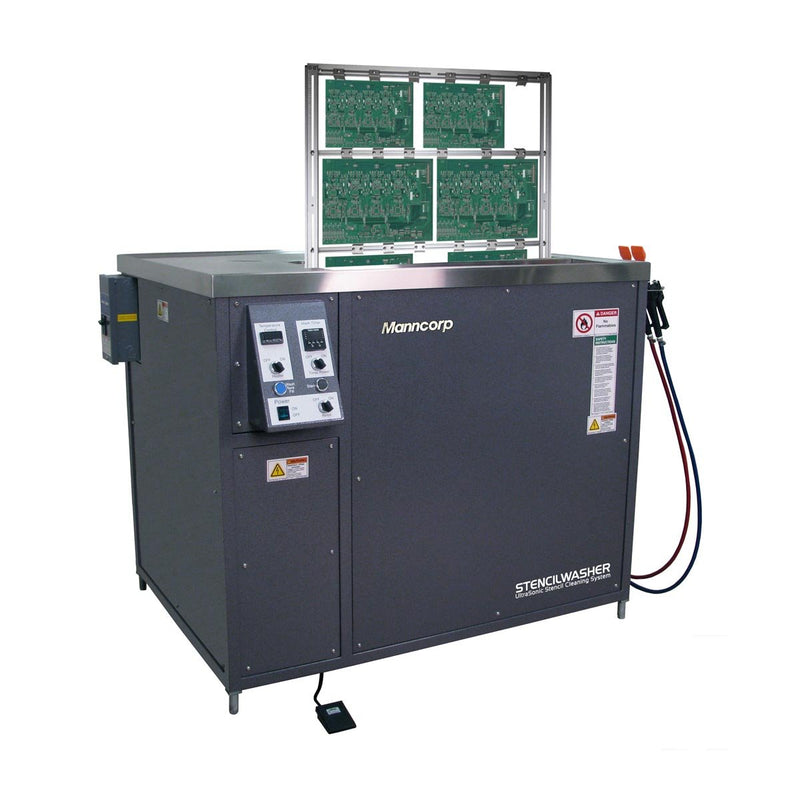

Accommodates Large PCBs
StencilWasher LDO accommodates stencils, screens and misprinted PCBs to 29" x 29" (736 x 736 mm).
| StencilWasher LDO Specifications | |
|---|---|
| Application | Solder paste & uncured adhesive removal |
| Dimensions | 48" L x 34" W x 40" H |
| Weight | 550 lbs |
| Construction | Welded tube steel frame and 16-gauge steel panels |
| Finish | Power-coat epoxy |
| Internal Plumbing | Stainless steel polypropylene |
| Electrical Requirements | 208-240 VAC 1 Ø 50 amps |
| Wash Tank Capacity | 35 gallons (132 liters) |
| Maximum Stencil Size | 29" x 29" (74 cm x 74 cm) Full immersion |
| Drain Requirements | 3/4" NPT |
| Wash Cycle Timer | Digital 1-99 minutes |
| Ultrasonics | 1000-watt side-mounted transducers |
| Hand-Held Rinse Wand | Standard |
| Hand-Held Airknife | Standard |
| Wash Solution Heating | Standard |
| Wash Solution Filtration | Standard |
