Optimize Your Inventory with the 2000 PRO
The 2000 PRO transforms SMD parts counting with unprecedented speed and precision. Processing a complete reel in under two minutes, this advanced system combines a high-speed counter, barcode reader, and integrated label printer to streamline inventory management. Its double-check reverse counting technology ensures absolute accuracy, allowing operators to count entire reels or specific quantities with reliability.
Designed for maximum efficiency, the 2000 PRO features an ergonomic workstation that enables simultaneous monitoring of the LCD screen and components. The integrated barcode system allows instant scanning, counting, and label printing, generating labels with quantity, date, and time stamps in a single operation. Built-in tape protection prevents component damage, while flexible forward and reverse counting capabilities provide complete operational control.
More than just a counting machine, the 2000PC PRO is a strategic inventory management solution. It bridges the gap between technological innovation and practical manufacturing needs, offering manufacturers a powerful tool to optimize their component tracking, reduce errors, and enhance overall production efficiency. From rapid inventory checks to precise pre-kitting, this system represents the future of SMD component management.
How it Works
1. Power the Machine
After powering up...
...the LCD displays:
...and changes to:
...followed by:
The startup self-checking process is finished at this time.

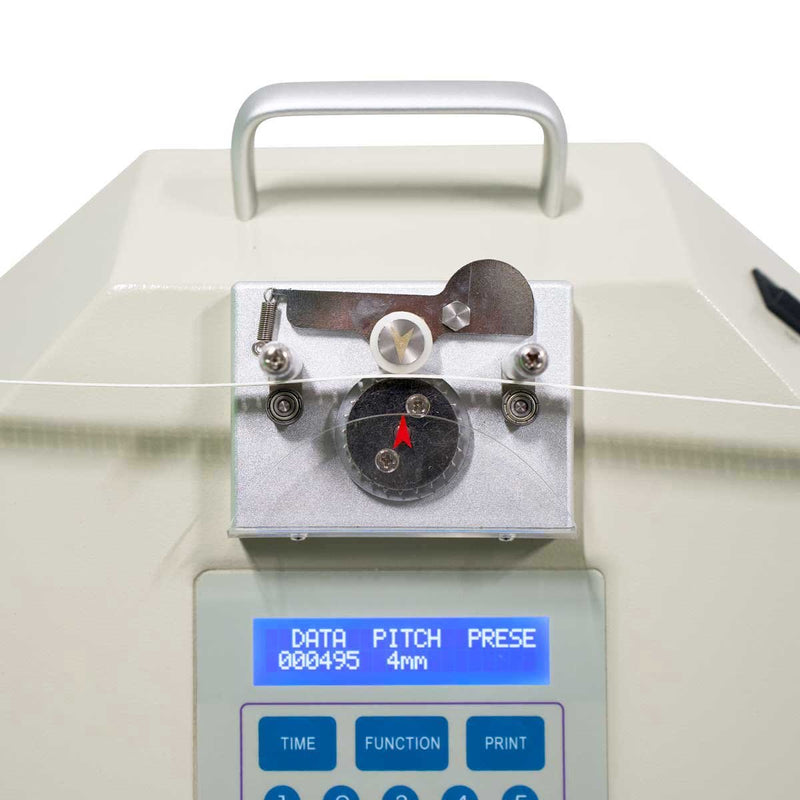

2. Keys and Settings
TIME key: Clock setting. Press this key shortly will display the date and time on the LCD. Press and hold it for 10 seconds will switch to time setting mode:
Enter the current date and time. Press the TIME key again to exit.
PRINT key: Print components quantity and current time. It can also print bar code. This function is available only on 2000PC PRO and 2000 PRO counters. It only prints positive numbers.
PITCH key: This key will set the tape pitch. According to EIA-481 standard, available pitches(P:PO ratio) are: 2mm, 4mm, 8mm, 12mm, 16mm, 20mm, ..., 56mm. Press the PITCH key repeatedly till the LCD displays the required pitch.
Po = Distance from one to the next sprocket hole which is 4mm (EIA-481 Standard)
It can be seen that pitch equals the number of puncture holes between two parts (gaps between two holes are 4mm on all tapes).
PRESET key: Press this key and enter the desired number. The machine counts to this preset number and stops. Pressing the key again will return to normal mode.
Note: Preset value is invalid if >59999.
CLEAR key: Reset the counter.
START key: Start the counting. Motors start moving, the tape transfers from one reel to the other.
STOP key: Stop counting.
REWIND key: Pressing this key rewinds the tape from the temp reel to the original reel. The counter decrements at the same time. It stops when the counter reaches zero. This also verifies the accuracy of the counting.
3. Operation
- Mount the reel to be counted on the left side. Make sure there is a temp reel on the right side. Manually lead the tape through the counting gears. Rotate the temp reel till the first component is aligned with the press wheel.
- Set the pitch value as specified above.
- Press the START key to start counting. Note: the counter increases or decreases whether it is moved by the motors or manually.
- Rewind the tape back to the original reel by pressing the REWIND key. Rewinding also verifies the counting result.
| 2000PRO Automatic Counter Specifications | |
|---|---|
| Counter Range | -59,999 to 59,999 |

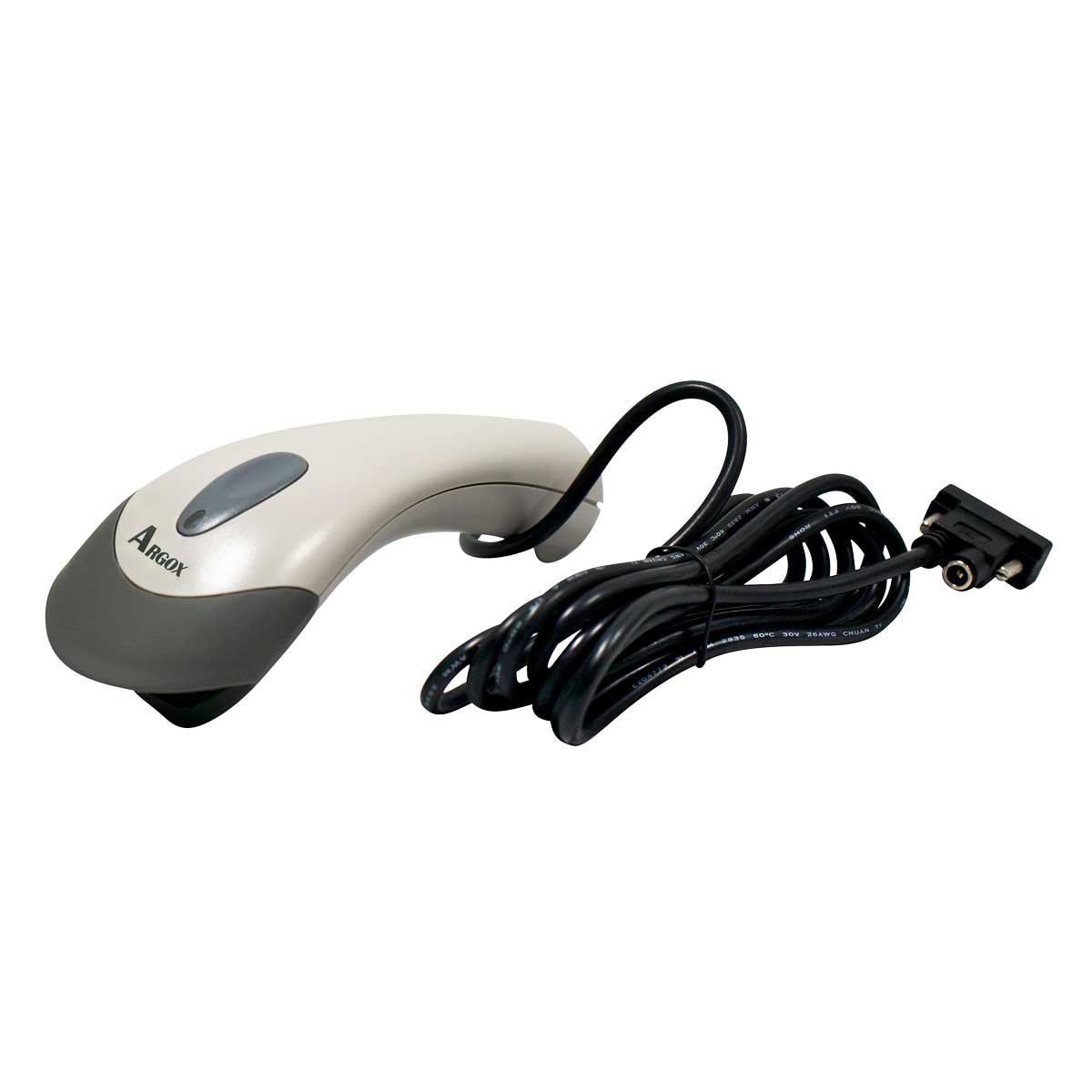

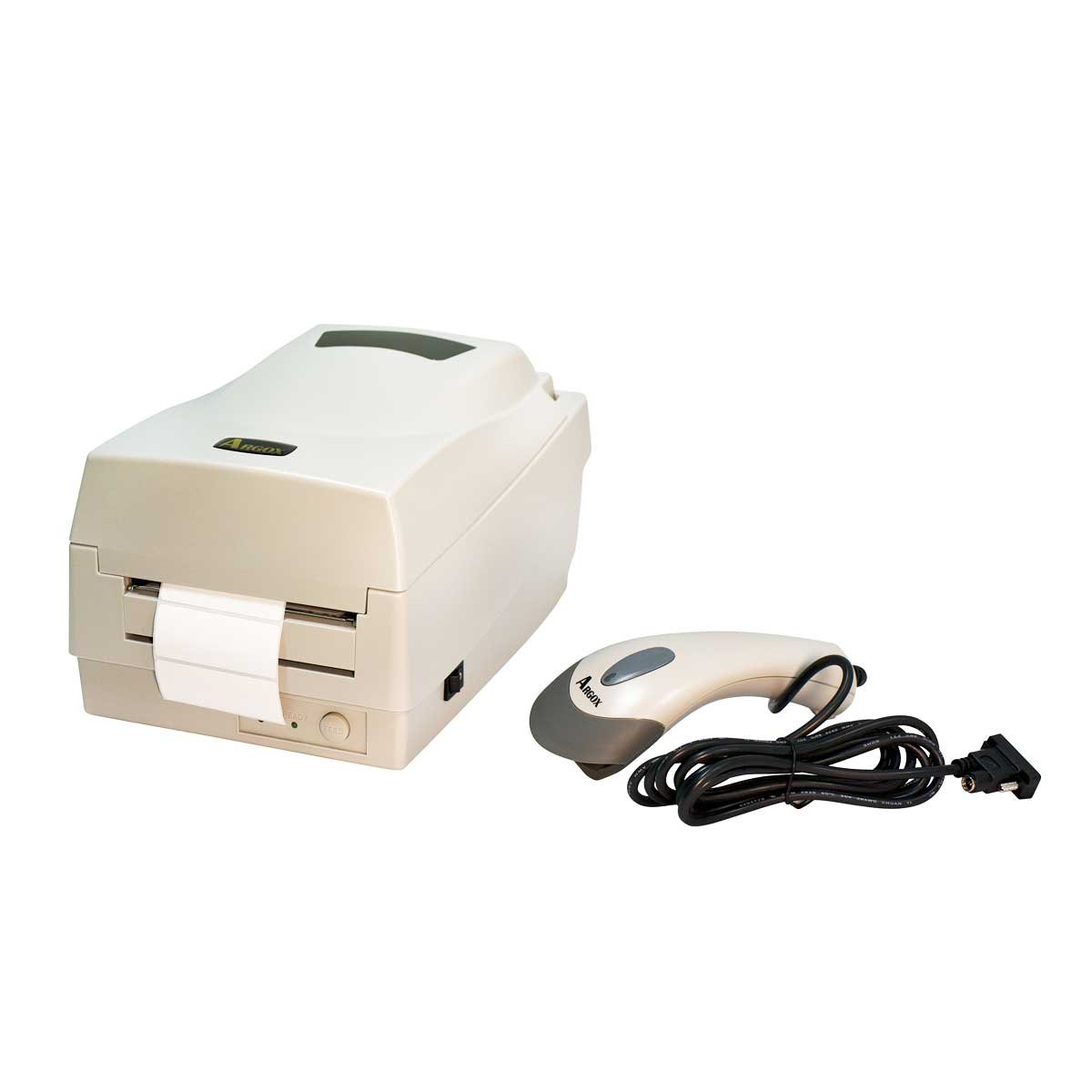

| Inventory Management Tools | Bar code label printer and bar code reader |
| Max. Reel Size | 13" |
| Max. Reel Diameter | 15" |
| Certification | CE Compliant |
| Power | 110V AC standard (220V available) |
| Dimensions | 17" x 9.25" x 10" (432 x 235 x 254 mm) |
| Weight | 34 lbs. (15.5 kg) |
