Manncorp Wave Soldering Loader: Precision and Flexibility for Your Soldering Needs

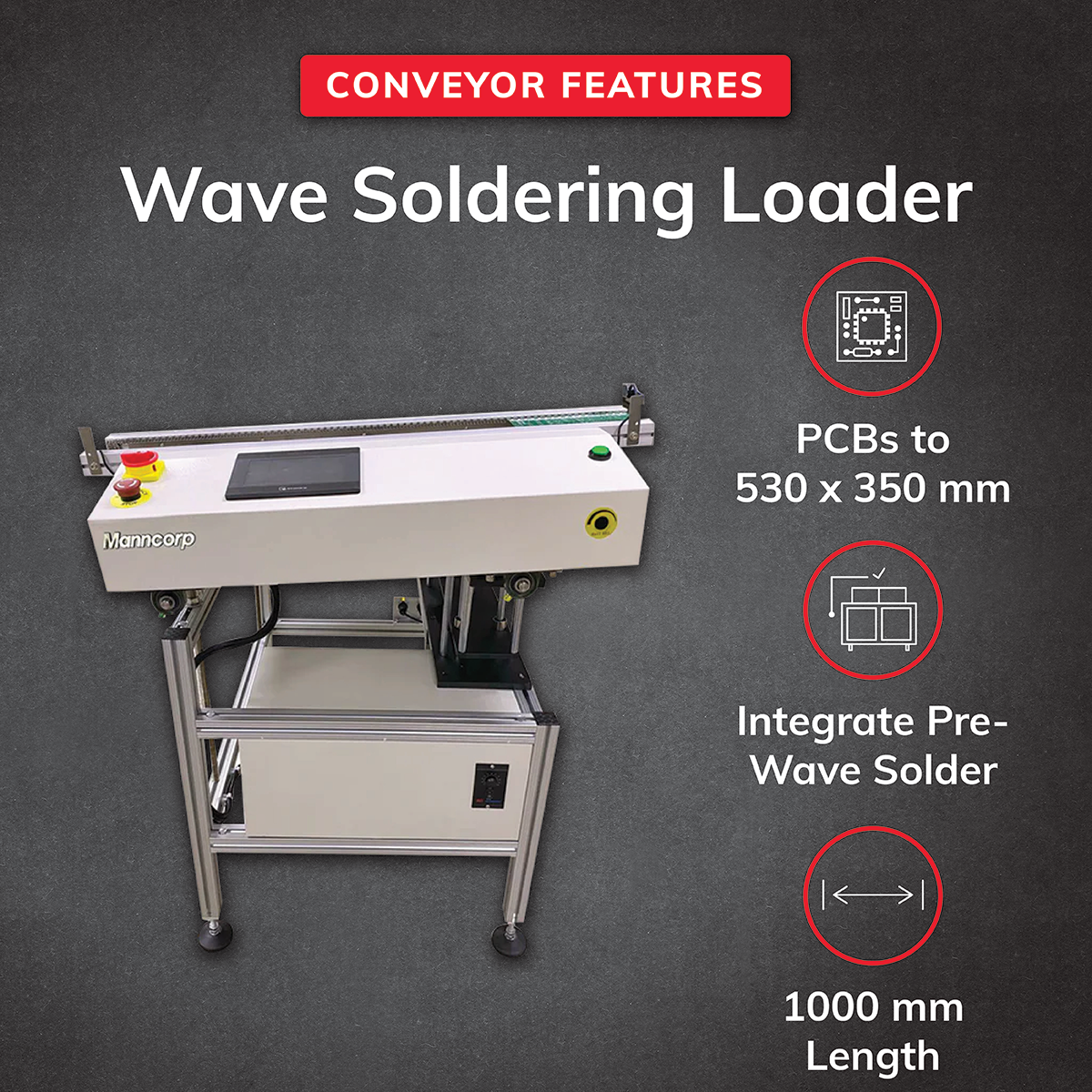

Manncorp's WL-100M-L1 Wave Soldering Loader is a fully adjustable, chain-driven inlet conveyor, engineered to seamlessly feed PCBs up to 350 mm (13.78") wide (with options for wider widths) into virtually any wave soldering system featuring a pin- or finger-type angled conveyor.

The combination steel/nylon transport chain offers a dial-adjustable travel speed ranging from 3 to 40 ft/min (1 to 12m/min), allowing for precise control. The conveyor incline angle (with a 30-degree range) and the conveyor height (with a 8” range) can be easily adjusted for optimal setup and alignment.

Built on a heavy-duty aluminum frame, this loader ensures exceptional stability and long-lasting durability, making it a reliable addition to your wave soldering process.

Equipment Price

Quantity

QUESTIONS? TEXT OR CALL:

Chris Ellis 215-869-8374 | East Coast

Ed Stone 215-808-6266 | West Coast

Description Protect_msd Restore_and_store Specifications Features Feeders Machine_configurations Applications Profile_predictions Performance_charts Video Navigator_software Process_window Add_ons Temperature_tolerance Includes Add_fluxing Contact

WL-100M-L1 Wave Soldering Loader Specifications
PCB Size Min.	2" (50 mm)
PCB Size Max.	13.7" (350 mm) Custom Widths Available
Belt Speed Min.	3 ft/min (1 m/min)
Belt Speed Max.	40 ft/min (12 m/min)
Belt Type	Chain
Conveyor Height Input	31.5" - 39.4" (800-1000 mm)
Conveyor Height Output	35.8" - 43.3" (910-1100 mm)
Flow	Left to Right (Right to Left Available)
Machine Dimensions	39.4" x 22.1" x 37.4" (1000 x 560 x 950 mm)
Weight	97 lbs. (44 kgs)
Shipping Dimensions	45.3" x 28" x 45.3" (1150 x 710 x 1150 mm)
Shipping Weight	180 lbs. (82 kgs)
Power	110 VAC +/- 10V, 60Hz (100 VA)
