Trident LDO: Advanced PCB Cleaning & Defluxing

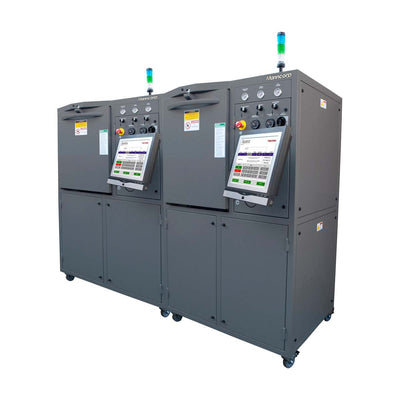

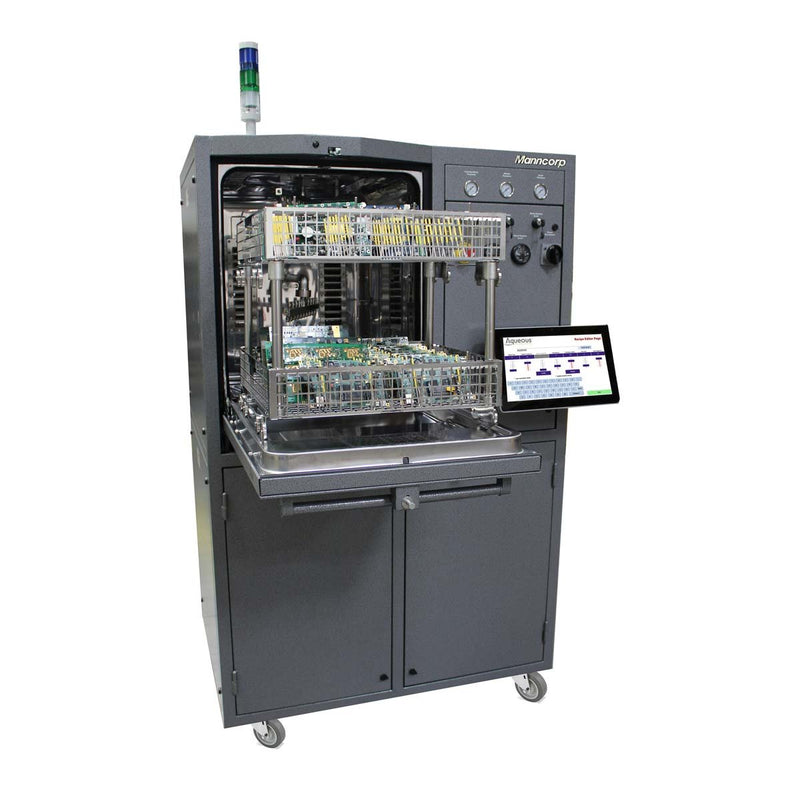

The Trident LDO is engineered for high-performance PCB cleaning and defluxing, making it ideal for densely populated boards and low-standoff surface mount (SMT) components. Its asymmetrical fan-jet spray system delivers precision-diffused wash solution and rinse water to concentrated areas, ensuring deep under-component penetration and eliminating shadowing with an oscillating board rack.
Trident LDO efficiently removes all flux types, including water-soluble, rosin, and no-clean, from SMT, through-hole, and mixed-technology assemblies. It also eliminates fabrication residues and contaminants from the assembly process. Whether cleaning eutectic (SnPb) or lead-free solder residues, Trident LDO handles both separately or within the same batch.
Featuring an on-board cleanliness tester, the system continuously monitors and controls cleanliness levels in real time, automatically adjusting the process to ensure every board meets or exceeds programmed cleanliness standards—delivering consistent, high-quality results with every cycle.
Intelligent Chemical Management & Real-Time Monitoring
Trident’s automated chemical management system eliminates the need for manual measuring, mixing, or handling of defluxing chemicals by precisely dosing and mixing solutions automatically. This ensures consistent cleaning performance while reducing chemical waste and operator intervention.
Operators can monitor estimated completion time, cleanliness values, and operating temperatures in real time on the system’s intuitive display. Built-in gauges provide instant status updates on water line, spray manifold, and pre-drain filter pressures, while the wash solution tank features a level gauge with a low-level alarm to prevent interruptions. The stainless steel concentrated wash solution holding tank is also equipped with a fluid level gauge for added control.
To streamline maintenance, Trident’s reminder software tracks usage counts for key components, automatically alerting operators when service is needed. Once the administrator-defined cycle limit is reached, counters turn red, ensuring proactive maintenance and optimal system performance.
Advanced Statistical Process Control (SPC) for Traceability & Tracking
Trident LDO’s Statistical Process Control (SPC) data recording provides comprehensive traceability by automatically tracking cleaning program names, process times, temperatures, set and actual cleanliness levels, and other critical metrics. This ensures consistent performance, compliance, and quality assurance across every batch.
Operators can view SPC data in real time on-screen, send reports to a networked printer, or export data to USB or another computer via secure network protocols for seamless integration with quality management systems.
| Trident LDO Specifications | |
|---|---|

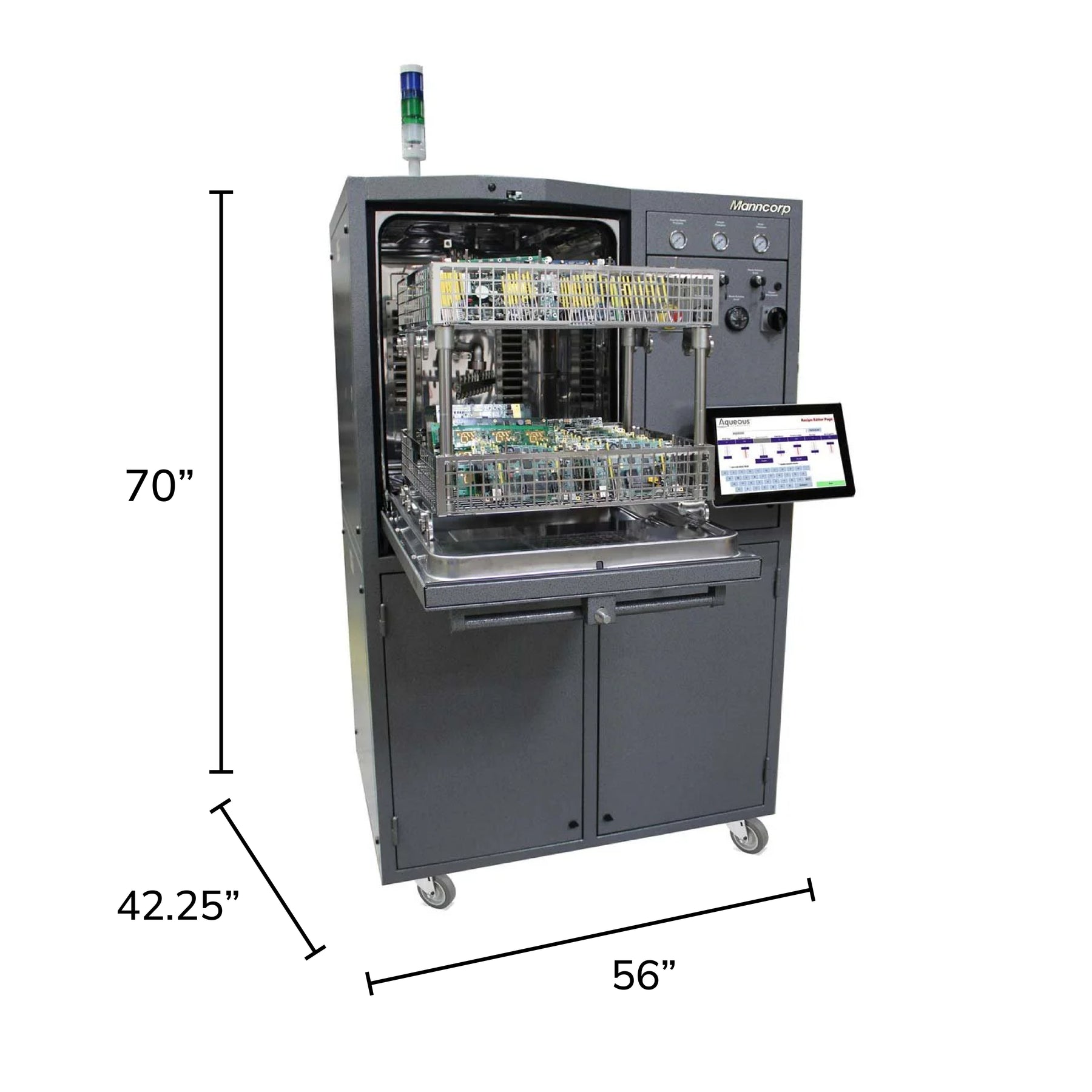

| Dimensions | 42 ¼" D x 56" W x 70" H |
| Weight | 791 lbs |
| Power Requirements | 208-240 VAC 40 amps 3Ø 400 VAC 31 amps 3Ø |
| Water Input | ¾" NPT |
| Drain | ¾" NPT |
| Air Exhaust | 6" (static) |
| No-Clean Flux Removal | Yes |
| Water Soluble Flux Removal | Yes |
| Rosin Flux Removal | Yes |
| Lead & Lead-Free Compatible | Yes |
| Average Cycle Time | 30 minutes |
| Estimated Assemblies Per Hour Per Chamber | 3" x 10" - 144/hr 4" x 5" - 192/hr 8" x 10" - 44/hr 20" x 20" - 24/hr |
| Anti-Shadowing Technology | Oscillating board rack and asymmetrical nozzles |
| Fluid-Delivery Technology | Twenty 15° stainless steel adjustable nozzles |
| Built-In Cleanliness Testing | Standard |
| Discharge Configuration | Closed-loop (zero discharge) wash and rinse |
| Chemical Dosing and Mixing | Automatic (5% - 20%) |
| SPC Data Logging with On-Screen Viewing | Standard |
| Advanced SPC Data Collection with SQL Database | Standard |
| SPC Data USB Export | Standard |
| SPC Remote Viewing | Standard |
| Heated Drying System | Standard |
| Pre-Drain Filtration System | Standard |
| Programmable Maintenance Reminders | Standard |
| Control System | Windows® 10 Professional Operating System with PC Touch Screen User Interface |
| Multi-Lingual Display | Yes (English, Spanish, Chinese, Russian, German) |
| ESD Ground Point | Standard |
