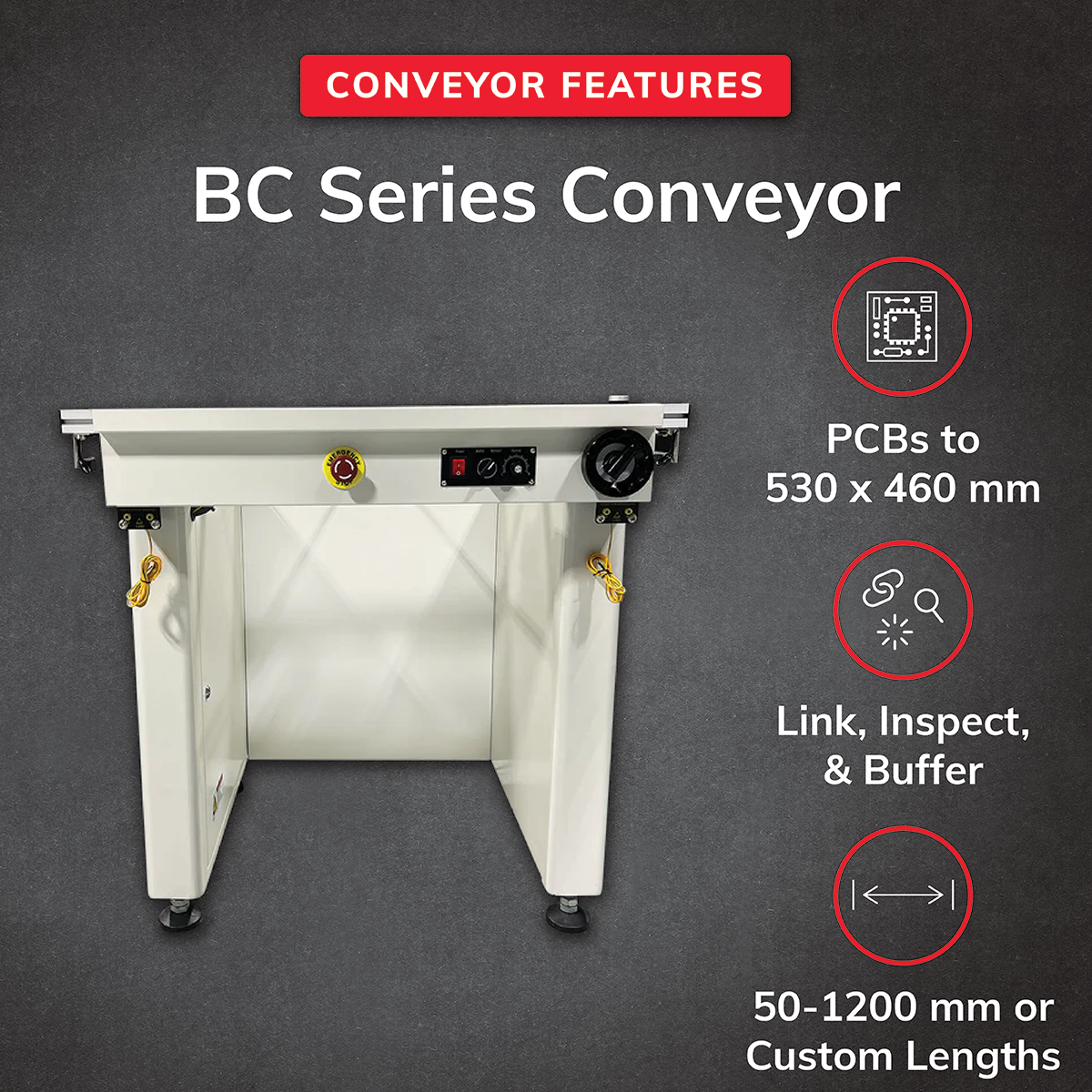

Inspection and Linking Conveyors - BC Series

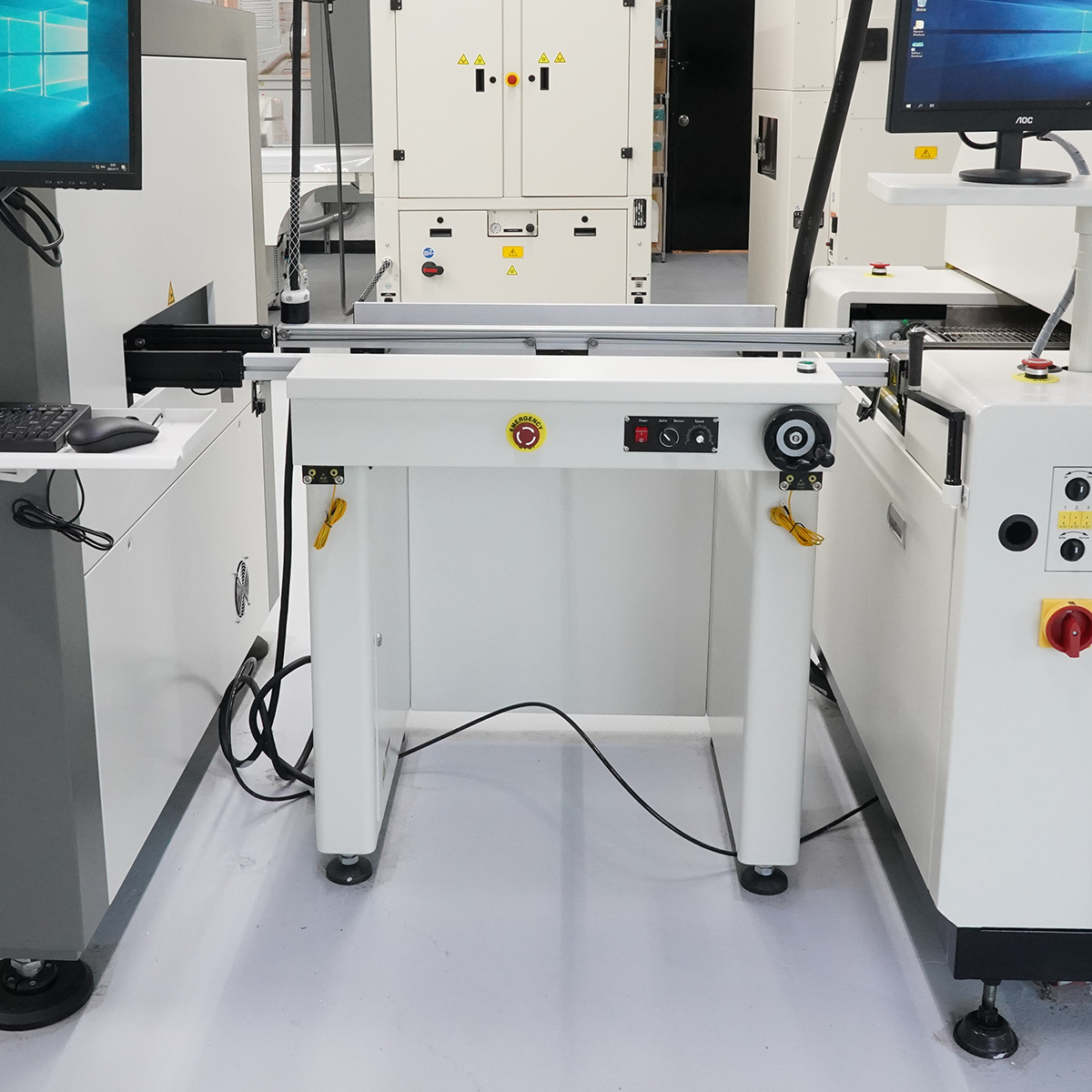

Manncorp's SMEMA-compatible transfer conveyors can be used for a wide range of equipment linking, visual inspection, PCB buffering, and assembly functions throughout the production line.

Length

500 mm (19.7 in.)

600 mm (23.6 in.)

800 mm (31.50 in.)

1000 mm (39.4 in.)

1200 mm (47.2 in.)

1500 mm (59 in.)

Conveyor Direction

Left to Right

Right to Left

or to view pricing

[{"id":40316101591179,"title":"500 mm (19.7 in.) \/ Left to Right","option1":"500 mm (19.7 in.)","option2":"Left to Right","option3":null,"sku":"BC050X-W1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Inspection and Linking Conveyor - BC Series - 500 mm (19.7 in.) \/ Left to Right","public_title":"500 mm (19.7 in.) \/ Left to Right","options":["500 mm (19.7 in.)","Left to Right"],"price":549500,"weight":158757,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40321568145547,"title":"500 mm (19.7 in.) \/ Right to Left","option1":"500 mm (19.7 in.)","option2":"Right to Left","option3":null,"sku":"BC050X-W1-RL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Inspection and Linking Conveyor - BC Series - 500 mm (19.7 in.) \/ Right to Left","public_title":"500 mm (19.7 in.) \/ Right to Left","options":["500 mm (19.7 in.)","Right to Left"],"price":549500,"weight":158757,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40316101623947,"title":"600 mm (23.6 in.) \/ Left to Right","option1":"600 mm (23.6 in.)","option2":"Left to Right","option3":null,"sku":"BC06X-W1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Inspection and Linking Conveyor - BC Series - 600 mm (23.6 in.) \/ Left to Right","public_title":"600 mm (23.6 in.) \/ Left to Right","options":["600 mm (23.6 in.)","Left to Right"],"price":599500,"weight":158757,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40321568178315,"title":"600 mm (23.6 in.) \/ Right to Left","option1":"600 mm (23.6 in.)","option2":"Right to Left","option3":null,"sku":"BC06X-W1-RL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Inspection and Linking Conveyor - BC Series - 600 mm (23.6 in.) \/ Right to Left","public_title":"600 mm (23.6 in.) \/ Right to Left","options":["600 mm (23.6 in.)","Right to Left"],"price":599500,"weight":158757,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40316101656715,"title":"800 mm (31.50 in.) \/ Left to Right","option1":"800 mm (31.50 in.)","option2":"Left to Right","option3":null,"sku":"BC08X-W1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Inspection and Linking Conveyor - BC Series - 800 mm (31.50 in.) \/ Left to Right","public_title":"800 mm (31.50 in.) \/ Left to Right","options":["800 mm (31.50 in.)","Left to Right"],"price":579500,"weight":158757,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40321568211083,"title":"800 mm (31.50 in.) \/ Right to Left","option1":"800 mm (31.50 in.)","option2":"Right to Left","option3":null,"sku":"BC08X-W1-RL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Inspection and Linking Conveyor - BC Series - 800 mm (31.50 in.) \/ Right to Left","public_title":"800 mm (31.50 in.) \/ Right to Left","options":["800 mm (31.50 in.)","Right to Left"],"price":579500,"weight":158757,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40316101689483,"title":"1000 mm (39.4 in.) \/ Left to Right","option1":"1000 mm (39.4 in.)","option2":"Left to Right","option3":null,"sku":"BC100X-W1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Inspection and Linking Conveyor - BC Series - 1000 mm (39.4 in.) \/ Left to Right","public_title":"1000 mm (39.4 in.) \/ Left to Right","options":["1000 mm (39.4 in.)","Left to Right"],"price":649500,"weight":179169,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40321568243851,"title":"1000 mm (39.4 in.) \/ Right to Left","option1":"1000 mm (39.4 in.)","option2":"Right to Left","option3":null,"sku":"BC100X-W1-RL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Inspection and Linking Conveyor - BC Series - 1000 mm (39.4 in.) \/ Right to Left","public_title":"1000 mm (39.4 in.) \/ Right to Left","options":["1000 mm (39.4 in.)","Right to Left"],"price":649500,"weight":158757,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40316101722251,"title":"1200 mm (47.2 in.) \/ Left to Right","option1":"1200 mm (47.2 in.)","option2":"Left to Right","option3":null,"sku":"BC120X-W1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Inspection and Linking Conveyor - BC Series - 1200 mm (47.2 in.) \/ Left to Right","public_title":"1200 mm (47.2 in.) \/ Left to Right","options":["1200 mm (47.2 in.)","Left to Right"],"price":689500,"weight":192777,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40321568276619,"title":"1200 mm (47.2 in.) \/ Right to Left","option1":"1200 mm (47.2 in.)","option2":"Right to Left","option3":null,"sku":"BC120X-W1-RL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Inspection and Linking Conveyor - BC Series - 1200 mm (47.2 in.) \/ Right to Left","public_title":"1200 mm (47.2 in.) \/ Right to Left","options":["1200 mm (47.2 in.)","Right to Left"],"price":689500,"weight":158757,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41428903723147,"title":"1500 mm (59 in.) \/ Left to Right","option1":"1500 mm (59 in.)","option2":"Left to Right","option3":null,"sku":"BC150X-W1-LR","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Inspection and Linking Conveyor - BC Series - 1500 mm (59 in.) \/ Left to Right","public_title":"1500 mm (59 in.) \/ Left to Right","options":["1500 mm (59 in.)","Left to Right"],"price":729500,"weight":158757,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41428903755915,"title":"1500 mm (59 in.) \/ Right to Left","option1":"1500 mm (59 in.)","option2":"Right to Left","option3":null,"sku":"BC150X-W1-RL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Inspection and Linking Conveyor - BC Series - 1500 mm (59 in.) \/ Right to Left","public_title":"1500 mm (59 in.) \/ Right to Left","options":["1500 mm (59 in.)","Right to Left"],"price":729500,"weight":158757,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Questions? Reach Out Directly:

Chris Ellis - East Coast

Sales & Operations Manager

215.869.8374

Ed Stone - West Coast

Sales Manager

215.808.6266

Description Protect_msd Restore_and_store Specifications Features Feeders Machine_configurations Applications Profile_predictions Performance_charts Video Navigator_software Process_window Add_ons Temperature_tolerance Includes Add_fluxing Contact

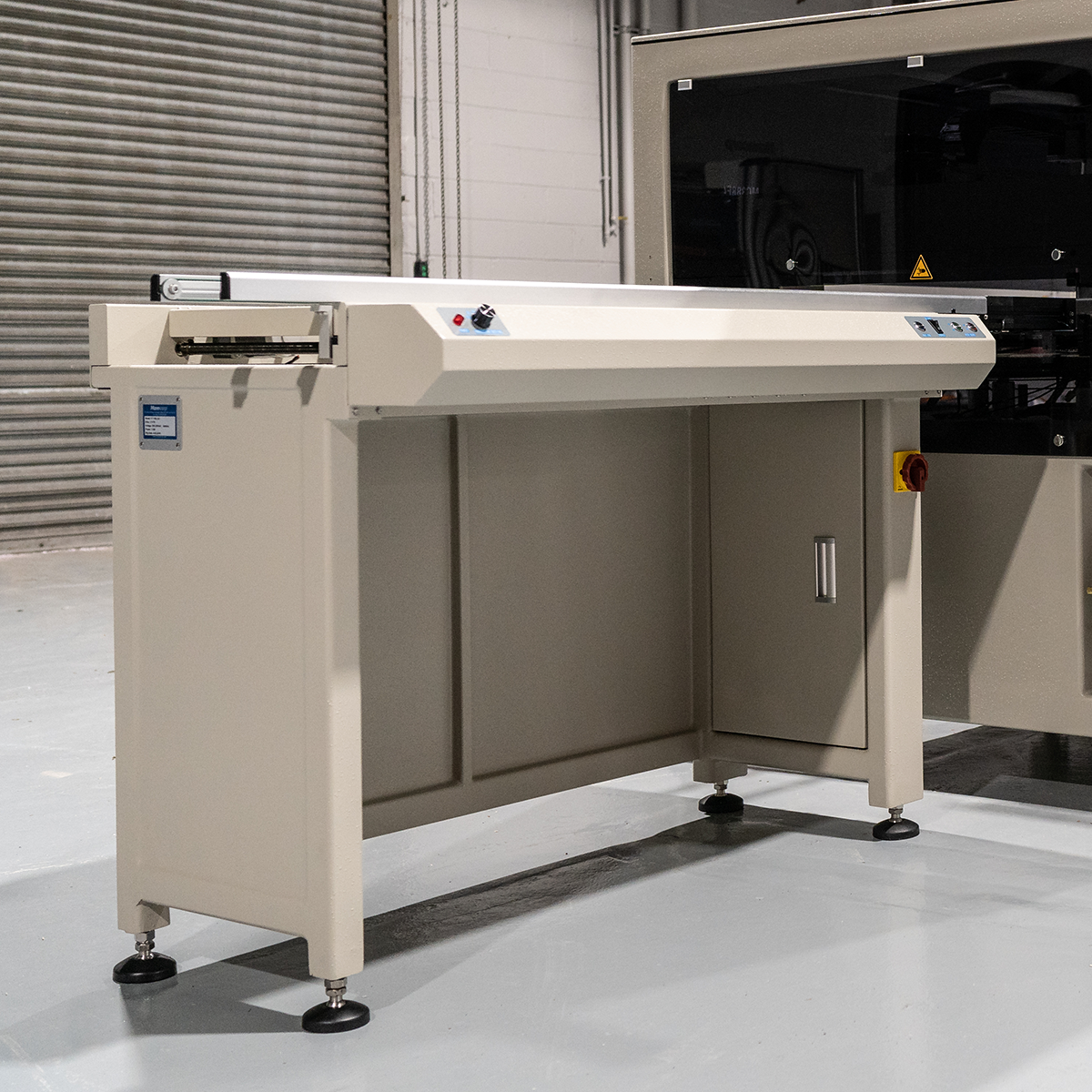

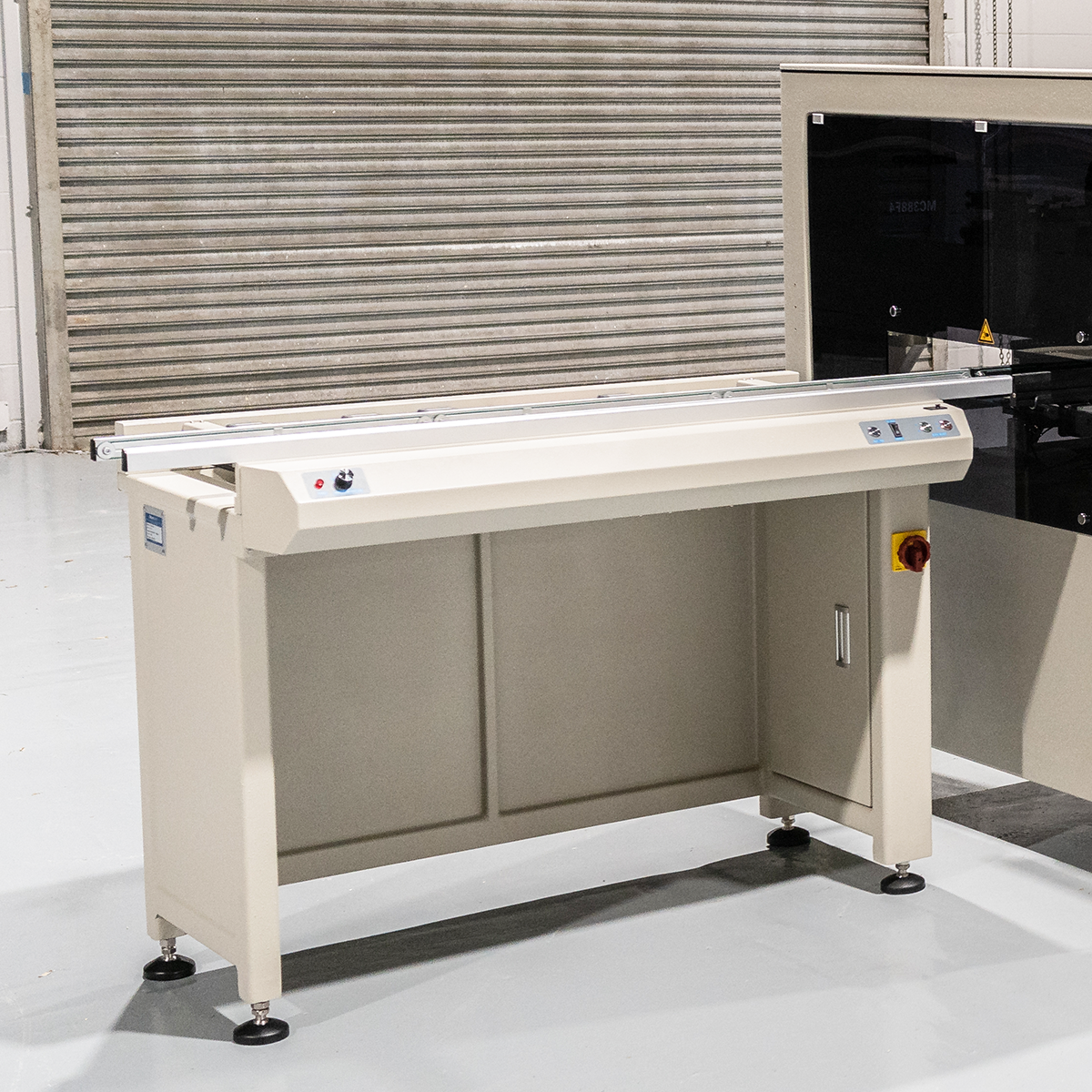

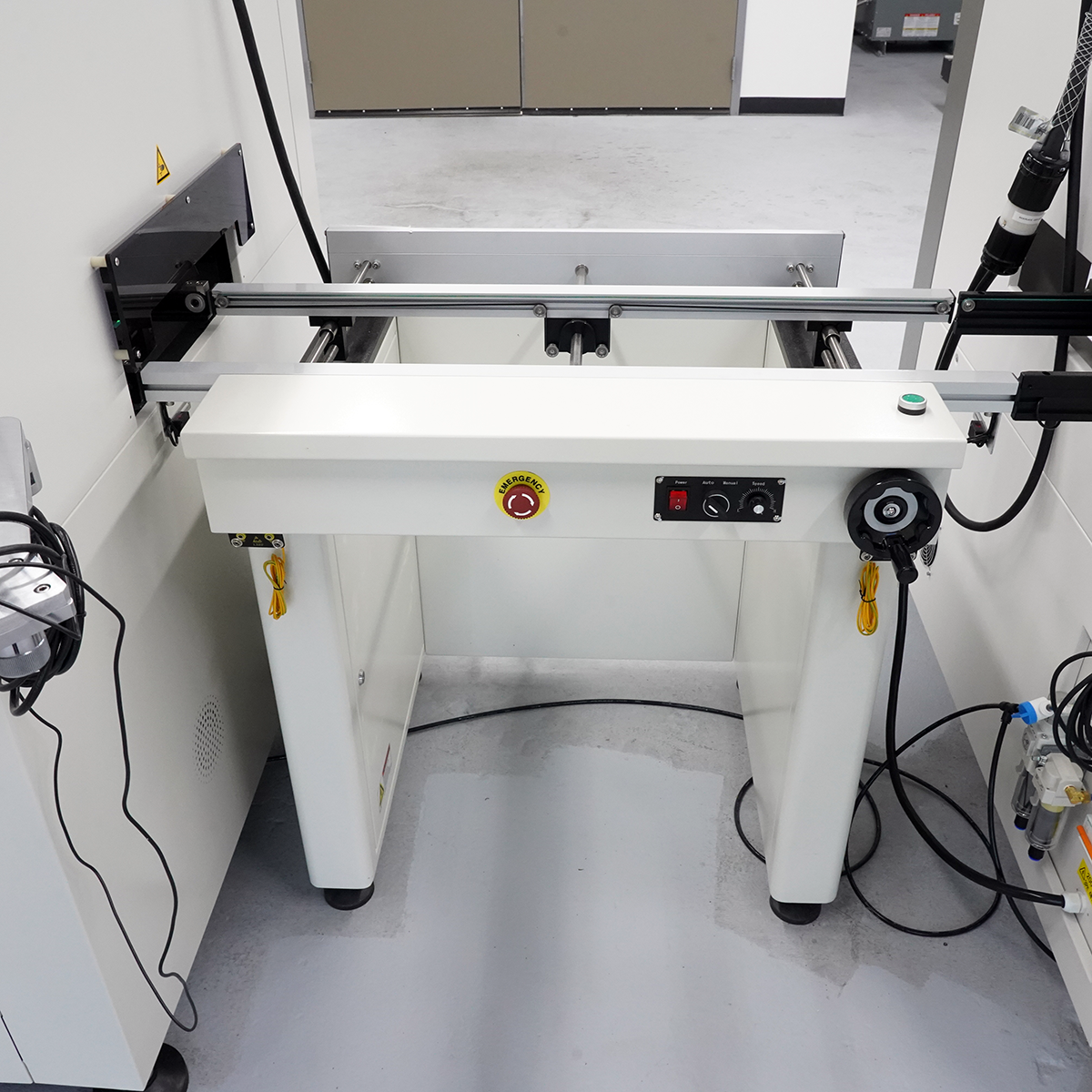

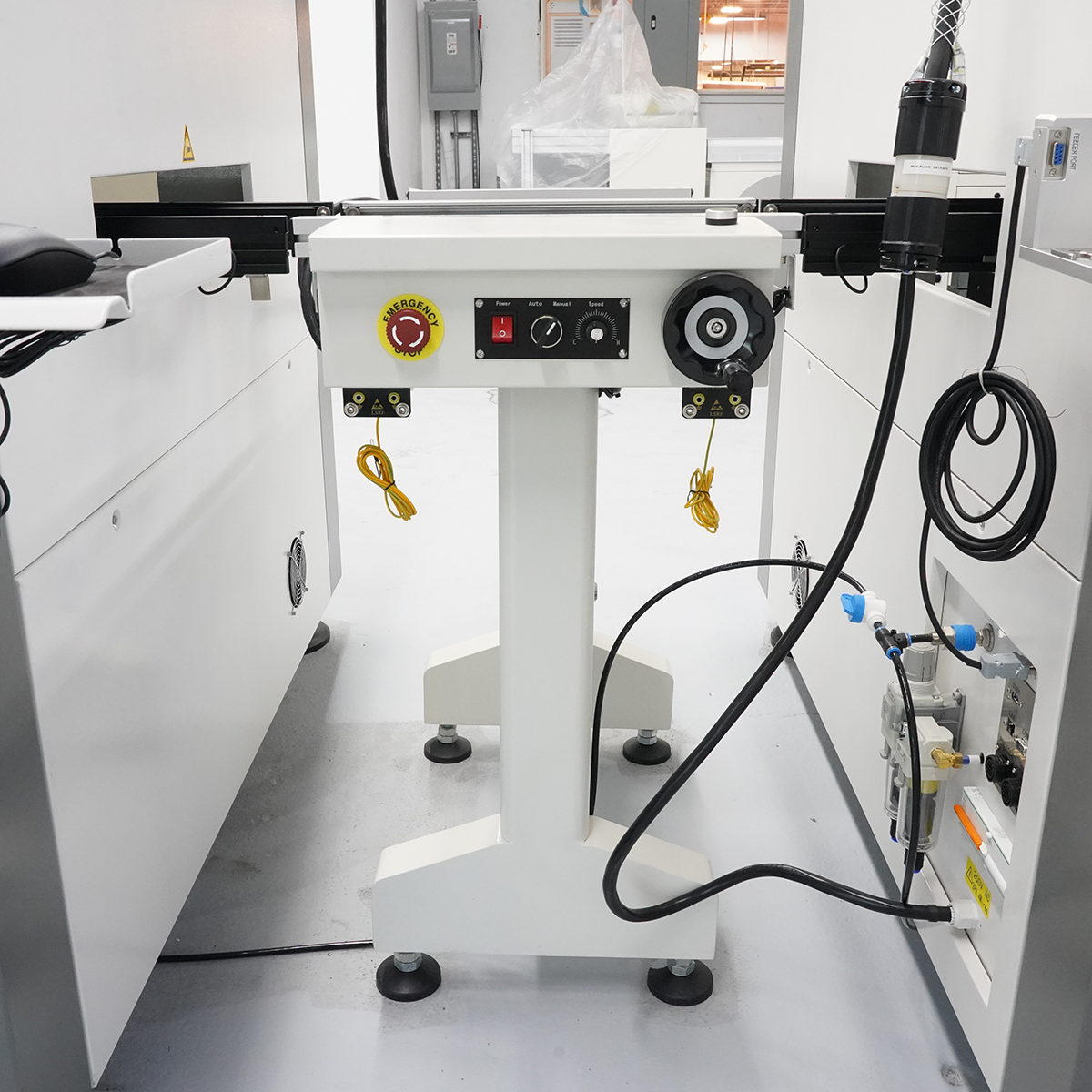

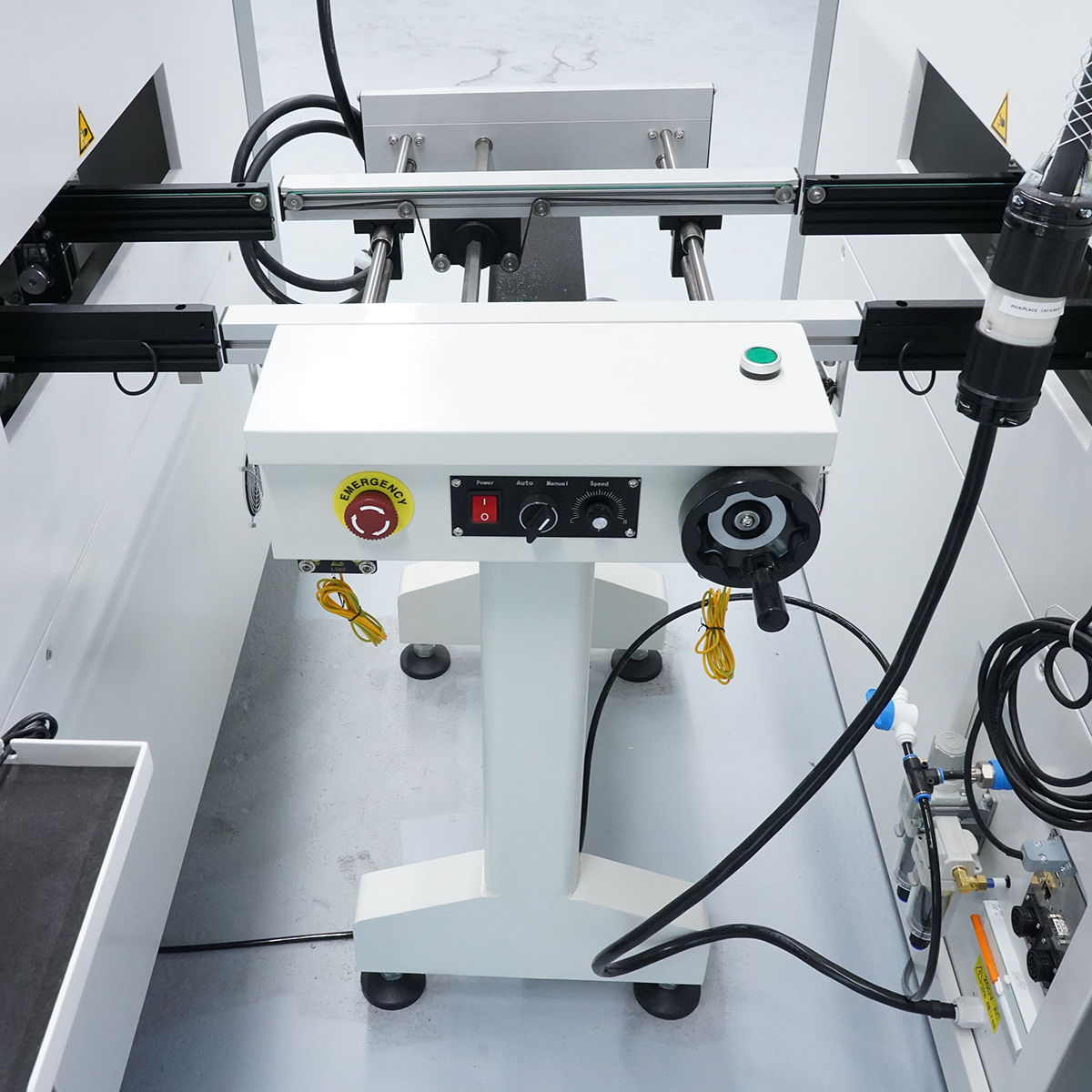

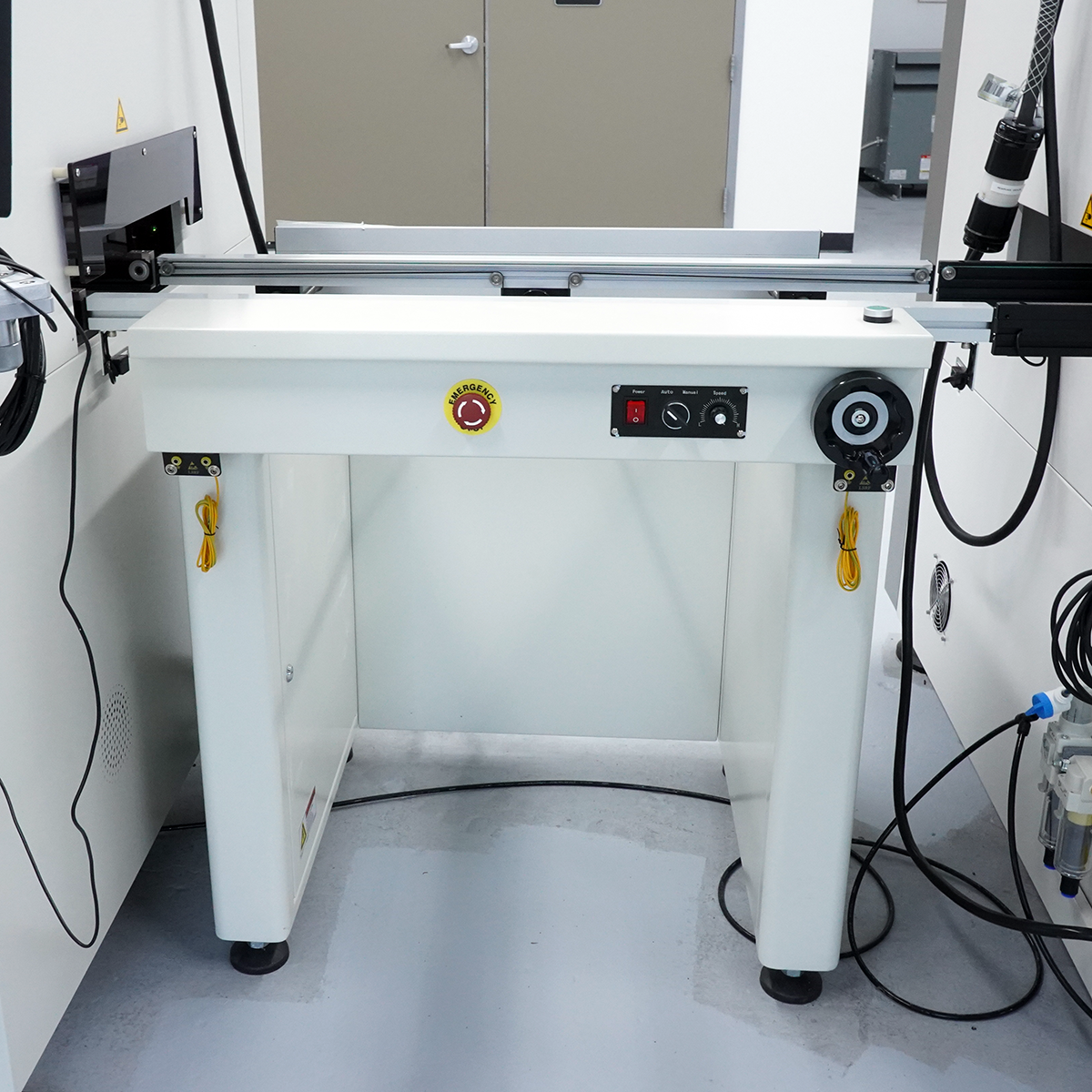

This conveyor features a stationary front rail and a movable rear rail (adjustable via hand crank) to accommodate boards from 50 mm (1.97") to 460 mm (18.11") wide. All the models use 3 mm diameter edge-belts, but are available in standard lengths from 500 mm (19.68") to 1200 mm (47.24"). Our team can also provide custom sizes up to 3000 mm (118") upon special request (contact a Manncorp team member for additional details).

Conveyor speed is variable and dial-adjustable from 2-11 m/min (approx. 6.56 - 36.09 ft/min). Each system has a push button that allows operators to deactivate the conveyor so boards can be removed and placed on the inspection/worktable (standard) adjacent to the front rail. Also, all models feature heavy-duty steel construction, ensuring our conveyors are a dependable choice.

MODEL	BC050X-W1	BC060X-W1	BC080X-W1	BC100X-W1	BC120X-W1
Conveyor	500 mm (19.68")	600 mm (23.62")	800 mm (31.50")	1000 mm (39.37")	1200 mm (47.24")
Machine Dimensions	500 mm L x 800 mm W x 900 mm H (19.68" L x 31.5" W x 35.5" H)	600 mm L x 800 mm W x 900 mm H (23.62" L x 31.5" W x 35.5" H)	800 mm L x 800 mm W x 900 mm H (31.50" L x 31.5" W x 35.5" H)	1000 mm L x 800 mm W x 900 mm H (39.37" L x 31.5" W x 35.5" H)	1200 mm L x 800 mm W x 900 mm H (47.24" L x 31.5" W x 35.5" H)
Net Weight	35 kg (77 lbs.)	40 kg (88 lbs.)	60 kg (132 lbs.)	70 kg (154 lbs.)	85 kg (187 lbs.)
Shipping Weight	65 kg (143 lbs.)	70 kg (154 lbs.)	90 kg (198 lbs.)	100 kg (220 lbs.)	115 kg (254 lbs.)
PCB Size	50 mm L x 50 mm W to 530 mm L x 460 mm W (1.97" L x 1.97" W to 20.87" L x 18.11" W)
PCB Thickness	0.4 mm min. (0.016" min.) 2.5 mm max. (0.098" max.)
Conveyor Direction	Left to right (standard) Right to left (optional)
Conveyor	3 mm diameter edge belt
Conveyor	2 - 11 m/min (approx. 6.56 - 36.09 ft/min)
Voltage	110 VAC, 50/60 Hz
Power	100 VA max.
Control	PLC Control
