Name: Automatic Telescoping Passageway Conveyor
Brand: Manncorp Inc.
Price: 11995.0 USD
Availability: InStock

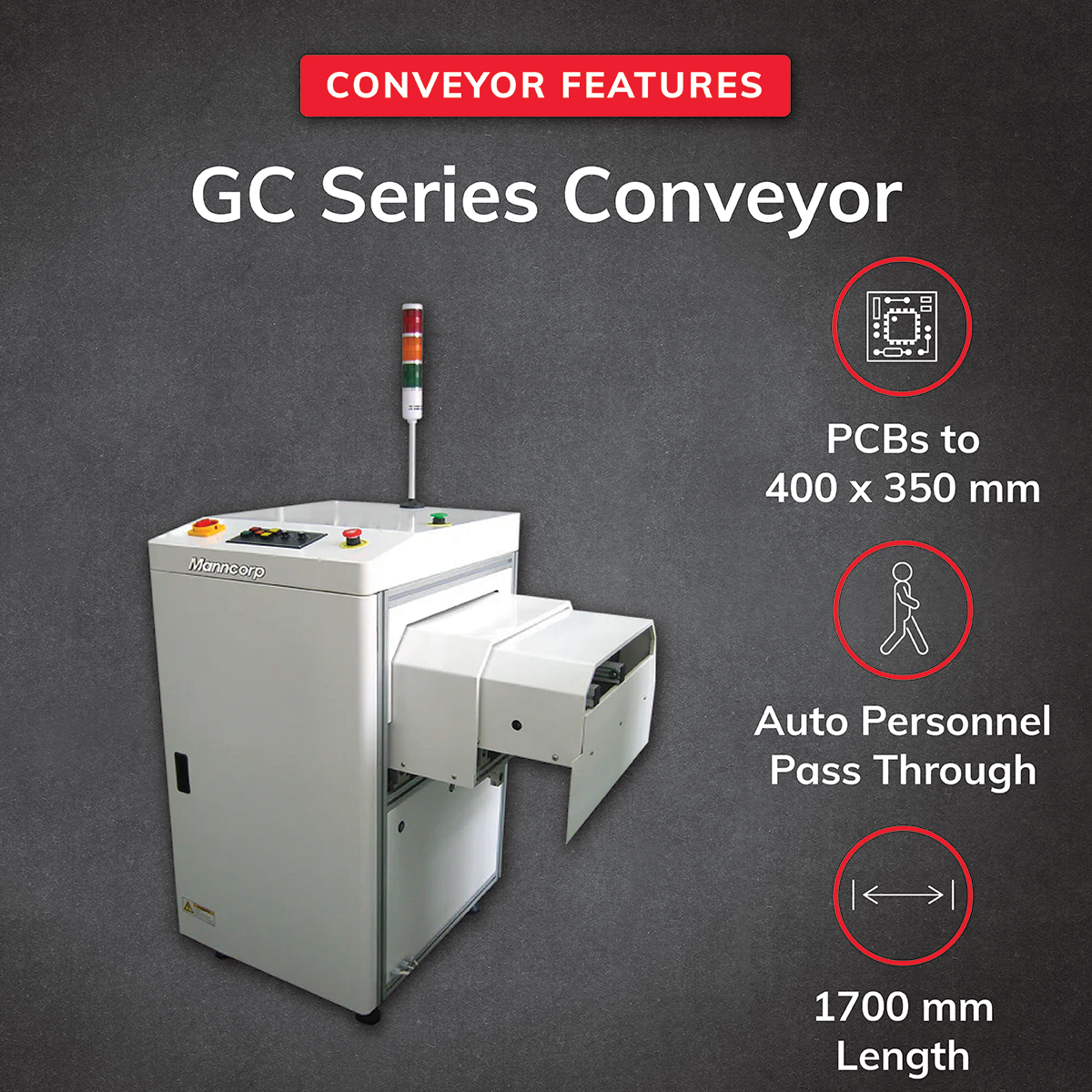

Automatic Telescoping Passageway Conveyor from Manncorp

When was the last time you checked traffic patterns of workers on your production floor? If they are detouring around a long line of machinery to go about their normal tasks, those extra steps could add up to many hours lost because of inefficiency. Manncorp's Automatic Telescoping Passageway Conveyor is designed to eliminate this issue by serving as a gateway, allowing personnel passage through desired locations along the PCB assembly line.

Conveyor Direction

Left to Right

Right to Left

Equipment Price

Quantity

[{"id":40321590329483,"title":"Left to Right","option1":"Left to Right","option2":null,"option3":null,"sku":"GC350W-ST","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Automatic Telescoping Passageway Conveyor - Left to Right","public_title":"Left to Right","options":["Left to Right"],"price":1199500,"weight":147418,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40321590362251,"title":"Right to Left","option1":"Right to Left","option2":null,"option3":null,"sku":"GC350W-ST-RL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Automatic Telescoping Passageway Conveyor - Right to Left","public_title":"Right to Left","options":["Right to Left"],"price":1199500,"weight":147418,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

QUESTIONS? TEXT OR CALL:

Chris Ellis 215-869-8374 | East Coast

Ed Stone 215-808-6266 | West Coast

Experience Smart Sensing Technology

The Automatic Telescoping Passageway Conveyor is completely automated. When its sensors detect the presence of someone wishing to cross the production line, the conveyor is halted momentarily, and the machine automatically telescopes into the housing to create a passageway. Immediately after the line is crossed, the conveyor returns to its normal position, saving time and increasing efficiency.

Model	GL350W-SB	GL350W-ST
Description	Folding Passageway Conveyor	Automatic Telescoping Passageway Conveyor

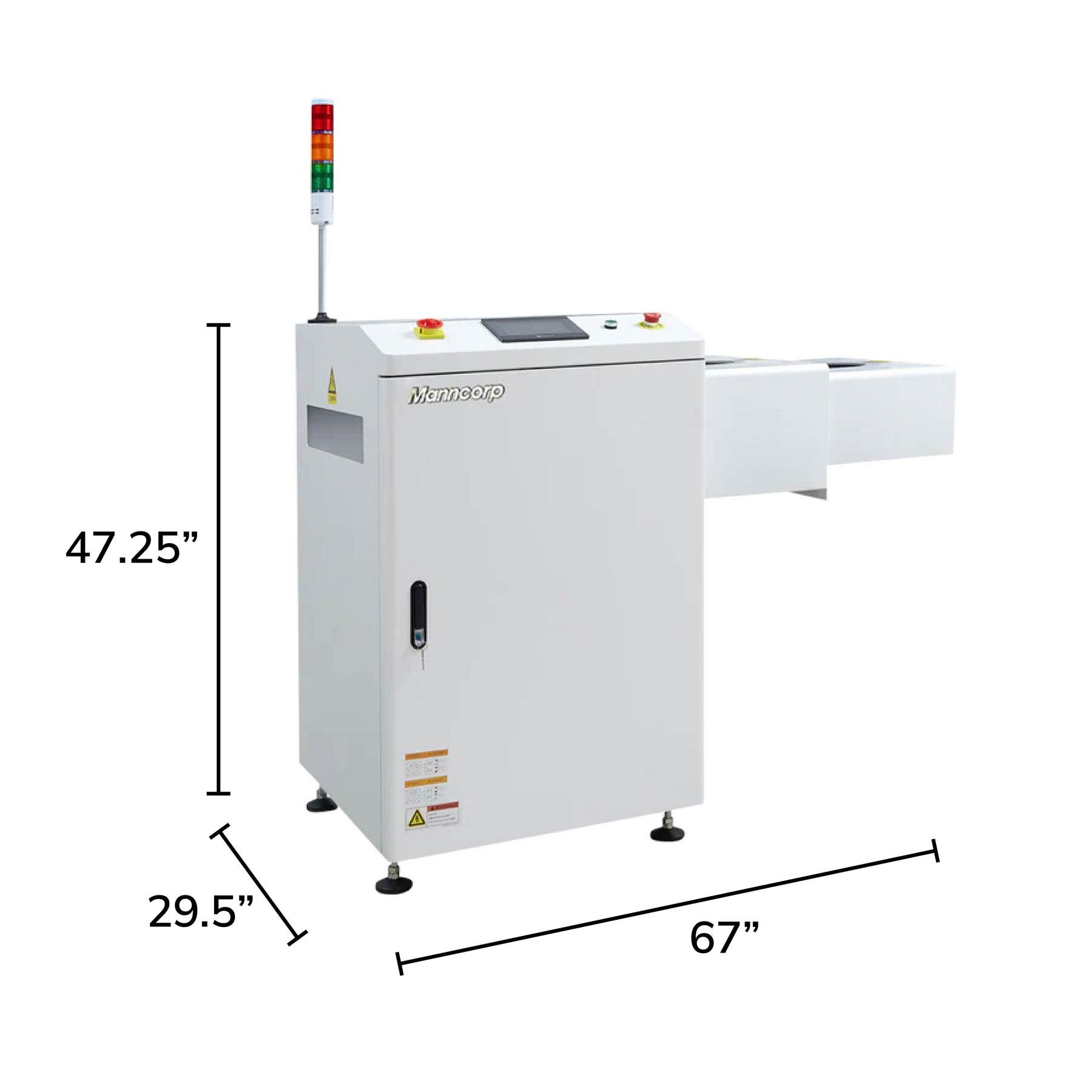

Machine Dimensions	1320 mm L x 550 mm W x 900 mm H (52" L x 21.7" W x 35.5" H)	1700 mm L x 750 mm W x 1200 mm H (67" L x 29.5" W x 47.25" H)
PCB Size	400 mm x 50-350 mm (15.74" x 2"-13.78")	400 mm x 50-350 mm (15.74" x 2"-13.78")
Power	110V, 50-60Hz	110V, 50-60Hz
Weight	200 kilos	230 kilos
Supply Pressure	5 kgf/cm²	5 kgf/cm²
PCB Direction	Left to right (standard) or right to left (optional) operation	Left to right (standard) or right to left (optional) operation
