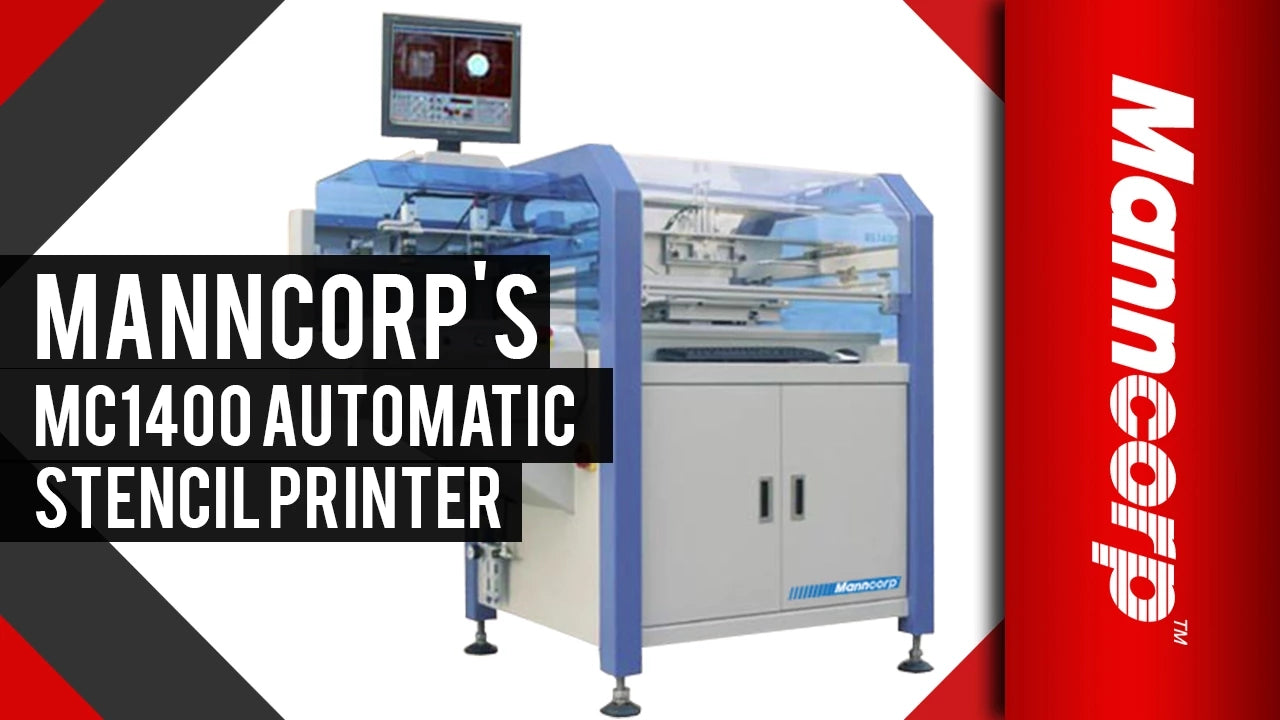

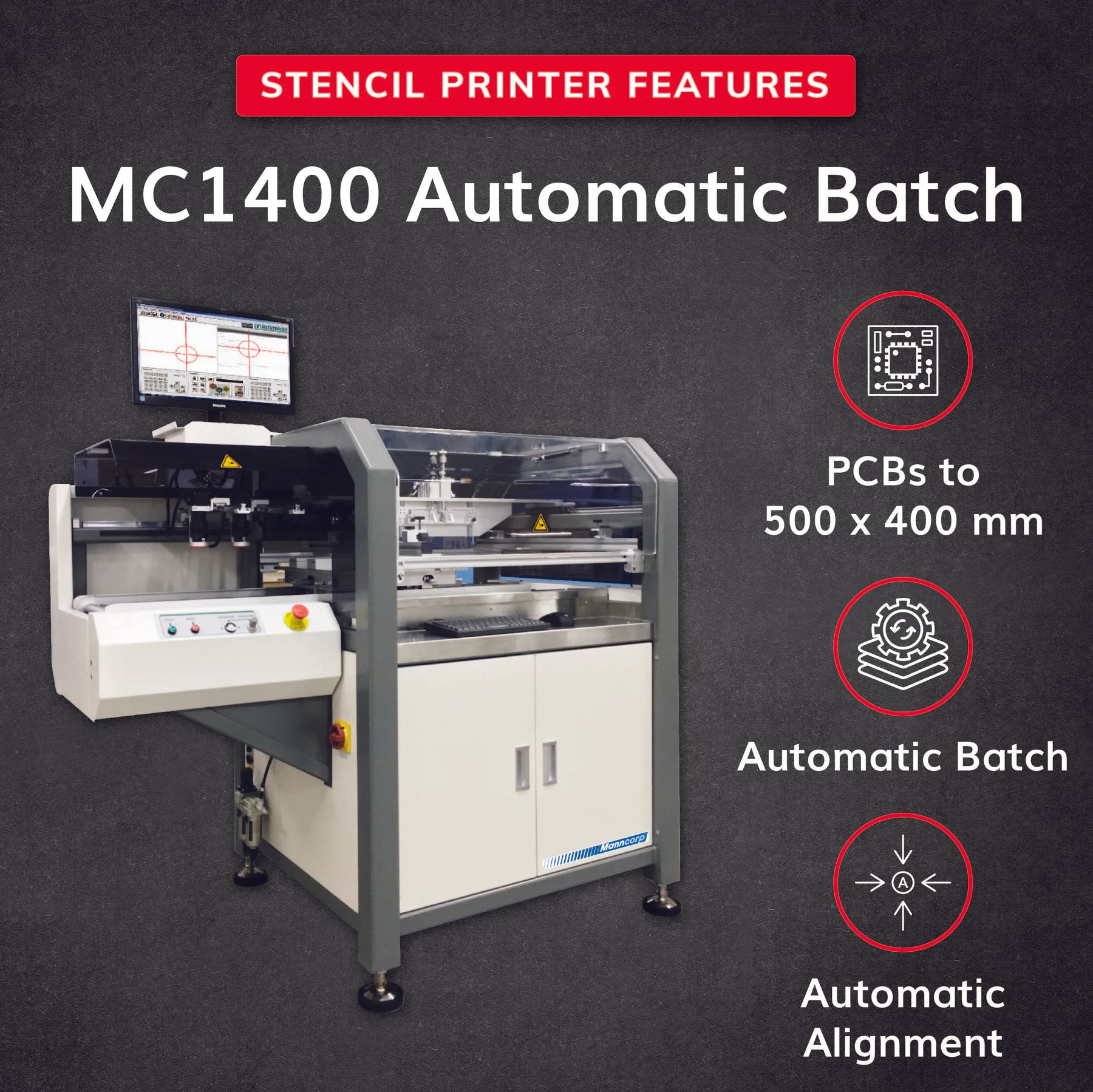

MC1400 Automatic Stencil Printer
Automates Alignment & Printing
Included AT-Align software is a powerful automatic fiducial finding and PCB board offset adjustment system that automatically aligns the PCB to the stencil for each print without operator intervention—simply press the start key and the MC1400 takes over the aligning and printing.
Eliminates Alignment Errors
Gaps, shadows, parallax errors and solder residue may all be concealed when viewing PCBs through the stencil. The MC1400's vision cameras view the board directly rather than through the stencil, eliminating image distortion.
Reduces Solder Paste Consumption
The MC1400 comes standard with a dual-squeegee/dual-stroke-control system for the most efficient use of solder paste. Its cycle time is just 15-25 seconds per PCB with registration repeatability of ±0.01 mm (0.0004"). All movements—PCB position, mounting table, and squeegee head—rely on precision linear guide while the print speed and table speed are servo controlled.
Large Print Area
A 400 x 400 mm mounting table comes standard (15.75" x 15.75"). Larger sizing, such as 500 x 400 mm (19.68" x 15.75"), is available. Stencil frames up to 700 x 700 mm (27.5" x 27.5") can be mounted.
Easy programming
All parameters—print speed, stroke length, squeegee pressure, etc.—are fully programmable using the graphical, Windows-based control software. During operation, the on-screen process status shows all details of the current print job. Flexible tooling holders make PCB setup and changeover very quick. The holders can be used with tooling pins (included) or with vacuum, for edge-to-edge printing.
| MC1400 Specifications | |
|---|---|
| Printing Speed | 2 to 150 mm/s (servo controlled) |
| Table Up / Down Speed | 0.2 to 4 mm/s (servo controlled) |
| Vision Alignment System | Automatic (AT-Align system) |
| Stencil Frame Size (External Dimensions) | 450 mm x 450 mm to 700 mm x 700 mm (17.7" x 17.7" to 27.5" x 27.5") Thickness: 31.7 mm (1.25" max.) |
| Printing Area | Max: 400 x 400 mm Optional max: 450 x 400 mm Optional max: 500 x 400 mm |
| Board Size | Min: 20 x 20 mm Max: 400 x 400 mm Optional max: 450 x 400 mm Optional max: 500 x 400 mm |
| Board Thickness | 0.8 to 8 mm Optional: 0.2 to 8 mm |
| Underside Clearance | Max: 26 mm |
| Printing Stroke | Max: 400 mm |
| Squeegee Pressure | 0-15 kg |
| Blade Type | Standard length: 250 mm Optional: 200 mm, 300 mm, 350 mm, 400 mm, 450 mm, 500 mm |
| XY Adjustment | ±5 mm |
| Radial Adjustment | ±2° |
| Registration Repeatability | ±0.01 mm |
| Support Tooling | Magnetic pin & vacuum block |
| Vision Alignment Resolution | 0.0085 mm/step |
| Vision Fiducial | Standard fiducial and any pads |
| Air & Power Requirements | 220VAC power, 75psi (5 bar) air |
| Dimensions (L x W x H) | 51" x 35" x 51" (1300 x 900 x 1300 mm) |
| Weight | 904 lbs (410 kg) |
