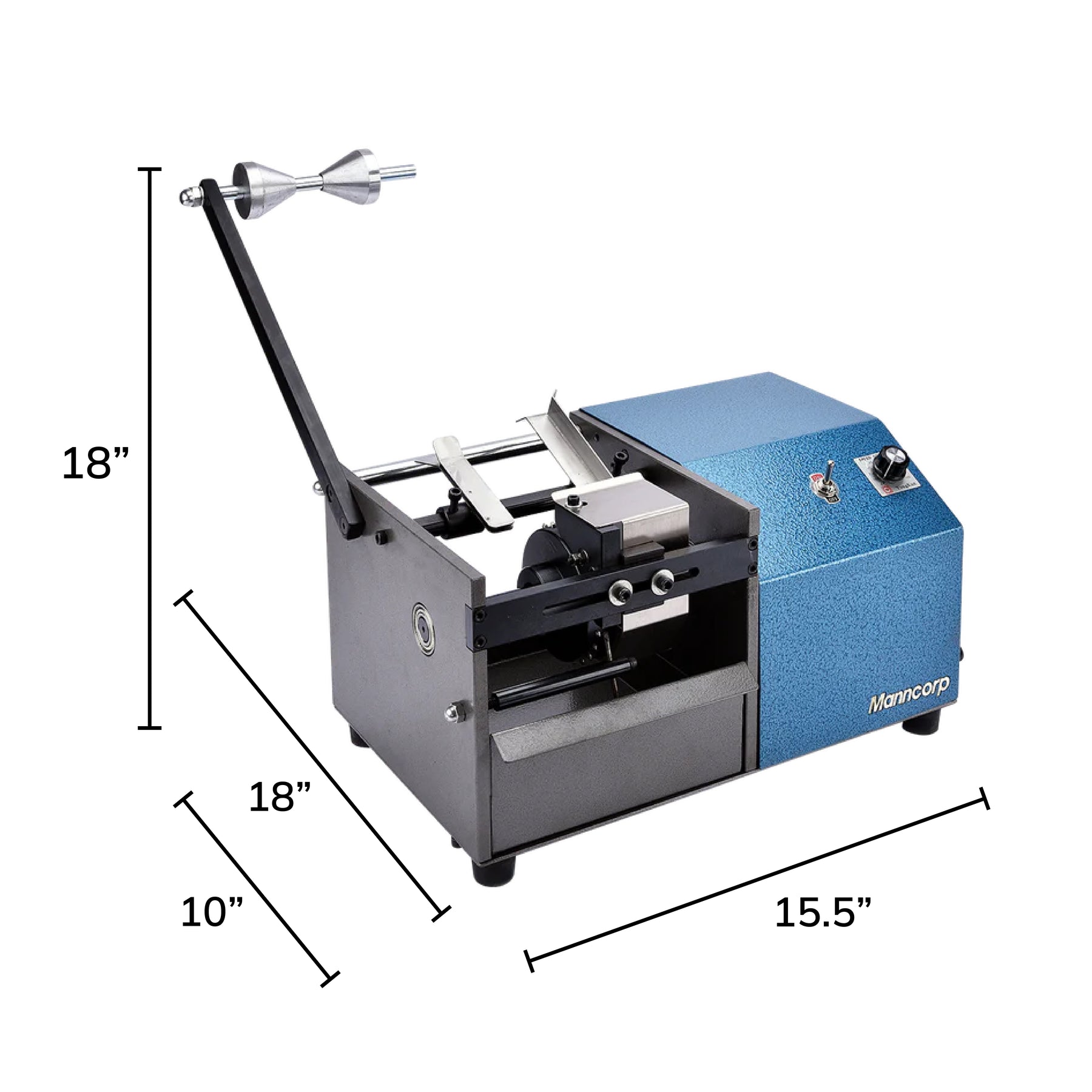

Motorized Axial Lead Former RFT201 for Taped Parts from Manncorp

Motorized Axial Lead Former RFT201 for Taped Parts

Included Accessories for the Motorized Axial Lead Former RFT201 for Taped Parts

Low maintenance taped axial lead formers process up to 35,000pph while placing minimal mechanical stress on the component body during bending. Tape reel holder (included) is adjustable for pitch and cut length. Optionally, add a component counter. Operates on 110V. Available in five models.

or to view pricing

Options / Accessories

Checkbox for Pitch Gauge for Axial Lead Formers

Pitch Gauge for Axial Lead Formers

$109.00

Quantity of {singleProduct.title}

Checkbox for Foot Pedal for RFT-201 (must be ordered w/machine)

Foot Pedal for RFT-201 (must be ordered w/machine)

$149.00

Quantity of {singleProduct.title}

Checkbox for Integrated Component Counter for RFT201 & RT86 Lead Formers

Integrated Component Counter for RFT201 & RT86 Lead Formers

$595.00

Quantity of {singleProduct.title}

[{"id":40317000122507,"title":"RFT-201U","option1":"RFT-201U","option2":null,"option3":null,"sku":"RFT201U","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RFT201 Motorized Axial Lead Former - RFT-201U","public_title":"RFT-201U","options":["RFT-201U"],"price":279800,"weight":34019,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40317000155275,"title":"RFT-201S","option1":"RFT-201S","option2":null,"option3":null,"sku":"RFT201S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RFT201 Motorized Axial Lead Former - RFT-201S","public_title":"RFT-201S","options":["RFT-201S"],"price":289800,"weight":34019,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40317000188043,"title":"RFT-201F","option1":"RFT-201F","option2":null,"option3":null,"sku":"RFT201F","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RFT201 Motorized Axial Lead Former - RFT-201F","public_title":"RFT-201F","options":["RFT-201F"],"price":309800,"weight":34019,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40317000220811,"title":"RFT-201W","option1":"RFT-201W","option2":null,"option3":null,"sku":"RFT201W","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RFT201 Motorized Axial Lead Former - RFT-201W","public_title":"RFT-201W","options":["RFT-201W"],"price":309800,"weight":34019,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40317000253579,"title":"RFT-201FW","option1":"RFT-201FW","option2":null,"option3":null,"sku":"RFT201FW","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RFT201 Motorized Axial Lead Former - RFT-201FW","public_title":"RFT-201FW","options":["RFT-201FW"],"price":329800,"weight":34019,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Questions? Reach Out Directly:

Chris Ellis - East Coast

Sales & Operations Manager

215.869.8374

Ed Stone - West Coast

Sales Manager

215.808.6266

Details Specifications

Available in Five Models

RFT201U motorized taped axial lead former/cutter meets most lead forming requirements. For lead widths from 0.35 - 1.0mm diameter.

RFT201S motorized taped axial lead former/cutter for finer diameter wires or smaller components that can be bent closer to the body. For lead widths from 0.35 - 0.8mm diameter.

RFT201W motorized taped axial lead former/cutter for larger diameter wires. For lead widths from 0.35 - 1.3mm diameter.

RFT201F motorized taped axial motorized lead former/cutter for vertical-mount parts. For lead widths from 0.35 - 1.0mm diameter.

RFT201FW motorized lead former/cutter for larger vertical-mount parts. For lead widths from 0.35 - 1.3mm diameter.

Specifications	RFT201U	RFT201S	RFT201W	RFT201F	RFT201FW
	Motorized Taped Lead Bender	Motorized Taped Lead Bender - Smaller diameter/components	Motorized Taped Lead Bender - Larger diameter	Motorized Taped Lead Bender - Vertical Mount	Motorized Taped Lead Bender - Vertical Mount larger components
A Body Length	3.5-37.6 mm	3.5-37.6 mm	3.5-37.6 mm	4-18 mm	4-18 mm
B Lead Length	3.6-10 mm	3.6-10 mm	3.6-10 mm	2-12 mm	2-12 mm
C Shoulder Min	1.2 mm	0.6 mm	1.2 mm	4 mm	6 mm
D Body Diameter	1.5-8 mm	1.5-8 mm	1.5-8 mm	1.5-8 mm	1.5-8 mm
ɸW Wire Diameter	0.35-0.8 mm	0.35-0.8 mm	0.35-1.3 mm	0.35-0.8 mm	0.35-1.3 mm
H Support Lead Max	N/A	N/A	N/A	25 mm	23 mm
P (Pitch)	6-40 mm	5-40 mm	6-40 mm	2.5-13.5 mm (The lower C=3 mm, the wider P=40 mm)	10 mm min (for 1.3 mm lead) (The lower C=3 mm, the wider P=40 mm)
R (Radius)	N/A	N/A	N/A	1°	1°
Production Rates - Taped	84,000 pcs/hr	40,000 pcs/hr	40,000 pcs/hr	40,000 pcs/hr	40,000 pcs/hr
Production Rates - Loose	N/A	N/A	N/A	N/A	N/A
Power	110/220V 50/60 Hz	110/220V 50/60 Hz	110/220V 50/60 Hz	110/220V 50/60 Hz	110/220V 50/60 Hz
Dimensions	520 x 380 x 300 mm	520 x 380 x 300 mm	520 x 380 x 300 mm	520 x 380 x 300 mm	520 x 380 x 300 mm
Weight	53 lbs (24 kgs)	53 lbs (24 kgs)	53 lbs (24 kgs)	53 lbs (24 kgs)	53 lbs (24 kgs)
Shipping Weight	58 lbs (26 kgs)	58 lbs (26 kgs)	58 lbs (26 kgs)	58 lbs (26 kgs)	58 lbs (26 kgs)
Tape Pitch	N/A	N/A	N/A	N/A	N/A

Options	RFT201U	RFT201S	RFT201W	RFT201F	RFT201FW
Pitch Gauge	Yes	Yes	Yes	Yes	Yes
Foot Pedal	Yes	Yes	Yes	Yes	Yes
Component Counter	Yes	Yes	Yes	Yes	Yes
Bowl Feeder	N/A	N/A	N/A	N/A	N/A
