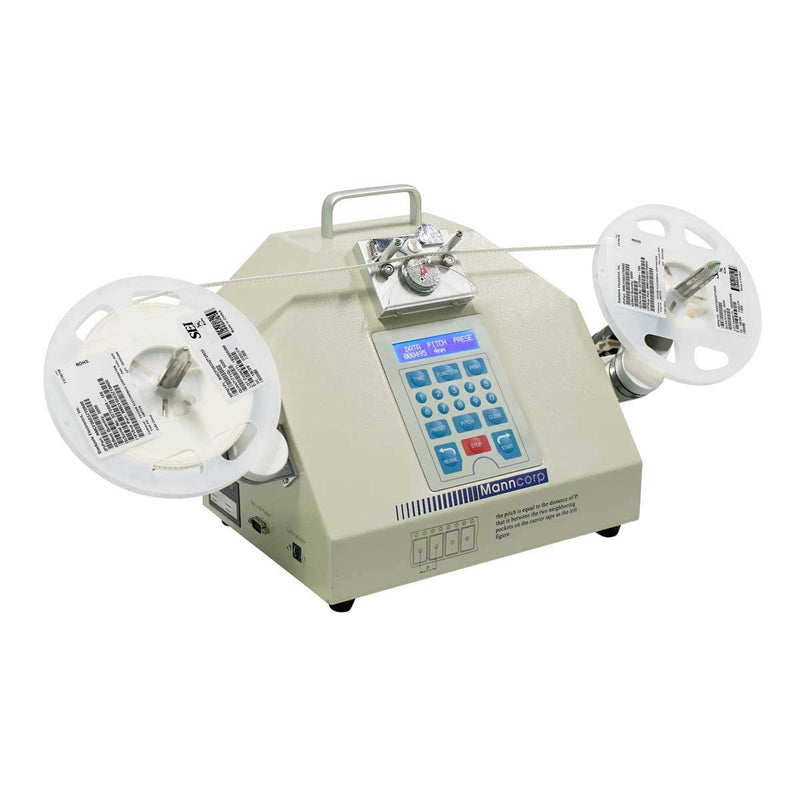

2000 Automatic SMD Counter

The 2000 Automatic SMD Counter simplifies inventory tasks while delivering reliable accuracy with a high-performance counting system. Built with productivity in mind, it improves part tracking, reduces mistakes, and supports a smoother manufacturing workflow.

Its upgraded counter mechanism accurately decelerates and stops at your defined count, ensuring consistent results every time. With three speed settings and easy PC integration for data transfer and configuration, the 2000 counter is designed to meet the demands of today's production environments.

Share Product
Regular price

or to view pricing

/

Questions? Reach Out Directly:

Chris Ellis - East Coast

Sales & Operations Manager

215.869.8374

Ed Stone - West Coast

Sales Manager

215.808.6266

Take Control of Your Inventory

The 2000 Automatic SMD Counter streamlines your workflow with quick setup and effortless changeovers. Whether counting an entire reel or a specific quantity for your next job, its precision double-check feature ensures you have the right amount every time. Speed is no issue—the 2000 processes a full reel in just 90 seconds, including verification. Ideal for inventory management, stock checks, intake counts, and pre-kitting, this high-performance counter keeps your operations running smoothly.

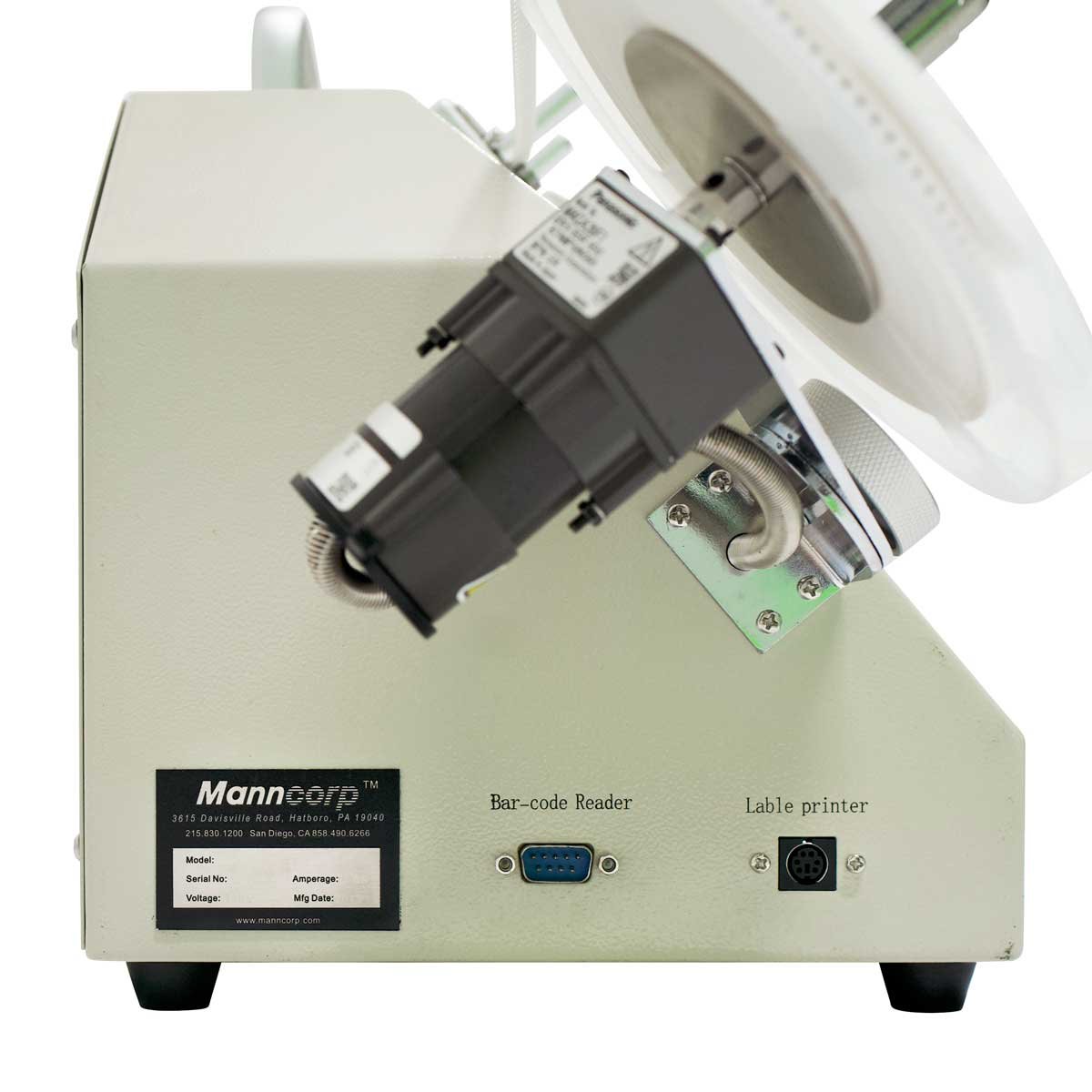

Designed for ease of use, the 2000 allows operators to monitor both the LCD screen and the components being counted simultaneously. Its advanced design prevents tape drops, protecting reels from damage during the process. With the ability to count both forward and backward for verification, the machine also allows for quick spooling of parts back onto the original reel when needed.

How it Works

1. Power the Machine

After powering up...

...the LCD displays:

...and changes to:

...followed by:

The startup self-checking process is finished at this time.

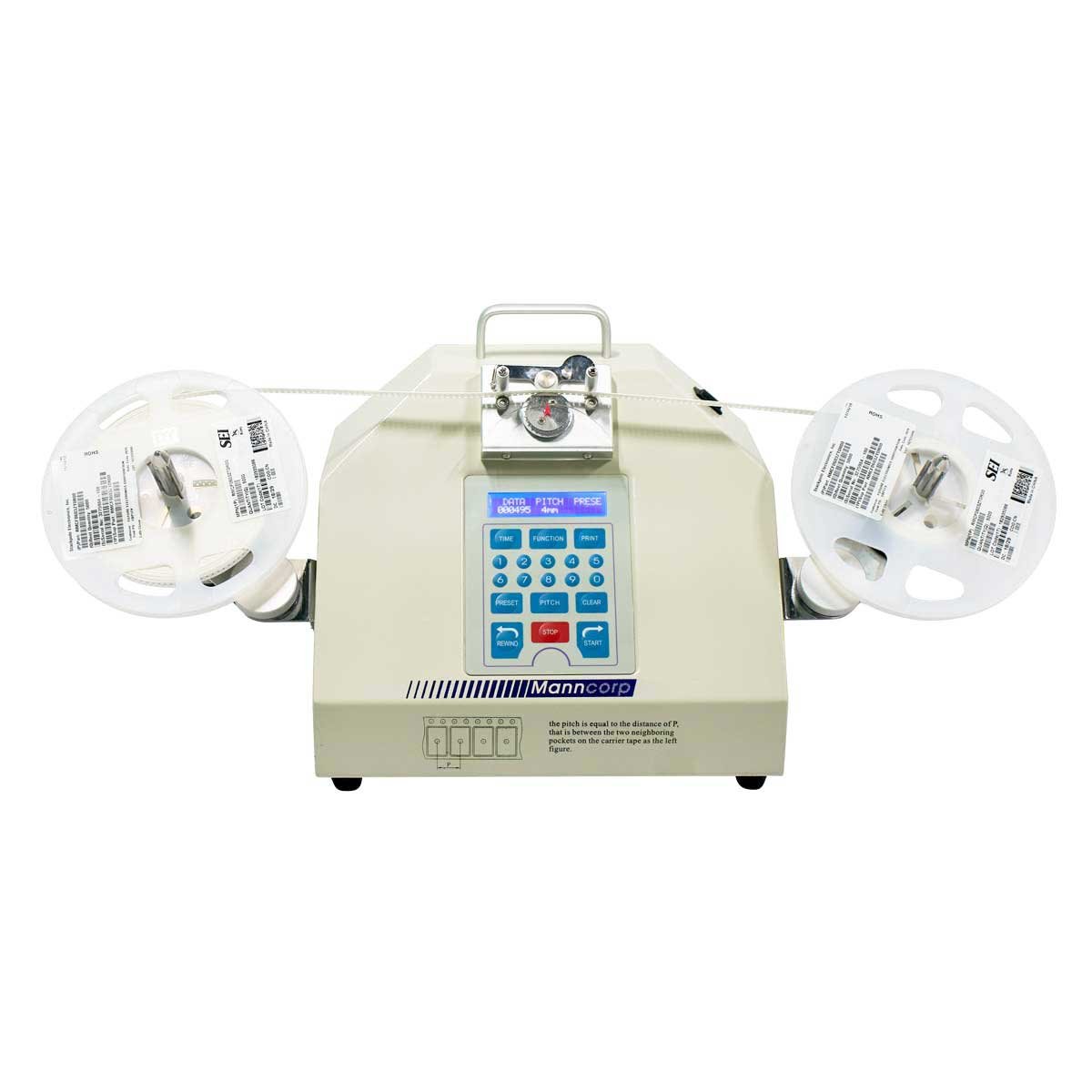

2. Keys and Settings

TIME key: Clock setting. Press this key shortly will display the date and time on the LCD. Press and hold it for 10 seconds will switch to time setting mode:

Enter the current date and time. Press the TIME key again to exit.

PITCH key: This key will set the tape pitch. According to EIA-481 standard, available pitches(P:PO ratio) are: 2mm, 4mm, 8mm, 12mm, 16mm, 20mm, ..., 56mm. Press the PITCH key repeatedly till the LCD displays the required pitch.

Po = Distance from one to the next sprocket hole which is 4mm (EIA-481 Standard)

It can be seen that pitch equals the number of puncture holes between two parts (gaps between two holes are 4mm on all tapes).

PRESET key: Press this key and enter the desired number. The machine counts to this preset number and stops. Pressing the key again will return to normal mode.

Note: Preset value is invalid if >59999.

CLEAR key: Reset the counter.

START key: Start the counting. Motors start moving, the tape transfers from one reel to the other.

STOP key: Stop counting.

REWIND key: Pressing this key rewinds the tape from the temp reel to the original reel. The counter decrements at the same time. It stops when the counter reaches zero. This also verifies the accuracy of the counting.

3. Operation

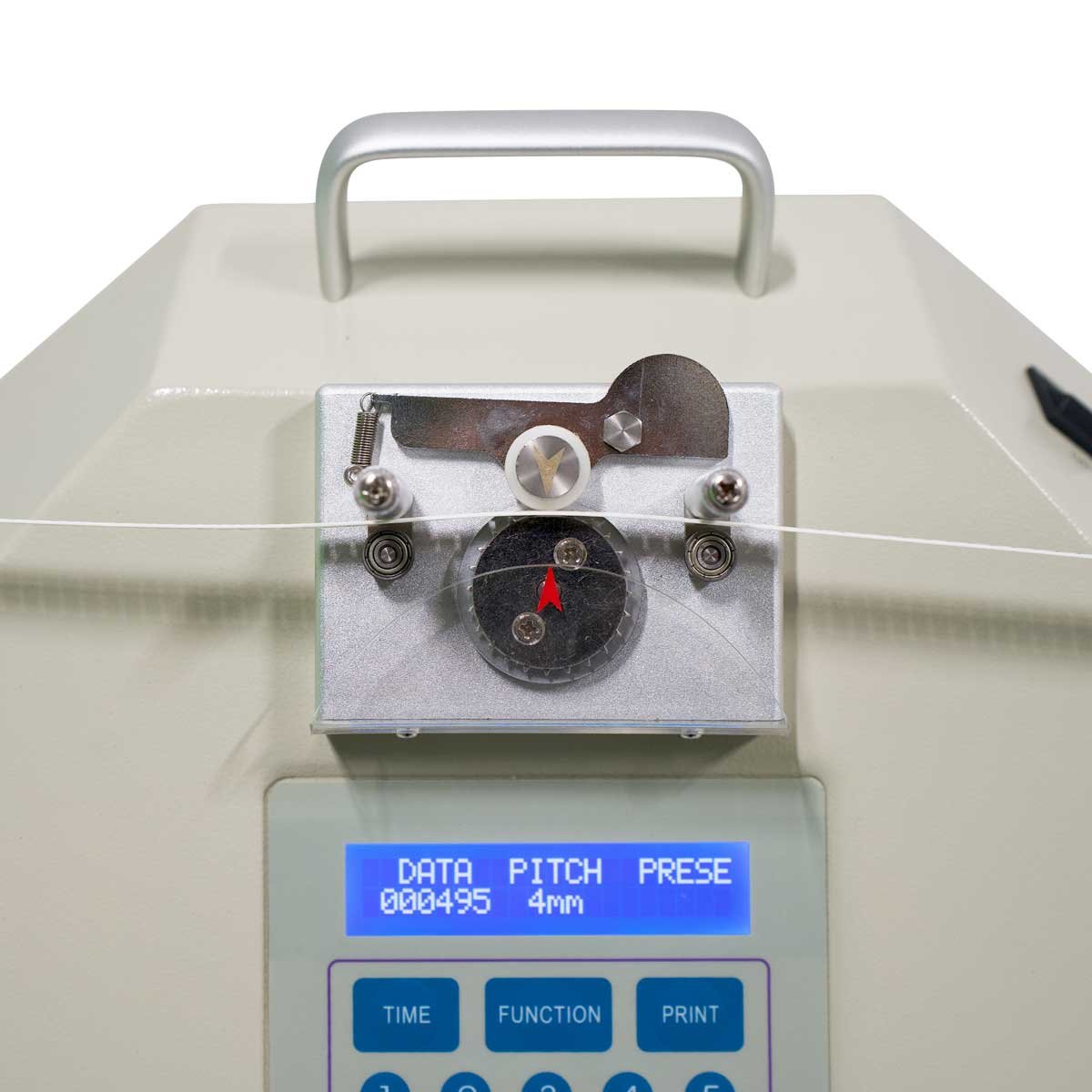

  • Mount the reel to be counted on the left side. Make sure there is a temp reel on the right side. Manually lead the tape through the counting gears. Rotate the temp reel till the first component is aligned with the press wheel.
  • Set the pitch value as specified above.
  • Press the START key to start counting. Note: the counter increases or decreases whether it is moved by the motors or manually.
  • Rewind the tape back to the original reel by pressing the REWIND key. Rewinding also verifies the counting result.
2000 Automatic Counter Specifications
Counting Range -999,999 to 999,999
Counting Speed 800 pieces/second (for 2mm pitch components)
Tape Pitch Compatibility 2, 4, 8, 12, 16, 20...52, 56mm
Empty Spool Detection Supports detection for both paper and transparent tapes
Reel Size Compatibility 7-13 inches

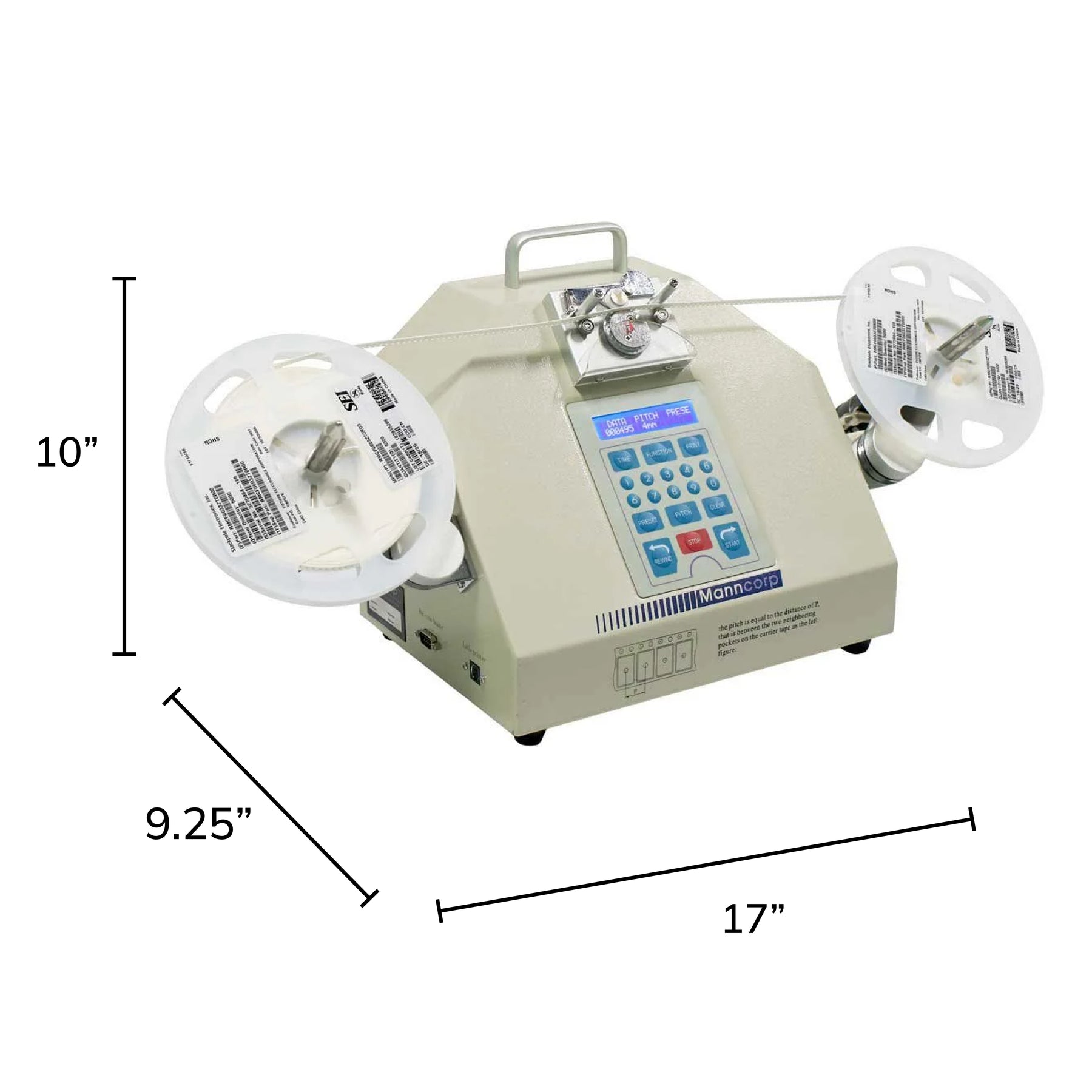

Machine Dimensions 17.7" x 9.4" x 10.6" (450 x 240 x 270 mm)
Power Supply AC 100-240V, 50/60 Hz
Power Consumption 50W
Weight 21 lbs. (9.5 kg)
Certification CE Compliant
Inventory Management Tools Not Included
