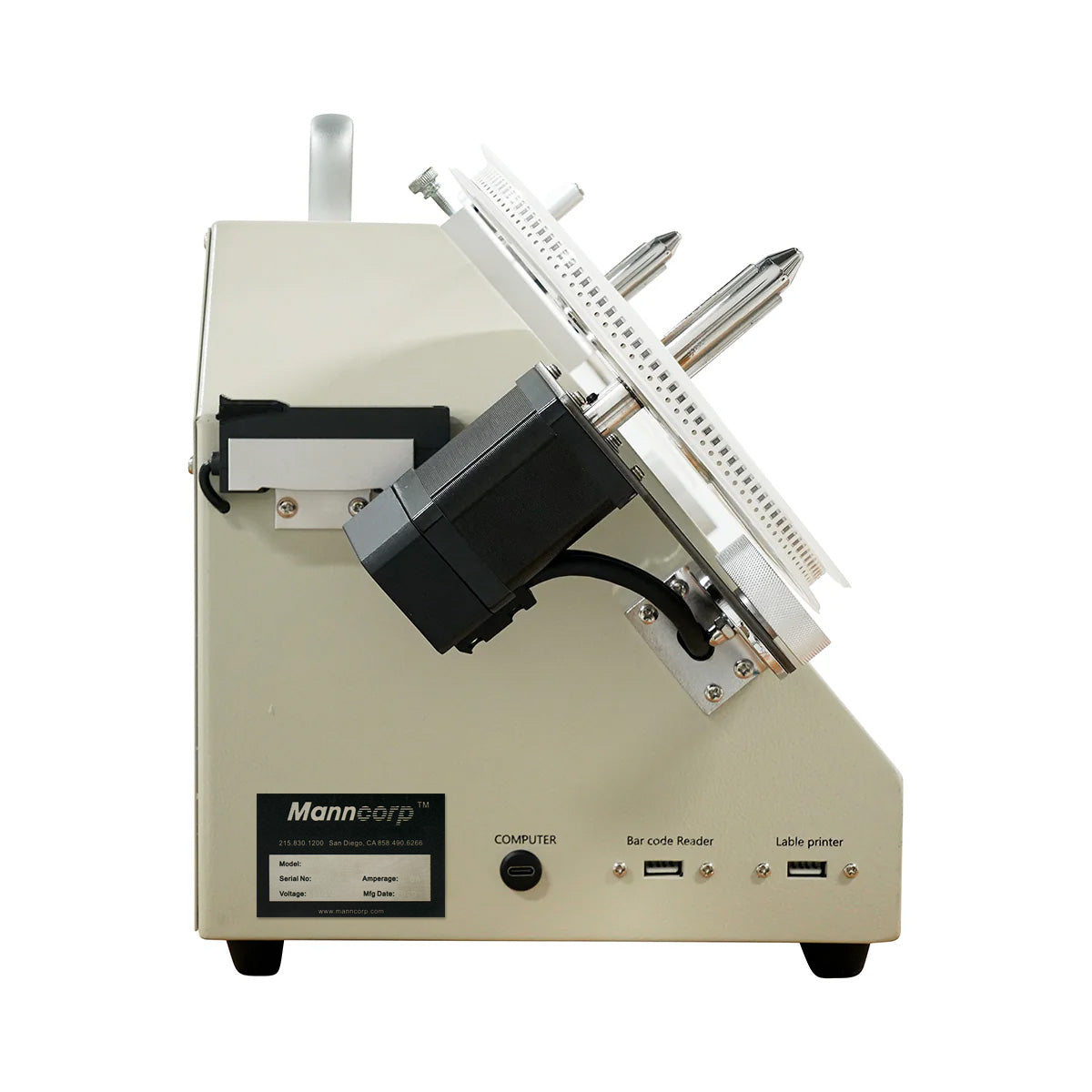

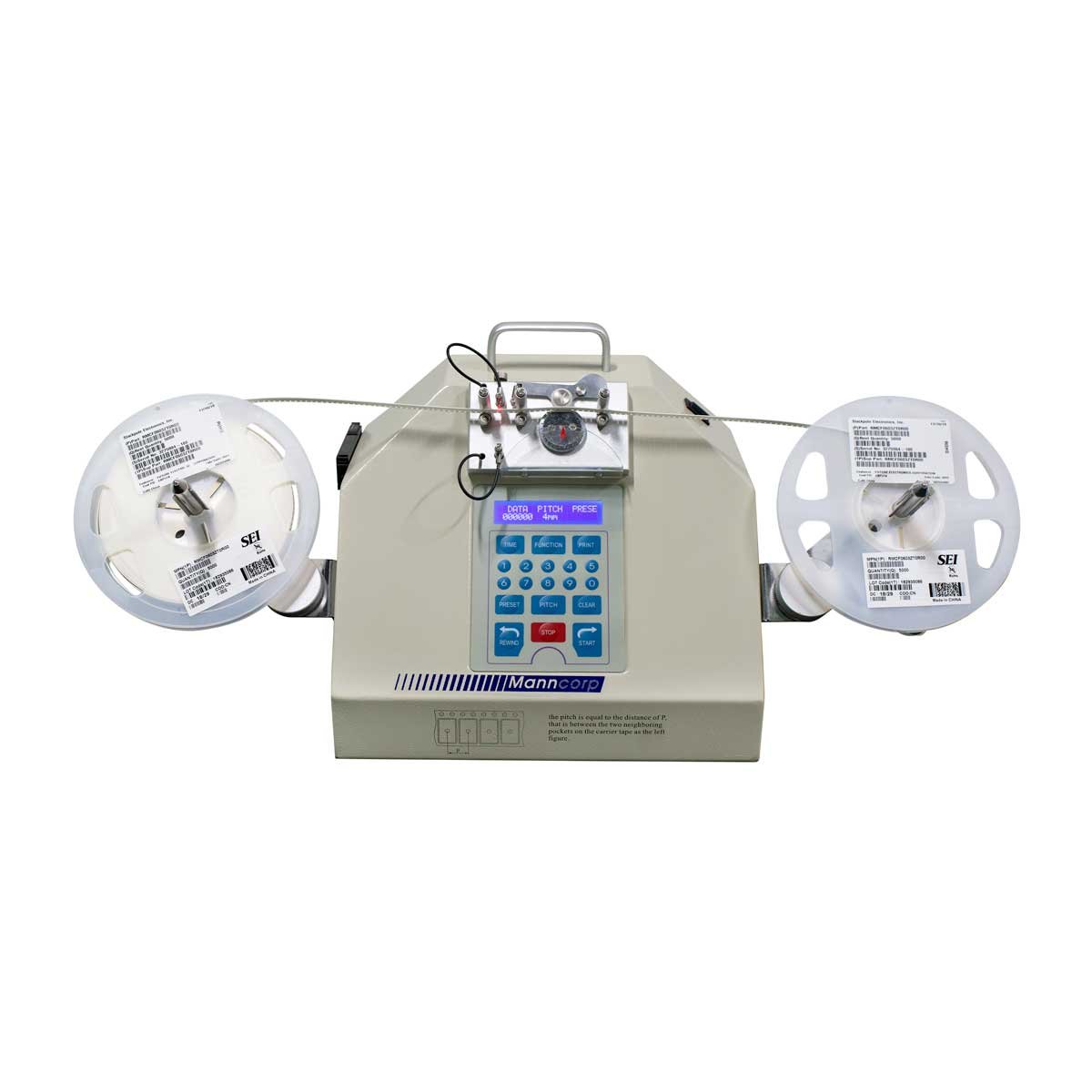

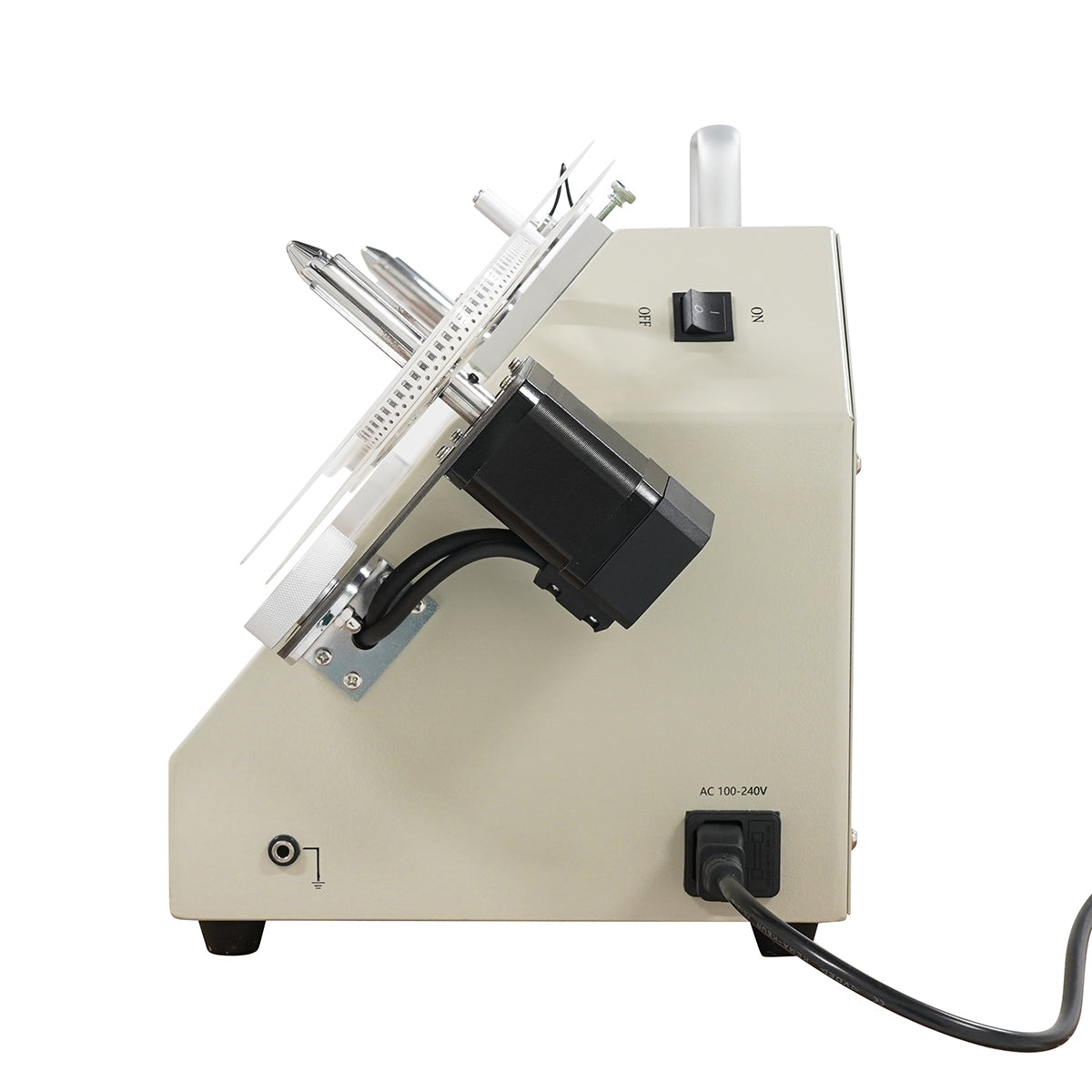

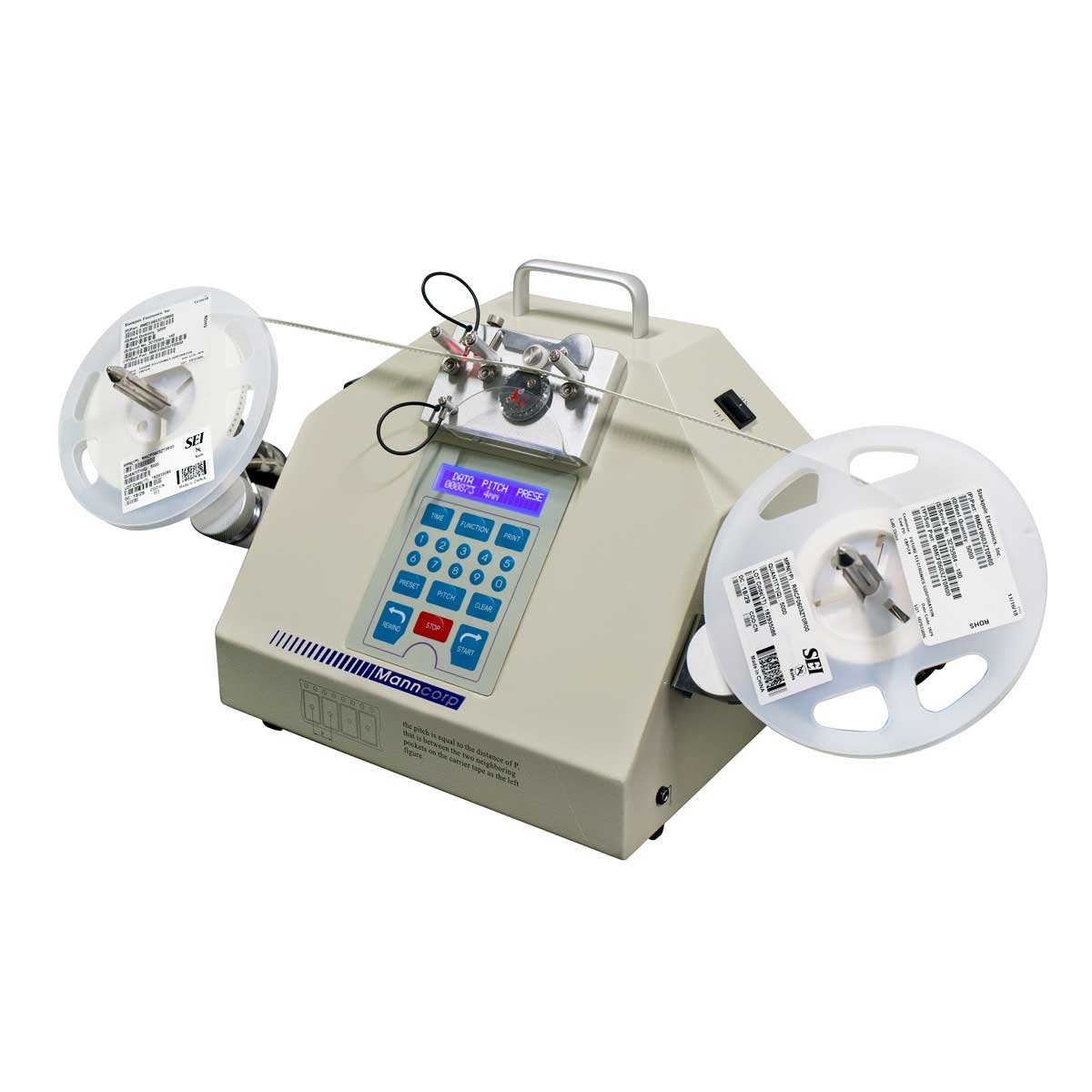

2000PC Automatic SMD Parts Counter - PocketCheck Counter
Pocket Check Feature Tracks Missing Components

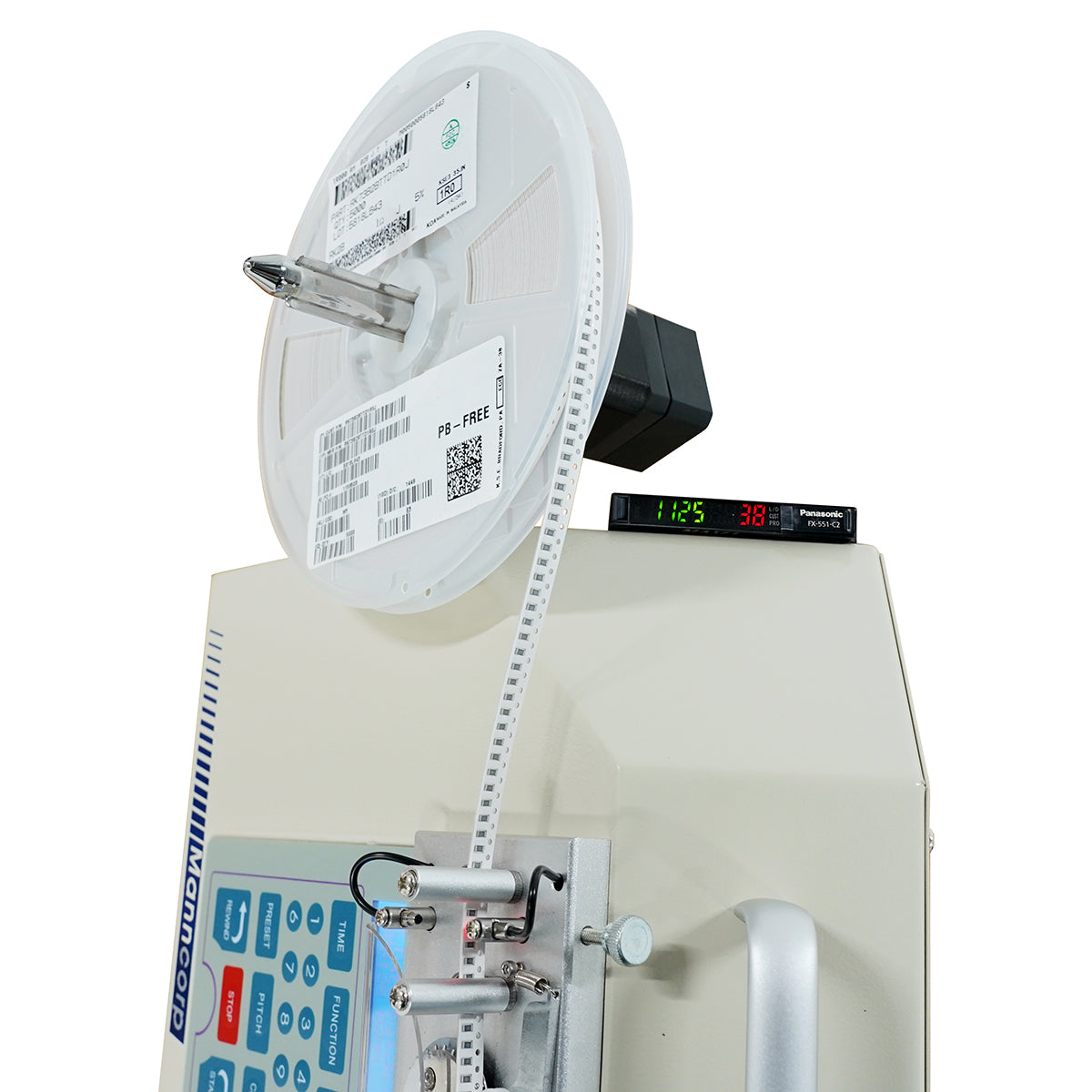

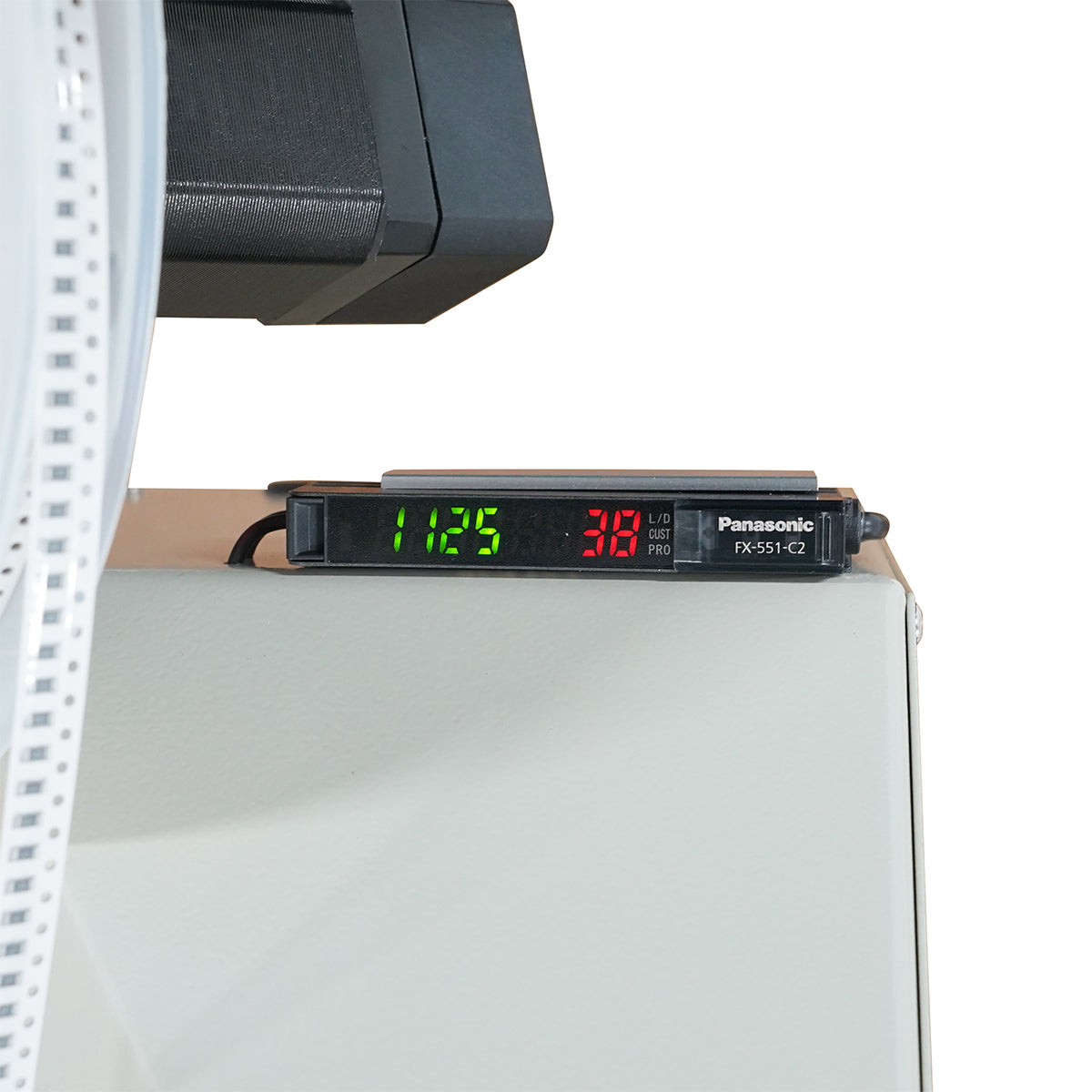

Component reels often are missing components, yet most counters cannot detect this condition. The 2000PC counter not only counts the sprocket holes but also has "Pocket Check" that checks each pocket to verify that the component is actually there. If there is a missed part, the machine stops and before continuing, lets operator know total number of missing components. A digital readout continuously updates the true part count by subtracting missing parts. As an additional benefit, Pocket Check will stop at end of new reels as they typically have 5-10 inches of empty pockets at end of tape reel. This prevents the annoyance of spinning tape whiplash.
Get on top of your inventory
The automatic 2000PC SMD parts counter with PocketCheck sets up and changes over quickly. Count out an entire reel or a specific number of parts to prepare for your next job, and know you've got the right amount thanks to the 2000PC's double-check feature. The 2000PC is fast, too, capable of zipping through an entire reel of components in a minute and a half (including double-checking the count).
2000PC SMD counter with PocketCheck missing part detection is ideal for inventory, stock checks, intake counts, pre-kitting and more.
Ergonomic and easy to use
The 2000PC's design allows the operator to keep an eye on both the LCD screen and the parts as they're being counted. Designed to prevent tape dropping, the 2000PC counter protects tapes from damage during counting.
The machine is capable of counting forward and back (for double-checking), or parts can be swiftly spooled back to their original reel.
How it Works
1. Power the Machine
After powering up...
...the LCD displays:
...and changes to:
...followed by:
The startup self-checking process is finished at this time.

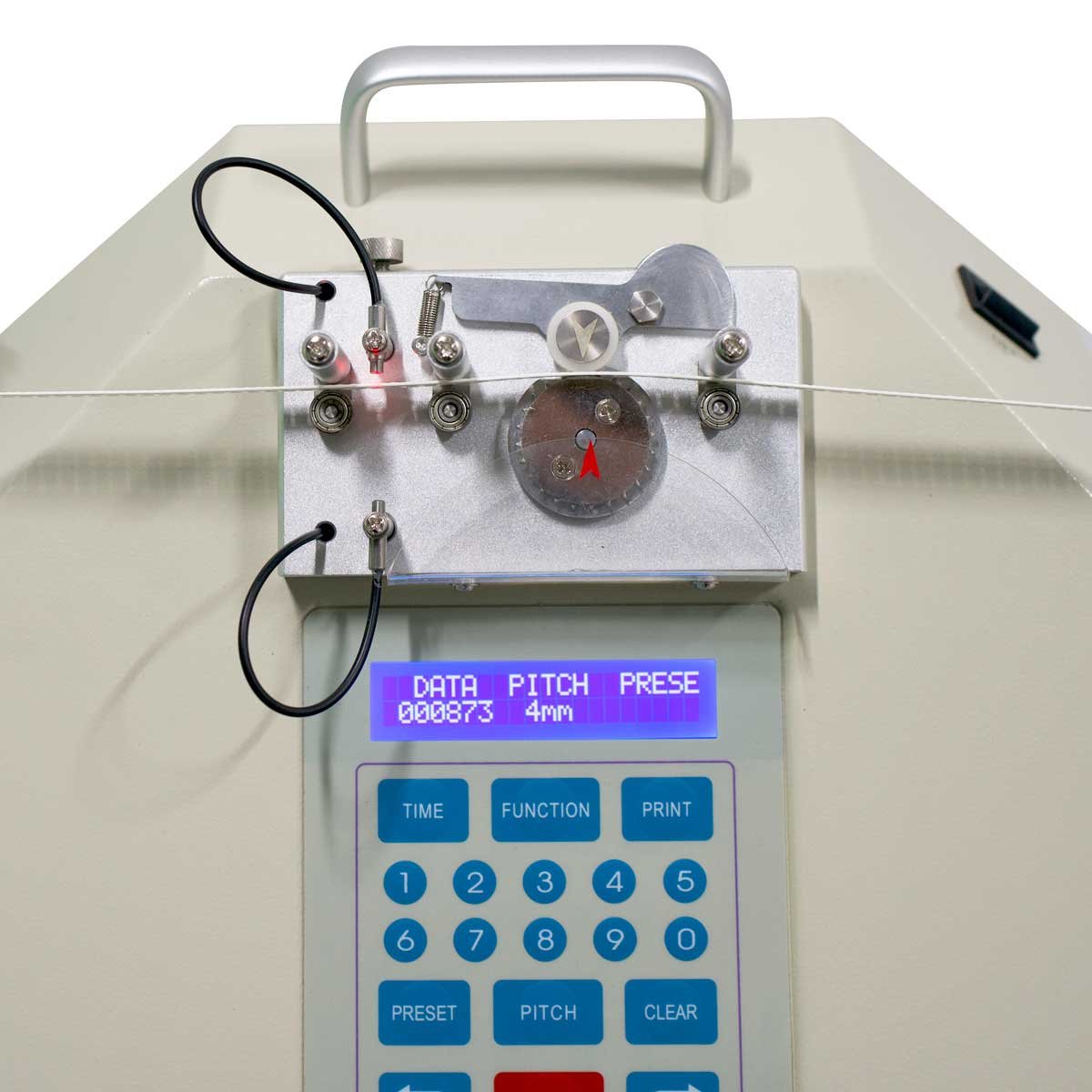

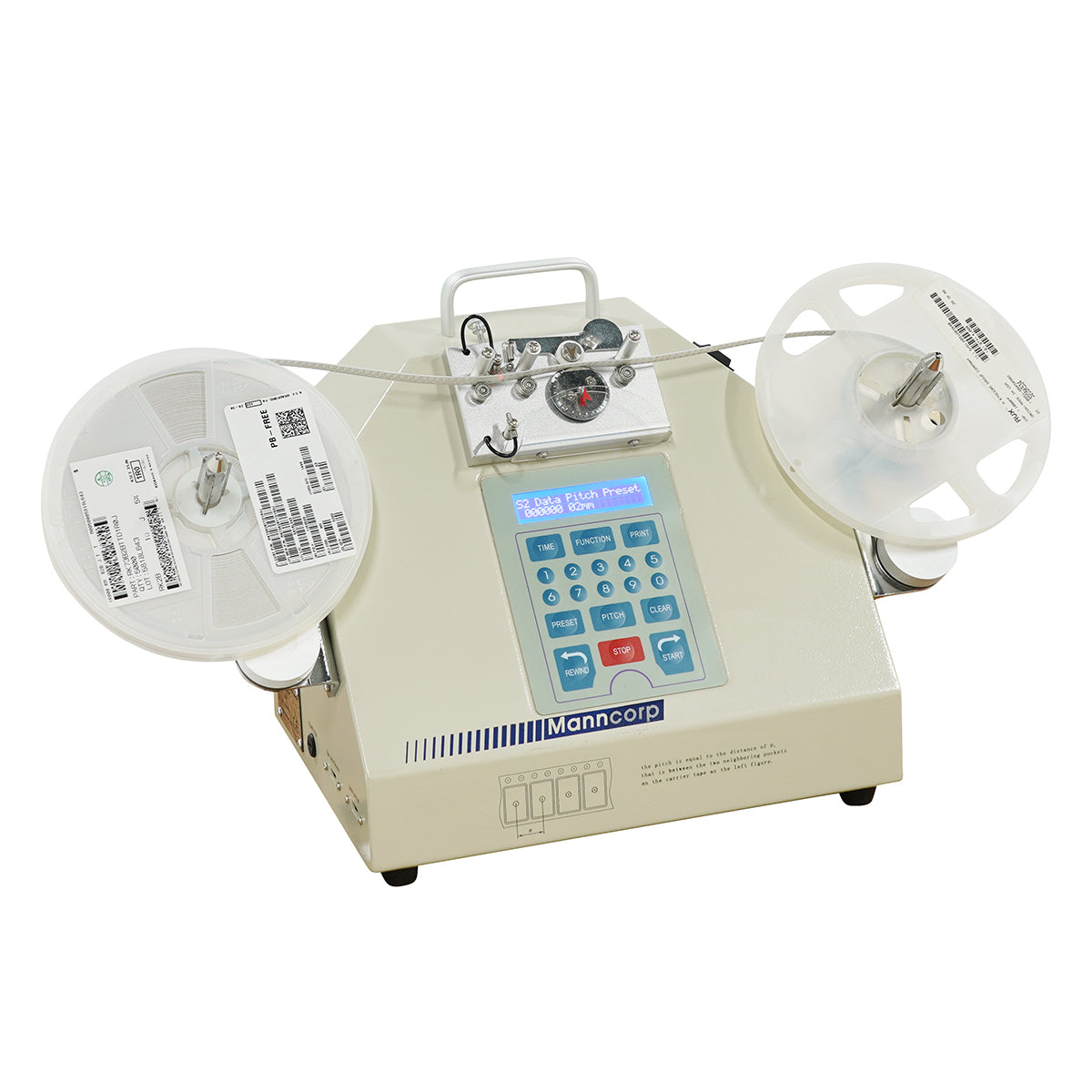

2. Keys and Settings

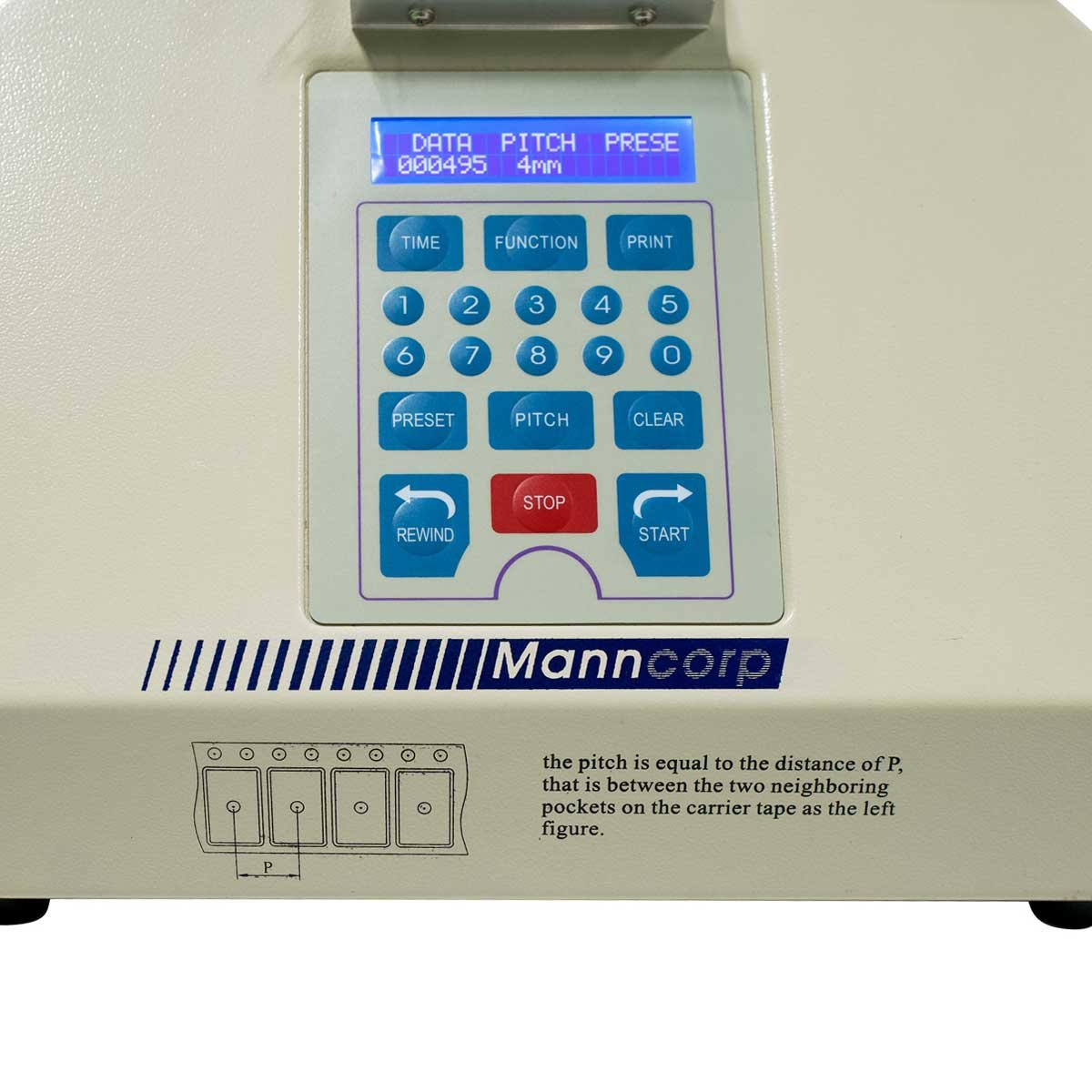

TIME key: Clock setting. Press this key shortly will display the date and time on the LCD. Press and hold it for 10 seconds will switch to time setting mode:
Enter the current date and time. Press the TIME key again to exit. POCKET CHECK key: Press this key will start the missing components detection process. LCD will display an "a" symbol on the upper left corner. The machine stops and beeps if it detects an empty position on the tape. Press this key again will switch to normal operation mode. This function is available only on BC2100PT and BC2200 models.
PRINT key: Print components quantity and current time. It can also print bar code. This function is available on BC2100P, BC2100PS and BC2200. It only prints positive numbers.
PITCH key: This key will set the tape pitch. According to EIA-481 standard, available pitches(P:PO ratio) are: 2mm, 4mm, 8mm, 12mm, 16mm, 20mm, ..., 56mm. Press the PITCH key repeatedly till the LCD displays the required pitch.
Po = Distance from one to the next sprocket hole which is 4mm (EIA-481 Standard)
It can be seen that pitch equals the number of puncture holes between two parts (gaps between two holes are 4mm on all tapes).
PRESET key: Press this key and enter the desired number. The machine counts to this preset number and stops. Pressing the key again will return to normal mode.
Note: Preset value is invalid if >59999.
CLEAR key: Reset the counter.
START key: Start the counting. Motors start moving, the tape transfers from one reel to the other.
STOP key: Stop counting.
REWIND key: Pressing this key rewinds the tape from the temp reel to the original reel. The counter decrements at the same time. It stops when the counter reaches zero. This also verifies the accuracy of the counting.
3. Operation
- Mount the reel to be counted on the left side. Make sure there is a temp reel on the right side. Manually lead the tape through the counting gears. Rotate the temp reel till the first component is aligned with the press wheel.
- Set the pitch value as specified above.
- Press the START key to start counting. Note: the counter increases or decreases whether it is moved by the motors or manually.
- Rewind the tape back to the original reel by pressing the REWIND key. Rewinding also verifies the counting result.
| 2000PC Automatic Counter Specifications | |
|---|---|
| Counter Range | -59,999 to 59,999 |
| Power | 110V AC standard (220V available) |
| Dimensions | 17" x 9.25" x 10" (432 x 235 x 254 mm) |
| Weight | 21 lbs. (9.5 kg) |
