520N Motorized PCB Depaneler

Back

Motorized PCB Depaneling Machine - 520N from Manncorp

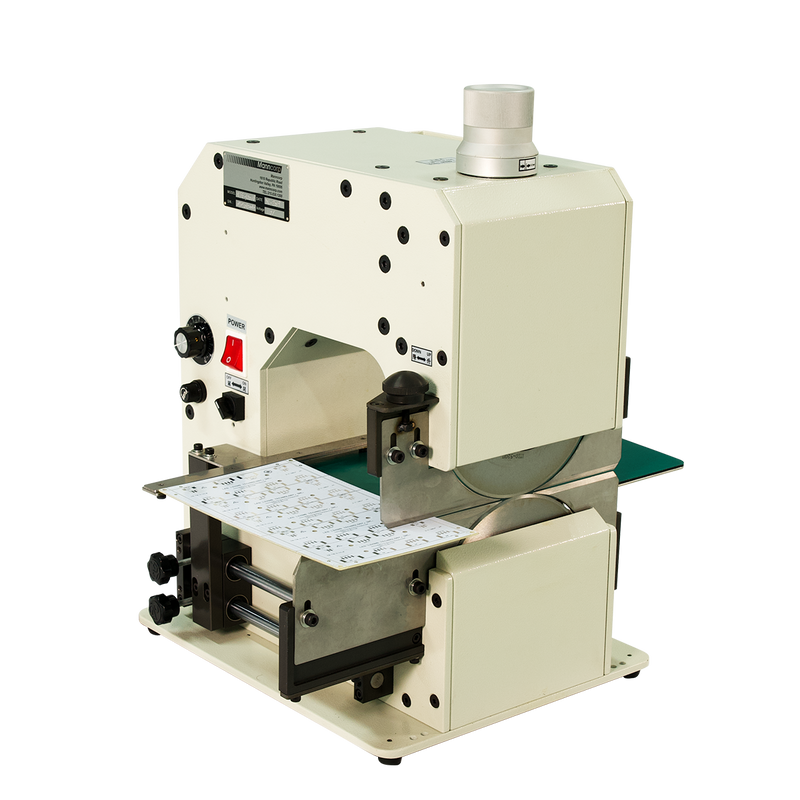

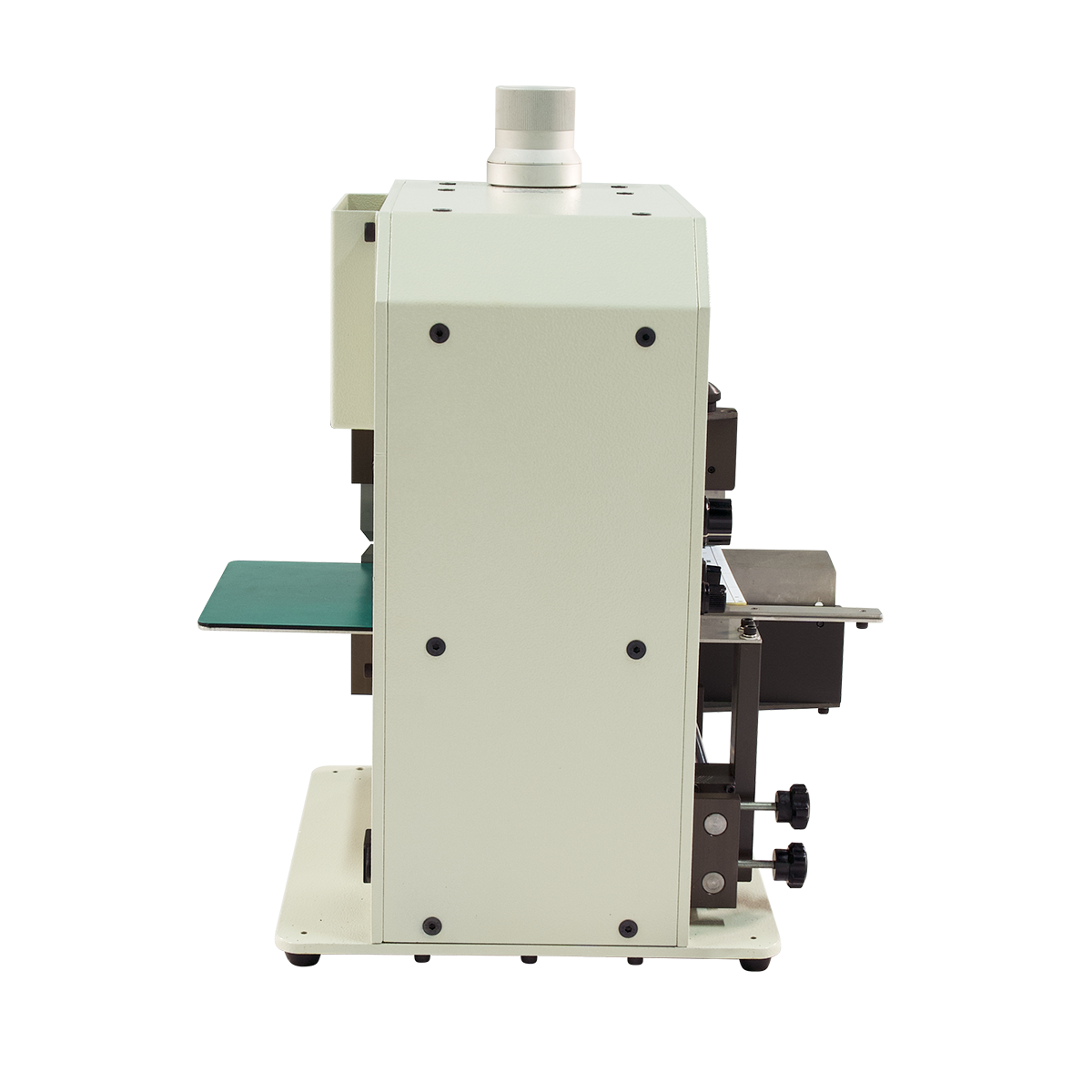

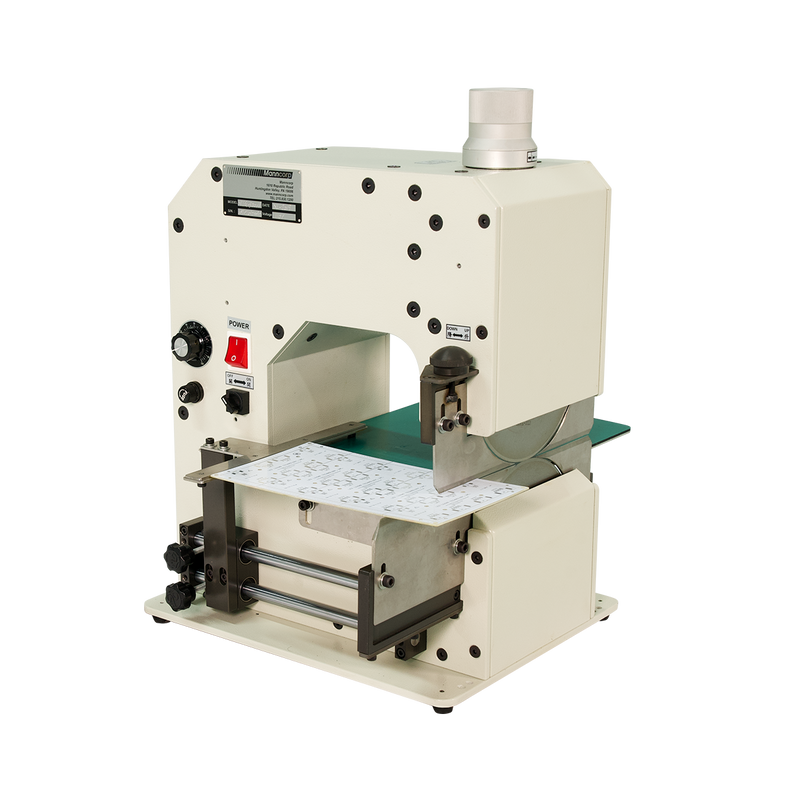

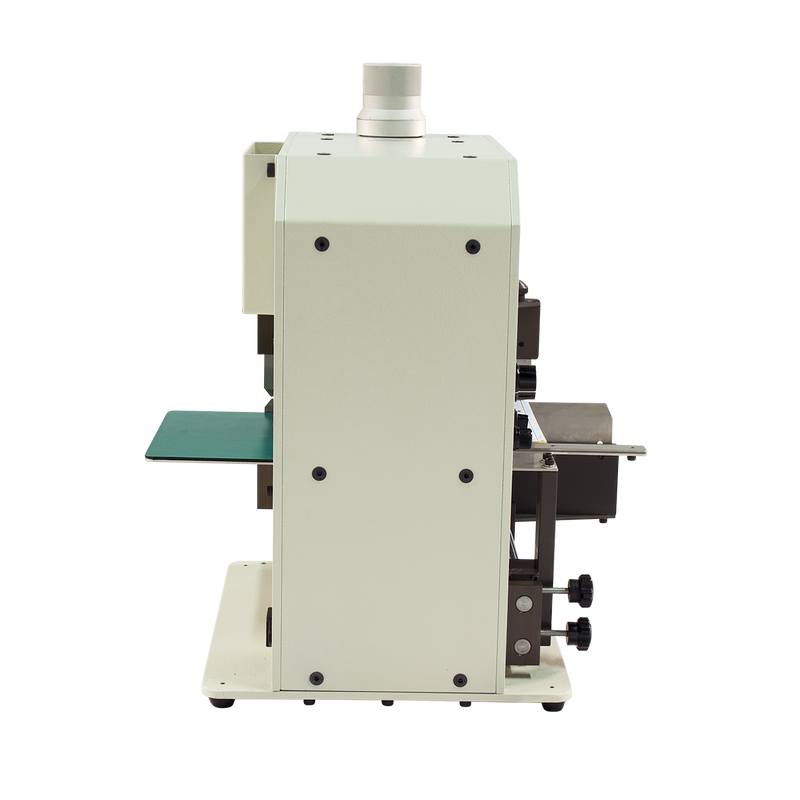

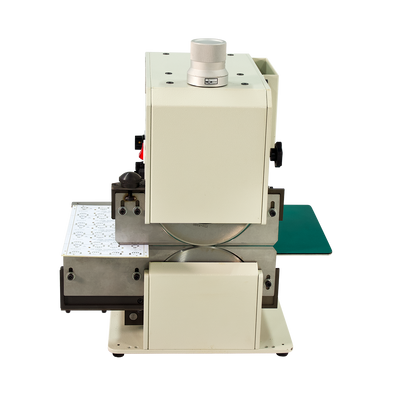

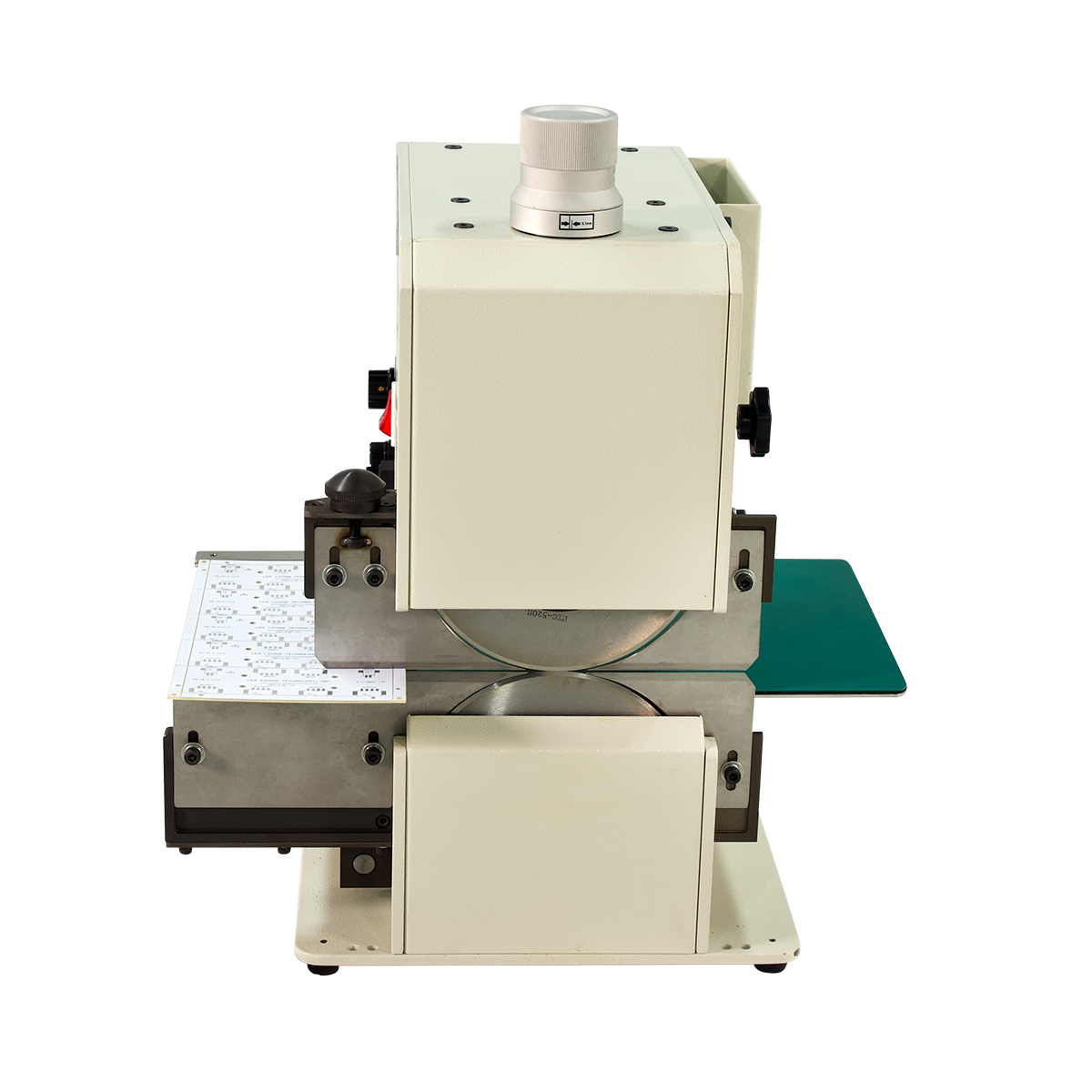

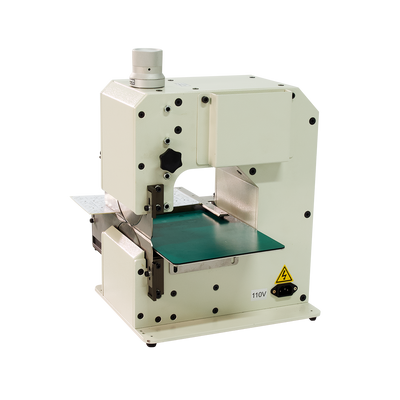

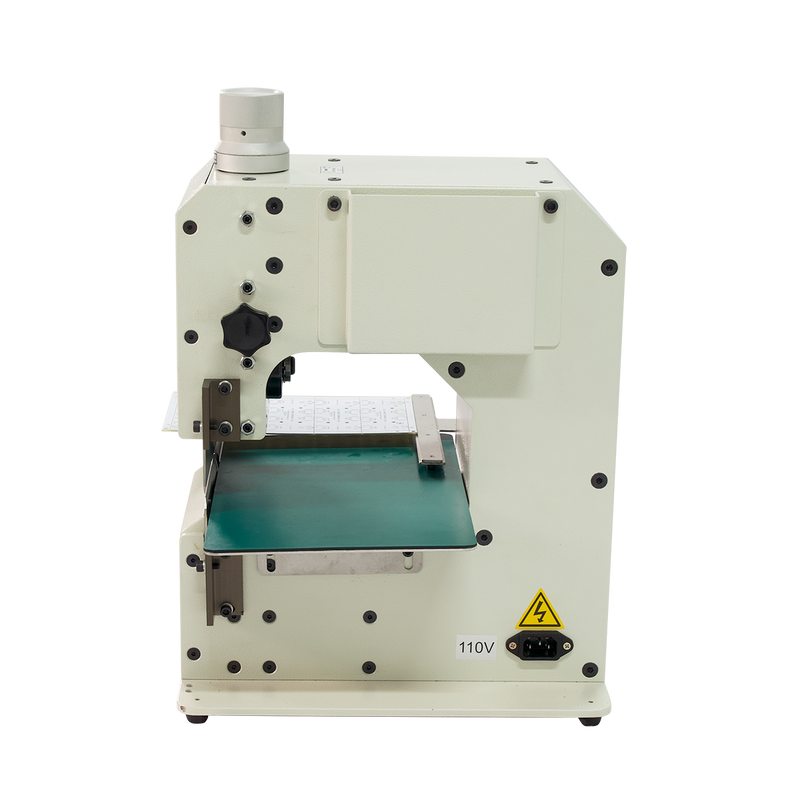

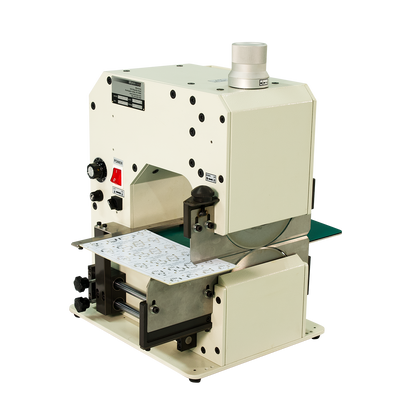

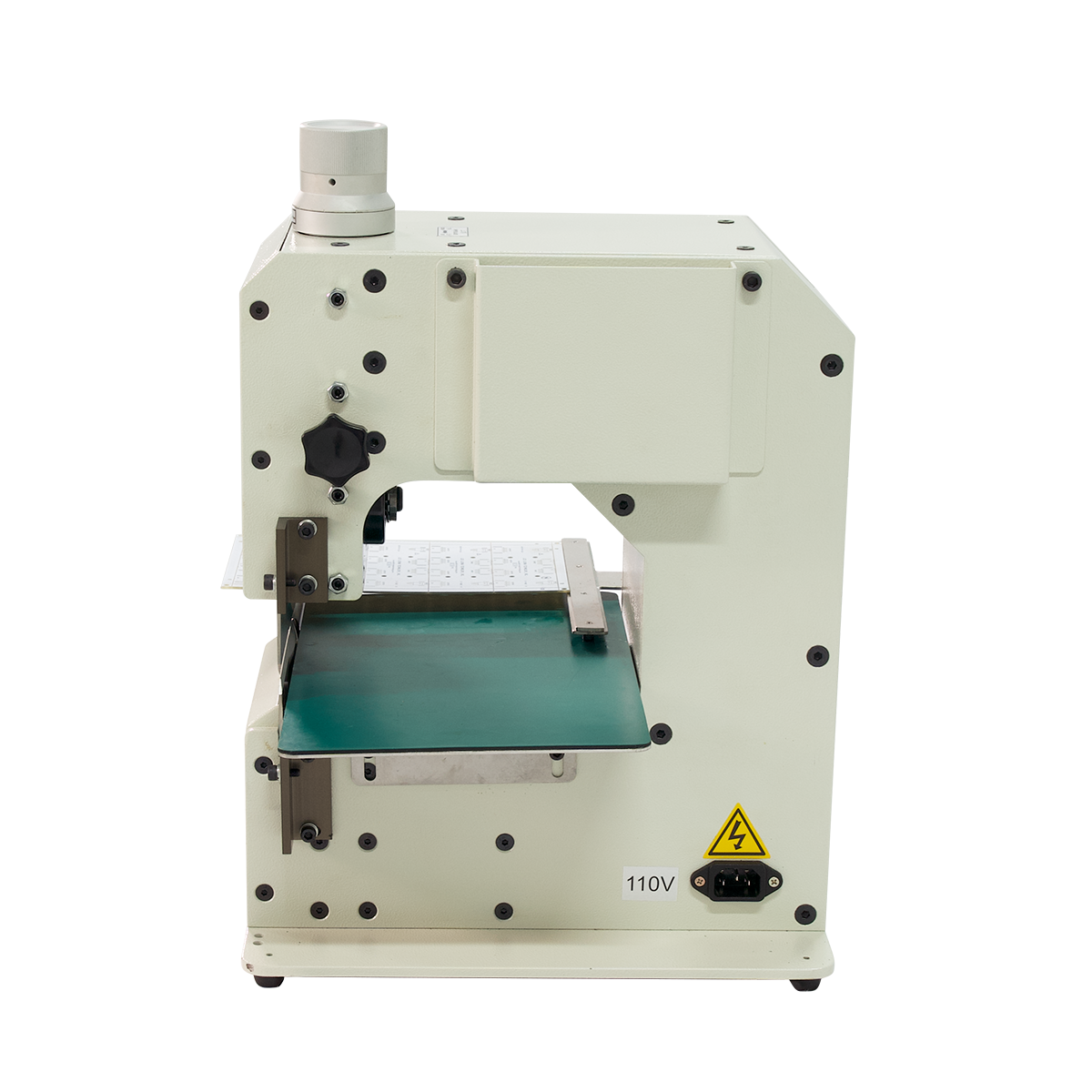

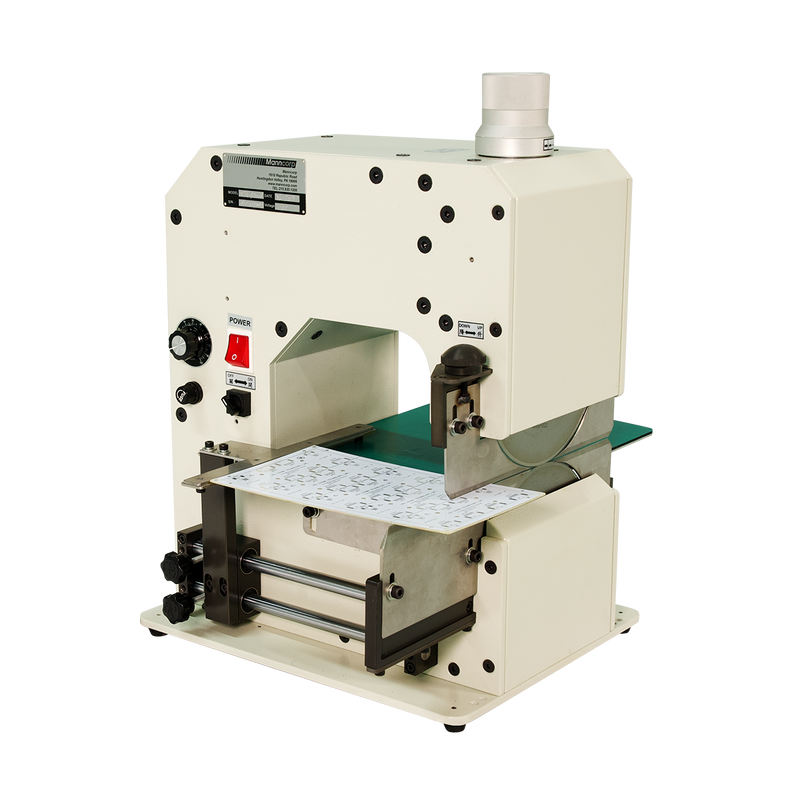

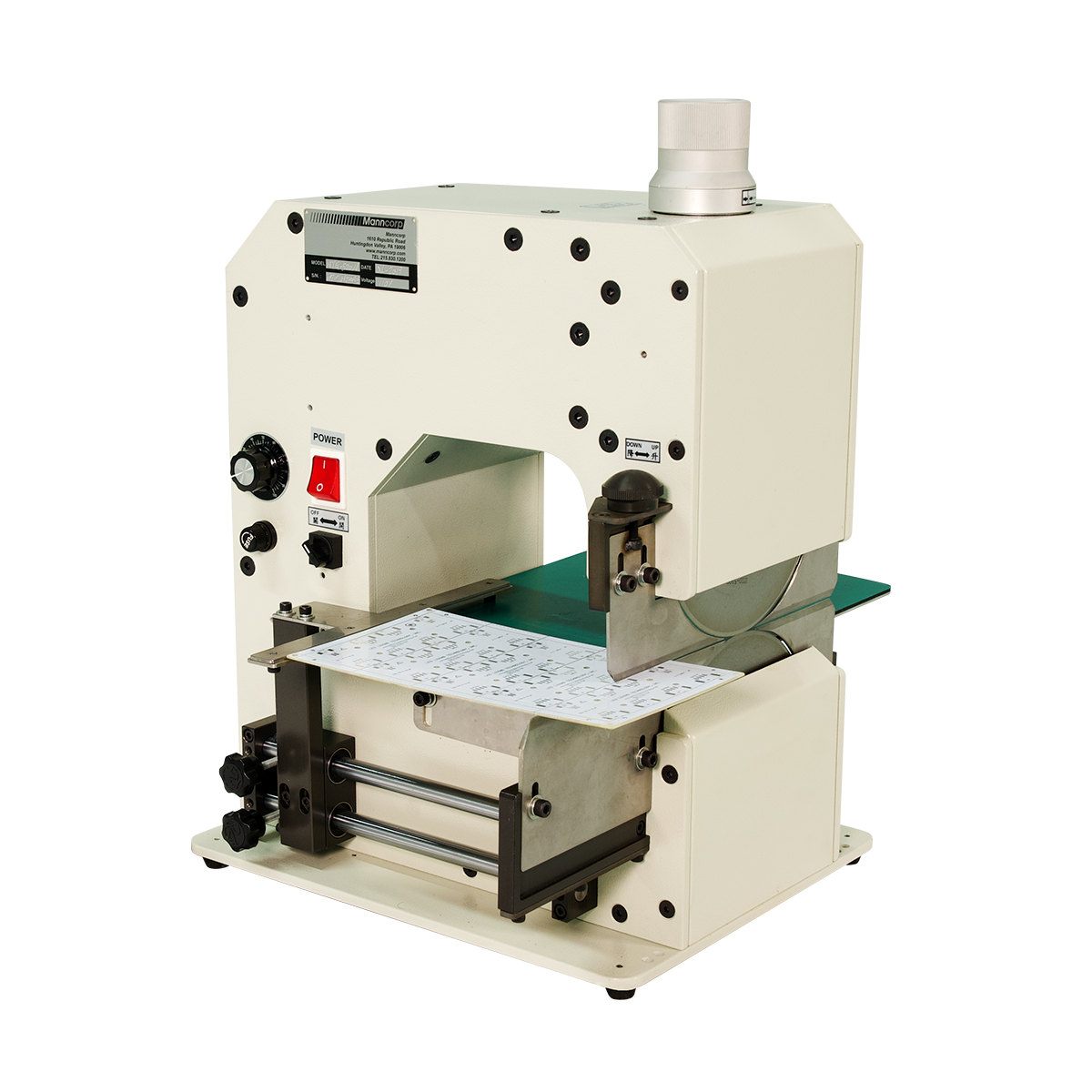

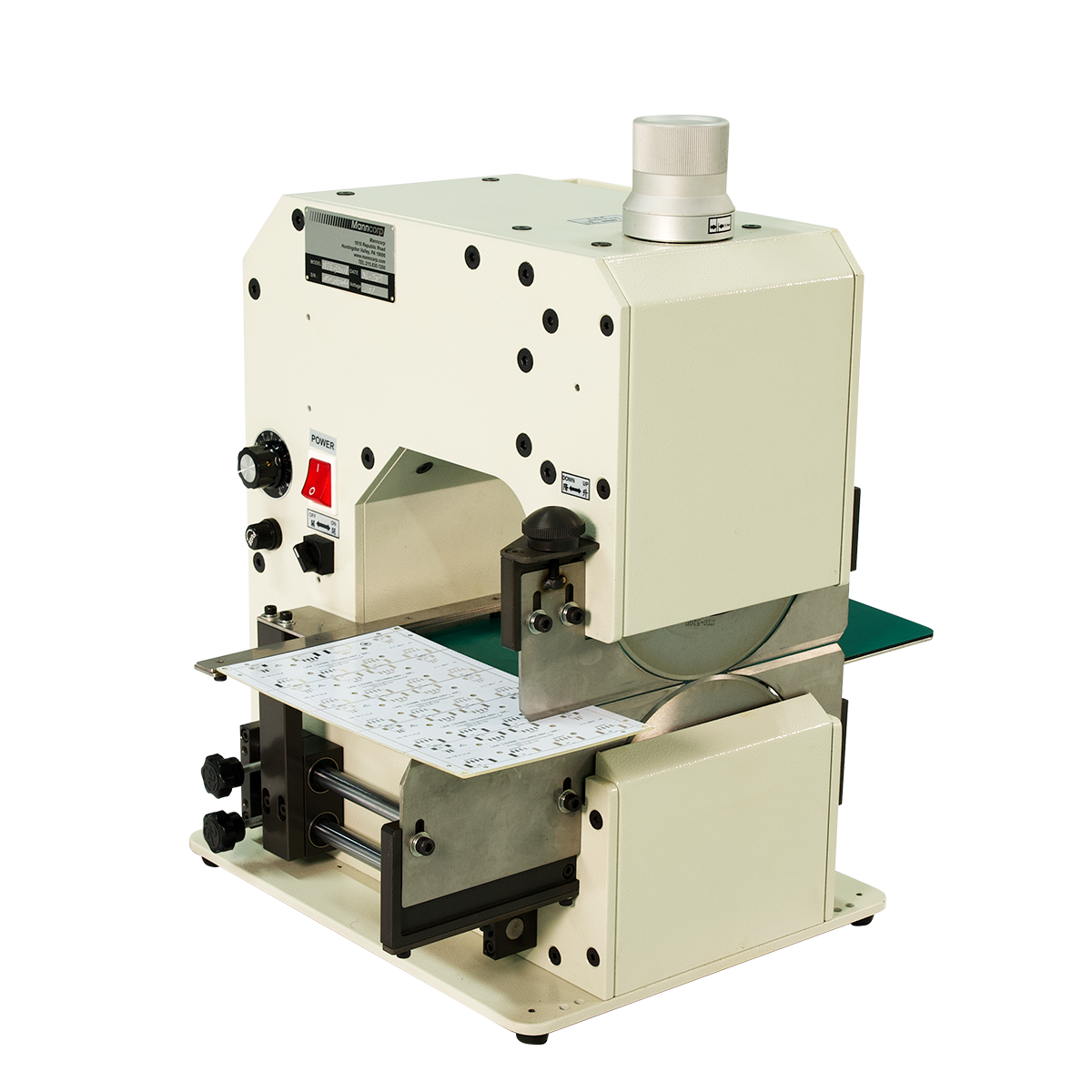

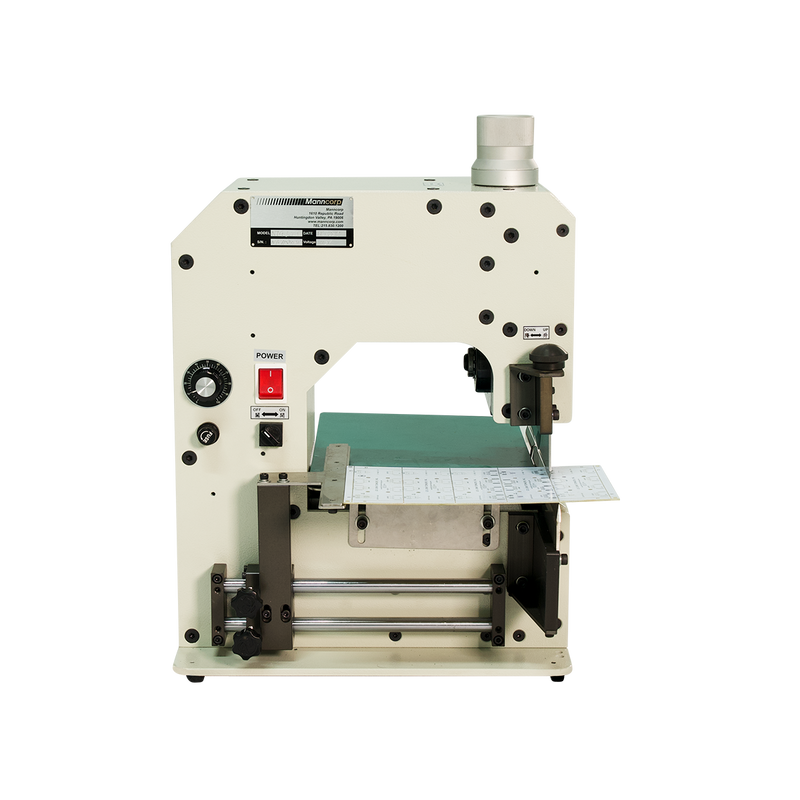

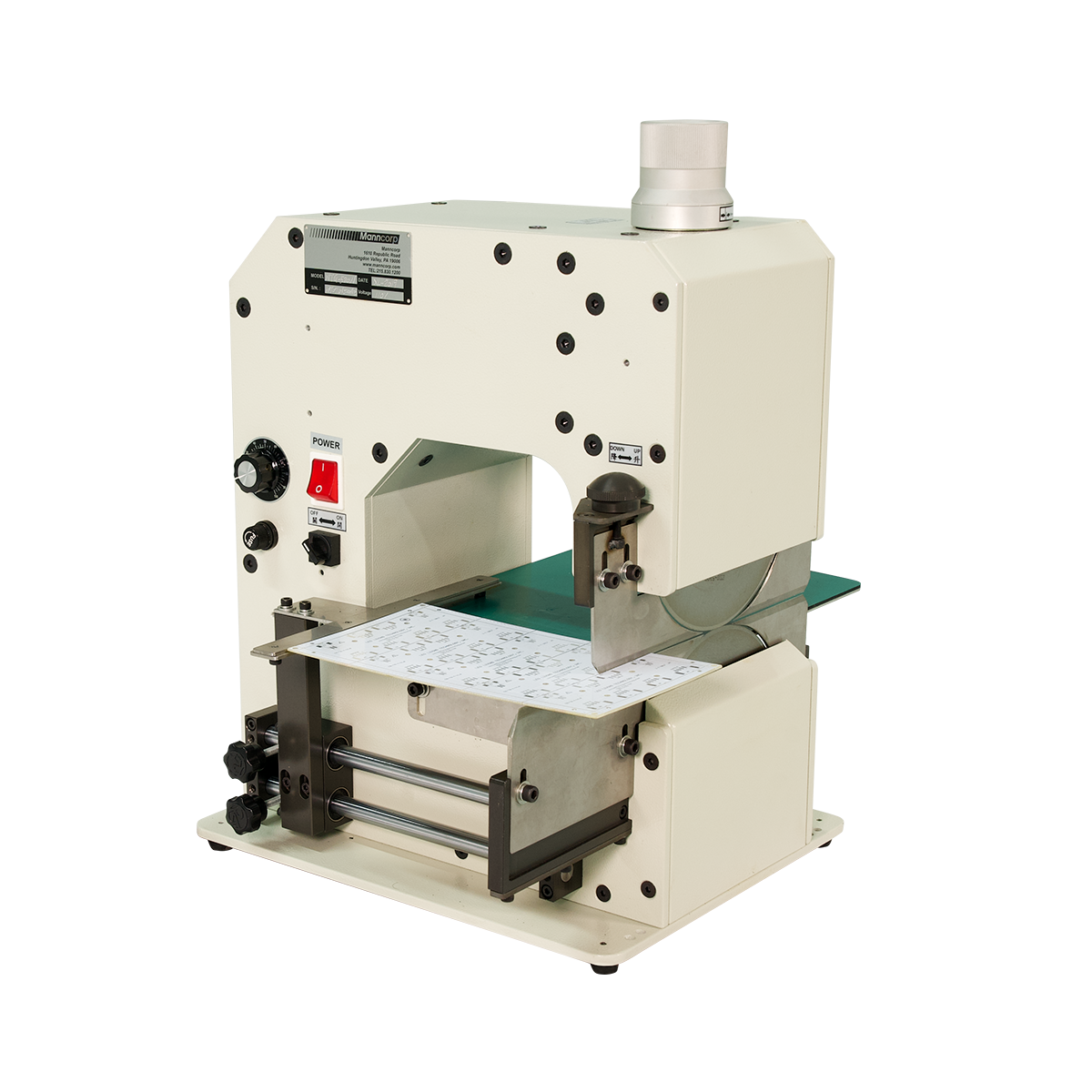

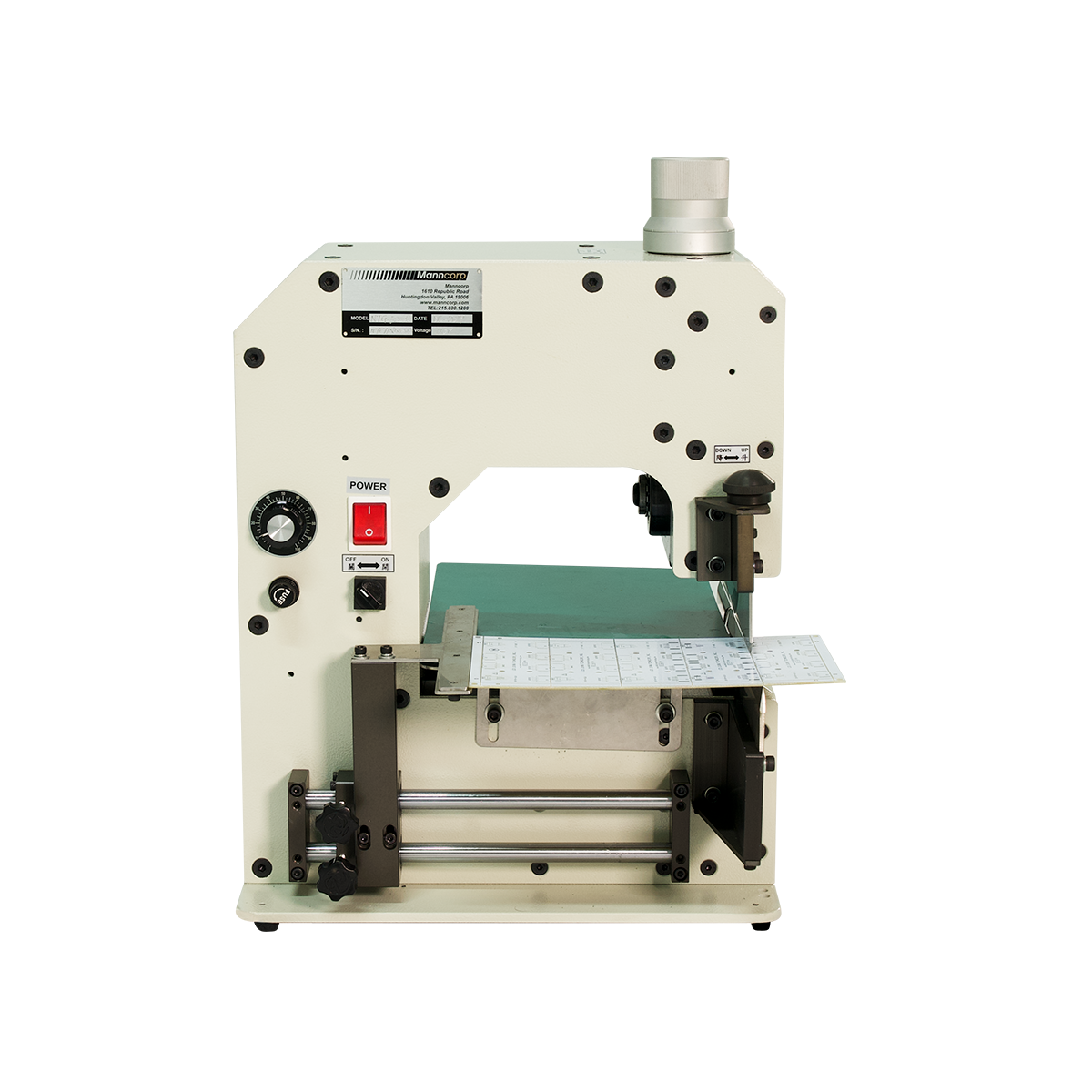

520N Motorized PCB Depaneling Machine for pre-scored/V-Groove Single and Double-Sided Panels

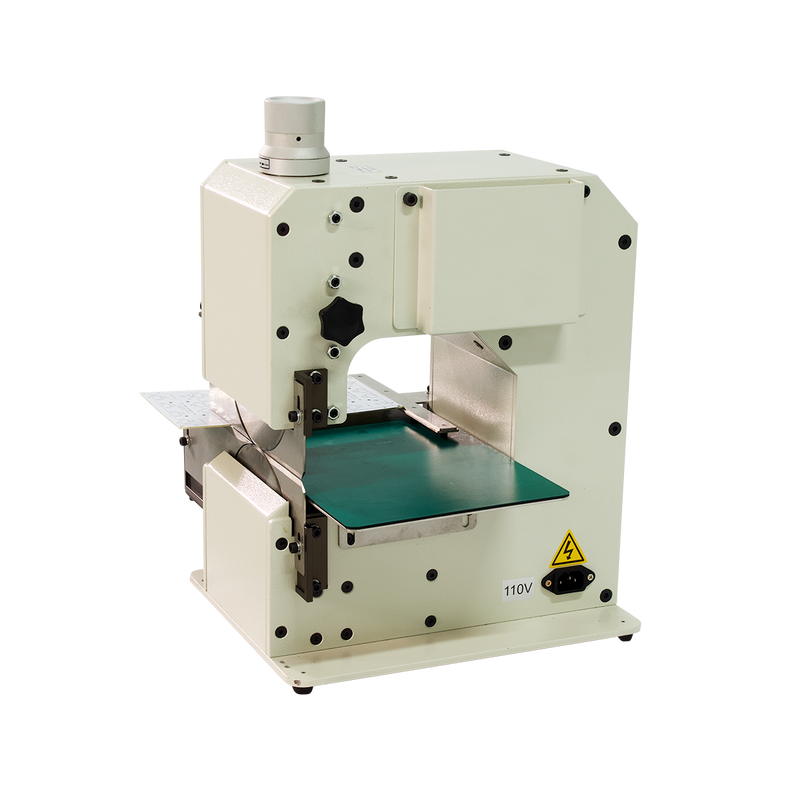

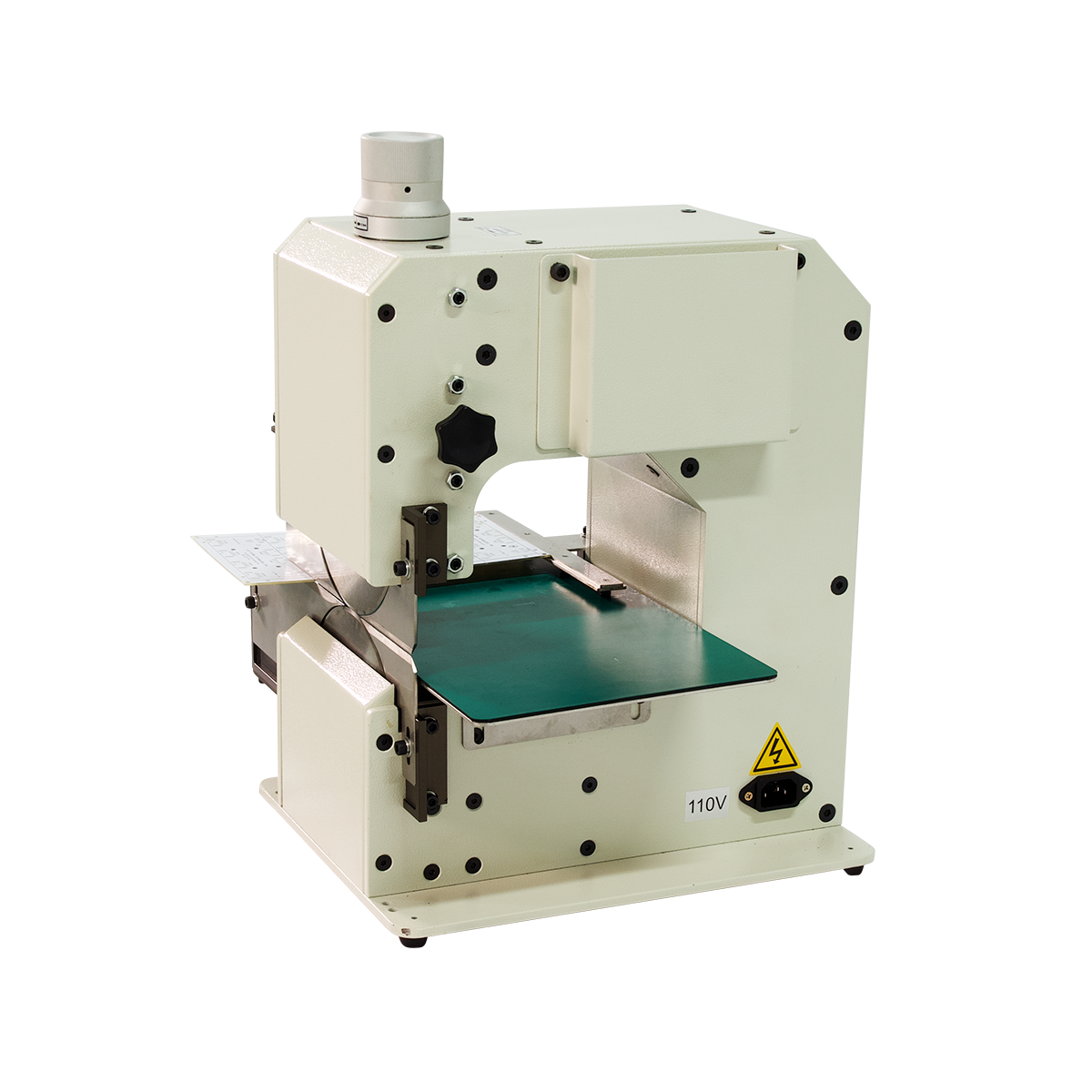

The 520N PCB depaneler's unique "open tunnel" design provides sufficient clearance to separate pre-scored/V-groove single or double-sided boards.

or to view pricing

Questions? Reach Out Directly:

Chris Ellis - East Coast

Sales & Operations Manager

215.869.8374

Ed Stone - West Coast

Sales Manager

215.808.6266

Description Protect_msd Restore_and_store Specifications Features Feeders Machine_configurations Applications Profile_predictions Performance_charts Video Navigator_software Process_window Add_ons Temperature_tolerance Includes Add_fluxing Contact

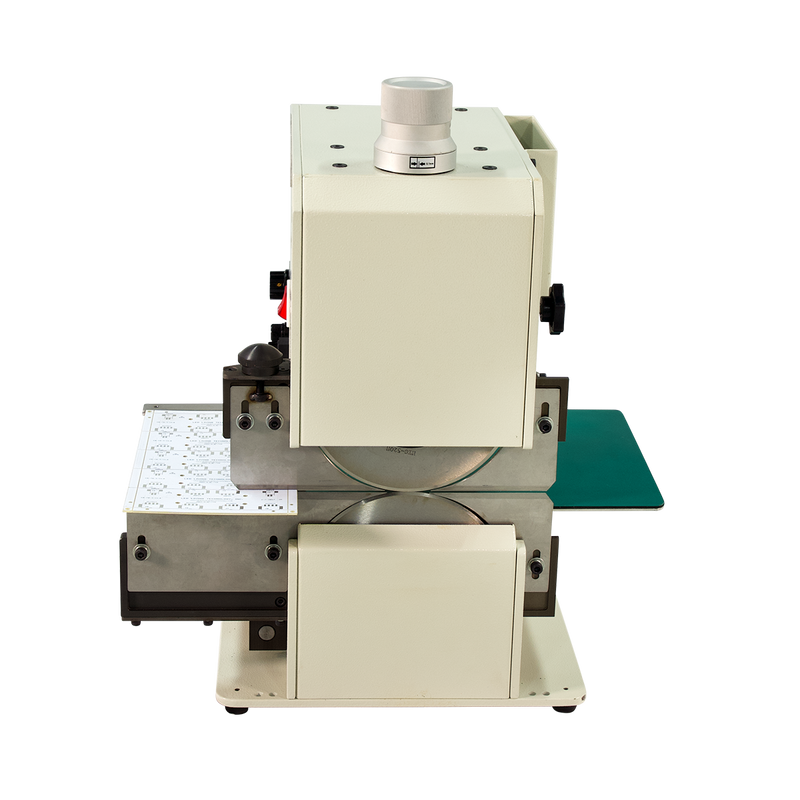

With the 520N PCB depaneler, panels are securely stabilized to prevent wobble or unwanted board movement during process, ensuring clean separations of boards of virtually any length. Twin rotary blades cleanly separate panels, with the motorized upper blade doing to the separating while the below-board blade guides the PCB through.

520N SPECIFICATIONS
PCB Thickness	0.5 mm to 2.0 mm
Max PCB Width	6.3" (160 mm)
Max PCB Length	Unlimited
Score Angle	30˚
Minimum Component Distance to V-Groove	2 mm
Max Component Height	1.4" (35 mm)
PCB Materials	Anything but Aluminum
Separating Speed	0-100 mm/sec
Depaneling Mode	Motorized
Production Volume	Low to Moderate
Blade Diameter	145 mm
Power	110V, 60Hz, 2A
Dimensions	17" x 17" x 20.5" (430 x 430 x 520 mm)
Net Weight	79.4 lbs (36 kg)
Shipping Weight	91 lbs (41 kg)
