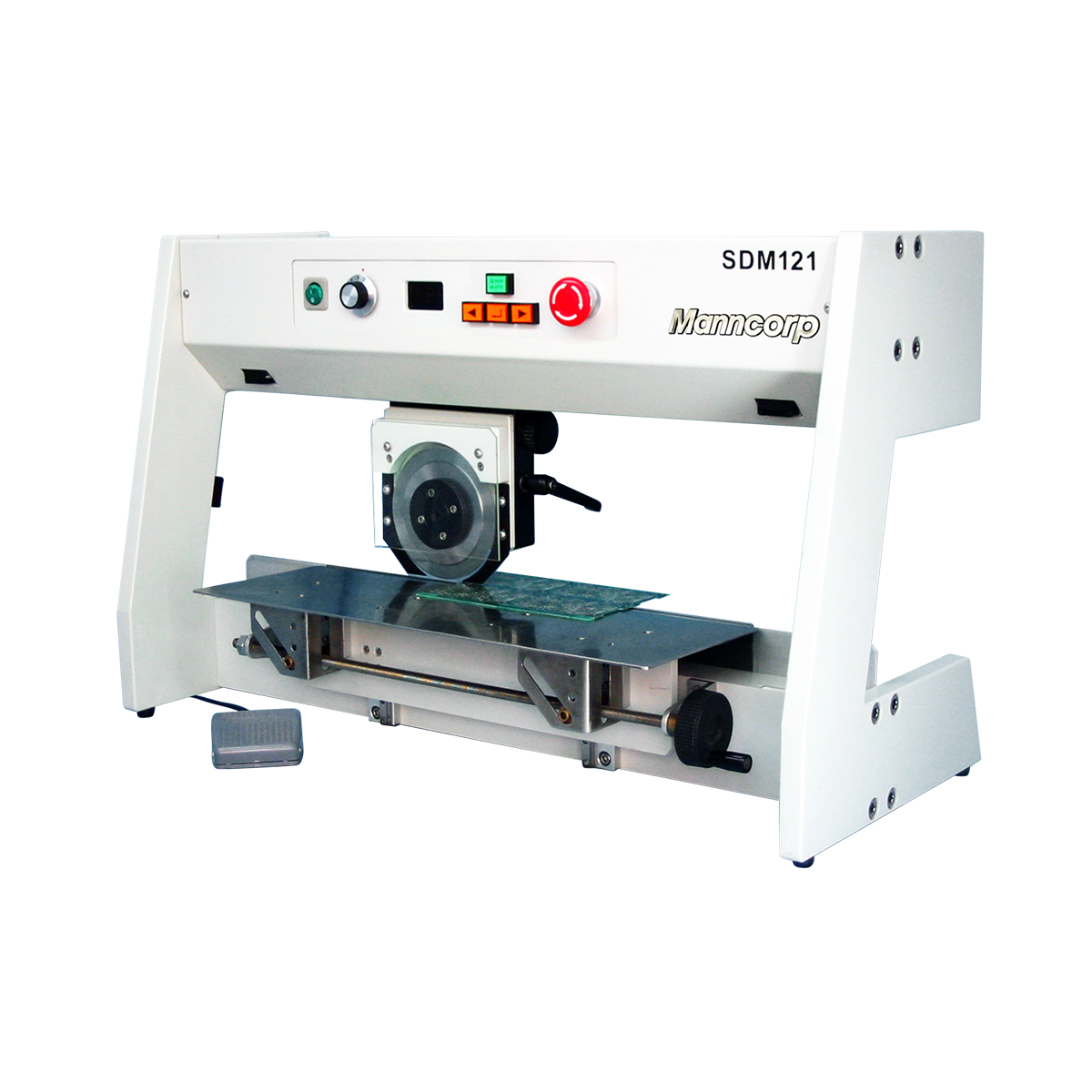

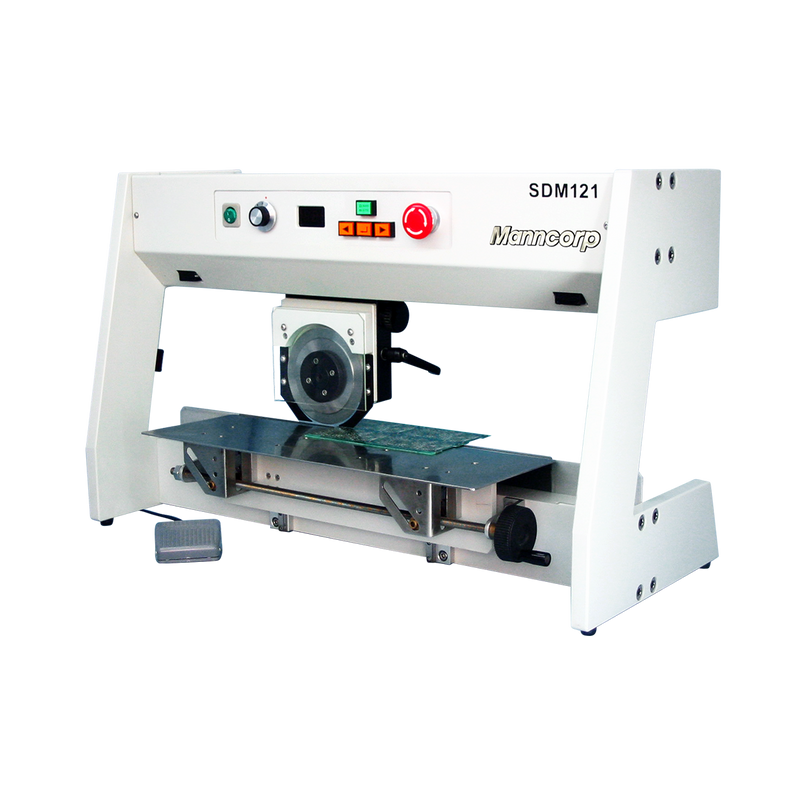

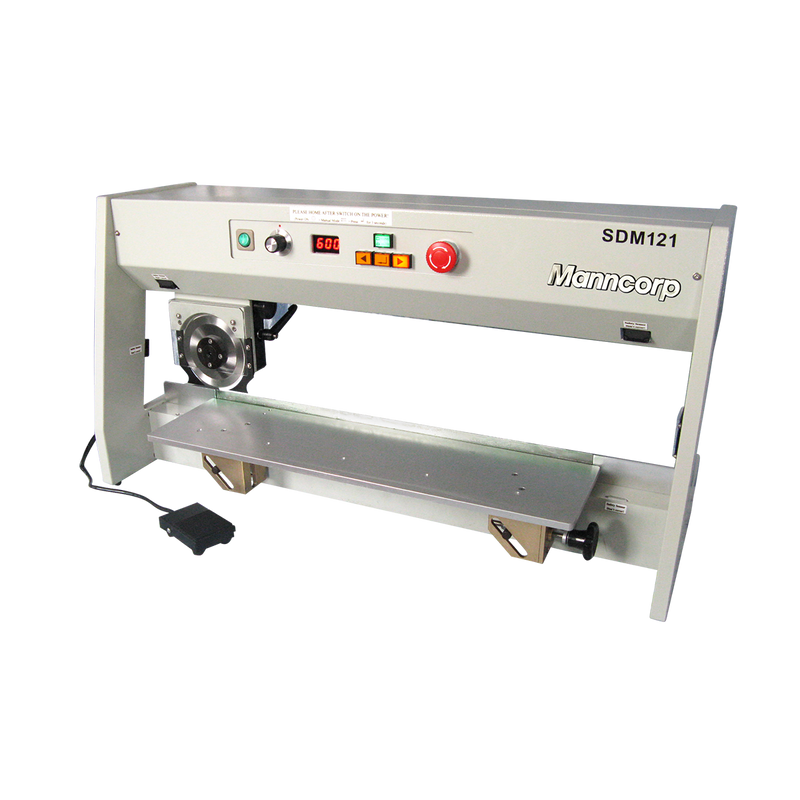

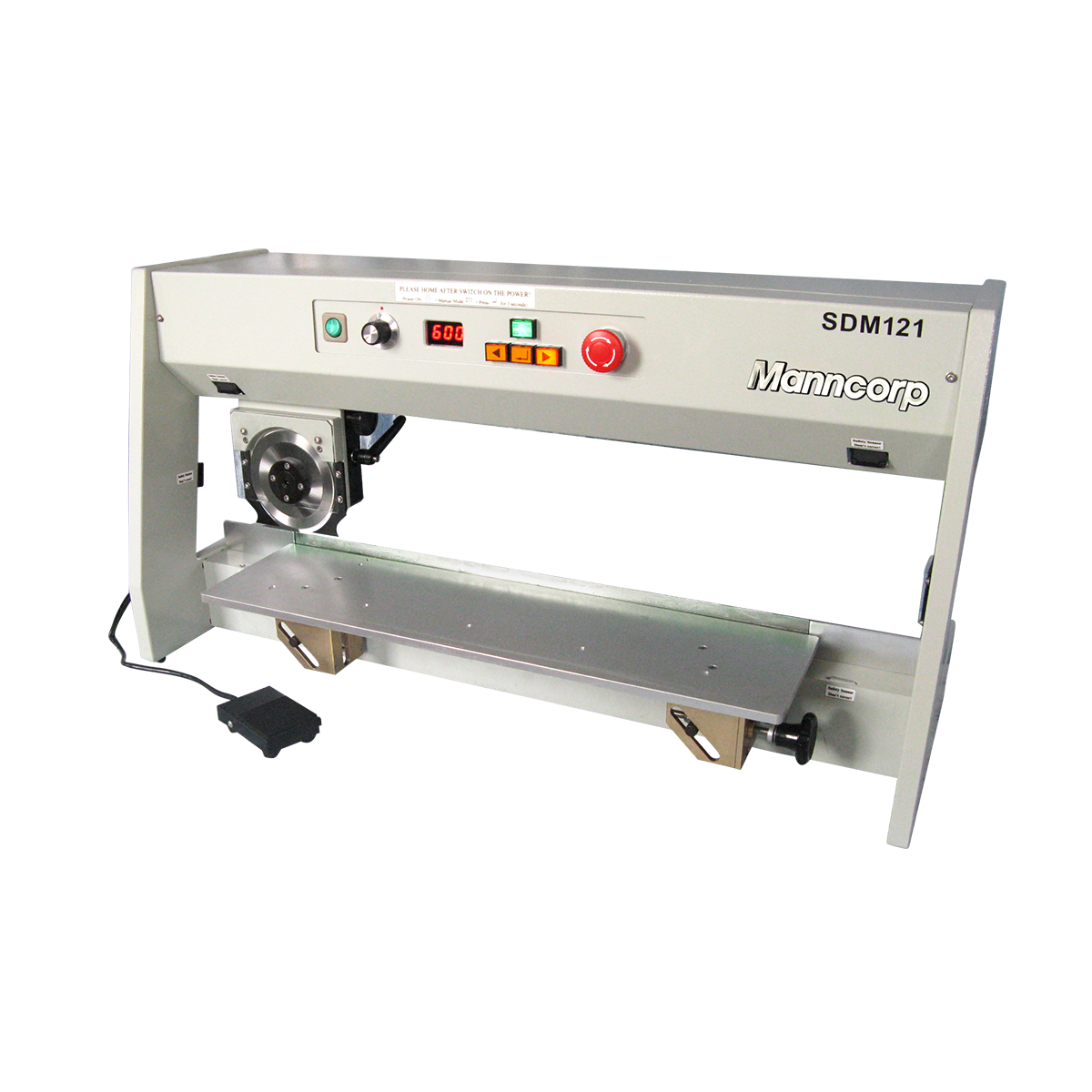

Motorized PCB Depaneling Machine - SDM121 from Manncorp

Motor-driven SDM121 separates v-scored PCBs without stress to boards, components or solder joints, eliminating post-breakout defects such as delamination and microcracking, even when components are located as close as 1 mm to the scoring line.

Max Cut Length

445 mm (17.5 in.)

483 mm (19 in.)

or to view pricing

[{"id":40316114763915,"title":"445 mm (17.5 in.)","option1":"445 mm (17.5 in.)","option2":null,"option3":null,"sku":"SDM121-445","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"SDM121 Motorized PCB Depaneler - 445 mm (17.5 in.)","public_title":"445 mm (17.5 in.)","options":["445 mm (17.5 in.)"],"price":1199500,"weight":170097,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40316114796683,"title":"483 mm (19 in.)","option1":"483 mm (19 in.)","option2":null,"option3":null,"sku":"SDM121-483","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"SDM121 Motorized PCB Depaneler - 483 mm (19 in.)","public_title":"483 mm (19 in.)","options":["483 mm (19 in.)"],"price":1499500,"weight":192777,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Questions? Reach Out Directly:

Chris Ellis - East Coast

Sales & Operations Manager

215.869.8374

Ed Stone - West Coast

Sales Manager

215.808.6266

Description Protect_msd Restore_and_store Specifications Features Feeders Machine_configurations Applications Profile_predictions Performance_charts Video Navigator_software Process_window Add_ons Temperature_tolerance Includes Add_fluxing Contact

Operation is simple: the blades are aligned to the score line, the blade height is locked, and a depaneling speed is chosen. When the operator activates the foot switch, the topside circular blade moves automatically along the v-groove, providing a smooth, burr-free cut without operator guidance. The large processing table can be angled to allow separated PCBs to fall away from the cutter. For safety, the circular blade is shielded by shatterproof Plexiglas while light sensors halt the blade immediately if an obstruction is detected. SDM121 is suited for medium to high-volume production. A maximum component height of 32 mm provides sufficient clearance for most through-hole components and virtually all SMDs. The SDM121 is available with 445 mm (17.5") or 483 mm (19") maximum cutting length. Cut length is fully programmable; programmed length is displayed on an LED readout.

SDM121 SPECIFICATIONS
PCB Thickness	0.8-3.0 mm
Max PCB Width	Unlimited
Max PCB Length	17.5" (445 mm) 19" (483 mm) Optional
Score Angle	20˚
Minimum Component Distance to V-Groove	1 mm
Max Component Height	1.26" (32 mm)
PCB Materials	Anything but Aluminum
Separating Speed	7.87"/sec (200 mm/sec), 13.8"/sec (350 mm/sec), 15.7"/sec (400 mm/sec), or 17.7"/sec (450 mm/sec)
Depaneling Mode	Motorized
Production Volume	Moderate to High
Power	110V, 60Hz
Dimensions	Standard Size with 445 mm Cut Length: 29.5" x 13.6" x 18.4" (750 x 346 x 465 mm) Large Size with 483 mm Cut Length: 35" x 13.9" x 18.4" (890 x 352 x 469 mm)
Net Weight	Standard Size with 445 mm Cut Length: 102 lbs (46 kg) Large Size with 483 mm Cut Length: 119 lbs (54 kg)
Shipping Weight	Standard Size with 445 mm Cut Length: 166 lbs (75 kg) Large Size with 483 mm Cut Length: 187 lbs (85 kg)
