Name: Standard PCB Magazine Loader
Brand: Manncorp Inc.
Price: 14995.0 USD
Availability: InStock

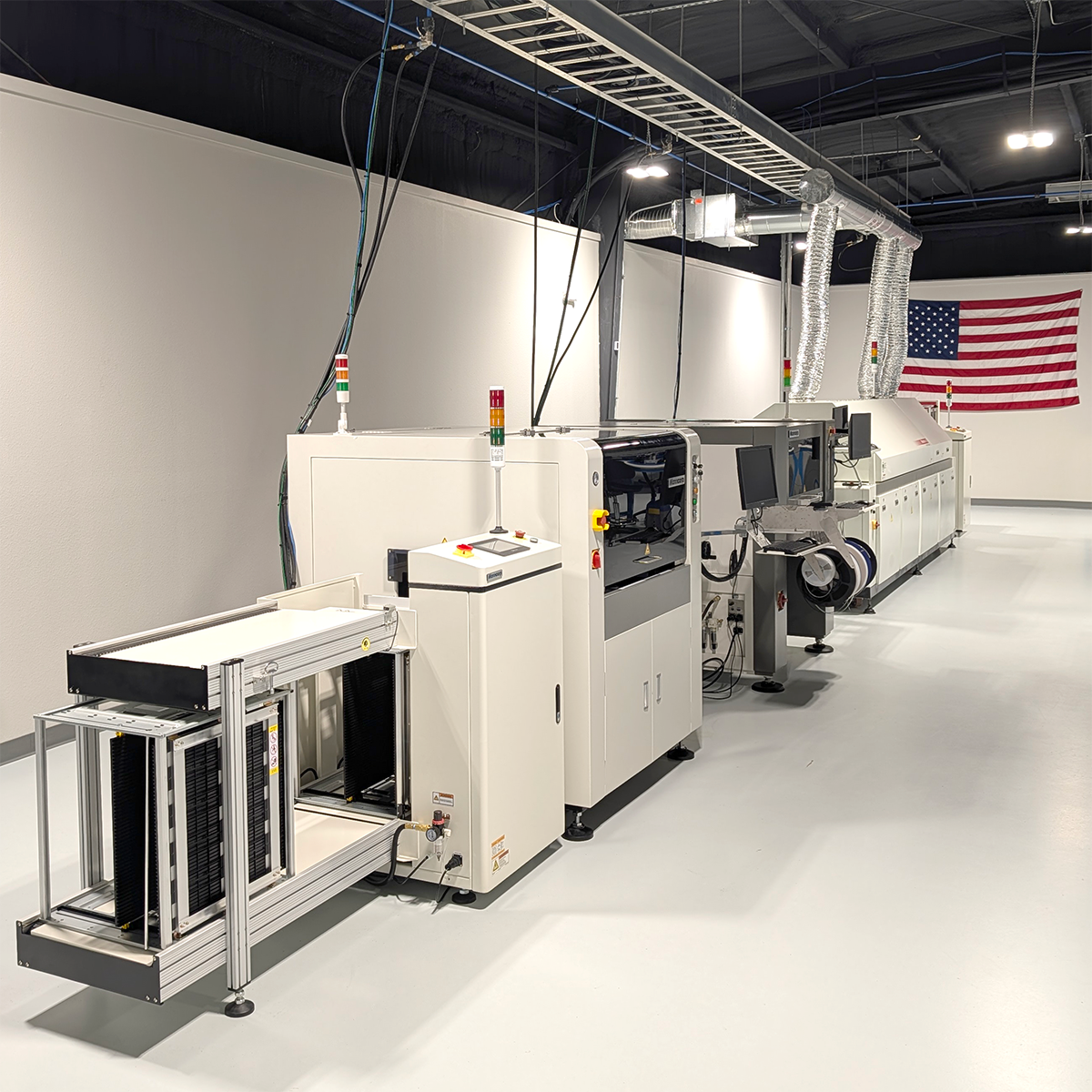

BL Series PCB Magazine Loader from Manncorp

Ideal for PCB assemblers who use only one size magazine throughout their process, the Manncorp BL Series is a lower-cost option for loading PCBs onto the production line from either standard CAB or Nikko magazines.

Magazine Size

250 mm

330 mm

390 mm

460 mm

Footprint

Small

Standard

Conveyor Direction

Left to Right

Right to Left

Equipment Price

Quantity

[{"id":40316103950475,"title":"250 mm \/ Small \/ Left to Right","option1":"250 mm","option2":"Small","option3":"Left to Right","sku":"BL250W-MT","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Standard PCB Magazine Loader - 250 mm \/ Small \/ Left to Right","public_title":"250 mm \/ Small \/ Left to Right","options":["250 mm","Small","Left to Right"],"price":1499500,"weight":170097,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40321594884235,"title":"250 mm \/ Small \/ Right to Left","option1":"250 mm","option2":"Small","option3":"Right to Left","sku":"BL250W-MT-RL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Standard PCB Magazine Loader - 250 mm \/ Small \/ Right to Left","public_title":"250 mm \/ Small \/ Right to Left","options":["250 mm","Small","Right to Left"],"price":1499500,"weight":170097,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40316103983243,"title":"250 mm \/ Standard \/ Left to Right","option1":"250 mm","option2":"Standard","option3":"Left to Right","sku":"BL250W-ST","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Standard PCB Magazine Loader - 250 mm \/ Standard \/ Left to Right","public_title":"250 mm \/ Standard \/ Left to Right","options":["250 mm","Standard","Left to Right"],"price":1499500,"weight":170097,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40321594917003,"title":"250 mm \/ Standard \/ Right to Left","option1":"250 mm","option2":"Standard","option3":"Right to Left","sku":"BL250W-ST-RL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Standard PCB Magazine Loader - 250 mm \/ Standard \/ Right to Left","public_title":"250 mm \/ Standard \/ Right to Left","options":["250 mm","Standard","Right to Left"],"price":1499500,"weight":170097,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40316104016011,"title":"330 mm \/ Standard \/ Left to Right","option1":"330 mm","option2":"Standard","option3":"Left to Right","sku":"BL330W-ST","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Standard PCB Magazine Loader - 330 mm \/ Standard \/ Left to Right","public_title":"330 mm \/ Standard \/ Left to Right","options":["330 mm","Standard","Left to Right"],"price":1599500,"weight":170097,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40321594949771,"title":"330 mm \/ Standard \/ Right to Left","option1":"330 mm","option2":"Standard","option3":"Right to Left","sku":"BL330W-ST-RL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Standard PCB Magazine Loader - 330 mm \/ Standard \/ Right to Left","public_title":"330 mm \/ Standard \/ Right to Left","options":["330 mm","Standard","Right to Left"],"price":1599500,"weight":170097,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40316104048779,"title":"390 mm \/ Standard \/ Left to Right","option1":"390 mm","option2":"Standard","option3":"Left to Right","sku":"BL390W-ST","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Standard PCB Magazine Loader - 390 mm \/ Standard \/ Left to Right","public_title":"390 mm \/ Standard \/ Left to Right","options":["390 mm","Standard","Left to Right"],"price":1699500,"weight":192777,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40321594982539,"title":"390 mm \/ Standard \/ Right to Left","option1":"390 mm","option2":"Standard","option3":"Right to Left","sku":"BL390W-ST-RL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Standard PCB Magazine Loader - 390 mm \/ Standard \/ Right to Left","public_title":"390 mm \/ Standard \/ Right to Left","options":["390 mm","Standard","Right to Left"],"price":1699500,"weight":170097,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40316104081547,"title":"460 mm \/ Standard \/ Left to Right","option1":"460 mm","option2":"Standard","option3":"Left to Right","sku":"BL460W-ST","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Standard PCB Magazine Loader - 460 mm \/ Standard \/ Left to Right","public_title":"460 mm \/ Standard \/ Left to Right","options":["460 mm","Standard","Left to Right"],"price":1799500,"weight":192777,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40321595015307,"title":"460 mm \/ Standard \/ Right to Left","option1":"460 mm","option2":"Standard","option3":"Right to Left","sku":"BL460W-ST-RL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Standard PCB Magazine Loader - 460 mm \/ Standard \/ Right to Left","public_title":"460 mm \/ Standard \/ Right to Left","options":["460 mm","Standard","Right to Left"],"price":1799500,"weight":170097,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

QUESTIONS? TEXT OR CALL:

Chris Ellis 215-869-8374 | East Coast

Ed Stone 215-808-6266 | West Coast

Automatic Full Magazine Loading / Empty Magazine Offloading

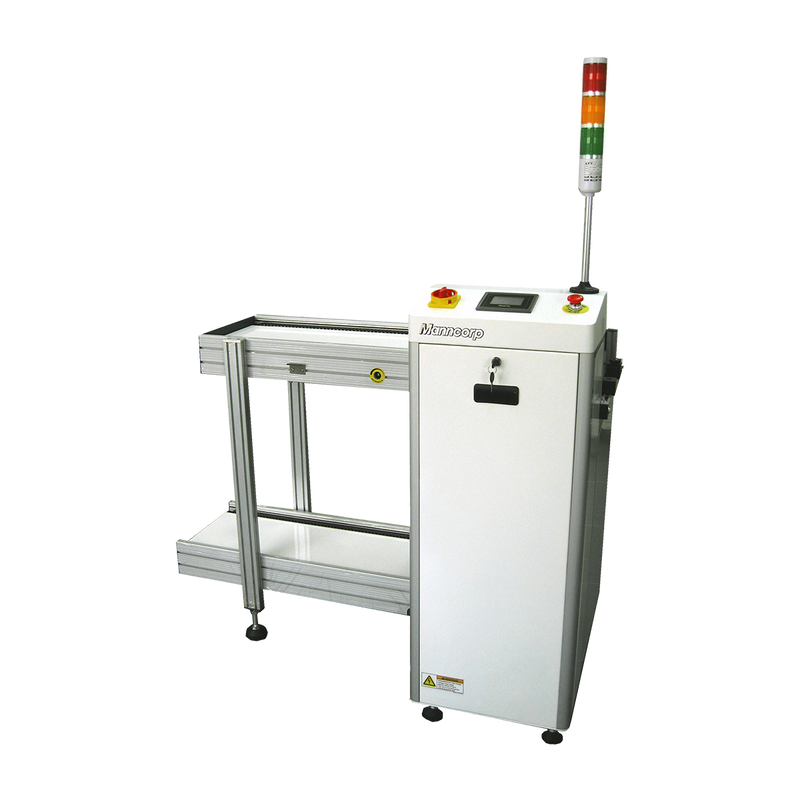

Available in four models, each dedicated to a standard magazine size (250, 330, 390, and 460 mm), the BL Series Standard PCB Magazine Loader is ideal for PCB assemblers who use only one size magazine throughout their process.

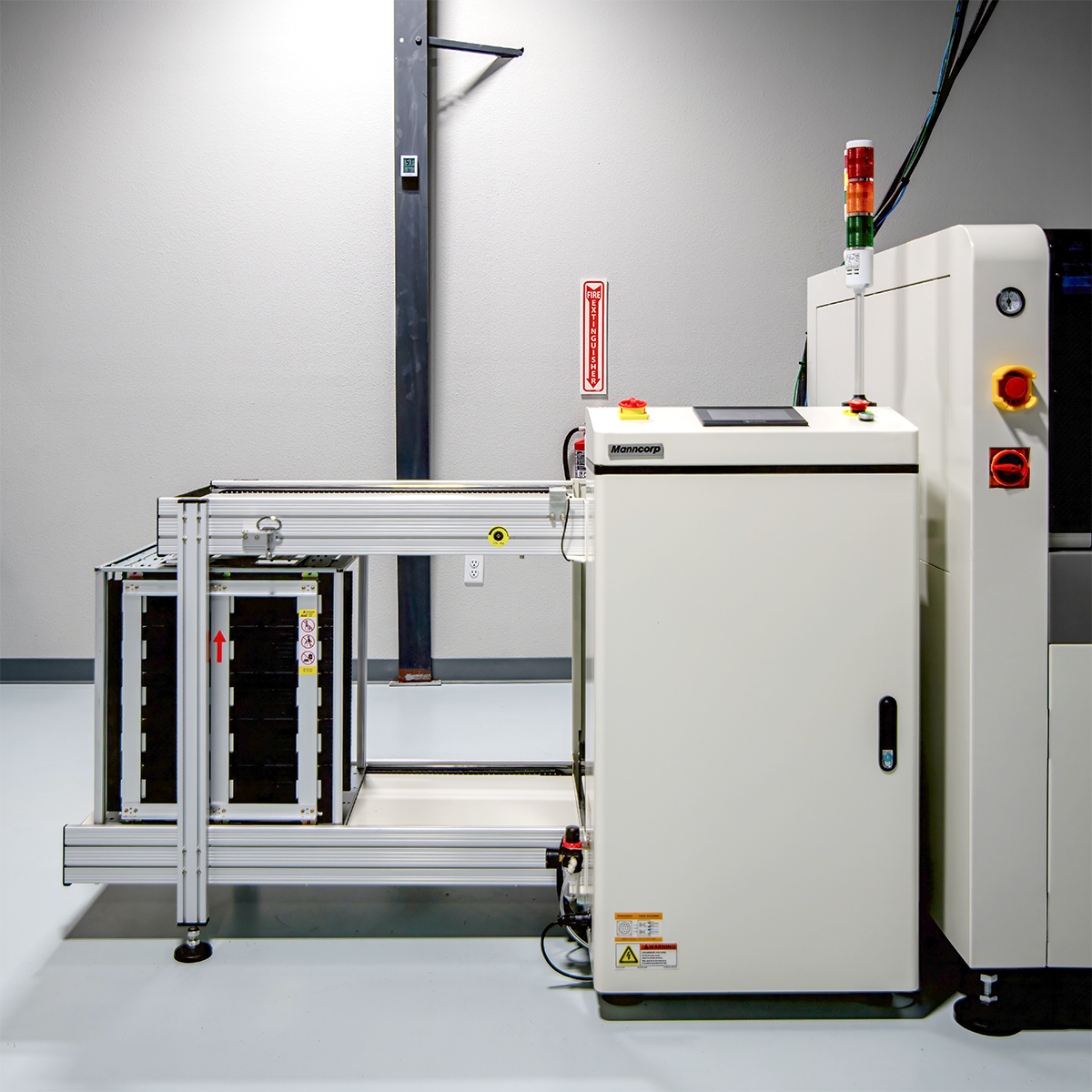

Full magazines are loaded onto the upper platform and are automatically transferred to the indexing elevator, which has selectable pitch settings of 10, 20, 30, and 40 mm. Empty magazines are transferred to the lower platform.

A small footprint version (BL250W-MT) of the 250 mm model is also available for applications where floorspace is limited.

View the Specifications tab for a comparison of BL Series Standard PCB Magazine Loaders.

MODEL	BL250W-ST BL250W-MT	BL330W-ST	BL390W-ST	BL460W-ST
PCB Size	50 x 50 mm to 350 x 250 mm (1.97" x 1.97" to 13.78" x 9.84")	50 x 50 mm to 460 x 330 mm (1.97" x 1.97" to 18.11" x 12.99")	50 x 50 mm to 535 x 390 mm (1.97" x 1.97" to 21.06" x 15.35")	120 x 120 mm to 535 x 460 mm (4.72" x 4.72" to 21.06" x 18.11")
Magazine Size	355 mm L x 320 mm W x 563 mm H (13.98" L x 12.60" W x 22.17" H)	460 mm L x 400 mm W x 563 mm H (18.11" L x 15.75" W x 22.17" H)	535 mm L x 460 mm W x 570 mm H (21.06" L x 18.11" W x 22.44" H)	535 mm L x 530 mm W x 570 mm H (21.06" L x 20.87" W x 22.44" H)
Machine Dimensions	BL250W-ST: 1350 mm L x 740 mm W x 1150 mm H (53" L x 29" W x 45" H) BL250W-MT: 900 mm L x 740 mm W x 1150 mm H (35" L x 29" W x 45" H)	1600 mm L x 820 mm W x 1150 mm H (63" L x 32" W x 45" H)	1700 mm L x 880 mm W x 1150 mm H (67" L x 35" W x 45" H)	1750 mm L x 960 mm W x 1150 mm H (69" L x 38" W x 45" H)
Net Weight	BL250W-ST: 140 kg (308 lbs.) BL250W-MT: 125 kg (275 lbs.)	200 kg (440 lbs.)	240 kg (530 lbs.)	300 kg (660 lbs.)
Shipping Weight	BL250W-ST: 180 kg (397 lbs.) BL250W-MT: 165 kg (364 lbs.)	240 kg (530 lbs.)	280 kg (617 lbs.)	340 kg (750 lbs.)
Selectable Pitch	10, 20, 30, 40 mm
Conveyor Direction	Left to right (standard) or right to left (optional)
PCB Thickness	0.4 mm min. (0.016" min.)
Air Supply Pressure	5-6 kg/cm² (70-85 psi)
Air Consumption	10 I/min (.35 CFM)
Voltage	110 VAC
Power	300 VA max.
