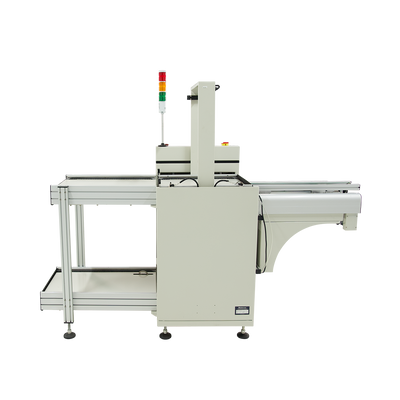

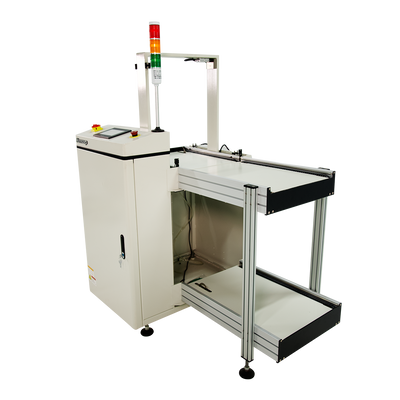

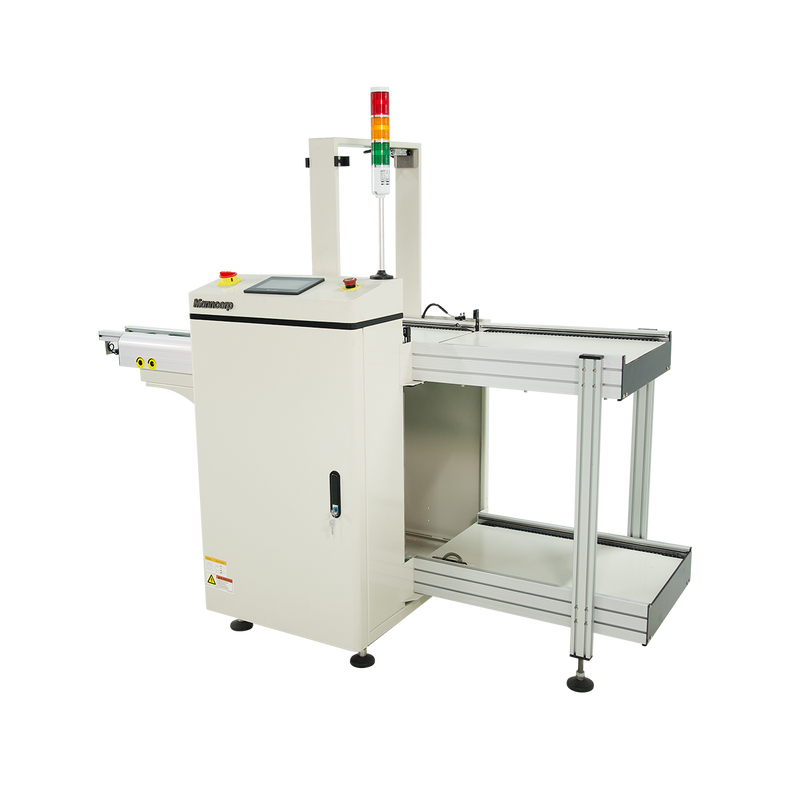

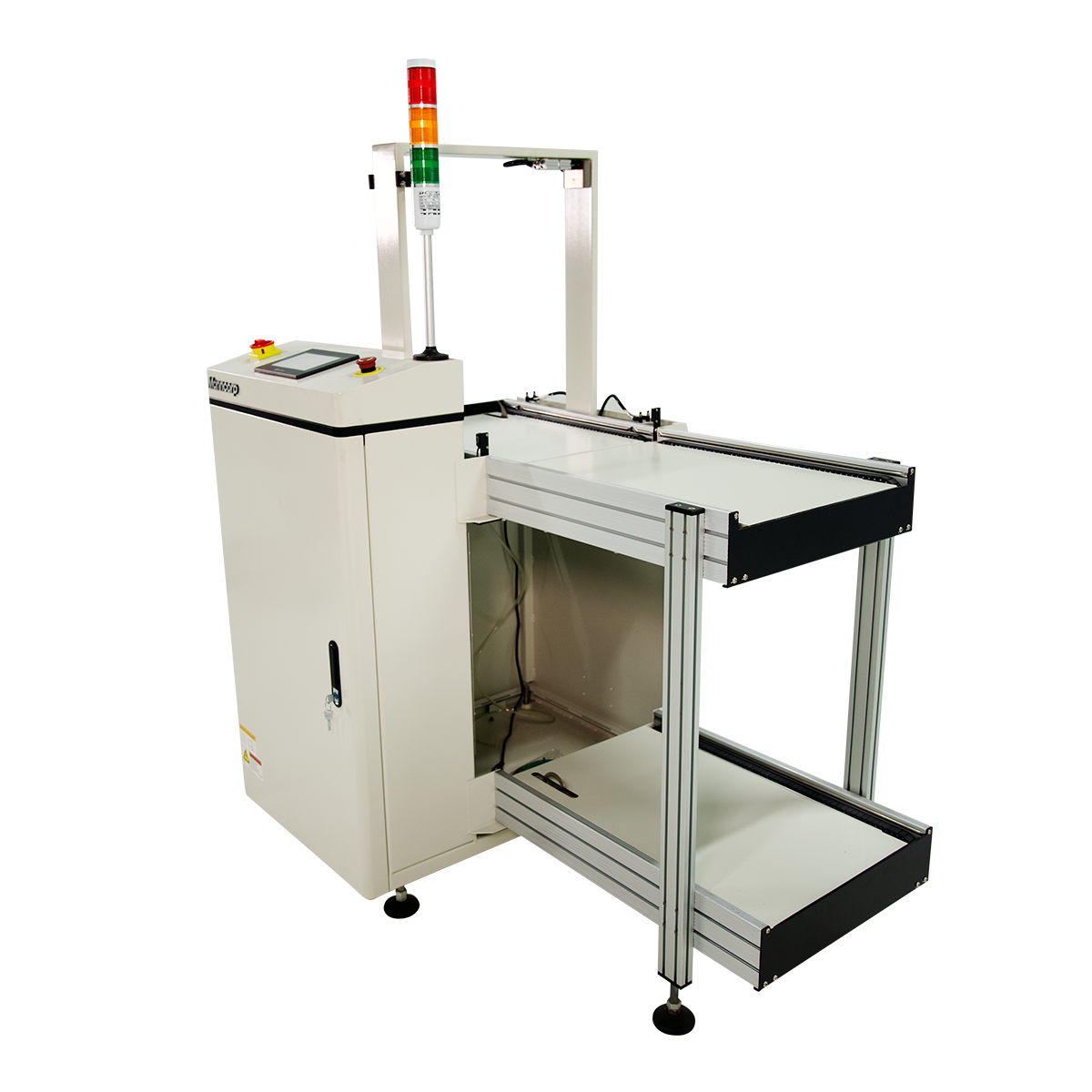

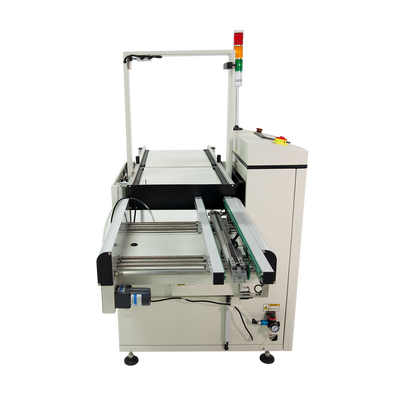

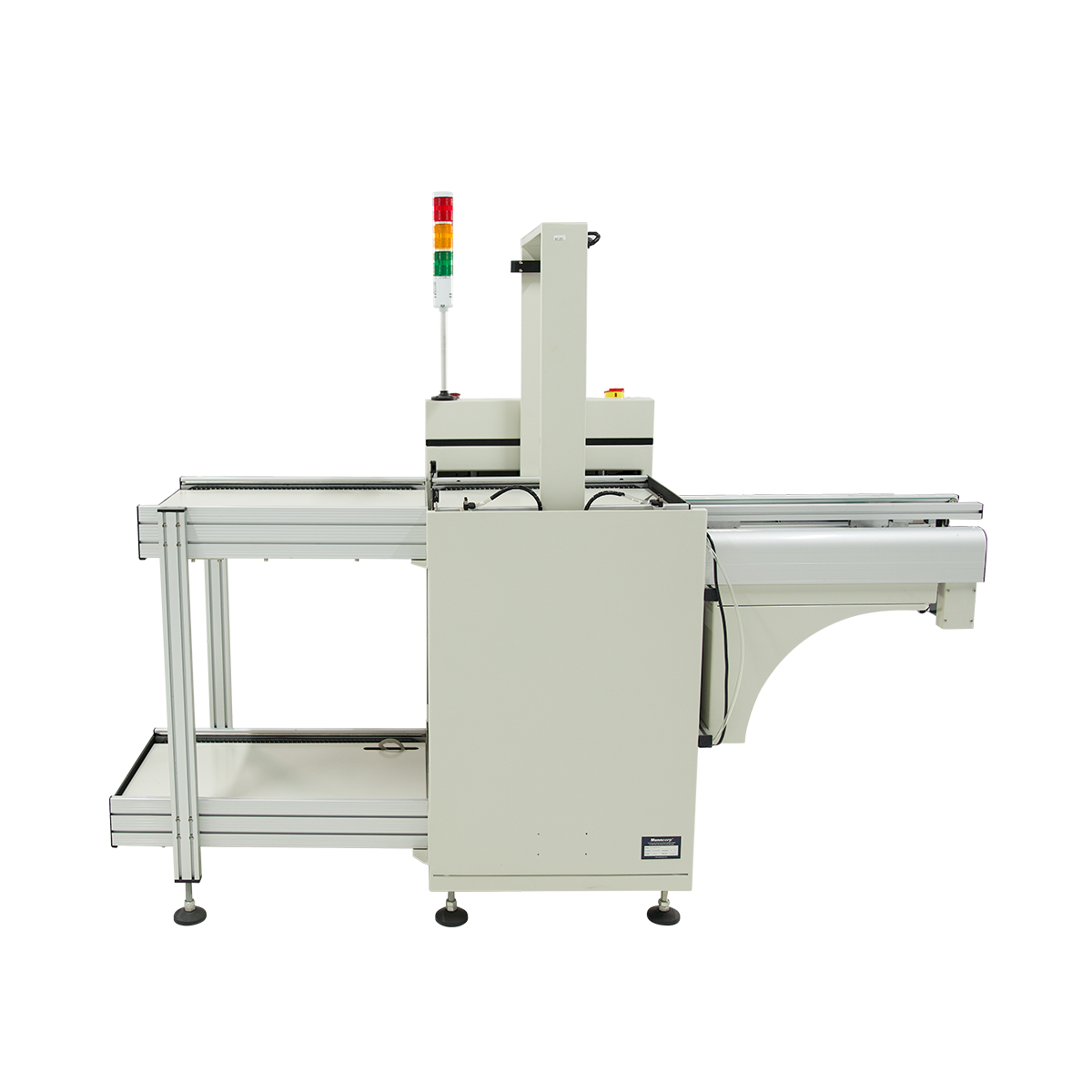

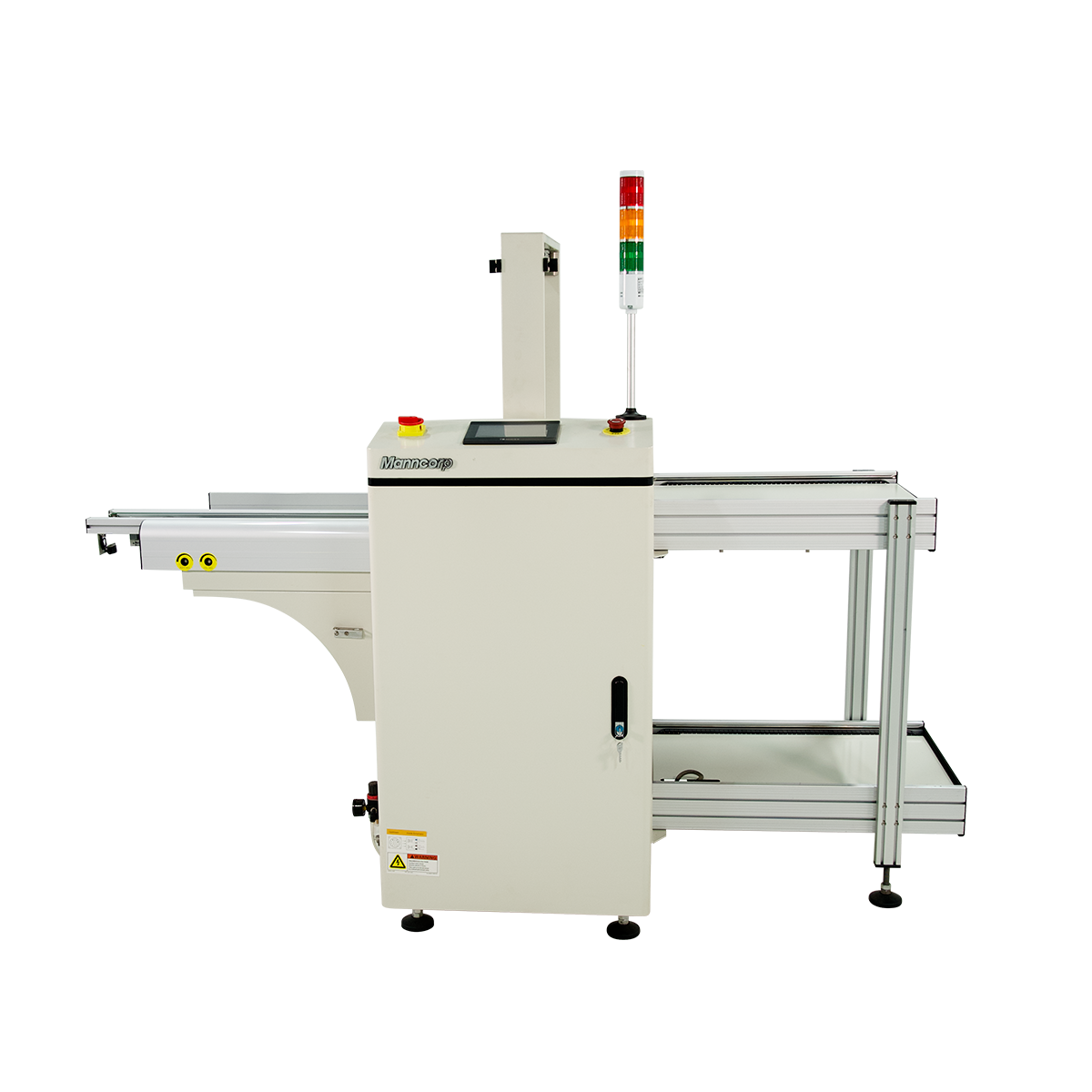

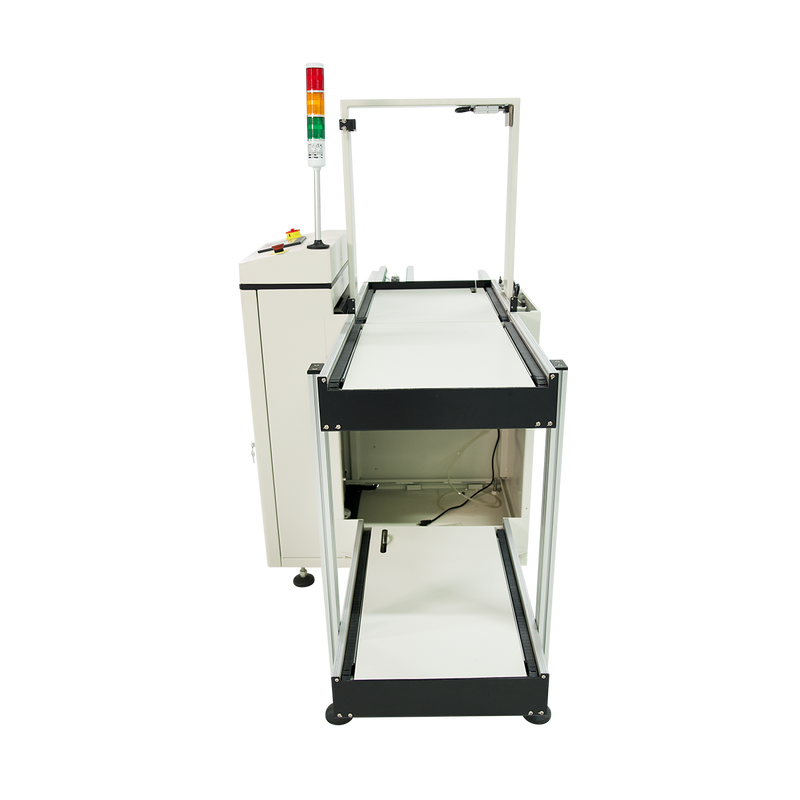

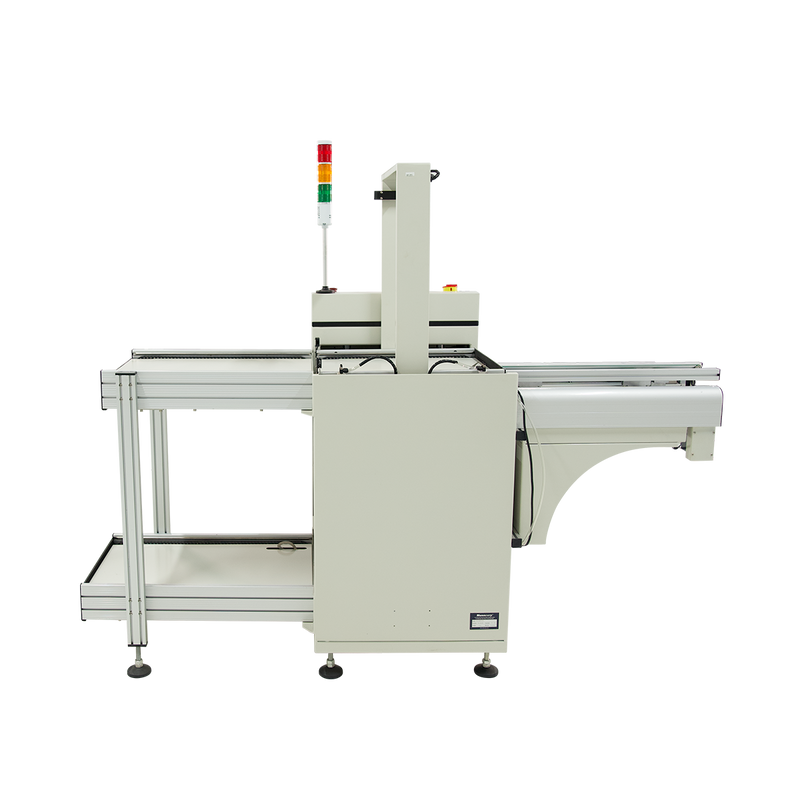

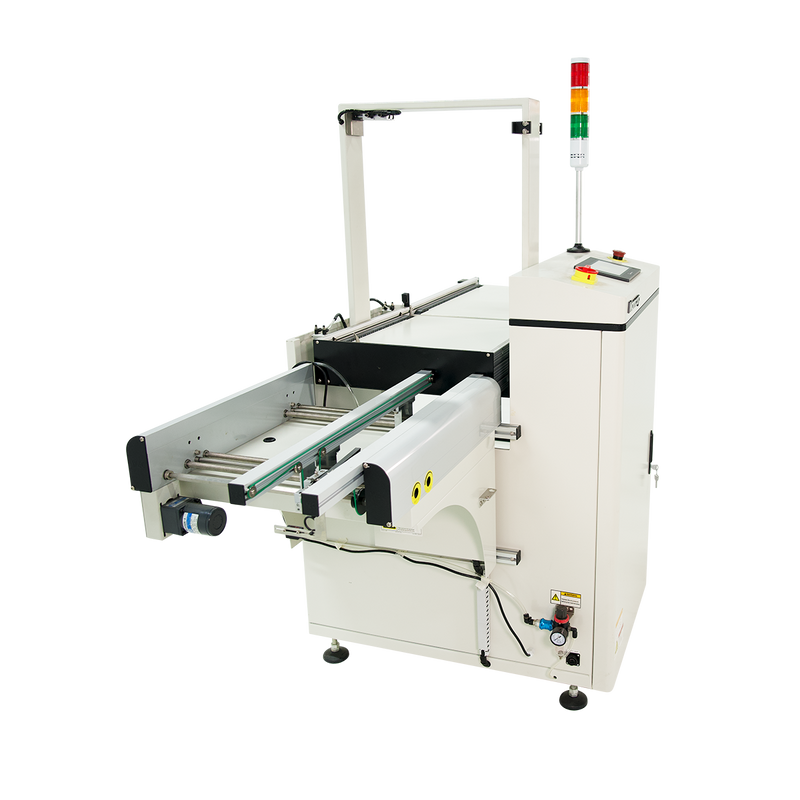

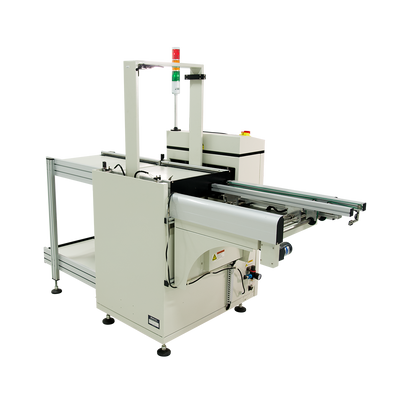

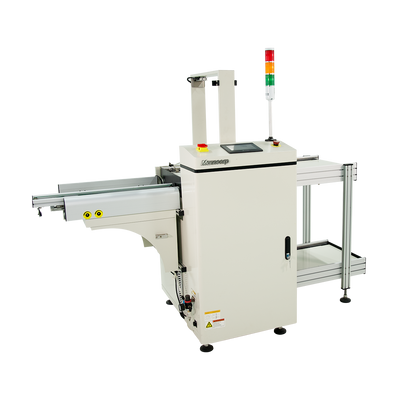

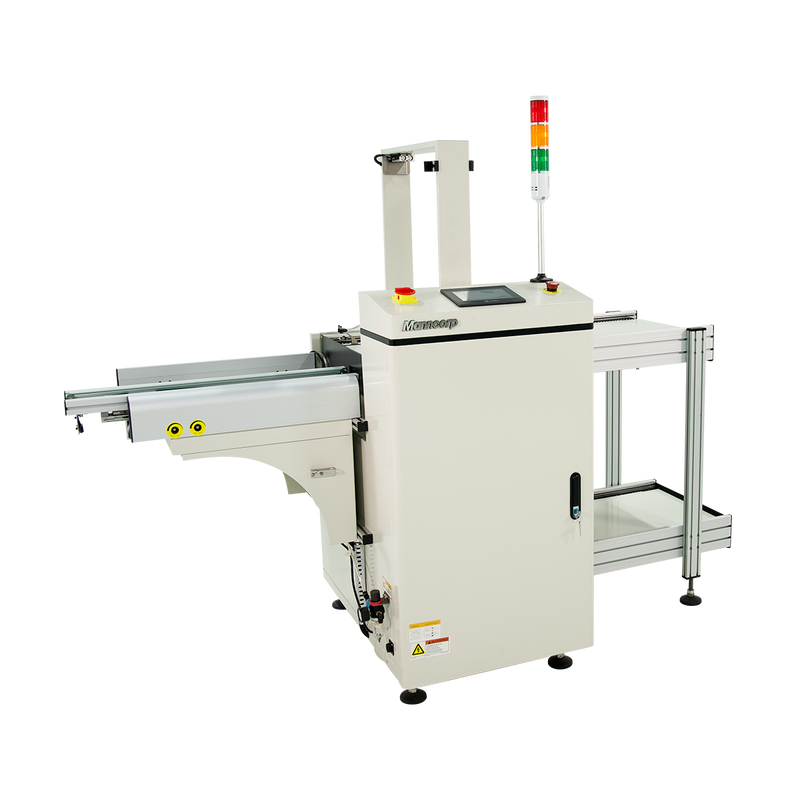

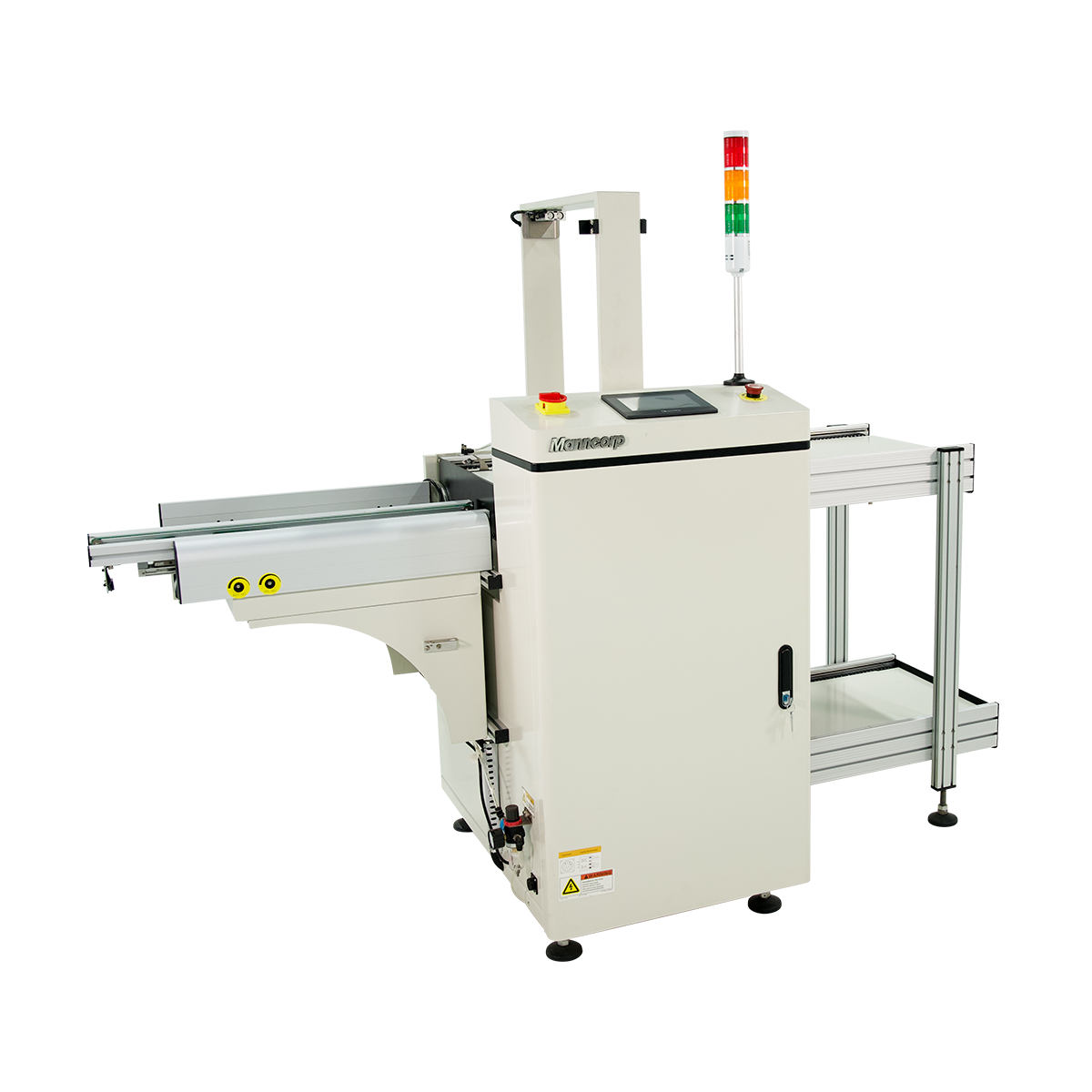

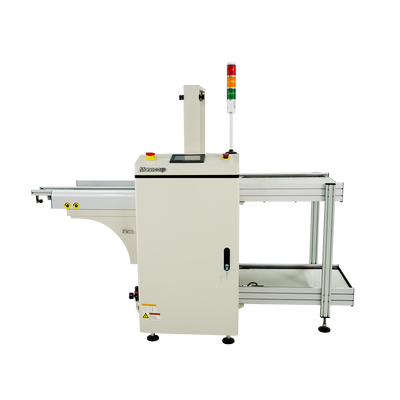

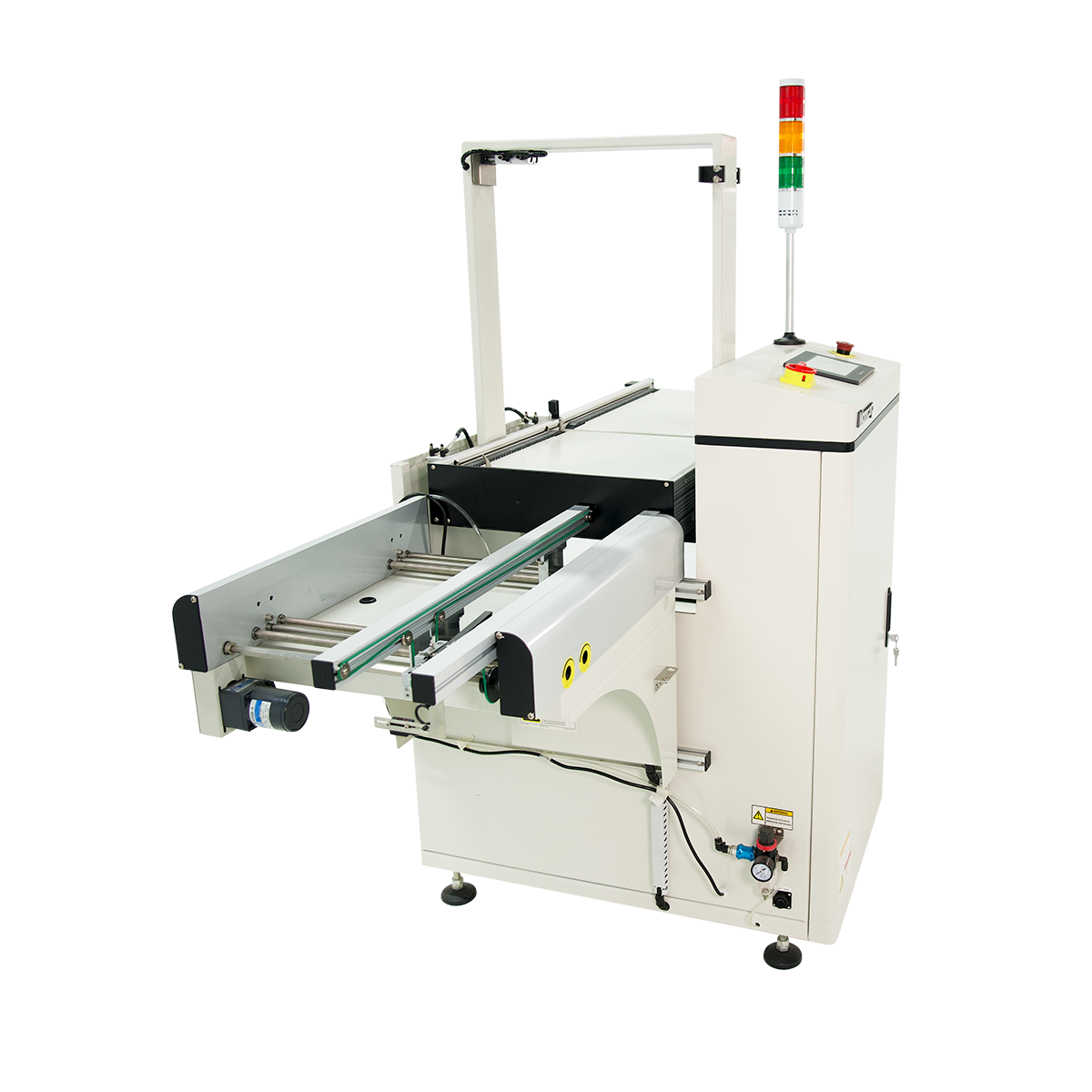

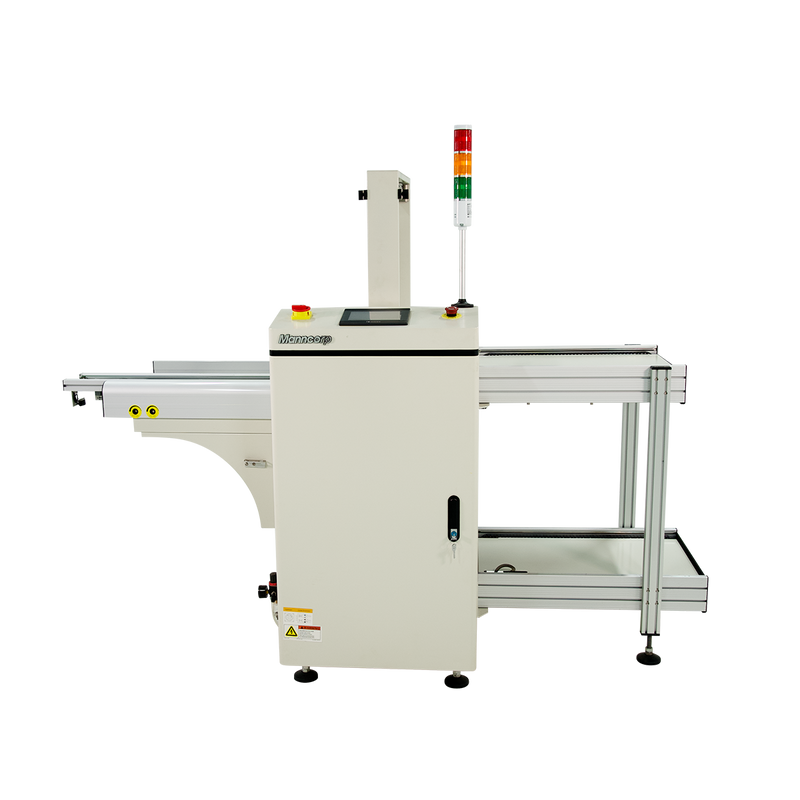

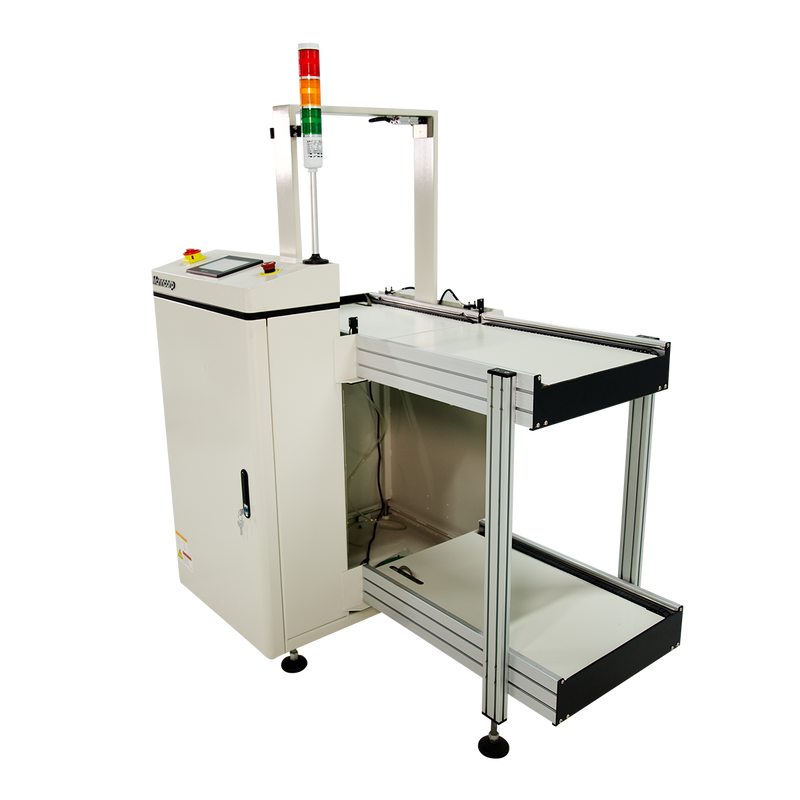

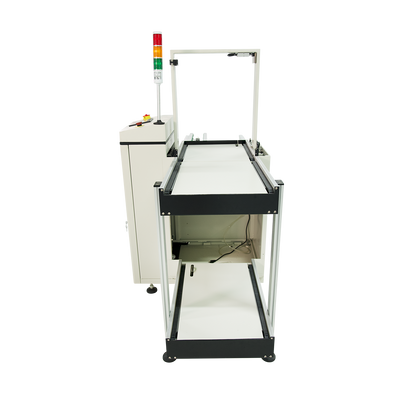

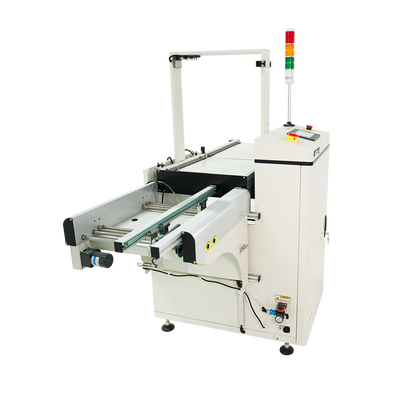

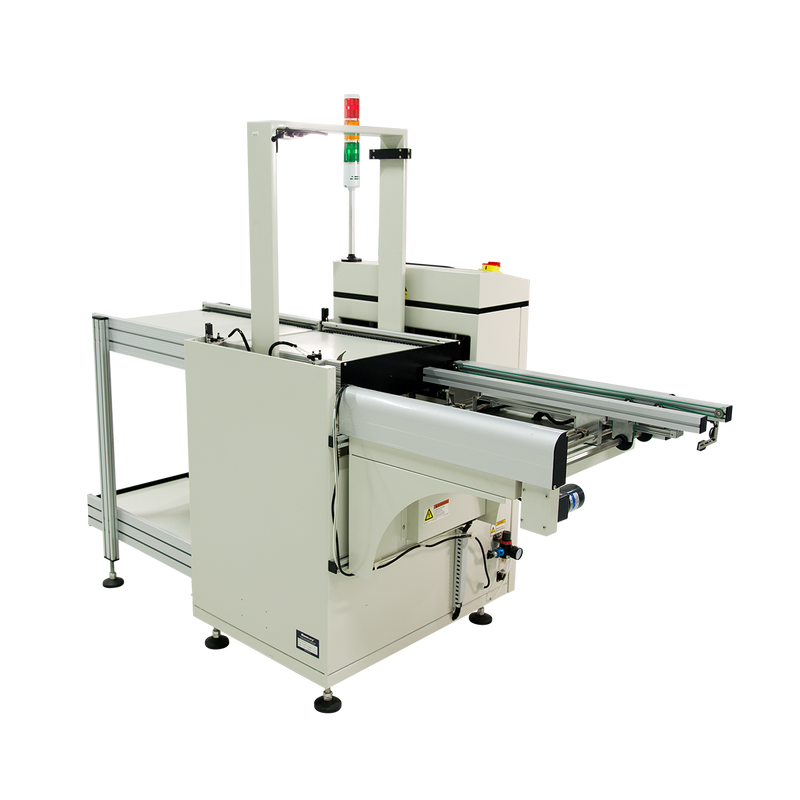

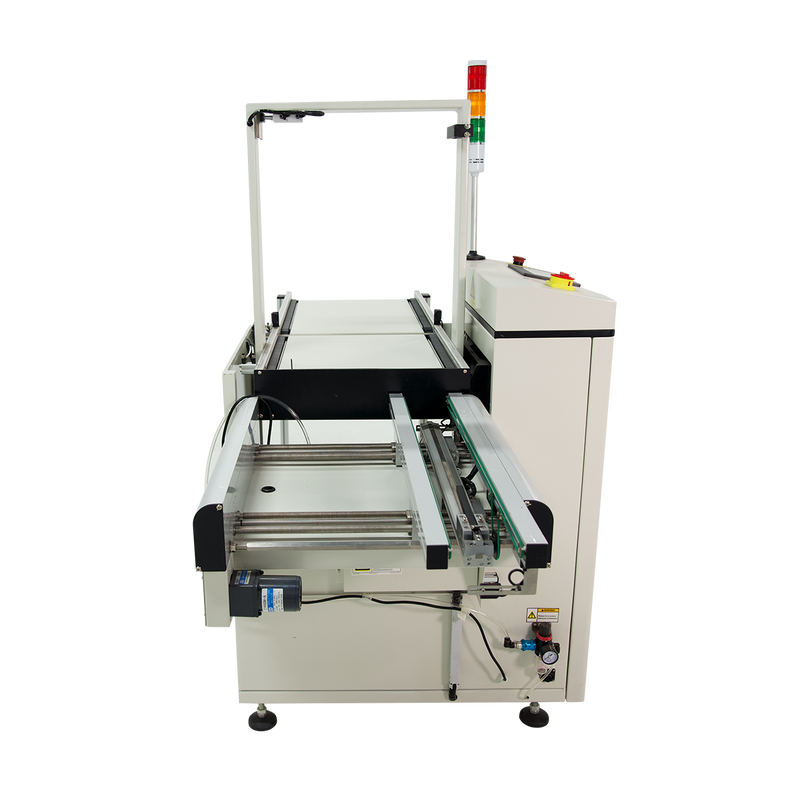

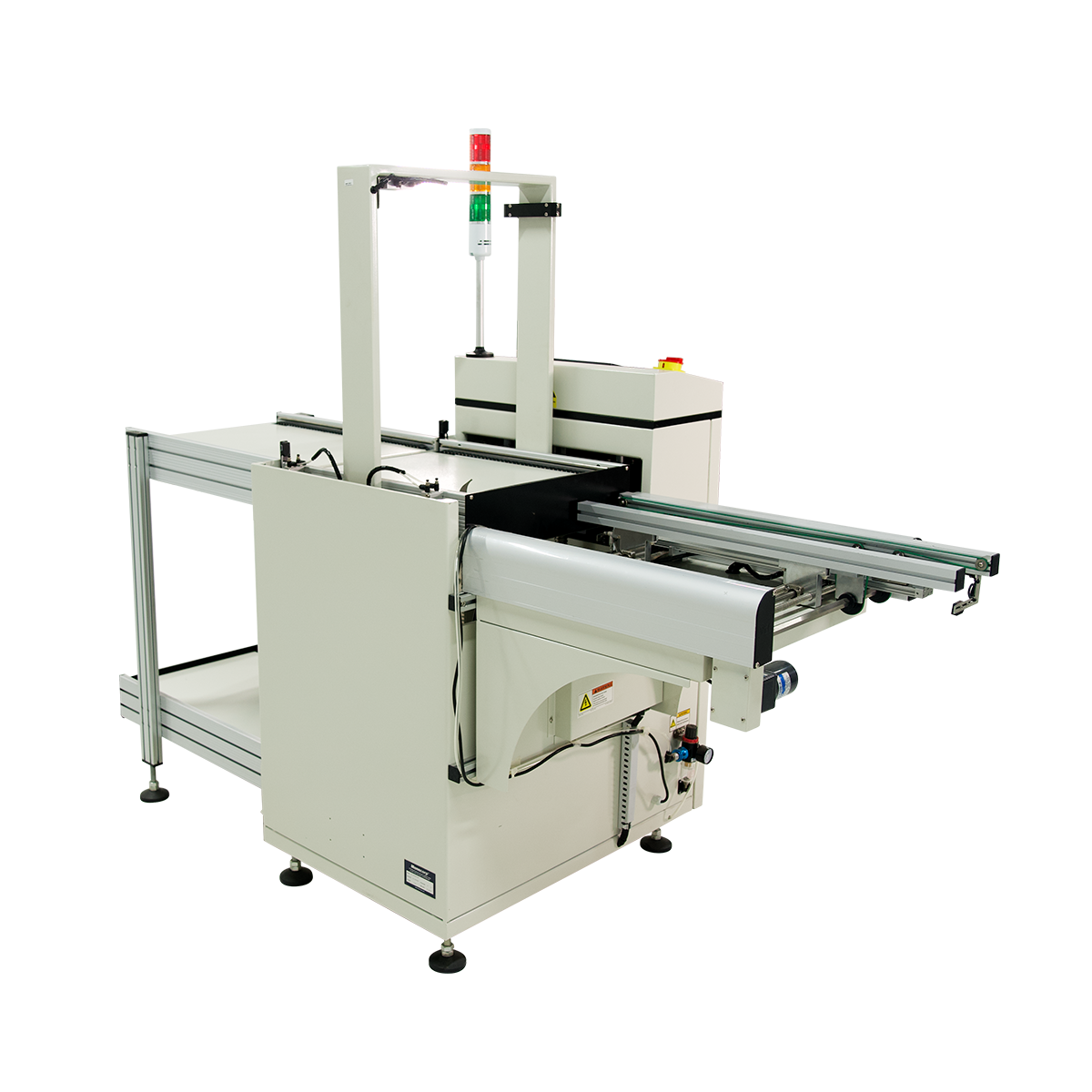

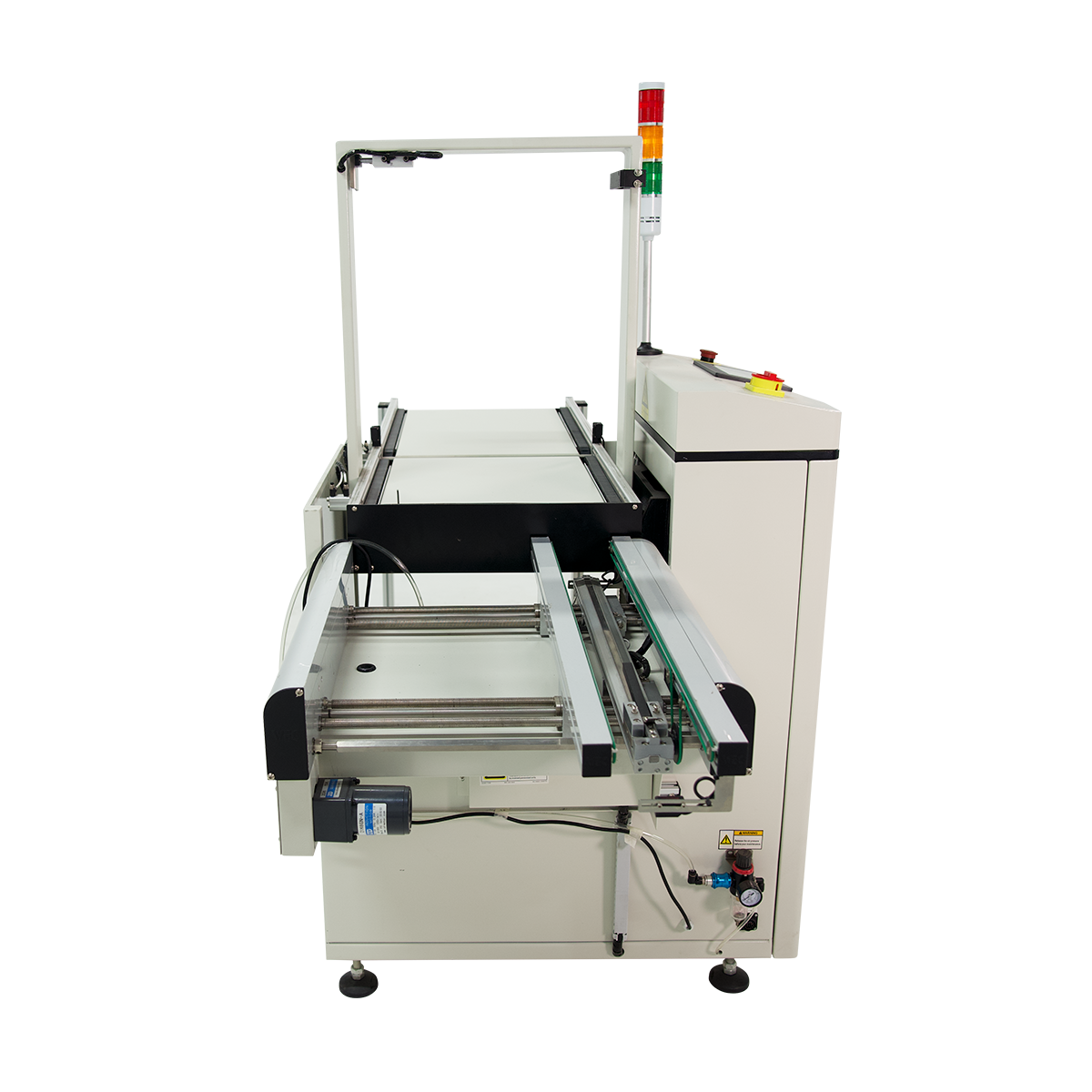

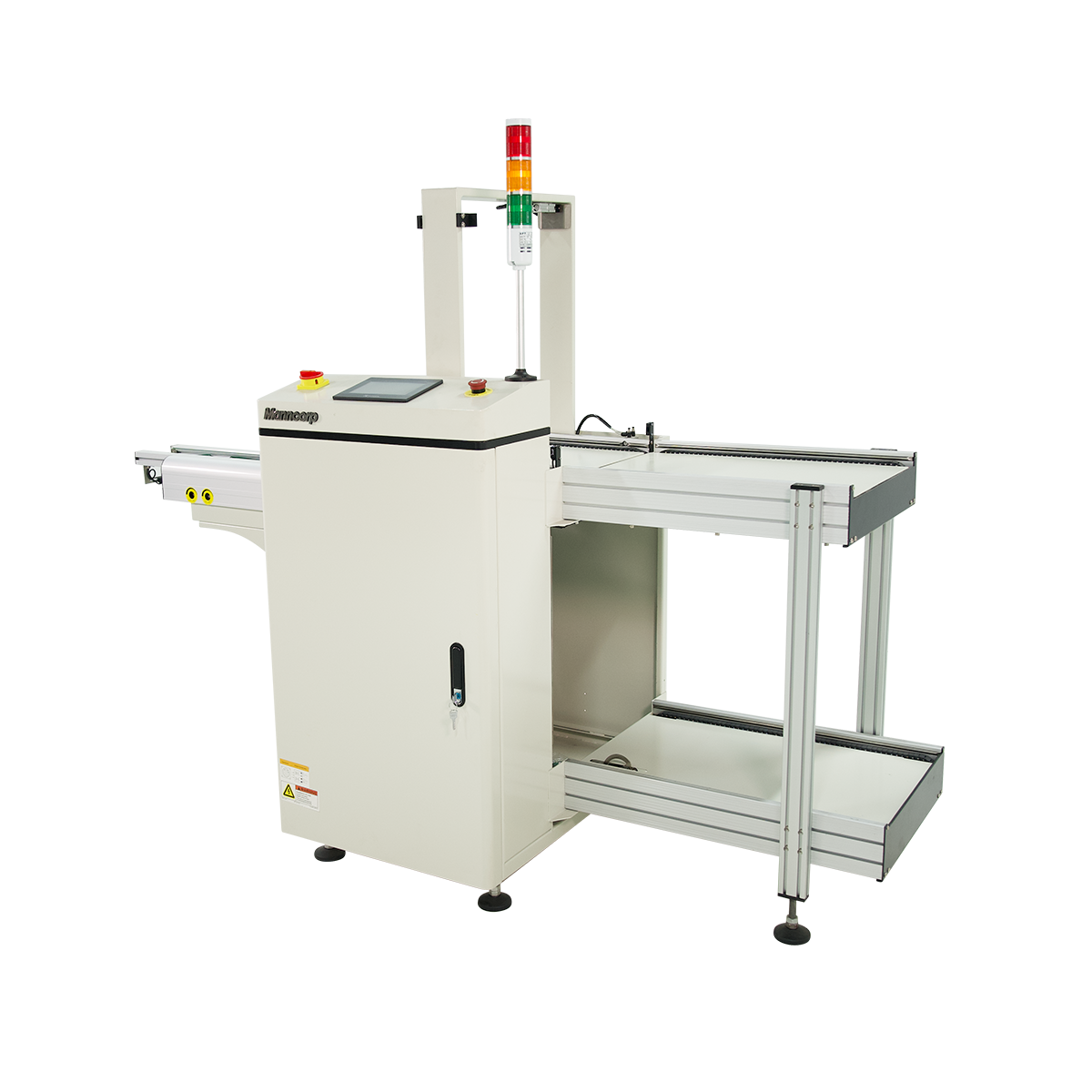

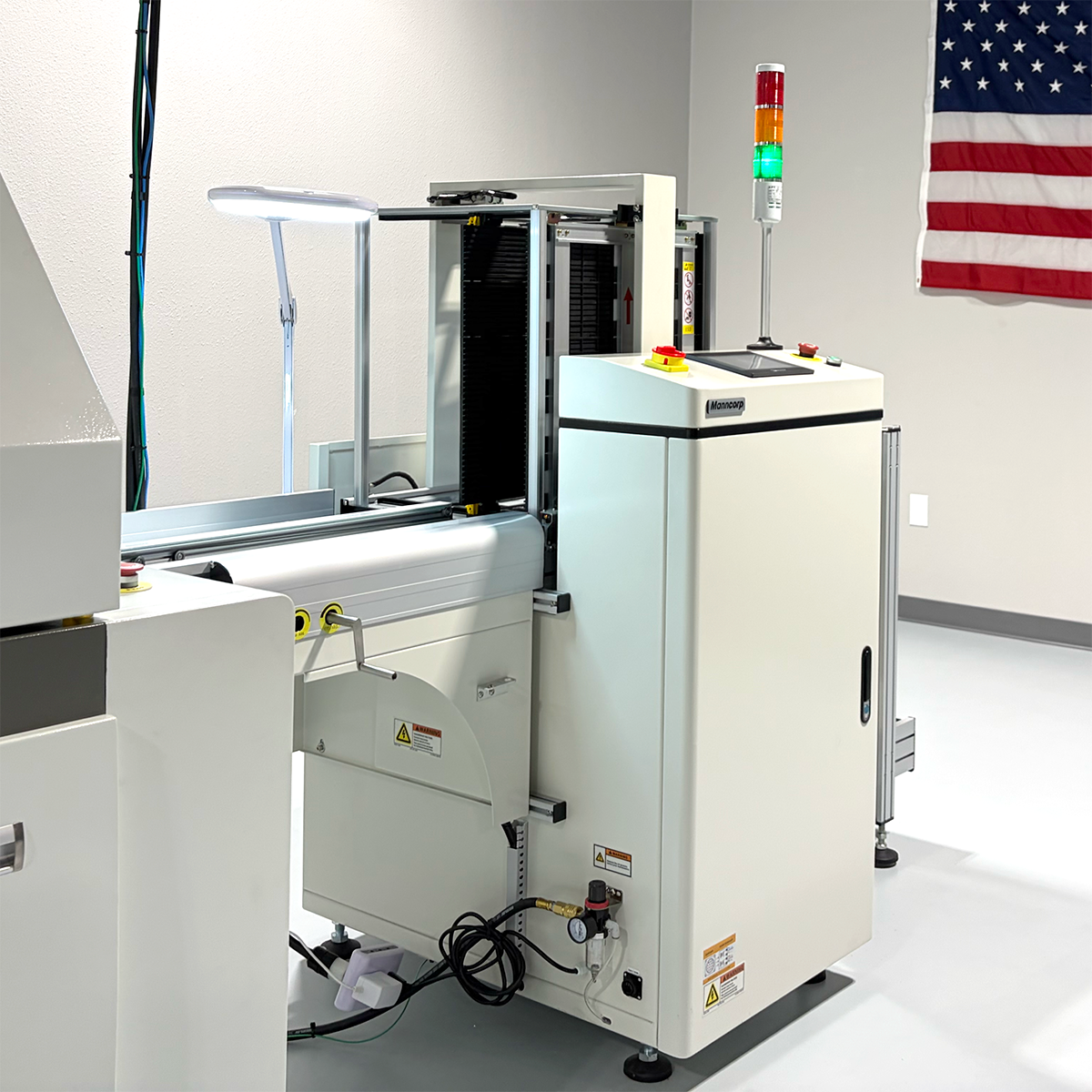

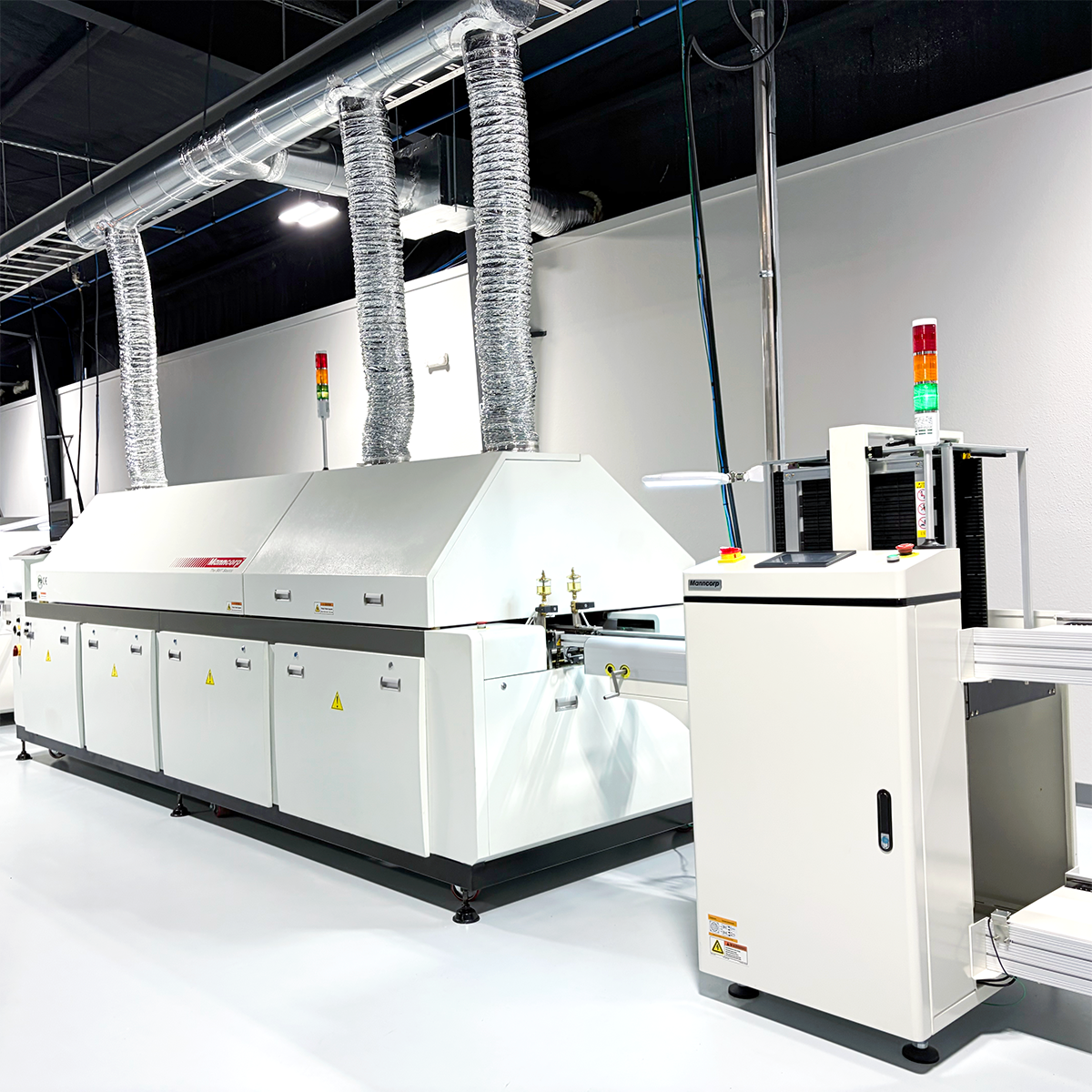

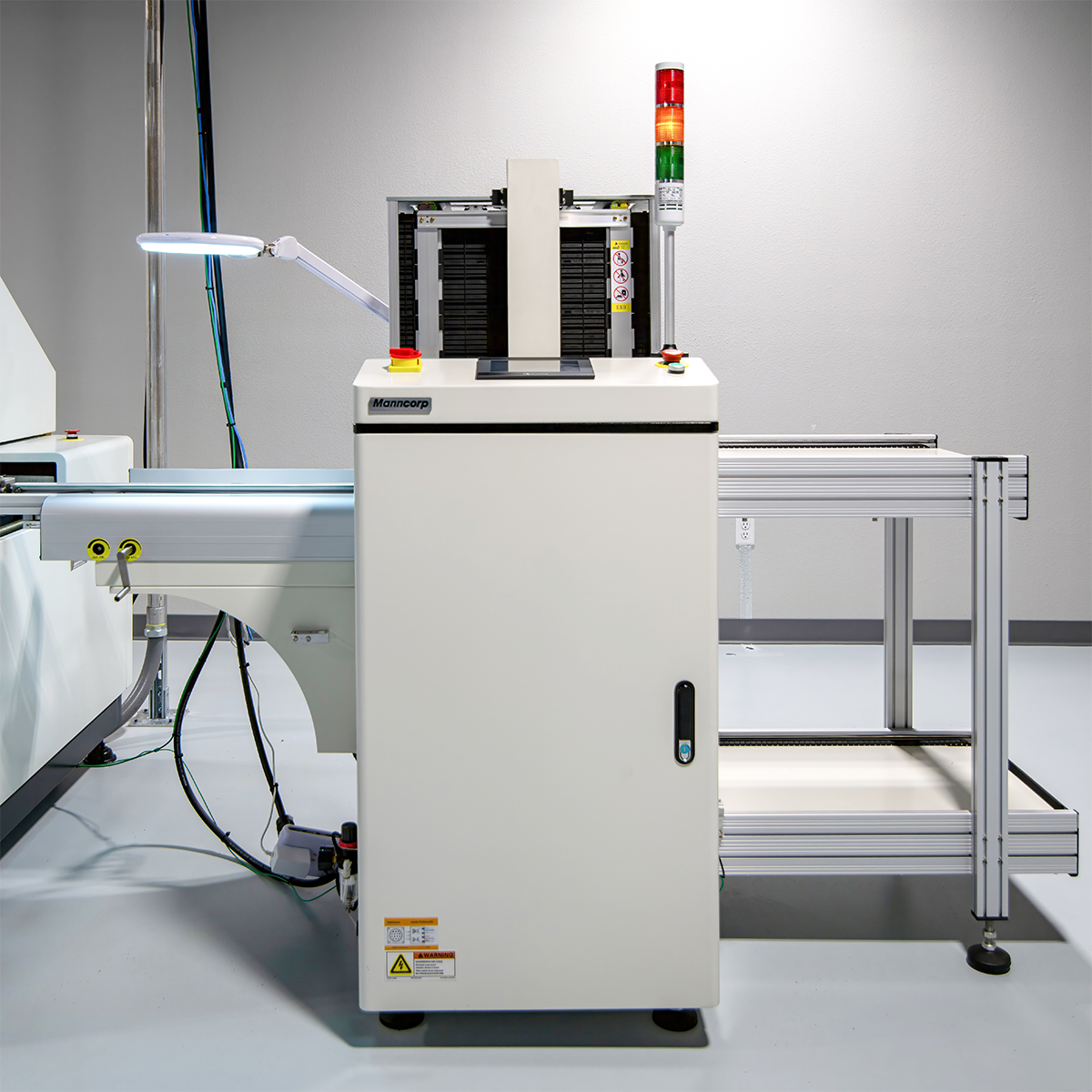

UL Series PCB Magazine Unloader from Manncorp

Ideal for PCB assemblers who use only one size of magazine throughout their process, the Manncorp UL Series of in-line magazine unloaders is a lower-cost option for unloading PCBs from the production line and into either standard CAB or Nikko magazines.

Magazine Size

250 mm

330 mm

390 mm

460 mm

Footprint

Small

Standard

Conveyor Direction

Left to Right

Right to Left

or to view pricing

[{"id":40316104704139,"title":"250 mm \/ Small \/ Left to Right","option1":"250 mm","option2":"Small","option3":"Left to Right","sku":"UL250W-MT","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Standard PCB Magazine Unloader - UL Series - 250 mm \/ Small \/ Left to Right","public_title":"250 mm \/ Small \/ Left to Right","options":["250 mm","Small","Left to Right"],"price":1599500,"weight":147418,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40321601601675,"title":"250 mm \/ Small \/ Right to Left","option1":"250 mm","option2":"Small","option3":"Right to Left","sku":"UL250W-MT-RL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Standard PCB Magazine Unloader - UL Series - 250 mm \/ Small \/ Right to Left","public_title":"250 mm \/ Small \/ Right to Left","options":["250 mm","Small","Right to Left"],"price":1599500,"weight":147418,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40316104736907,"title":"250 mm \/ Standard \/ Left to Right","option1":"250 mm","option2":"Standard","option3":"Left to Right","sku":"UL250W-ST","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Standard PCB Magazine Unloader - UL Series - 250 mm \/ Standard \/ Left to Right","public_title":"250 mm \/ Standard \/ Left to Right","options":["250 mm","Standard","Left to Right"],"price":1599500,"weight":170097,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40321601634443,"title":"250 mm \/ Standard \/ Right to Left","option1":"250 mm","option2":"Standard","option3":"Right to Left","sku":"UL250W-ST-RL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Standard PCB Magazine Unloader - UL Series - 250 mm \/ Standard \/ Right to Left","public_title":"250 mm \/ Standard \/ Right to Left","options":["250 mm","Standard","Right to Left"],"price":1599500,"weight":147418,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40316104769675,"title":"330 mm \/ Standard \/ Left to Right","option1":"330 mm","option2":"Standard","option3":"Left to Right","sku":"UL330W-ST","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Standard PCB Magazine Unloader - UL Series - 330 mm \/ Standard \/ Left to Right","public_title":"330 mm \/ Standard \/ Left to Right","options":["330 mm","Standard","Left to Right"],"price":1799500,"weight":170097,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40321601667211,"title":"330 mm \/ Standard \/ Right to Left","option1":"330 mm","option2":"Standard","option3":"Right to Left","sku":"UL330W-ST-RL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Standard PCB Magazine Unloader - UL Series - 330 mm \/ Standard \/ Right to Left","public_title":"330 mm \/ Standard \/ Right to Left","options":["330 mm","Standard","Right to Left"],"price":1799500,"weight":147418,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40316104802443,"title":"390 mm \/ Standard \/ Left to Right","option1":"390 mm","option2":"Standard","option3":"Left to Right","sku":"UL390W-ST","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Standard PCB Magazine Unloader - UL Series - 390 mm \/ Standard \/ Left to Right","public_title":"390 mm \/ Standard \/ Left to Right","options":["390 mm","Standard","Left to Right"],"price":1899500,"weight":170097,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40321601699979,"title":"390 mm \/ Standard \/ Right to Left","option1":"390 mm","option2":"Standard","option3":"Right to Left","sku":"UL390W-ST-RL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Standard PCB Magazine Unloader - UL Series - 390 mm \/ Standard \/ Right to Left","public_title":"390 mm \/ Standard \/ Right to Left","options":["390 mm","Standard","Right to Left"],"price":1899500,"weight":147418,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40316104835211,"title":"460 mm \/ Standard \/ Left to Right","option1":"460 mm","option2":"Standard","option3":"Left to Right","sku":"UL460W-ST","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Standard PCB Magazine Unloader - UL Series - 460 mm \/ Standard \/ Left to Right","public_title":"460 mm \/ Standard \/ Left to Right","options":["460 mm","Standard","Left to Right"],"price":1999500,"weight":192777,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40321601732747,"title":"460 mm \/ Standard \/ Right to Left","option1":"460 mm","option2":"Standard","option3":"Right to Left","sku":"UL460W-ST-RL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Standard PCB Magazine Unloader - UL Series - 460 mm \/ Standard \/ Right to Left","public_title":"460 mm \/ Standard \/ Right to Left","options":["460 mm","Standard","Right to Left"],"price":1999500,"weight":147418,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Questions? Reach Out Directly:

Chris Ellis - East Coast

Sales & Operations Manager

215.869.8374

Ed Stone - West Coast

Sales Manager

215.808.6266

Details Specifications

Automatic Full Magazine Loading / Empty Magazine Offloading

Available in four models, each dedicated to a standard magazine size (250, 330, 390, and 460 mm), the UL Series is ideal for PCB assemblers who use only one size magazine throughout their process.

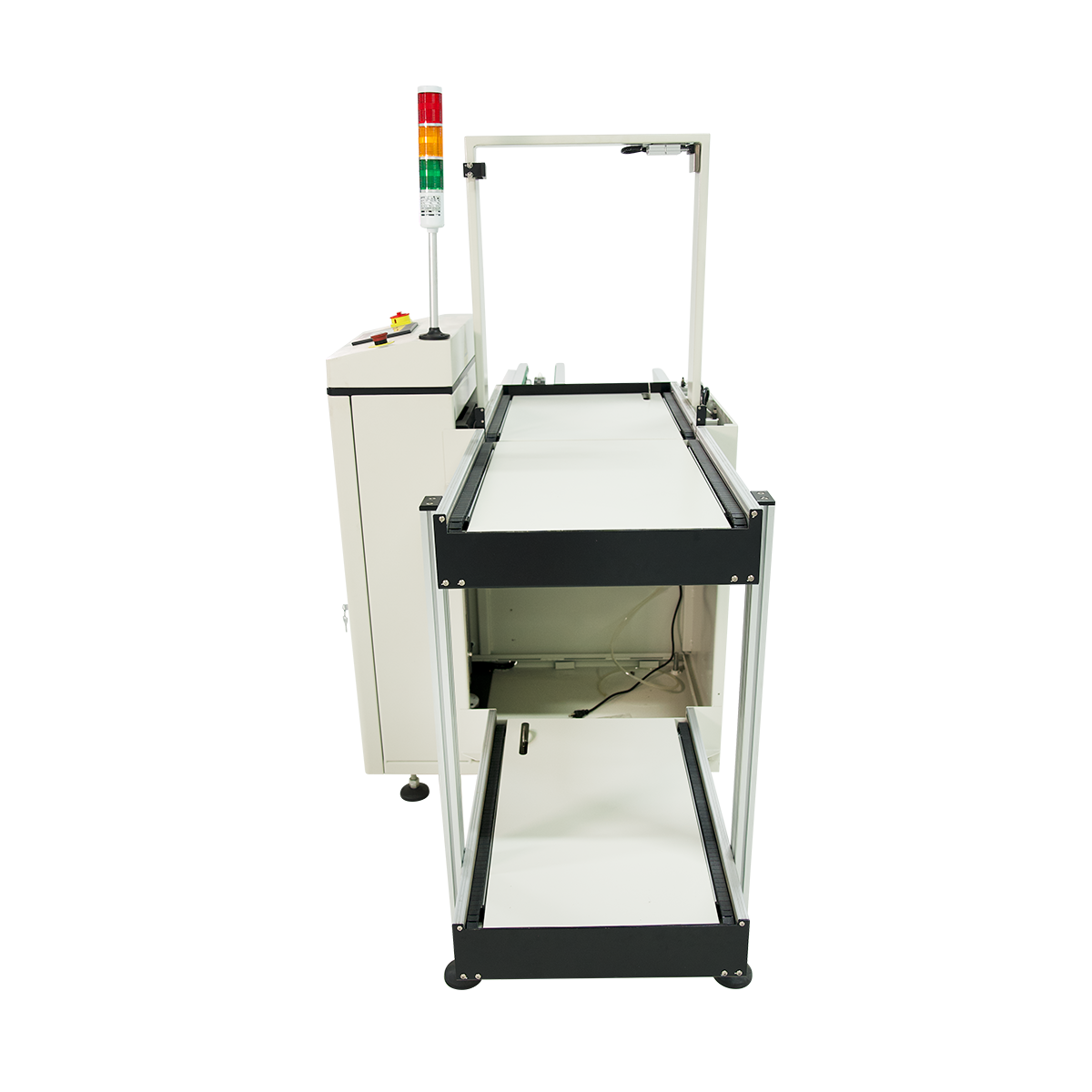

Empty magazines are loaded onto the lower platform and are automatically transferred to the indexing elevator which has selectable pitch settings of 10, 20, 30, and 40 mm. Full magazines are transferred to the upper platform.

A small footprint version (UL-D250C) of the 250 mm in-line model is also available, for applications where floorspace is limited.

See the Specifications tab for a comparison of the models in the UL Series.

MODEL	UL250WST ULD250C	UL330WST	UL390WST	UL460WST
PCB Size	50 x 50 mm to 350 x 250 mm (1.97" x 1.97" to 13.78" x 9.84")	50 x 50 mm to 460 x 330 mm (1.97" x 1.97" to 18.11" x 12.99")	50 x 50 mm to 535 x 390 mm (1.97" x 1.97" to 21.06" x 15.35")	120 x 120 mm to 535 x 460 mm (4.72" x 4.72" to 21.06" x 18.11")
Magazine Size	355 mm L x 320 mm W x 563 mm H (13.98" L x 12.60" W x 22.17" H)	460 mm L x 400 mm W x 563 mm H (18.11" L x 15.75" W x 22.17" H)	535 mm L x 460 mm W x 570 mm H (21.06" L x 18.11" W x 22.44" H)	535 mm L x 530 mm W x 570 mm H (21.06" L x 20.87" W x 22.44" H)
Machine Dimensions	UL250WST: 1700 mm L x 740 mm W x 1150 mm H (67" x 29" x 45") ULD250C: 1450 mm L x 740 mm W x 1150 mm H (57" x 29" x 45")	1800 mm L x 820 mm W x 1150 mm H (71" L x 32" W x 45" H)	2000 mm L x 880 mm W x 1150 mm H (79" L x 35" W x 45" H)	2100 mm L x 960 mm W x 1150 mm H (83" L x 38" W x 45" H)
Net Weight	UL250WST: 160 kg (353 lbs.) UL250WMT: 145 kg (320 lbs.)	220 kg (485 lbs.)	280 kg (617 lbs.)	320 kg (705 lbs.)
Shipping Weight	UL250WST: 200 kg (440 lbs.) UL250WMT: 185 kg (408 lbs.)	260 kg (573 lbs.)	320 kg (705 lbs.)	360 kg (794 lbs.)
Selectable Pitch	10, 20, 30, 40 mm
Conveyor Direction	Left to right (standard) or right to left (optional)
PCB Thickness	0.4 mm min. (0.016" min.)
Air Supply Pressure	5-6 kg/cm² (70-85 psi)
Air Consumption	10 I/min (.35 CFM)
Voltage	110 VAC
Power	300 VA max.
