RT79 Manual Radial Lead Cutter

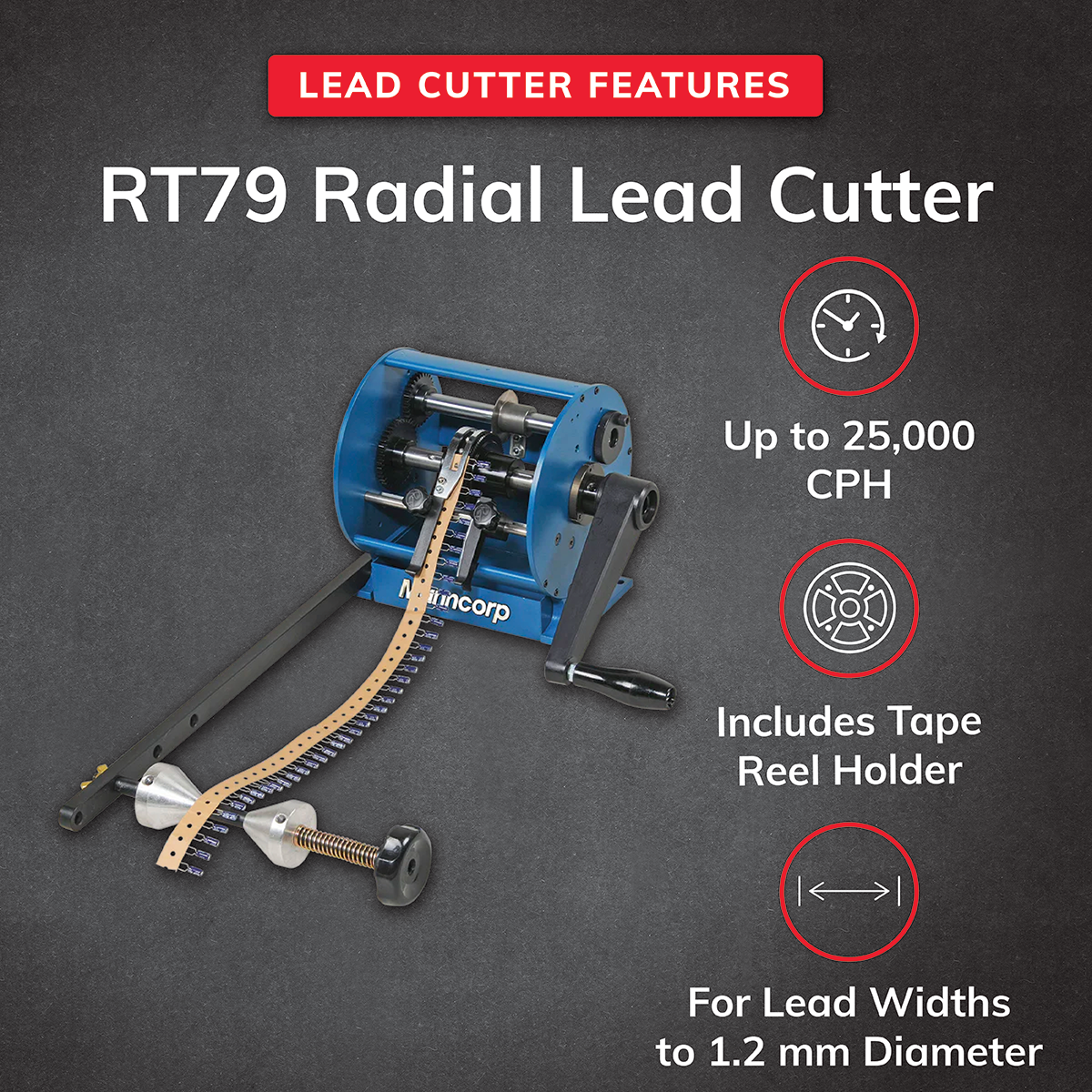

Radial lead hand-crank cutter offers quick setup and rotary disc cutting blades. Capable of cutting up to 25,000 taped parts per hour, including radial LEDs, capacitors, and varistors.

Share Product
Model
Regular price

or to view pricing

/

Questions? Reach Out Directly:

Chris Ellis - East Coast

Sales & Operations Manager

215.869.8374

Ed Stone - West Coast

Sales Manager

215.808.6266

Two Models Available

RT-79 lead cutter with tape reel holder for 12.7 mm tape pitch.

RT-79S lead cutter with tape reel holder for 15 mm tape pitch.

Specifications RT79 RT79S
Manual Radial Component Cutter - 12.7 mm tape Manual Radial Component Cutter - 15 mm tape
A Body Diameter N/A N/A
L Lead Length 2-10 mm 2-10 mm
C Shoulder Min N/A N/A
D Body Diameter N/A N/A
W Wire Diameter 0.3-1.2 mm 0.3-1.2 mm
H Lead Length N/A N/A
P (Pitch) N/A N/A
R (Radius) N/A N/A
Production Rates - Taped N/A N/A
Production Rates - Loose 25,000 pcs/hr 25,000 pcs/hr
Power 110/220V 50/60 Hz 110/220V 50/60 Hz
Dimensions 380 x 180 x 210 mm 500 x 430 x 470 mm
Weight 13 lbs (6 kgs) 13 lbs (6 kgs)
Shipping Weight 15.5 lbs (8 kgs) 15.5 lbs (8 kgs)
Tape Pitch 12.7 mm 15 mm

Options RT79 RT79S
Pitch Gauge N/A N/A
Foot Pedal N/A N/A
Component Counter Yes Yes
Bowl Feeder N/A N/A
