CR8000 8-Zone SMT Reflow Oven
Compact, High-Performance, Mid-to-High-Volume SMT Reflow Ovens
If your budget and floorspace are at a premium but you're still looking for an oven that can provide higher temperatures and a tighter process window with low margin of error in lead-free reflow soldering, Manncorp's CR8000 is your medium or high-volume production solution.

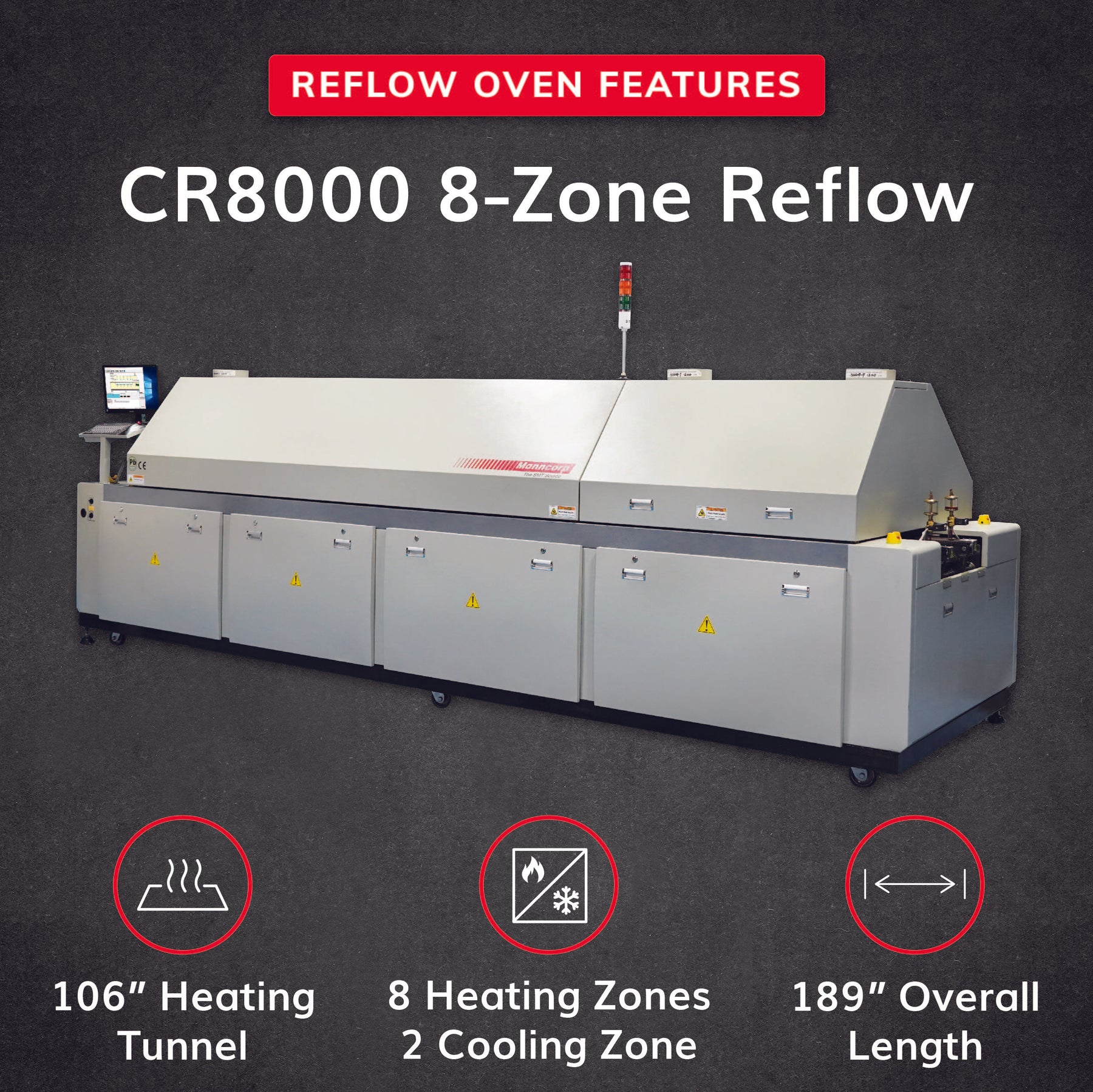

Our 8-zone CR8000 is 20%-30% shorter in length than other options with the same zone number and comparable throughput on the market. It also comes in at a lower price tag. The key to this compact and economic design is our proprietary combination of high-mass heat sources coupled with an efficient thermal transfer process that ensures uniform heating and unparalleled stability despite varying loads.
Independent Upper and Lower PID Temperature Controls for Each Heating Zone
The CR8000's heating zone temperature controllers permit precise temperature profiling with an accuracy of ±1°C. With the addition of the high-speed blower installed adjacent to each heat source for maximum convection, you're guaranteed a ΔT of ±2°C across the PCB assembly. This diffuser design provides our clients with low-velocity, low-turbulence air flow that prevents component shifts or disturbances.
If you're looking for accurate, real-time temperature profiling to ensure the reflow process matches your solder paste manufacturer's specifications, we offer optional thermocouple installations at critical locations on the PCB. Each oven comes with 3 built-in inputs standard for communication with the CR Series control software.
KIC Auto Focus Profile Prediction software offers you complete control over zone temperatures and belt speed settings for optimal temperature gradients, energy efficiency, or speed of production. Simply choose your solder past formula and process window, specify your product's physical characteristics, and our software will provide you with zone temperature and belt speed settings for the job.
Pin-Over-Mesh Conveyors
Our 8-zone oven can meet virtually any product specification or production requirement with its standard adjustable-rail, pin-type conveyor. This system can handle PCBs up to 430 mm (17") installed over a 570 mm (22") stainless-steel mesh belt. With double-sided and inline processing capabilities, this belt is ideal for fast changeovers.
Each of our components is composed of high-quality, high-strength stainless steel and built to maintain dimensional tolerances at the high temperatures required by lead-free processing, eliminating the possibility of jams or dropped PCB assemblies.
Standard pin conveyor features for the 8-zone model include advanced automatic chain lubrication and motorized width adjustment. In addition, the conveyor speed is programmable at 400-1800 mm (16"-71") per minute to accommodate your processing requirements.
Additional pin conveyor options include automatic width adjustment based on parameter settings for specific reflow programs and a center support system to prevent board warpage for processing of larger PCBs at higher lead-free temperatures.
Internal Water Cooling
Aggressive cooling is often necessary to reduce peak temperature exposure times in the lead-free soldering process as the higher liquid temperatures required approach the limits of numerous SMT components and PCB assemblies. That's why our 8-Zone oven offers internal water-chilled recirculating cooling, allowing you to alter cooling rates to meet solder past manufacturers' recommendations more accurately than possible with only air-cooling capabilities.
Process Management Capabilities
A clean, colorful, and easy-to-navigate visual UI allows you to operate and control any of our CR Series reflow systems. This interface features a full-screen, virtual view of the system with an array of preset and actual zone temperatures alongside system status and conveyor speed updates.
The operating system for each CR8000 includes advanced functions such as temperature profiling, timed automatic startup and shutdown options, audiovisual alarm options, and password protection.
This Windows-based operating system and control software is loaded onto a PC controller with unlimited storage and networking capability, a 15" flat-screen monitor, keyboard, and trackball. All of our systems employ a UPS backup to ensure removal of product out of the oven in the event of a power outage for your safety.
| GENERAL | |
|---|---|
| Lead Free Compatible | Yes |
| Tin Lead (SnPb) Compatible | Yes |
| Nitrogen Atmosphere Compatible | Optional |
| Double-Sided Board Processing | Yes |
| CE Compliance | Yes |
| SMEMA Compatible | Standard |
| BOARD HANDLING | |
| Heated Board Width | 22.4" (570 mm) |
| Mesh Belt Conveyor | Standard |
| Mesh Belt Width | 22.4" (570 mm) |
| Process Clearance Above Mesh Belt | 2.5" (65 mm) |
| Chain-Driven Pin Conveyor | Standard |
| Pin Conveyor Max. Width | 17.7" (450 mm) |
| Pin Conveyor Min. Width | 1.97" (50 mm) |
| Auto Adjust Pin Conveyor | Optional |
| Clearance Above Conveyor Pins | 1.18" (30 mm) |
| Clearance Below Conveyor Pins | 0.98" (25 mm) |
| Powered Center Support | Optional |
| Automatic Chain Lubrication | Yes |
| Conveyor Speed | 16-71"/min (400-1800 mm/min) |
| Conveyor Height | 35.4 ±0.8" (900 mm ±20 mm) |
| Conveyor Direction | Left to Right |
| Component Max. Height | 30 mm upper, 25 mm lower |
| HEATING | |
| Forced Hot Air Convection | Yes |
| Number of Independently Controlled Heating Zones | 16 total 8 upper, 8 lower |
| Total Heated Length | 106" (2700 mm) |
| Number of Oven Convection Motors | 16 Power: 120W x 16 |
| Delta T | ±2° C |
| TEMPERATURE CONTROLS | |
| PID (Proportional-Integral-Differential) | Yes |
| Temperature Control Accuracy | ±1° C |
| PCB Temperature Tolerance | ±2° C |
| Temperature Range | Ambient -350° C |
| Ramping Time (from cold start) | ~45 min |
| Profiling / Thermocouple Channels | 3 |
| COOLING | |
| Standard Cooling Method | Air |
| Internal Chilled Water Cooling | Optional |
| Number of Cooling Zones | 1 (2 with water cooling) |
| Cooling Tunnel Length | 25" (635 mm) |
| Exit Temperature | 40°C |
| Number of Cooling Fans | Three 45W or one 370W |
| OPERATING SYSTEM AND USER INTERFACE | |
| Windows Compatible PC | Yes |
| Touch Screen LCD | No |
| Language | English |
| On-Screen Thermal Profiling and Parameter Setting | Yes |
| Print Capability | Yes |
| Data Logging & Event Recording | Yes |
| Alarms | Audible, Visual (Light Tower) and On-Screen Display |
| DIMENSIONS & PHYSICAL CHARACTERISTICS | |

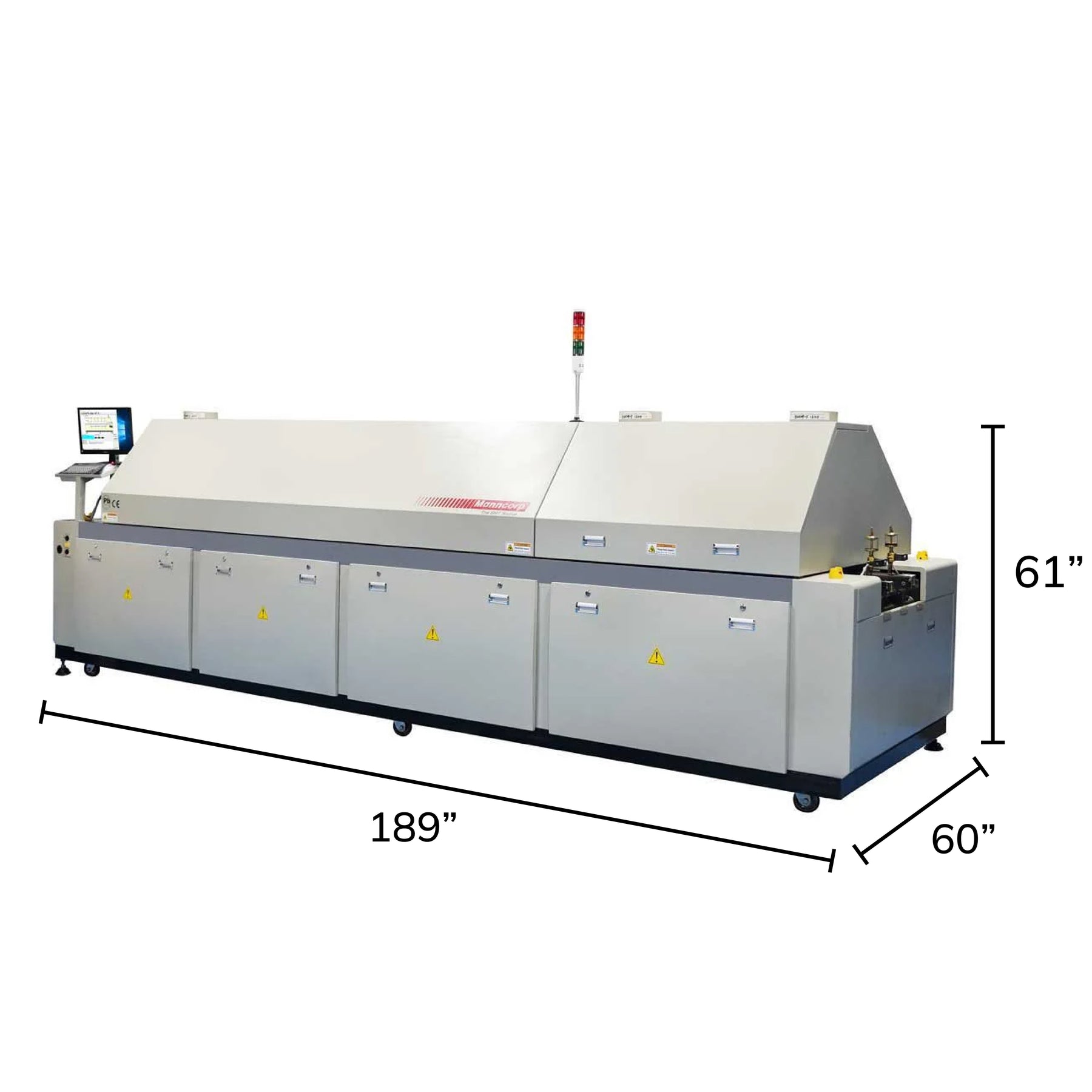

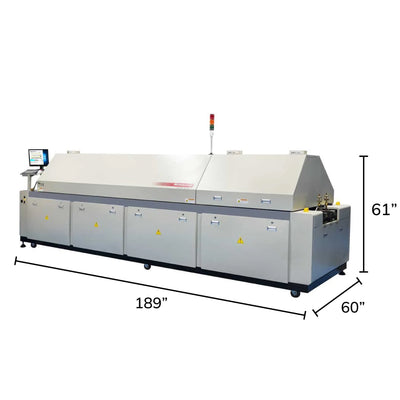

| Length | 189" (4800 mm) |
| Width | 59.4" (1510 mm) |
| Height | 61" (1550 mm) |
| Net Weight | 3990 lbs. (1810 kg) |
| UTILITIES | |
| Power Supply | 220 VAC 3-Phase |
| Number of Exhaust Vents | 3 |
| Exhaust Venting Volume | 400CFM per port |
| Conveyor & PC Power Supply | Uninterruptible Power Supply for Conveyor & PC |
| MISCELLANEOUS | |
| Hood Opening Mechanism | Automatic Raise and Lower |
How 'Auto Focus Power' Profile Prediction Works:
1. Select Your Solder Paste Formula and Process Window
The KIC Auto-Focus Power software includes a database of over 1000 different solder paste formulas from dozens of different solder paste manufacturers. Each database entry includes the manufacturer's recommended solder profile for that specific solder paste formula and identifies critical specifications (i.e. maximum ramp rate, maximum cooling rate, temperatures for preheat, soak, reflow, and peak, allowable times above those temperatures, etc., with upper and lower limits for each) that define the process window. After selecting the solder paste, users can either use the profile as is or can modify the specifications to create a process window that meets their own unique criteria.
2. Link Your Product to the Process Window
Once the Process Window is selected (defined), the next step in using Auto-Focus is selecting the product to be soldered (or assigning a name if the product has not yet been defined). This step, in effect, links the product to the selected process window. It also links the process window and the product to the CR Series Oven data in the database. The oven data has been produced by KIC's characterization of the unique thermal properties of specific CR Series oven models as they relate to varying product sizes and processes.
3. Define the Product's Physical Characteristics
The user now enters the average length, average width, and total weight of the product.
4. Obtain and Confirm the Oven Settings
Auto-Focus now scans the built-in database for zone temperature/belt speed settings that produce a thermal profile that best fits within the process window when soldering a similarly sized product. By comparing that profile to the desired process window, Auto-Focus is able to estimate the PWI™ (Process Window Index); a single value that will give the user an indication of how far "within spec" the actual profile will be when using the recommended oven settings. If the PWI value is acceptable, the user can then obtain the exact temperature settings for each zone along with the belt speed.
