Wave Soldering Belt Unloader

Wave Soldering Unloader Belt from Manncorp
Wave Soldering Belt Unloader

Wave Soldering Belt Unloader

Efficiently Move Soldered Boards to the Next Production Step with Manncorp's Belt Unloader for Wave Soldering

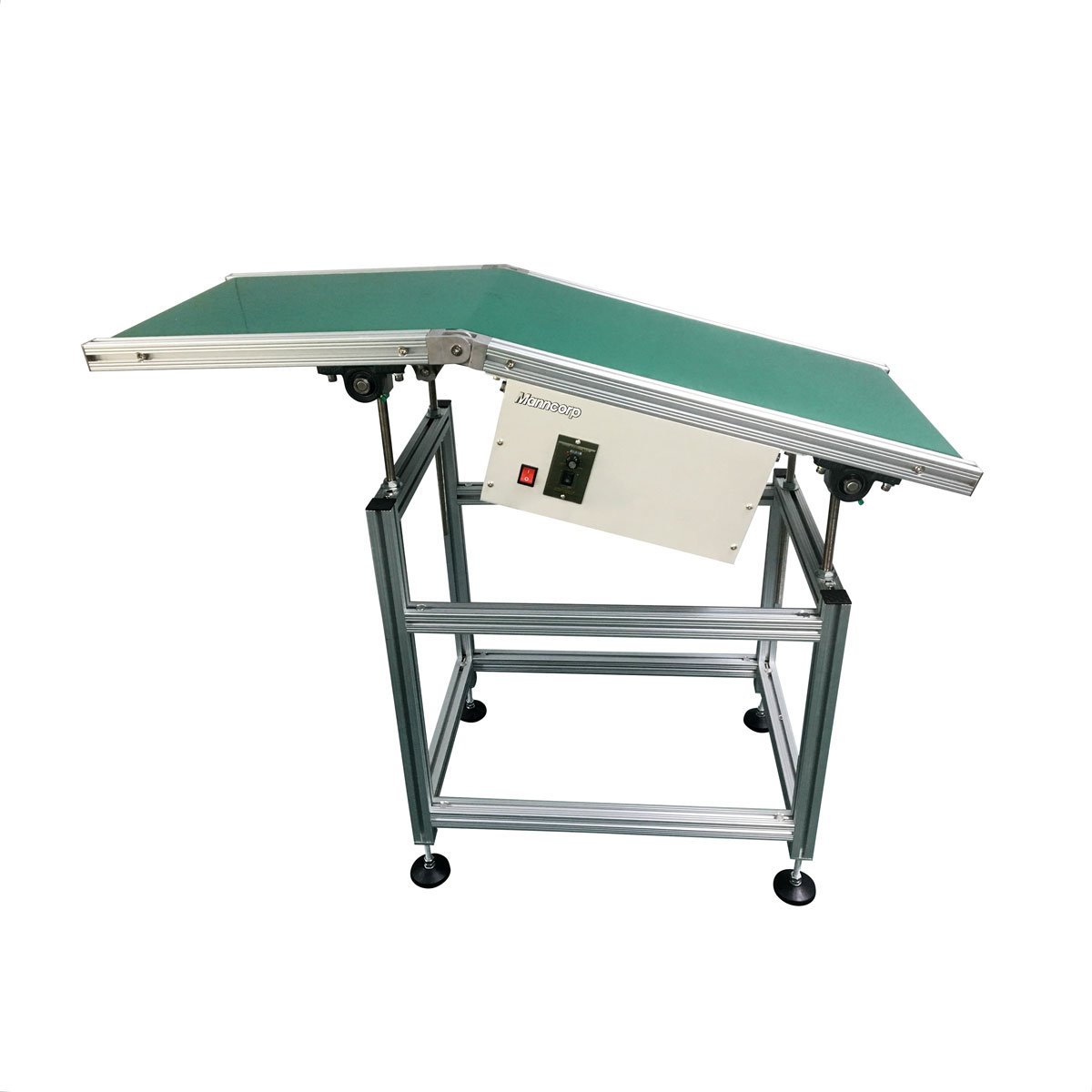

Manncorp's Belt Unloader for Wave Soldering streamlines the process of transferring soldered PCBs from your wave solder machine to the next step in production, whether it’s inspection, packaging, or further assembly. The WU120M-H1 Belt Unloader features an adjustable conveyor input height and angle, allowing it to align perfectly with the exit of any wave soldering system for seamless integration.

Share Product
Regular price

or to view pricing

/

Questions? Reach Out Directly:

Chris Ellis - East Coast

Sales & Operations Manager

215.869.8374

Ed Stone - West Coast

Sales Manager

215.808.6266

WU-Series Wave Solder Belt Unloader Conveyor

Equipped with a non-slip, high-temperature conveyor belt, the unloader offers variable speed settings ranging from 0.5 to 8 m/min, ensuring smooth and safe transfer of PCBs. This versatile system enables easy handoff to operators or other handling equipment, optimizing workflow and enhancing productivity.

WU120M-H1 Wave Soldering Belt Unloader Specifications
PCB Size Min. 2" (50 mm)
PCB Size Max. 13.7" (350 mm)
Custom Widths Available
Belt Speed Min. 3 ft/min (1 m/min)
Belt Speed Max. 40 ft/min (12 m/min)
Belt Type Non-slip, temperature resistant
Conveyor Height Input 29.5" - 45.3" (750-1200 mm)
Conveyor Height Output 31.5" - 39.4" (800-1000 mm)
Flow Left to Right
(Right to Left Available)

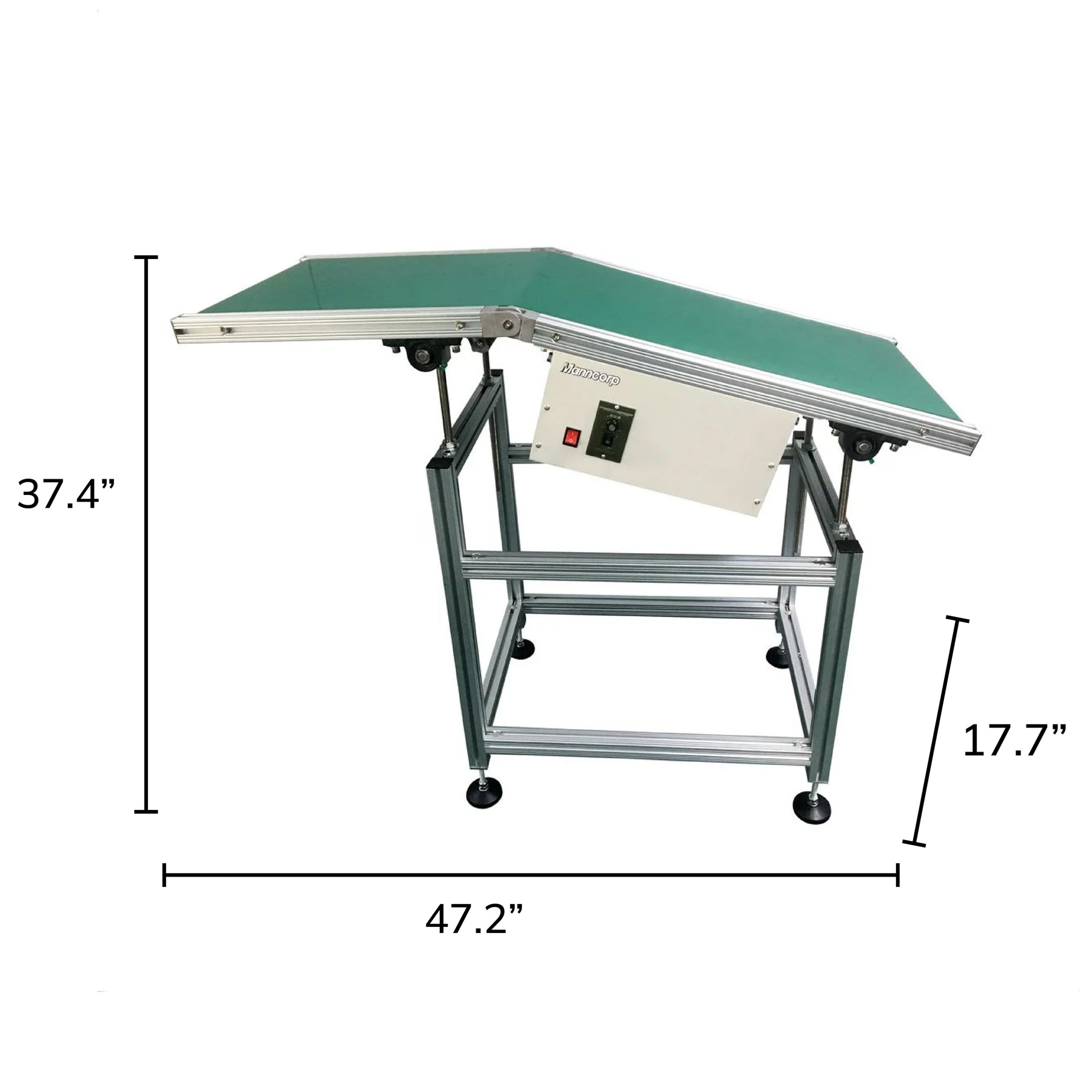

Machine Dimensions 47.2" x 17.7" x 37.4" (1200 x 450 x 950 mm)
Weight 154 lbs. (70 kgs)
Shipping Dimensions 53.2" x 23.6" x 45.3" (1350 x 600 x 1150 mm)
Shipping Weight 211 lbs. (96 kgs)
Power 110 VAC +/- 10V, 60Hz (100 VA)
