Motorized Axial Lead Former RT86 for Taped & Loose Parts

Bowl Feeder (Optional)

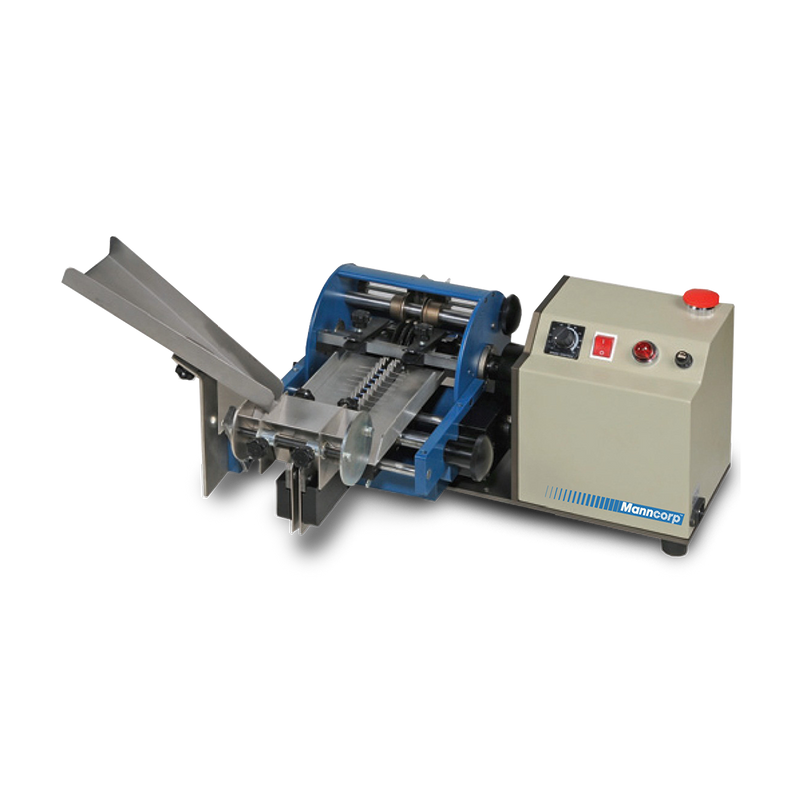

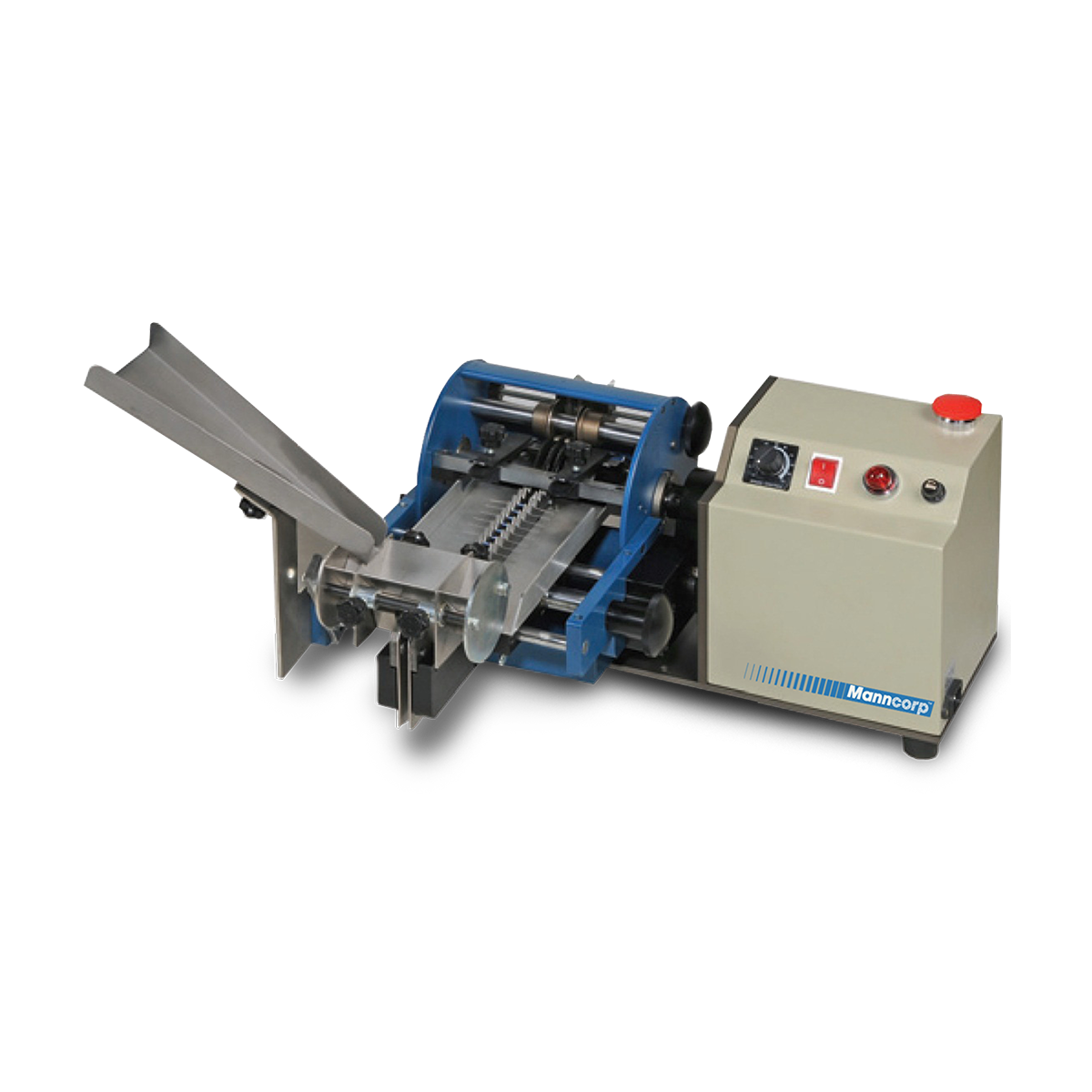

RT86 motorized lead former offers easy, no tooling required set-up with fully adjustable pitch & lead length. Ball bearing bushings are sealed in the crank to ensure accuracy for the life of the machine. Independent rotary disc cutters enhance cutting life, are easy to replace and put minimal stress on components. Process up to 35,000 taped or 2,500 loose components per hour. Ideal for most small contractors. Includes tape reel holder and a walking beam for loose parts. Counter optionally available.

Model

RT86U

RT86S

RT86W

RT86F

Equipment Price

Quantity

[{"id":40317000351883,"title":"RT86U","option1":"RT86U","option2":null,"option3":null,"sku":"RT86U","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RT86 Motorized Axial Lead Former - RT86U","public_title":"RT86U","options":["RT86U"],"price":499500,"weight":29484,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40317000319115,"title":"RT86S","option1":"RT86S","option2":null,"option3":null,"sku":"RT86S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RT86 Motorized Axial Lead Former - RT86S","public_title":"RT86S","options":["RT86S"],"price":509500,"weight":29484,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40317000384651,"title":"RT86W","option1":"RT86W","option2":null,"option3":null,"sku":"RT86W","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RT86 Motorized Axial Lead Former - RT86W","public_title":"RT86W","options":["RT86W"],"price":539500,"weight":29484,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40317000417419,"title":"RT86F","option1":"RT86F","option2":null,"option3":null,"sku":"RT86F","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RT86 Motorized Axial Lead Former - RT86F","public_title":"RT86F","options":["RT86F"],"price":549500,"weight":29484,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

QUESTIONS? TEXT OR CALL:

Chris Ellis 215-869-8374 | East Coast

Ed Stone 215-808-6266 | West Coast

Description Protect_msd Restore_and_store Specifications Features Feeders Machine_configurations Applications Profile_predictions Performance_charts Video Navigator_software Process_window Add_ons Temperature_tolerance Includes Add_fluxing Contact

Available in Four Models

RT86 motorized lead former with loose parts feeder meets most lead forming requirements. For lead widths 0.35 - 1.0mm diameter.

RT86S motorized lead former for finer diameter wires or smaller components that can be bent closer to the body. For lead widths 0.35 - 0.8mm diameter.

RT86W motorized lead former for heavy gauge wires. For lead widths 0.3 - 1.5mm diameter.

RT86F motorized lead former for vertical lead forming. For lead widths 0.35 - 0.8mm diameter.

Specifications	RT86S	RT86	RT86W	RT86F
	Motorized Taped and Loose Axial Lead Bender with Hopper	Motorized Taped and Loose Axial Lead Bender with Hopper	Motorized Taped and Loose Axial Lead Bender - Smaller diameter/components with Hopper	Motorized Taped and Loose Axial Lead Bender with Hopper
A Body Length	3.5-37.6 mm	3.5-37.6 mm	3.5-37.6 mm	3.6-18 mm
B Lead Length	3.5-15 mm	3.5-15 mm	3.5-15 mm	2-12 mm
C Shoulder Min	0.6 mm	1.2 mm	1.2 mm	3.5 mm
D Body Diameter	1.5-8 mm	1.5-8 mm	1.5-8 mm	1.5-6 mm
ɸW Wire Diameter	0.35-0.8 mm	0.35-0.8 mm	0.35-1.2 mm	0.35-0.8 mm
H Support Lead Max	N/A	N/A	N/A	25 mm
P (Pitch)	5-40 mm	6-40 mm	6-40 mm	2.5-13.5 mm (The lower C=3 mm, the wider P=40 mm)
R (Radius)	N/A	N/A	N/A	1-3°
Production Rates - Taped	43,000 pcs/hr	43,000 pcs/hr	43,000 pcs/hr	43,000 pcs/hr
Production Rates - Loose	7,200 pcs/hr	7,200 pcs/hr	7,200 pcs/hr	7,200 pcs/hr
Power	110/220V 50/60 Hz	110/220V 50/60 Hz	110/220V 50/60 Hz	110/220V 50/60 Hz
Dimensions	470 x 500 x 235 mm	470 x 500 x 235 mm	470 x 500 x 235 mm	470 x 500 x 235 mm
Weight	25 kgs	25 kgs	26 kgs	25 kgs
Shipping Weight	27 kgs	27 kgs	28 kgs	27 kgs
Tape Pitch	N/A	N/A	N/A	N/A

Options	RT86S	RT86	RT86W	RT86F
Pitch Gauge	Yes	Yes	Yes	Yes
Foot Pedal	N/A	N/A	N/A	N/A
Component Counter	Yes	Yes	Yes	Yes
Bowl Feeder	Yes (RT90)	Yes (RT90)	Yes (RT90)	Yes (RT90)
