Motorized Radial Lead Cutter for Taped Parts RT70

Motorized Radial Lead Cutter for Taped Parts RT70 from Manncorp

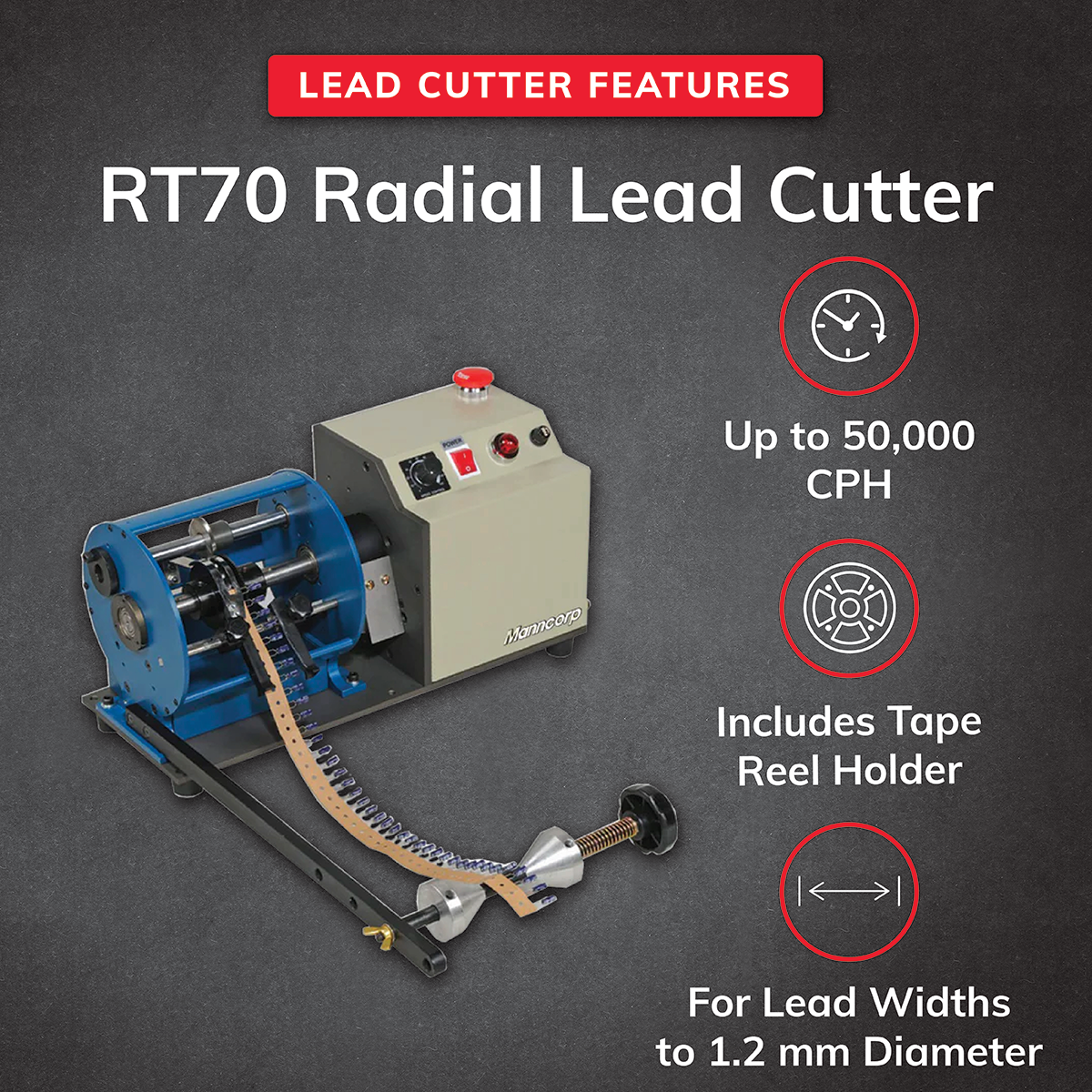

Motorized lead cutter for taped radial components offers quick setup, rotary cutting discs. RT-70 cuts up to 50,000 parts per hour, including radial LED components, capacitors, and varistors.

Model

RT70

RT70S

Equipment Price

Quantity

QUESTIONS? TEXT OR CALL:

Chris Ellis 215-869-8374 | East Coast

Ed Stone 215-808-6266 | West Coast

Description Protect_msd Restore_and_store Specifications Features Feeders Machine_configurations Applications Profile_predictions Performance_charts Video Navigator_software Process_window Add_ons Temperature_tolerance Includes Add_fluxing Contact

Two Models Available

RT70 motorized radial lead cutter with tape reel holder meets most lead cutting requirements. For 12.7mm tape pitch.

RT70S motorized radial lead cutter with tape reel holder. For 15mm tape pitch.

Specifications	RT70	RT70S
	Motorized Radial Component Cutter - 12.7 mm tape	Motorized Radial Component Cutter - 15 mm tape
A Body Diameter	N/A	N/A
L Lead Length	2-10 mm	2-10 mm
C Shoulder Min	N/A	N/A
D Body Diameter	N/A	N/A
W Wire Diameter	0.3-1.2 mm	0.3-1.2 mm
H Lead Length	N/A	N/A
P (Pitch)	N/A	N/A
R (Radius)	N/A	N/A
Production Rates - Taped	N/A	N/A
Production Rates - Loose	35,000 pcs/hr	35,000 pcs/hr
Power	110/220V 50/60 Hz	110/220V 50/60 Hz

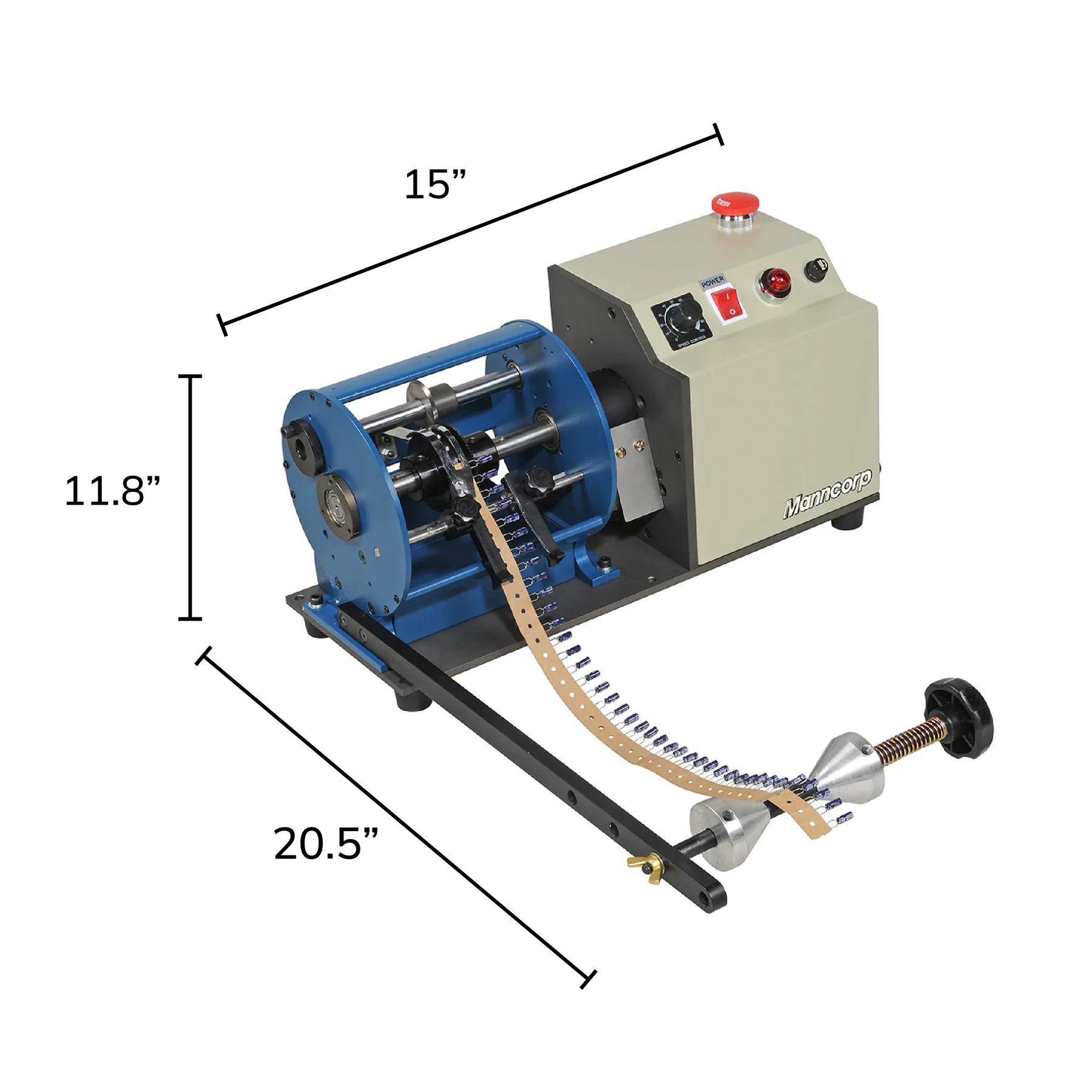

Dimensions	520 x 380 x 300 mm	520 x 380 x 300 mm
Weight	16 kgs	16 kgs
Shipping Weight	18 kgs	18 kgs
Tape Pitch	12.7 mm	15 mm

Options	RT70	RT70S
Pitch Gauge	N/A	N/A
Foot Pedal	N/A	N/A
Component Counter	Yes	Yes
Bowl Feeder	N/A	N/A
