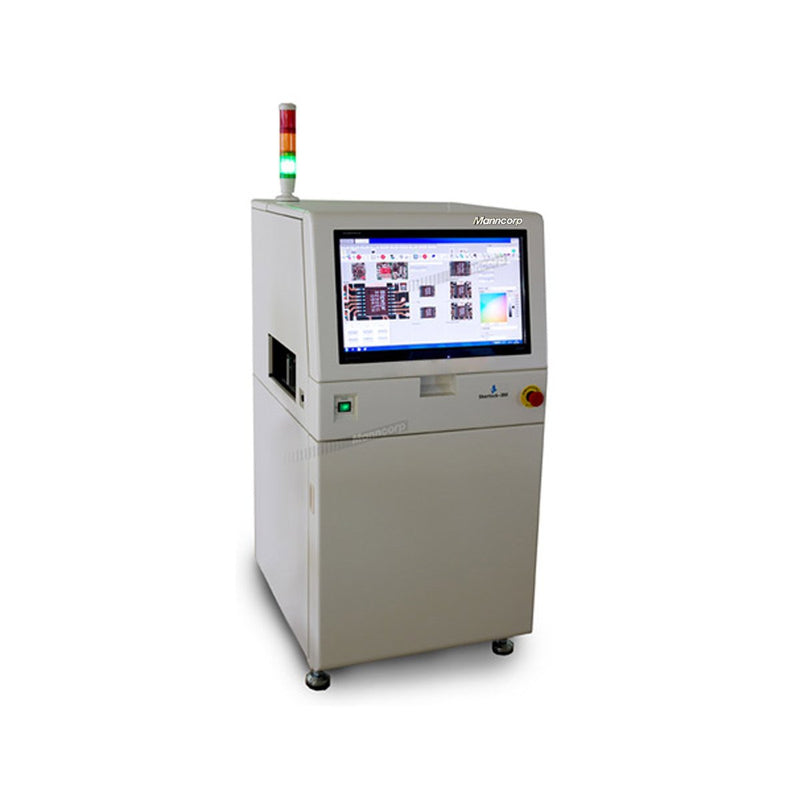

Sherlock 300I Inline AOI System from Manncorp

Add PCB inspection to your automated production line, pre- or post-reflow, and speed up your process. Inline Sherlock 300I AOI system inspects components and solder joints on SMT, through-hole and mixed-technology boards and communicates with downstream equipment for automatic good/bad board sorting. The user interface is 100% touch control—as easy to use as a tablet.

This item ships by freight. If you purchase it through our online store, our sales team will send you a quote for the freight costs after purchase.

Max PCB Size

13 x 9.85 in. (330 mm x 250 mm)

20 x 18.1 in. (510 mm x 460 mm)

Equipment Price

Quantity

[{"id":42290232262795,"title":"13 x 9.85 in. (330 mm x 250 mm)","option1":"13 x 9.85 in. (330 mm x 250 mm)","option2":null,"option3":null,"sku":"Sherlock-300I","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Sherlock 300I\/500I Inline AOI Machine - 13 x 9.85 in. (330 mm x 250 mm)","public_title":"13 x 9.85 in. (330 mm x 250 mm)","options":["13 x 9.85 in. (330 mm x 250 mm)"],"price":6499500,"weight":192777,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42290232295563,"title":"20 x 18.1 in. (510 mm x 460 mm)","option1":"20 x 18.1 in. (510 mm x 460 mm)","option2":null,"option3":null,"sku":"Sherlock-500I","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Sherlock 300I\/500I Inline AOI Machine - 20 x 18.1 in. (510 mm x 460 mm)","public_title":"20 x 18.1 in. (510 mm x 460 mm)","options":["20 x 18.1 in. (510 mm x 460 mm)"],"price":7999000,"weight":192777,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

QUESTIONS? TEXT OR CALL:

Chris Ellis 215-869-8374 | East Coast

Ed Stone 215-808-6266 | West Coast

Smart, Compact, Inline

Sherlock 300I and Sherlock 500I (Larger board size)integrates cleanly with your existing production line to provide complete defect coverage before and/or after reflow or after wave soldering. Powerful algorithm-based software detects defects and helps to improve your process. Programming can optionally be done at an offline station to prevent disruption of production.

Post-inspection, Sherlock 300I/500I sends the appropriate signal to downstream equipment, allowing passed PCBs to continue down the line or be unloaded to a rack. If it is rejected, it can be stopped at an inspection conveyor or unloaded to a separate rack marked for rework/repair.

Easy to program and operate

All programming and operation is done through the Sherlock-300I's intuitive touch-screen interface. Automatic pick & place and CAD data conversion and a pre-defined, customizable parts library not only speed up programming but also eliminate the need for skilled AOI personnel.

Unlike the libraries included with many other systems, the Sherlock 300 library contains comprehensive inspection data for each part, including image processing settings, lighting conditions, areas to be checked, and more. Custom parts can be quickly created from any pre-defined part.

The software was designed to make operation easy and convenient: The interface is instantly intuitive. If there's any doubt, "Navigation Mode" can step the operator through tasks, and online help is only a click away.

For optimum speed and traceability, the Sherlock 300's camera reads 2D and linear bar codes—no separate bar code scanner is required. The system also performs character recognition, allowing it to process and compare component labels.

The software also features easy zooming in and out to get a better look at defects. It also presents quick-stats on defective parts.

High Defect Coverage

Sherlock 300I uses a high-resolution, 2.2-megapixel CMOS camera, a large-aperture telecentric lens, and two lighting systems to achieve fast, accurate inspection of both solder quality and components at a scanning rate of 50 cm²/sec.

The RGB LED lighting system inspects solder fillets for volume and shape. The three-tier white lighting system inspects component placement and positioning, with reflection and shadow controls to ensure low false calls and low false accepts.

The standard lens inspects parts down to 0201, or the Sherlock 300I can be fitted with a high-magnification lens to inspect parts down to 01005. Both of these telecentric lenses eliminate perspective errors, reduce distortion toward the edges of the field of vision, and provide uniform image plane illumination.

There is no need for the expense of high-megapixel cameras or multiple side-angle cameras with this system. It has been designed to provide accurate, reliable inspection results with the lowest complexity of programming and at a cost that's within reach of small and medium manufacturers.

Quality Components Throughout

During inspection, the camera moves, rather than the PCB. This ensures the clearest possible images and fastest inspection speeds. The camera motion system is X-Y bi-axial belt-driven with 50 µm positional accuracy.

The board transport system automatically adjusts to the size set in the program. Sherlock 300I comes standard with a pneumatic PCB stopper and vacuum clamp. It can optionally be purchased with a motor to eliminate the need for a compressed air source.

Operation is smooth and quiet, thanks to the machine's sturdy, vibration-damping construction.

All components are high quality, Japanese-made.

Keep Control of Your Process

Do more than detect bad PCBs. Improve your whole process with the addition of statistical process control (SPC) software. This software, installed on a separate computer from the Sherlock 300, allows you to detect process abnormalities early, view trends over time, and discover where your problem areas are.

Trace and Repair

Repair station software designed to work with the Sherlock 300I simplifies rework by providing details at the repair station on each rejected board. Repair station personnel can access an image of the rejected part, with its location, name and details of inspection. With the connection of a bar-code reader, board data can be brought up on screen with a quick scan of the PCB's label.

History of inspection and repairs can be search by serial number. When linked with the SPC software, repair data can be tallied, providing complete traceability.

Defect Coverage

Sherlock 300's scanning speed is independent of the number of components on the board: even densely populated boards are scanned at rates of 50 cm²/second. Fast cycle times keep the system from bottlenecking production—a 7.3" x 5.1" (185 mm x 130 mm) PCB with 253 parts can be processed in 10 seconds, including load and unload time.

Sherlock 300I is capable of detecting, with high accuracy:

Solder joint defects
Presence of solder
Insufficient solder
Excessive solder
Opens
Cold solder
Solder balling
Bridging
Poor soldering
Lifting
Fillet coverage (THT)
Wetting (THT)

Partial and full lack of solder (THT)
Blowholes (THT)
Component defects
Missing or extra components
Wrong components
Shifting
Tombstones
Reverse polarity
Damaged parts
Bent IC leads
Pin presence (THT)
Bent pins (THT)

One-year warranty + remote service support

To protect your investment, the Sherlock 300I comes with a 1-year parts warranty and access to telephone and email technical support. Manncorp technicians are employees, not contractors, with years of experience at all levels of circuit board assembly.

Remote service support software and a network adapter comes with every Sherlock 300 series machine, allowing Manncorp technicians to troubleshoot remotely over the Internet.

Sherlock 300I Specifications
Component Coverage	Down to 0201 (01005 available)
Minimum PCB Size	2" x 2" (50 mm to 50 mm)
Maximum PCB Size	13" x 9.85" (330 mm x 250 mm)
Topside Clearance	1.18" (30 mm) with standard lens, 0.98" (25 mm) with high magnification (including PCB thickness)
Bottomside Clearance	1.18" (30 mm)
Lighting System	RBG and warm-white illumination in 3-ring arrays
Camera	2.2-megapixel color camera with 2/3" CMOS sensor with Camera Link for high-speed data transmission and telecentric lens
Resolution	20 µm standard lens 14 µm high-magnification lens
Depth of Field	0.39" (10 mm) standard lens 0.24" (6 mm) high-magnification lens
Field of View	1.61" x 0.87" (41 mm x 22 mm) standard lens 1.14" x 0.59" (29 mm x 15 mm) high-magnification lens
Scanning Speed	50 cm²/sec
Motion Control	Bi-axial (X-Y) belt-driven
Repeat Position Accuracy	50 µm
Control Resolution	10 µm/pulse
Programming	Automatic CAD conversion, pre-defined customizable component library, touch-screen-based teaching
Offline Programming	Available
Repair Station Software	Available
SPC Software	Available
Computer Control	Core 4 Xeon with 4 GB RAM, Windows^® 7 Professional, 64-bit
Power Requirements	AC100V to 230V single-phase
Air Supply	0.5 Mpa, 5 l/min(ANR)
Environmental Requirements	Operation: 10 to 35° C/30-80% non-condensing RH Storage: -10 to 60° C/30-80% non-condensing RH
Weight	337 lbs (153 kg) just the unit 386 lbs (175 kg) including PC
Dimensions (L x W x H)	24" x 30" x 51" (620 x 758 x 1294 mm) (Alert light adds 11" (280 mm) in height)
Warranty	1 Year
Remote service & support	Included
